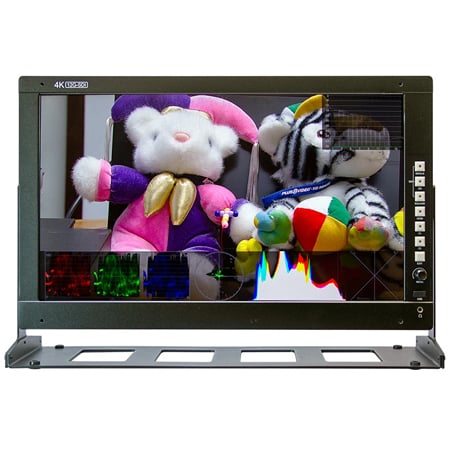

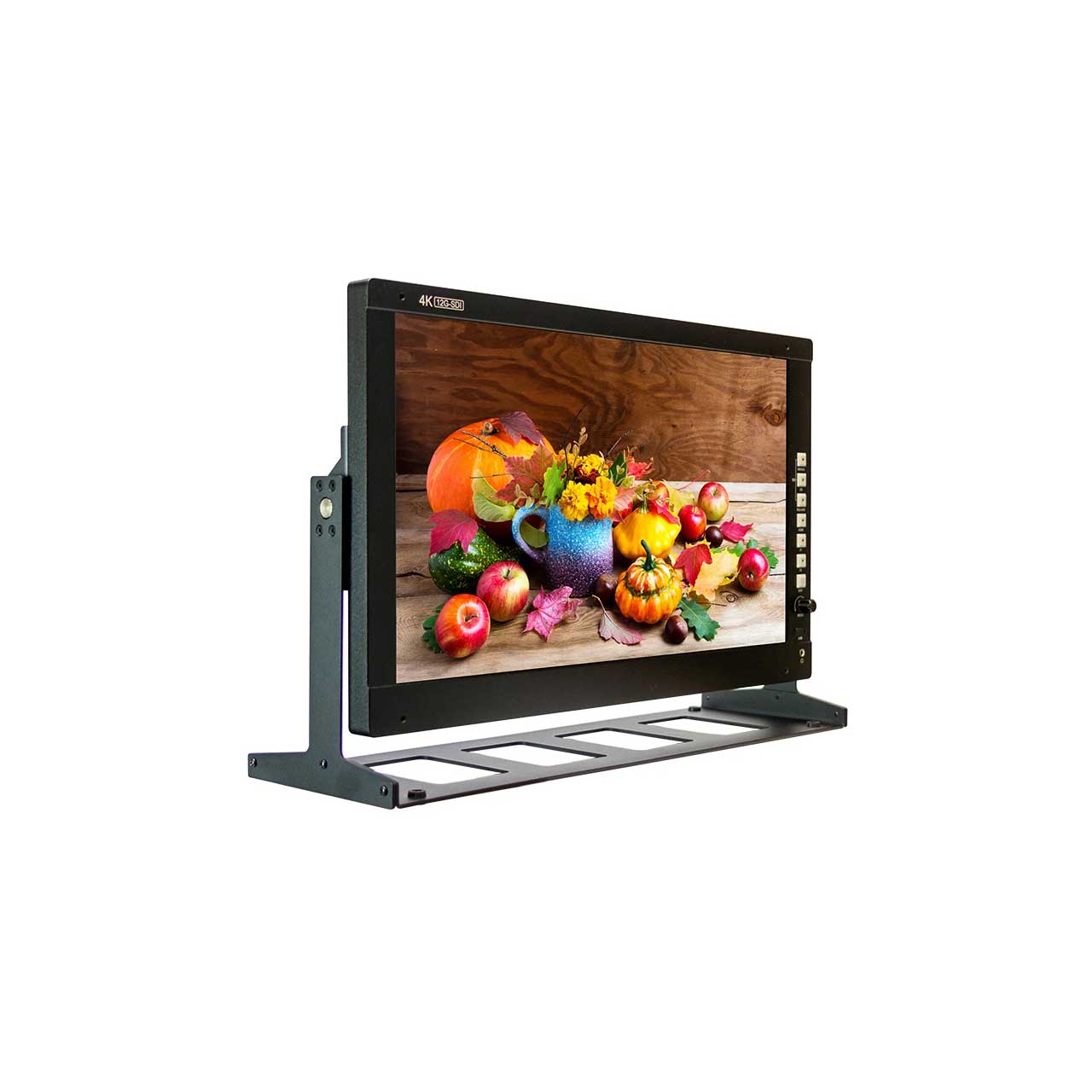

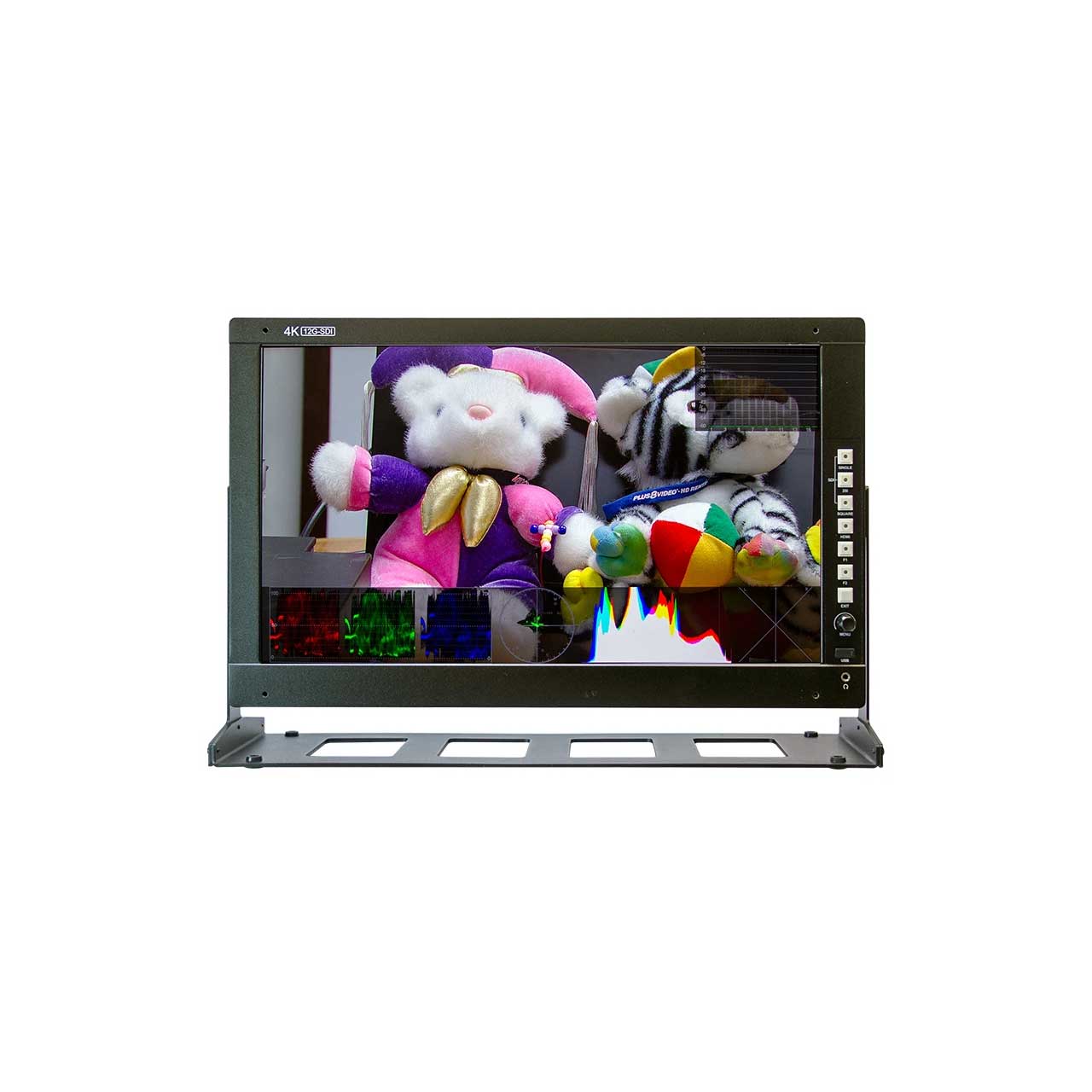

ViewZ VZ-173PM-12G 17.3 Inch 4K UHD Broadcast Monitor - 330cd/m2 - IPS 1920x1080 - 12G-SDI/Quad SDI/HDMI/HDR

VZ-173PM-12G - Overview

• Features:

  • 17.3" 4K/12G-SDI Monitor
  • All SDI signals Input - 12G-SDI/6G-SDI/3G-SDI (Level A, DL-B, DS-B) / HD-SDI/SD-SDI
  • Quad SDI/Dual SDI/Single SDI/HDMI
  • ST2084 / HLG / Time Code ( LTC / VITC )
  • Loop-Through (SDI)
  • False Color / Tally ( Red / Green / Yellow ) / Freeze
  • Audio Channel Output 2ch (out of 16ch)
  • Front User definable buttons F1 and F2
  • Picture / (User) Marker / UMD
  • Gammas 1.8, 2.0, 2.2, 2.35, 2.4, 2.6 & 2.8
  • Waveform / Vector Scope / Histogram
  • Check Field / Exposure / HV Delay / Freeze
  • False Color / Color Temperature / Color Space


• Specifications:

  • Display
  • Screen Size: 17.3"
  • Max Resolution: 3840 x 2160 @60Hz
  • Pixel Pitch: 0.1989 mm x 0.1989 mm
  • Brightness: 300 cd/m²(Typical)
  • Contrast Ratio: 1200 : 1
  • Aspect Ratio: 16 : 9
  • Viewing Angle (H/V): 170°/170°
  • Display Color: 1.07 B
  • HDR: ST2084 300/1000/10000/HLG
  • Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or Use
  • LUT (Look Up Table): Support (3D LUT - .cube Format)
  • Technology: Calibration to Rec.709 with Optional Calibration Unit

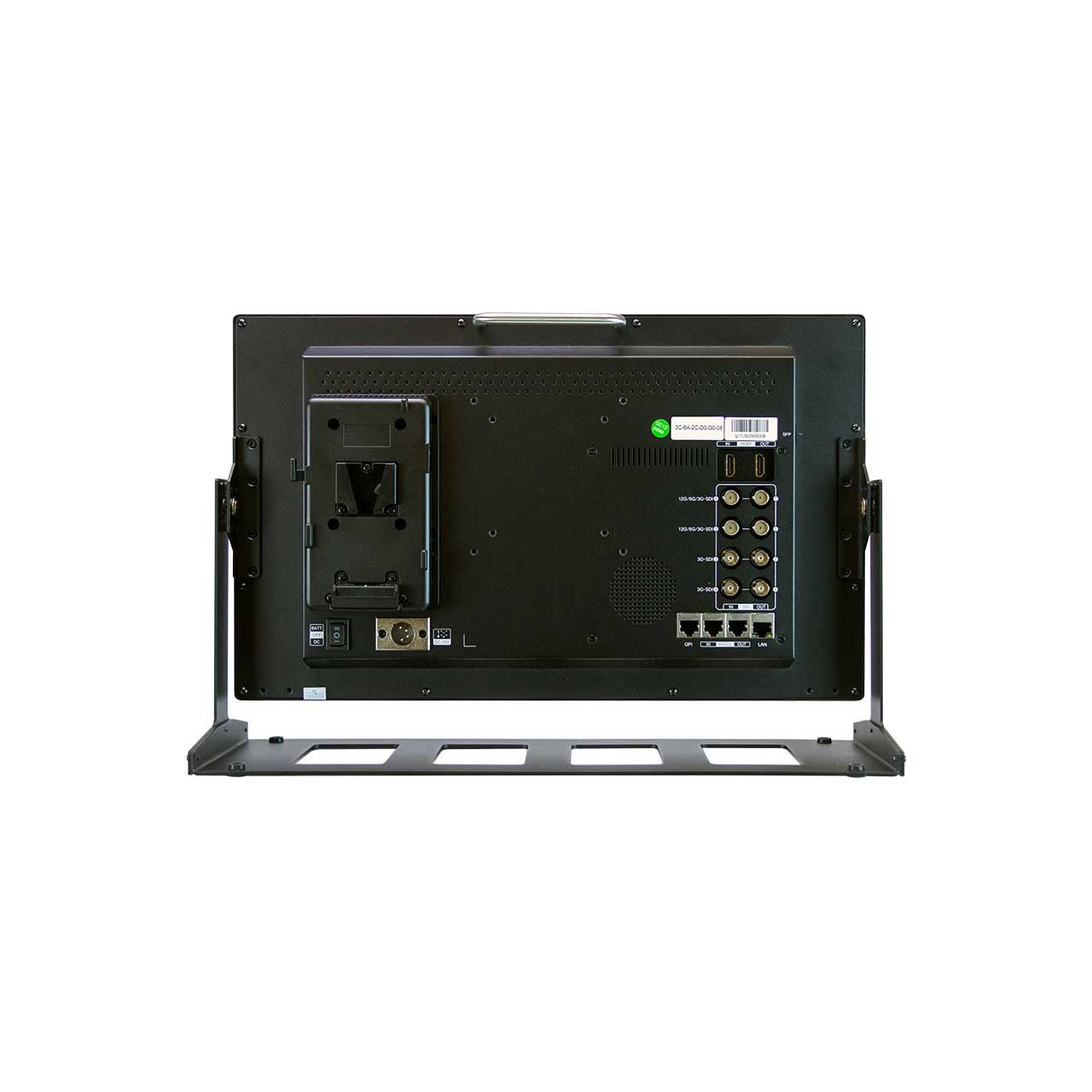

    Interface
  • 12G-SDI In / Out: 2 / 2 (Loopthrough)
  • 3G-SDI In / Out: 2 / 2 (Loopthrough)
  • HDMI In / Out: 1 / 1
  • SFP In: 1 x 12G SFP+ ( Fiber Module for Option)
  • RJ45 In: 1
  • RS422 In / Out: 1 / 1 (Remote Control)
  • GPI In: 1 (Remote Control)
  • USB In: 1 (Remote Control)

    Audio
  • Built in speaker: 1W x 2
  • SDI: 16ch 48kHz 24 bit
  • HDMI: 8ch 24 bit
  • Ear Jack: 3.5 mm

    Dimensions & Weight
  • Outline Dimension (W x H x D): 17.08 x 10.35 x 2.38"
  • Net Weight: 7.05 lbs

    Input Format
  • 12G-SDI (YCbCr 4:2:2): 3840x2160/4096x2160 (47.95/48/50/59.94/60p)
  • 12G-SDI (YCbCr 4:4:4): 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
  • DL 6G (YCbCr 4:2:2): 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
  • DL 6G (YCbCr 4:4:4): 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
  • 6G-SDI (YCbCr 4:2:2): 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
  • 6G-SDI (YCbCr 4:4:4): 1920p/2048x1080 (47.95/48/50/59.94/60p)
  • 2SI-3G (YCbCr 4:2:2): 3840x2160/4096x2160 (47.95/48/50/59.94/60p)
  • 2SI-3G (YCbCr 4:4:4): 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
  • SQ-HD,2SI DL-3G, SQ DL-3G: 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
  • SQ-3G (YCbCr 4:2:2): 3840x2160/4096x2160 (47.95/48/50/59.94/60p)
  • SQ-3G (YCbCr 4:4:4): 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
  • DL 3G-SDI-Level B (YCbCr 4:2:2): 1080p / 2048x1080 (47.95p/48p/50p/59.94p/60p) 720p(23.98/24/25/29.97/30/50/59.94/60p)
  • DL 3G-SDI-Level B (YCbCr 4:4:4): 1080p (23.98p/23.98sf/24p/24sf/25p/25sf/29.97p//29.97sf/30p/30sf/50i/59.94i/60i)
  • 3G-SDI-Level A (YCbCr 4:2:2): 1080p / 2048x1080 (47.95p/48p/50p/59.94p/60p)
  • 3G-SDI-Level A (YCbCr 4:4:4): 1080p / 2048x1080 (23.98p/23.98sf/24p/24sf/25p/25sf/29.97p/29.97sf/30p/30sf) 720p(23.98p/24p/25p/29.97p/30p/50p/59.94p/60p)
  • HD: 2048x1080/1080P/720P
  • SD: 525i/625i

    General Summary
  • Power - Electrical Ratings: XLR-4p (DC 12~24V), 15V
  • Power - Consumption: ⋚ 26.5 W
  • Warranty: 2 Years
  • Operating Temperature: 32 ~ 122°F / 0 ~ 50°C
  • Operating Humidity: 90% RH for 240 hrs, TA=+ 140°F (60°C)
  • Storage Temperature: -4 ~ 140°F / -20 ~ 60°C
  • Battery Plate: V-mount / Anton Bauer Mount


• Item Includes:

  • 1x 15V DC Adapter
  • 1x Manual
  • 1x VESA Plate
  • 1x Desktop Stand Set
  • 1x Gimbal Bracket
  • 1x USB Disk

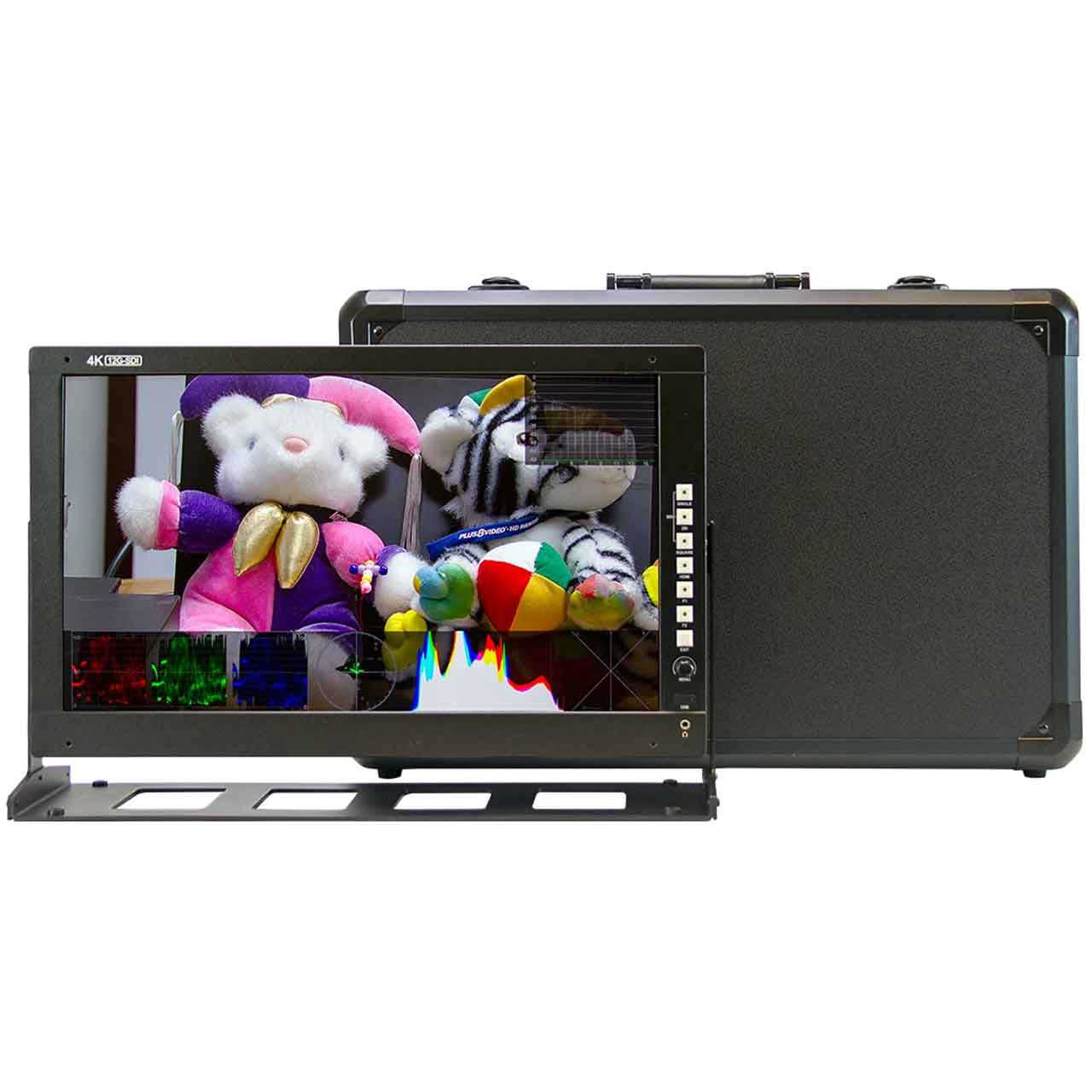

  • 1x Carrying Case

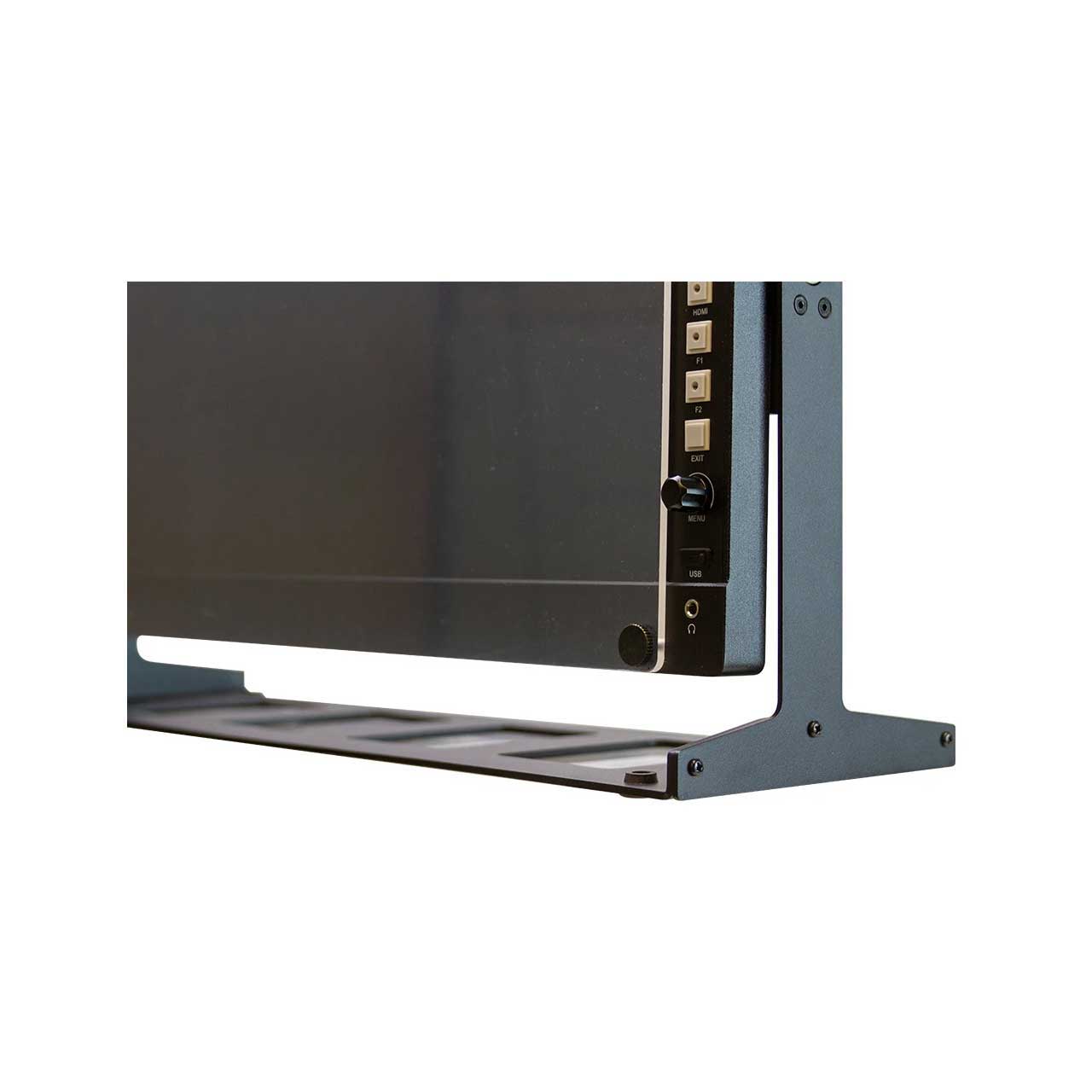

  • 1x Acrylic Screen Protector
  • 1x Battery Plate (V-Mount)


• Warranty:

  • 2 Years
