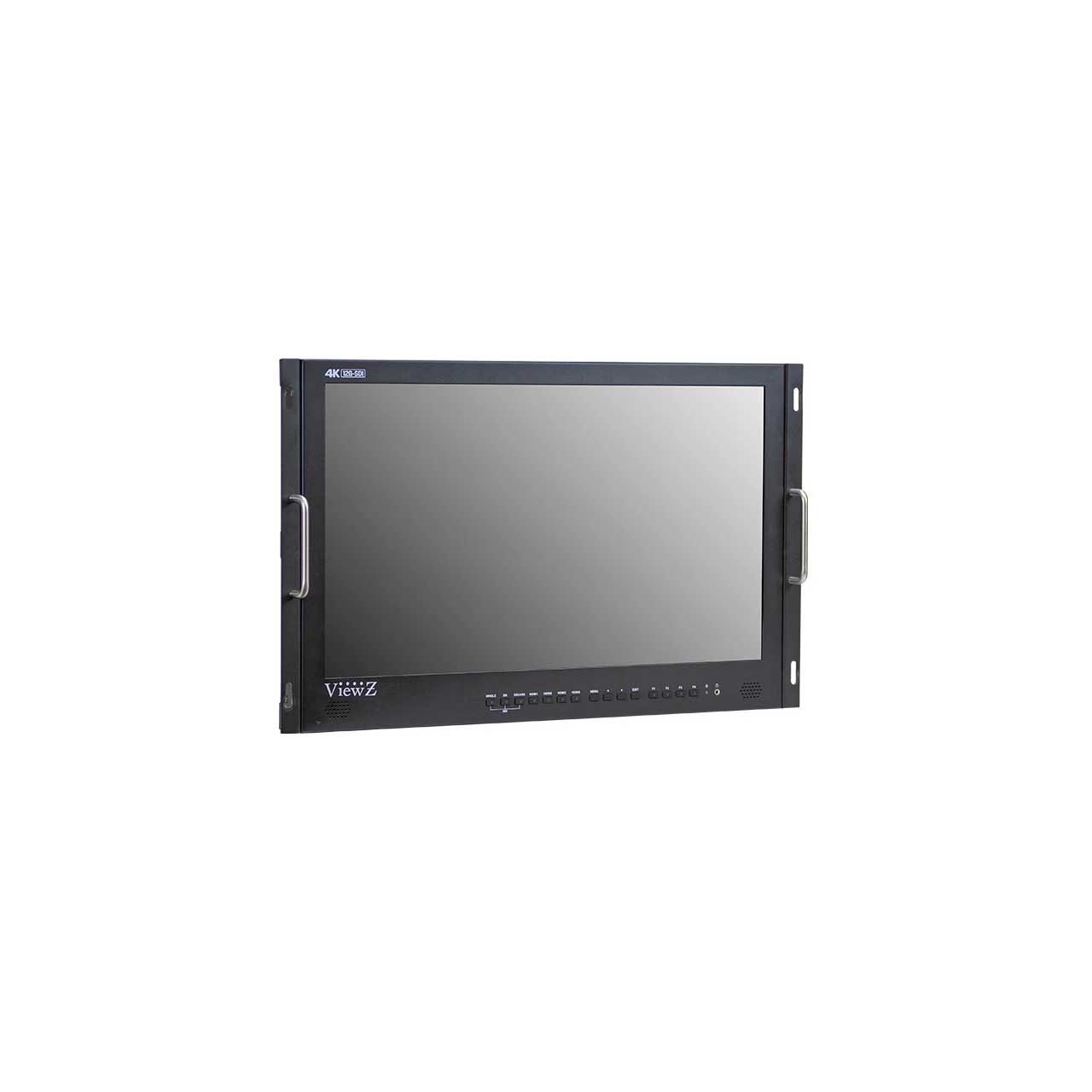

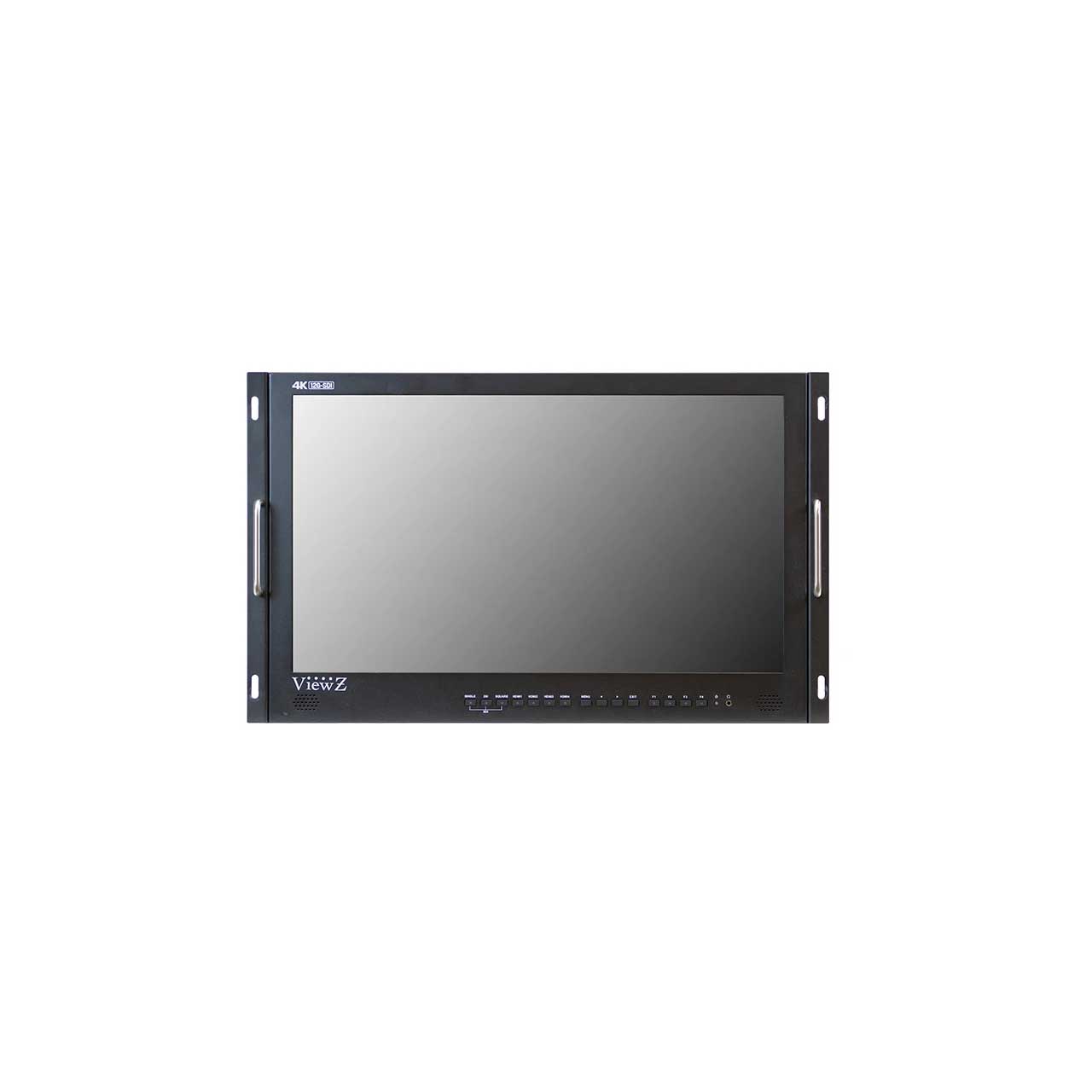

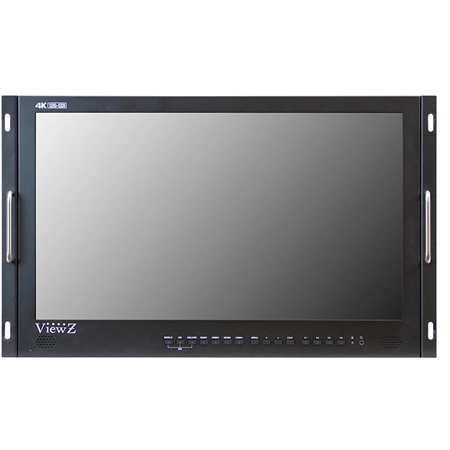

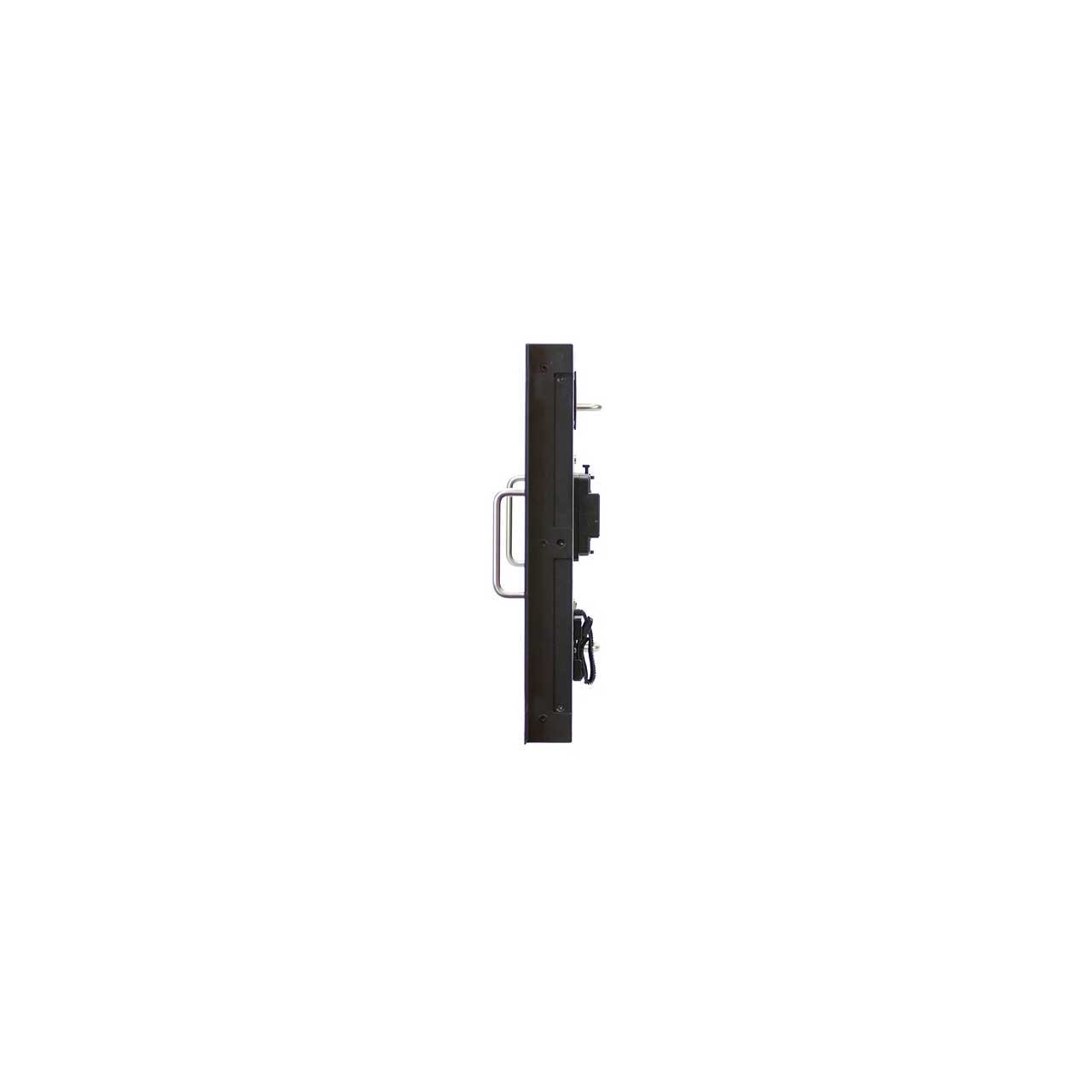

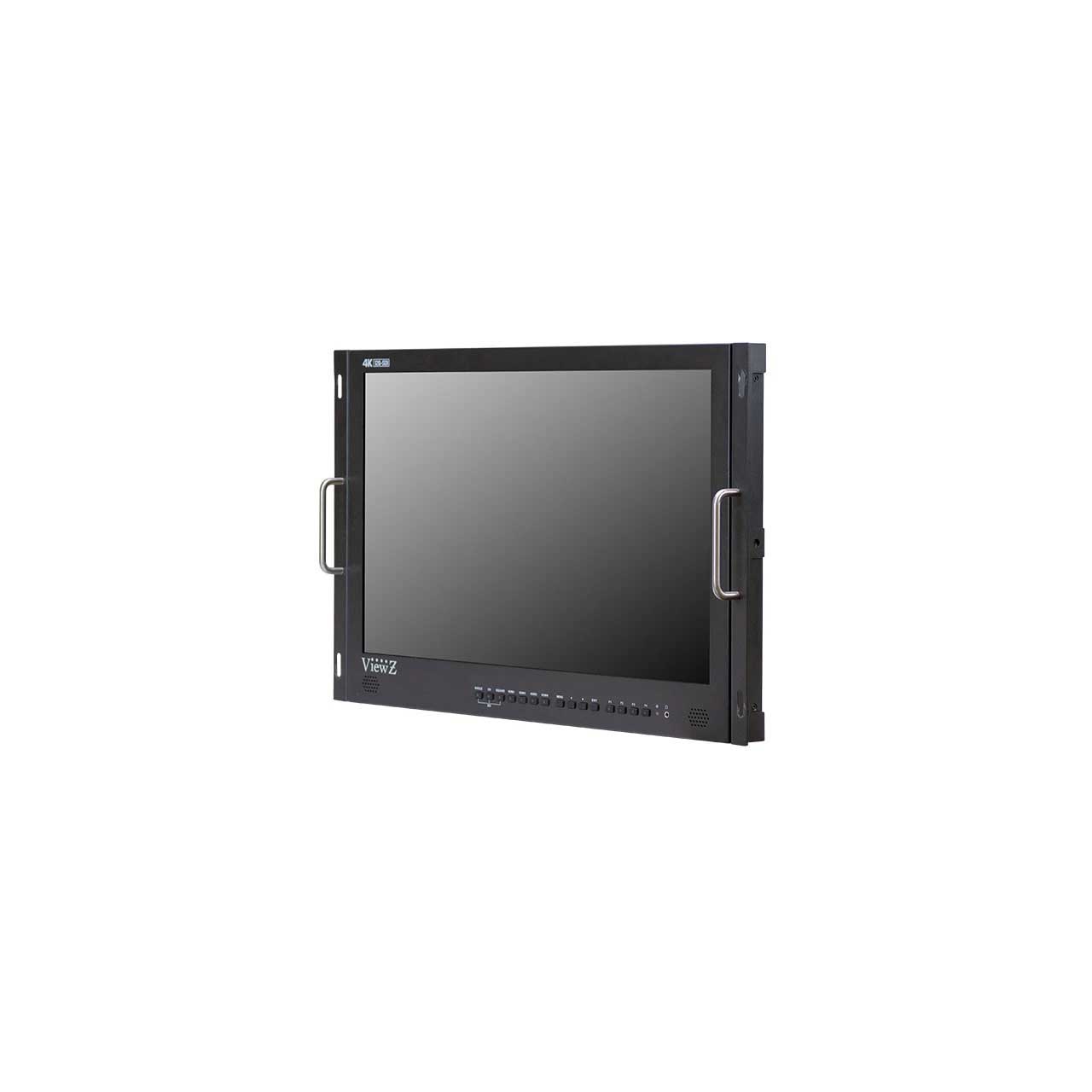

ViewZ VZ-280PM-12G 28 Inch 4K UHD Broadcast Monitor - 300cd/m2 - IPS 3840x2160 - 12G-SDI/Quad SDI/HDMI

VZ-280PM-12G - Overview

• Features:

  • 28" 4K/12G-SDI Monitor
  • All SDI signals Input - 12G-SDI/6G-SDI/3G-SDI (Level A, DL-B, DS-B) / HD-SDI/SD-SDI
  • Quad SDI/Dual SDI/Single SDI/HDMI
  • Loop-Through (SDI)
  • False Color / Tally (D-Sub 9pin) / Freeze
  • Audio Channel Output 2ch (out of 16ch)
  • Front User definable button F1 to F4
  • Display Rotate / Mirror / Various Markers / Peaking


• Specifications:

  • Display
  • Screen Size: 28"
  • Max Resolution: 3840 x 2160 @ 60Hz
  • Pixel Pitch: 0.16mm x 0.16mm
  • Brightness: 300 cd/m² (Typical)
  • Contrast Ratio: 1000:1
  • Aspect Ratio: 16:9
  • Viewing Angle (H/V): 178°/178°
  • Display Color: 16.7M

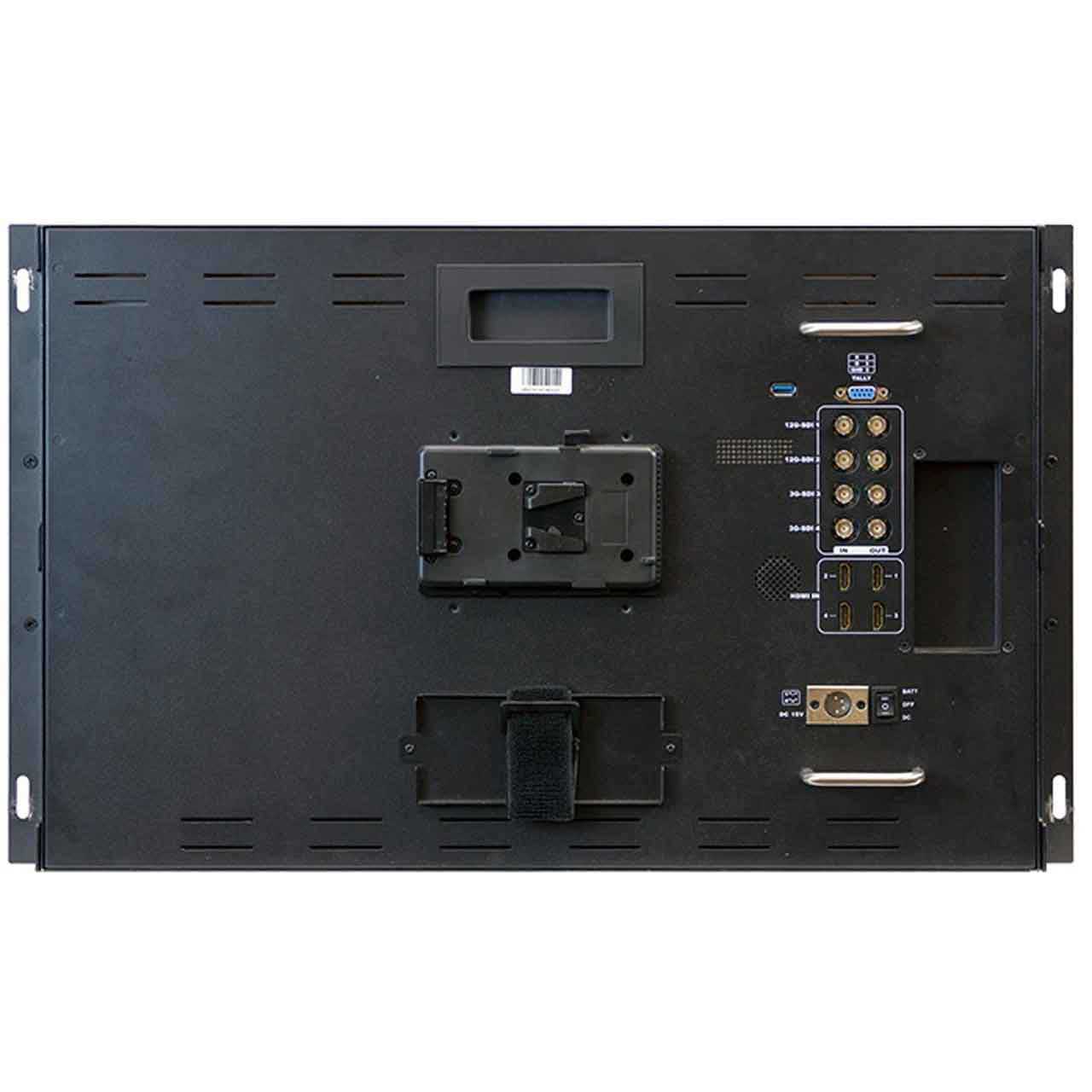

    Interface
  • 12G-SDI In/Out: 2/2
  • 3G-SDI In/Out: 2/2
  • HDMI In: 4
  • Tally: 1
  • USB In: 1

    Audio
  • Built in speaker: 1W x 2

    Dimensions & Weight
  • Outline Dimensions (WxHxD) - without Case: 26.37" x 16.73" x 1.7" (670mm x 425mm x 45mm)
  • Outline Dimensions (WxHxD) - with Case: 29.96" x 18.66" x 6.81" (761mm x 474mm x 173mm)
  • Net Weight: 20.72lbs (9.4kg)
  • Gross (with case) Weight: 46.29lbs (21kg)

    Input Format
  • 12G-SDI (YCbCr 4:2:2): 3840x2160/4096x2160 (47.95/48/50/59.94/60p)
  • 12G-SDI (YCbCr 4:4:4): 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
  • DL 6G (YCbCr 4:2:2): 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
  • DL 6G (YCbCr 4:4:4): 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
  • 6G-SDI (YCbCr 4:2:2): 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
  • 6G-SDI (YCbCr 4:4:4): 1920p/2048x1080 (47.95/48/50/59.94/60p)
  • 2SI-3G (YCbCr 4:2:2): 3840x2160/4096x2160 (47.95/48/50/59.94/60p)
  • 2SI-3G (YCbCr 4:4:4): 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
  • SQ-HD,2SI DL-3G, SQ DL-3G: 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
  • SQ-3G (YCbCr 4:2:2): 3840x2160/4096x2160 (47.95/48/50/59.94/60p)
  • SQ-3G (YCbCr 4:4:4): 3840x2160/4096x2160 (23.98/24/25/29.97/30p)
  • DL 3G-SDI-Level B (YCbCr 4:2:2): 1080p / 2048x1080 (47.95p/48p/50p/59.94p/60p), 720p(23.98/24/25/29.97/30/50/59.94/60p)
  • DL 3G-SDI-Level B (YCbCr 4:4:4): 1080p (23.98p/23.98sf/24p/24sf/25p/25sf/29.97p//29.97sf/30p/30sf/50i/59.94i/60i)
  • 3G-SDI-Level A (YCbCr 4:2:2): 1080p / 2048x1080 (47.95p/48p/50p/59.94p/60p)
  • 3G-SDI-Level A (YCbCr 4:4:4): 1080p / 2048x1080 (23.98p/23.98sf/24p/24sf/25p/25sf/29.97p/29.97sf/30p/30sf), 720p(23.98p/24p/25p/29.97p/30p/50p/59.94p/60p)
  • HD: 2048x1080/1080P/720P
  • SD: 525i/625i

    General Summary
  • Power - Electrical Ratings: XLR-4p (DC 12V - 24V), 4.1A (15V)
  • Power - Consumption: = 61.5W
  • Operating Temperature: 32°F - 140°F (0°C - 60°C)
  • Operating Humidity: 90% RH for 240 hrs, TA=+ 140°F (60°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Battery Plate: V-mount/Anton Bauer mount


• Item Includes:

  • 1x 15V DC Adapter
  • 1x Manual
  • 1x VESA Plate
  • 1x Desktop Stand Set
  • 1x Gimbal Bracket
  • 1x USB Disk
  • 1x Carrying Case
  • 1x Acrylic Screen Protector
  • 1x Battery Plate (V-Mount)


• Warranty:

  • 2 Years
