VIZRT TriCaster TC1FLEX TC1 2RU 4x4 HD/SD-SDI Live Video Production System and Flex Control Panel Bundle Promo

ITEM #: VZT-TC1FLEX MFG #: TC1FLEX

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$25,490.00

After Savings:

$19,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Vizrt bundle promotion instant savings!Get instant savings with your purchase of select Vizrt TRicaster and Flex control panel bundles! Get yours today through Markertek while this sale lasts!
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


TC1FLEX - Overview

Complete Production. Like Never Before.

The most complete production system available today, TriCaster® TC1 represents the continued innovation of the iconic product that defined an industry. Designed with the way you work in mind and equipped with hundreds of advanced production capabilities, it has everything you need to do video your way today-and tomorrow.

Live Link for TriCaster®
Live Link allows users to render web pages directly into the TriCaster and pull any web page elements into production without the need for a 3rd party application. From graphics or images on a web page to videos from your organization's internal training platforms - Live Link offers the ultimate in production agility and freedom.

Feel Invincible.
When you're confident in what you're doing, it shows. With TriCaster TC1, you have the proven workflows you know and the future-proof production you covet. The bottom line is being able to do production the way you need to right now and the way you want to when you are ready.

Real 4K Ultra HD. No Compromise.
Present your audience with an immersive viewing experience defined by amazing clarity and incredible detail. Produce programs, performances, events and live sports in true 4K UHD (Ultra High Definition) resolution with support for native 2160p video at 60 frames per second. Unlike other products that promise 4K UHD, only TriCaster TC1 allows you to switch, stream and record 4K UHD video without compromising the frame rate or the number of available inputs.

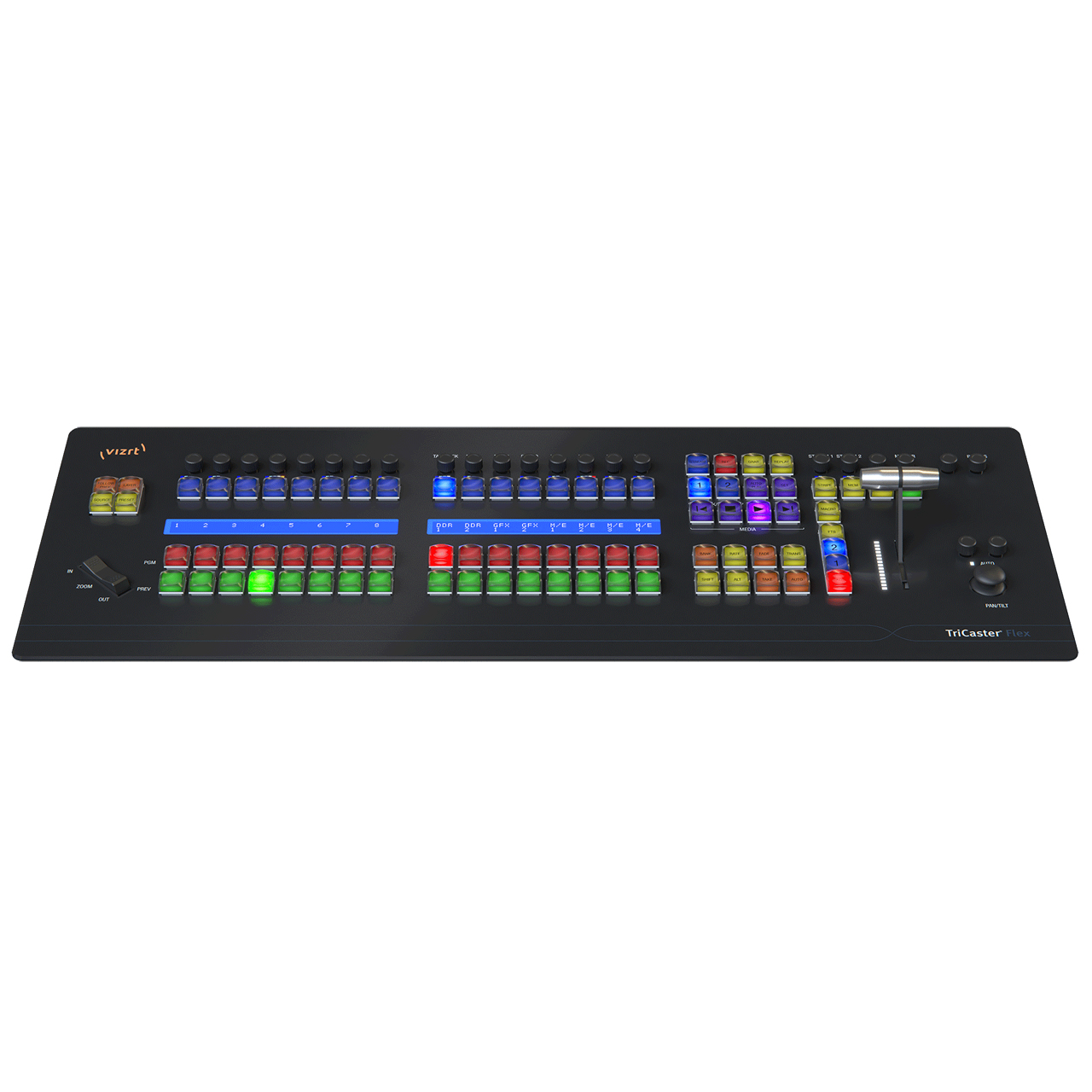

Flex Control Panel
The included Flex Control Panel is the best way to harness the power of TriCasters anywhere. Operators can take direct control of PTZ devices, audio connections, audio and video mixing, and talkback - all connected with NDI®.

VIZRT Flex harnesses the power of the most complete production system on the planet in one control surface. For the first time VIZRT introduces a Control Surface that offers video & audio mixing, PTZ control, audio I/O, and talkback.

Better Connectivity
The Flex Control Panel is the first of its kind to simply connect to a network with NDI and take instant control of any video switcher on that network. In addition - the Flex is built to work with any modern TriCaster. As at home controlling the mighty TriCaster 2 Elite as it is mastering the TriCaster Mini X.

Better Control
Flex allows audio & video mixing, PTZ Control and talkback, directly in one unit; significantly reducing the margin for error for operators, offering greater precision and control than ever before.

  • Features:

    • Switching, streaming, recording in HD, 3G, and 4K UHD 60p
    • Native software-driven processing for maximum production power and flexibility

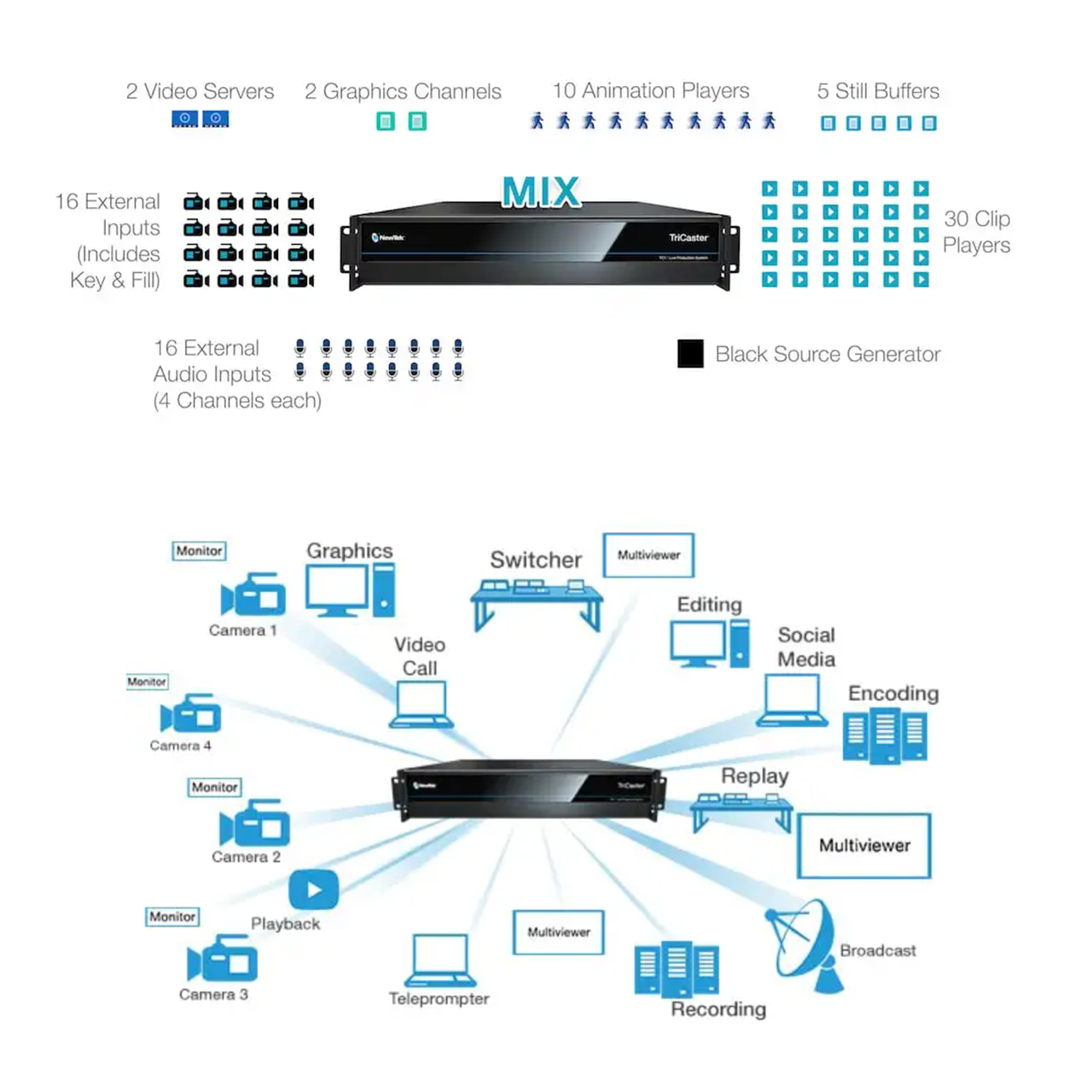

    • Comprehensive camera coverage and compelling multi-source video mixing, including 16 external inputs and 4 M/Es
    • Integrated video servers allow playback, replay, and live editing without any additional hardware
    • Dual-channel live streaming to Facebook Live, Microsoftr Azurer, Periscope, Twitch, YouTubeT Live
    • Real-time social media sharing to Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube

  • Specifications:

    • Video Input: 16x 4K UHD up to 60fps
    • Network Video Input: 16x IP video inputs via NDI
    • SDI Video Input 4x 3G/HD/SD-SDI Frame Rates:
      - 1080p: 59.94, 50, 29.97, 25
      - 1080i: 59.94, 50
      - 720p: 59.94, 50, 29.97, 25
      - 576i 50
      - 480i 59.94
    • PTZ: Up to 16 simultaneous PTZ robotic cameras via RS232, RS422 and IP
    • Video Output: Up to 4 independent video mix output with simultaneous delivery via IP and SDI
    • Network Video Output: IP video output via NDI
    • SDI Video Output: 4x 3G/HD/SD-SDI
    • Stream Output: 3x resolution-independent streaming video outputs
    • Multiviewer Output:
      - 3x multiviewer outputs supporting standard display resolutions
      - 1x DisplayPort
      - 2x HDMI
    • Mix/Effect Buses (M/E):
      - 4x M/E buses supporting video re-entry
      - 1x Mix/Effect channel per bus with support for up to 4 sources
      - 4x KEY layers per bus
      - 9x memory slots per bus
      - 1x PREVIZ configuration and preview bus
    • Media:
      - 5x media players
      - 15x media buffers
      - 30x clip players
    • Keyers:
      - 16x input keyers
      - 4x media player keyers
      - 4x M/E keyers
      - 1x PREVIZ keyer
      - 15x buffer keyers
    • Recording:
      - 16x configurable video recording channels
      - 16x NDI recordings
      - 4x QuickTime archival video recorders
      - 3x H.264 distribution video recorders
      - 1x MP3 audio recorder
    • Storage: 2x 3TB Media Drive
    • Local Audio Input:
      - 4x SDI embedded
      - 1x Balanced XLR
      - 3x Balanced 1/4"
    • Local Audio Output:
      - 4x SDI embedded
      - 1x Balanced XLR
      - 1x Balanced 1/4"
      - 1x Stereo 1/4"
    • Network Audio:
      - Native support for network audio input and output via NDI
      - Embedded audio supported for all NDI input and output video signals
      - Integrated support for Dante networking protocol from Audinate
    • Supported Media File Formats:
      - Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM
      - Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP
      - Audio: AIFF, MP3, WAV, and more
    • Processing:
      - Video: Floating Point YCbCr +A 4:4:4:4
      - Audio: Floating Point, 96 kHz
    • A/V Standards:
      - 4K UHD video conforms to SMPTE 2036
      - 3G-SDI video conforms to SMPTE 424M (Level A)
      - HD-SDI video conforms to SMPTE 292M
      - SD video conforms to SMPTE 259M and ITU-R BT.656
      - Analog audio levels conform to SMPTE RP-155
    • Tally: HD15 GPI connector, network tally via NDI, and Blackmagic Design SDI tally standard
    • Genlock: SD or HD reference signals
    • GPI: Supports GPI signals via JLCooper Electronics eBox GPI interface
    • MIDI: Support for standard MIDI protocol enabling third-party device control
    • System Drive: 250GB SSD
    • NIC: 2x1 Gigabit NIC
    • USB:
      - Front: 2x USB 3.0 Type A
      - Rear: 2x USB 2.0 Type A, 5x USB 3.2 Gen2 Type A, 1x USB 3.2 Gen2x2 TypeC

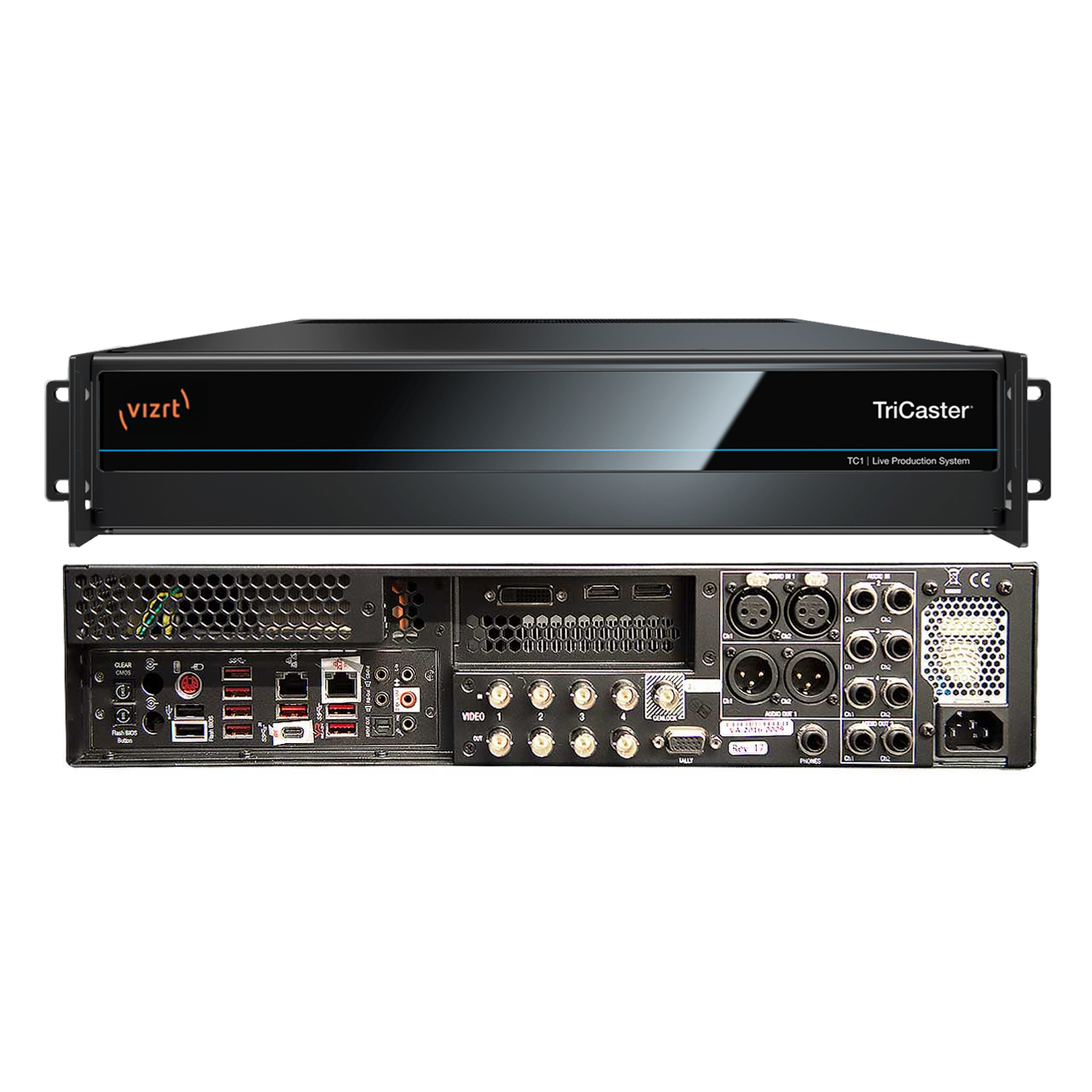

    • Physical:
      - 2RU chassis with 500W PSU and multi-tiered hardware and software fail-safe
      - 19" x 3.5" x 19.57" with rack ears attached

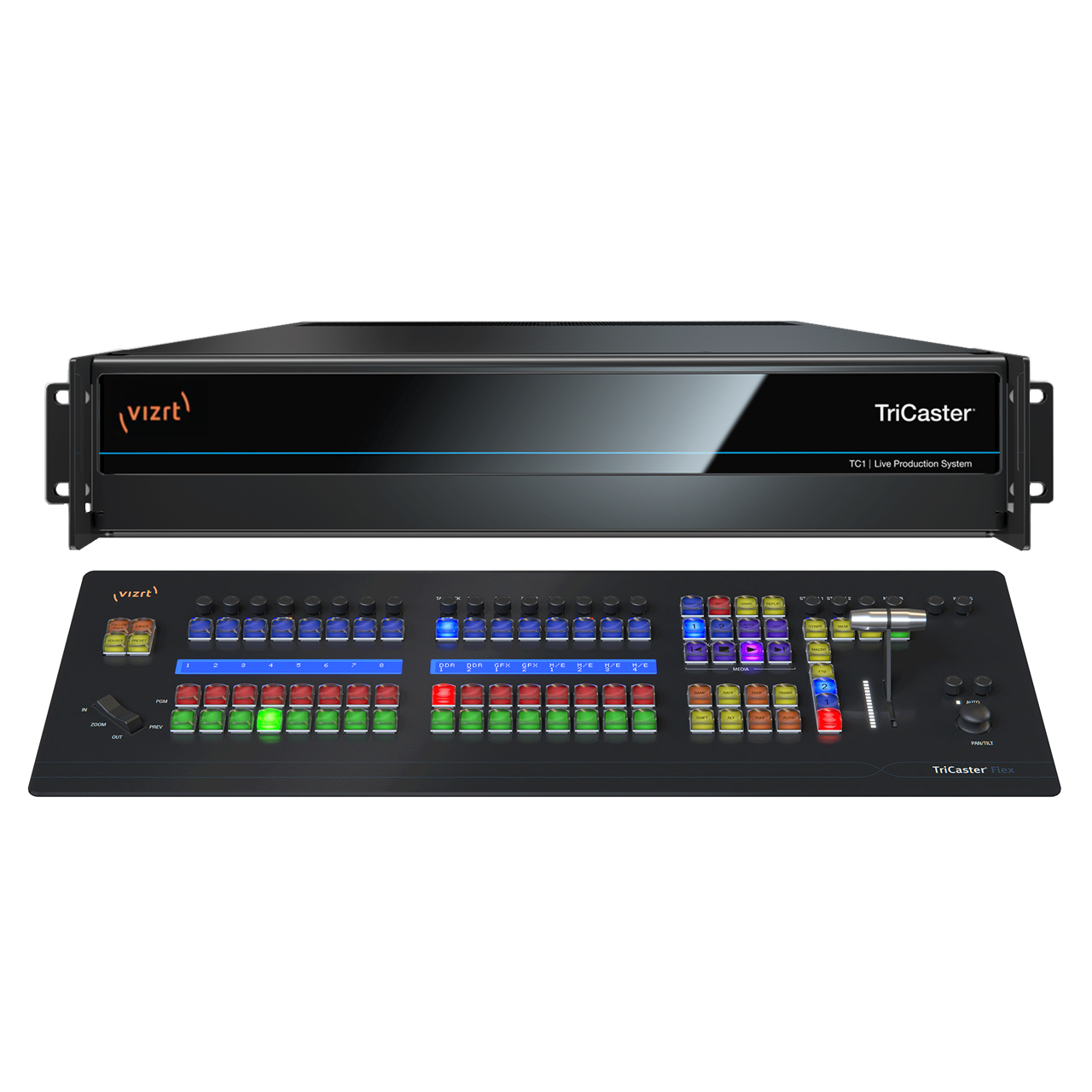

  • Item Includes:

    • 1x TriCaster TC1
    • 1x Flex Control Panel
