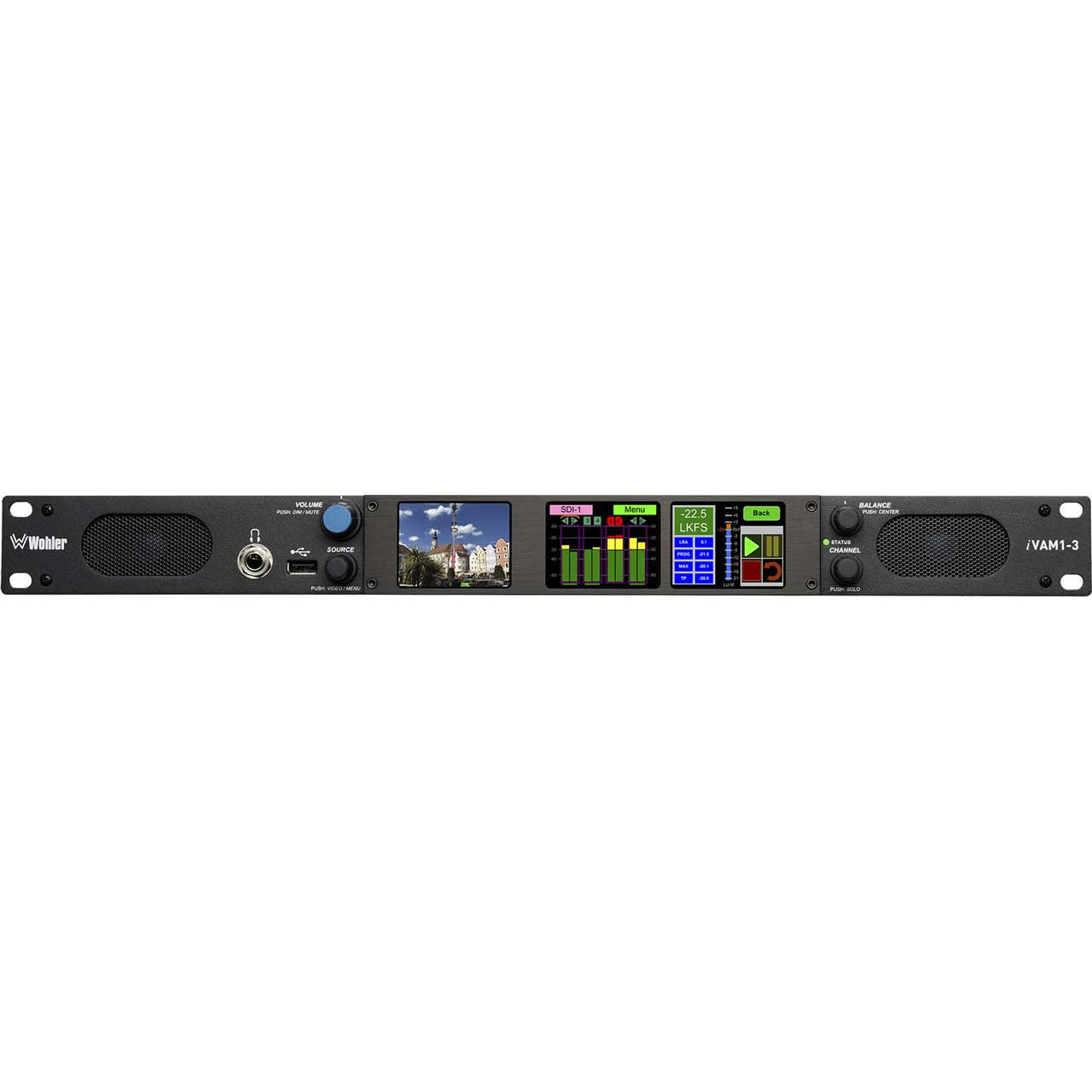

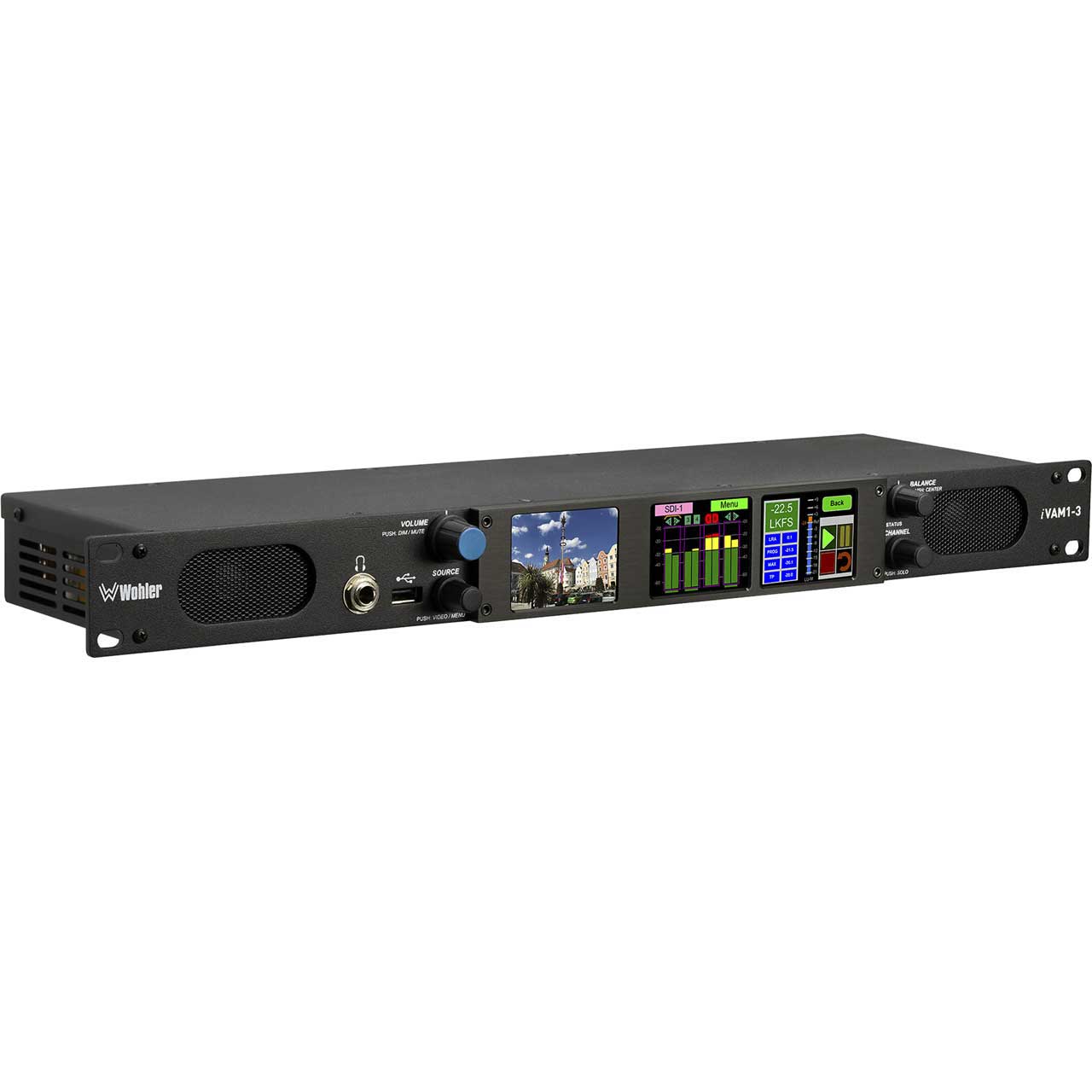

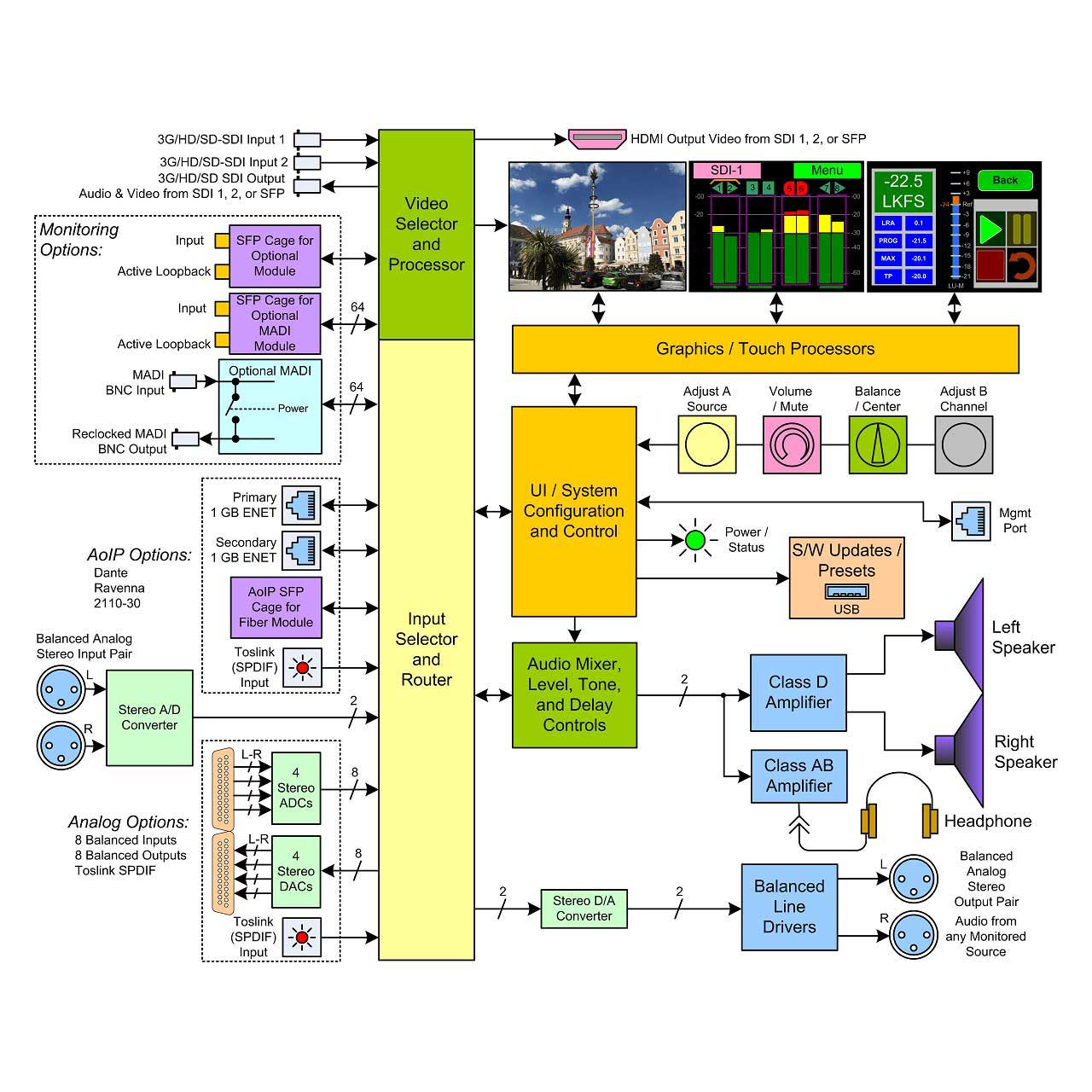

Wohler IVAM1-3 1RU Triple Screen 16 Channel Dual Input 3G/HD/SD-SDI Audio and Video Monitor with Touch Screen Control

8121-0100 - Overview

16 channel, single screen, 3G-SDI & Analog Audio & Video Monitor with options to license additional input signals.

• Features:

  • Video and audio monitoring (up to 16 channels) from multiple sources
  • Up to 64 presets
  • 2 x 3G-SDI Inputs on BNC; 1 x 3G-SDI Output of selected video source on BNC + 1 pair Analog in/out on XLR
  • Optional Output routing enables the flexibility to route input signals to various outputs
  • Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out), MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP.
  • HDMI Output of the monitored video source included
  • Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
  • Option cards for AoIP or an additional 8 channels of analog inputs and outputs
  • Software upgradeable via USB or network
  • APIs for remote management


• Specifications:

  • Audio Specifications
  • Speakers: Yes
  • Power Output: RMS Each Side: 5W Continuous/12W Peak
  • Peak Acoustic Output @ 2 feet: 90 dB SPL @ 2ft
  • AES Input Sampling Rate: 48 kHZ
  • Analog Input Impedance: 40k Ohms balanced
  • Frequency Response: 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
  • Hum and Noise: Better than -68 dB below full output
  • Meter Dynamics: Simultaneous VU & PPM

    Video Specifications:
  • Meter Scale: Simultaneous VU & PPM
  • Diagonal Display Size: 2.4" (60 mm)
  • Display Resolution (HxV): 320Hx240V
  • Display Type: Capacitive LCD Touchscreen x 3
  • Number of screens: 3 (1 Video/Graphics, 2 Graphics Only)

    Interfacing
  • Front Panel Controls: Volume Encoder; Balance Encoder; Source Select Encoder; Channel Select Encoder; Touch-capable screen
  • Remote User Interface: Yes
  • Touchscreen: Yes
  • Headphone Jack: Yes
  • Ethernet GbE: Yes
  • USB Port: Yes

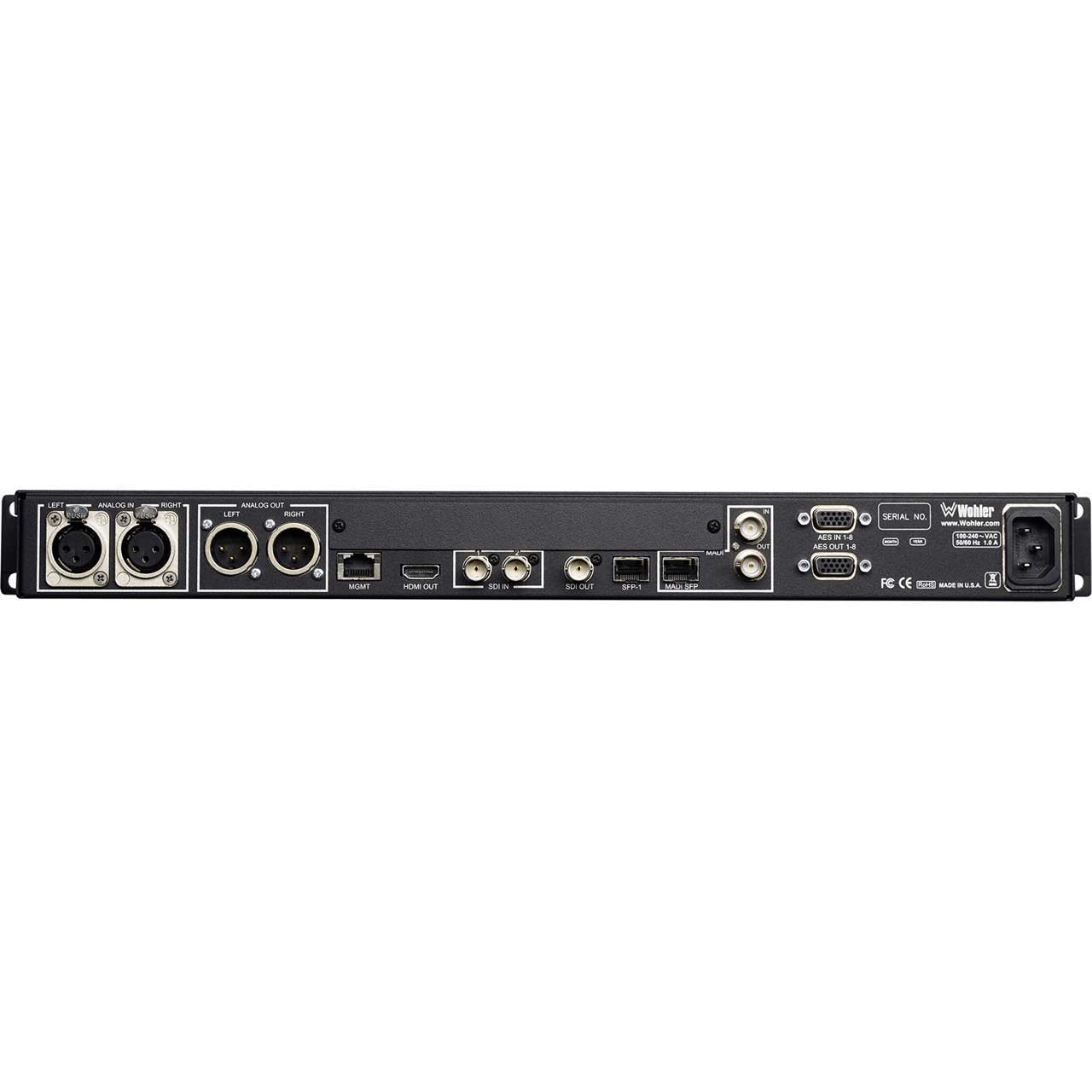

    Signal I/O
  • SDI Inputs: 2 x 3G/HD/SD-SDI inputs on BNC
  • SDI Outputs: 1 x Selected Audio/Video source on BNC
  • SMPTE 2110 Input: SFP-2110 (829086): SMTPE 2110 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key. Use emSET to configure SFP.
  • SMPTE 2022 Input: SFP-2022 (829088): SMPTE 2022-6 receiver, Multi-Mode 850NM, LC (fiber) Connectors; SFP module with software activation key. Use emSET to configure SFP.
  • AES3 Input: OPT-AES (829080): Enables decoding and monitoring of 4 AES input pairs on HD-15
  • AES3 Output: OPT-AES (829080): 4 AES output pairs on HD-15 from any source
  • Analog Input: 2 Analog inputs on XLR
  • Analog Output: 2 on XLR of mix to speakers
  • MADI Input: Software Processing Options: OPT-MADI (829092) Enables decoding and monitoring of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
  • MADI Output: Software Processing Options: OPT-MADI (829092) Enables loop-through output of 1 x MADI64 input on BNC; SFP-MMMF (829081) MADI fiber transceiver, Multimode, LC Connectors; SFP-MSMF (829082) MADI fiber transceiver, Singlemode, LC Connectors
  • Fiber Input: SFP-SDI-Fiber (829084): 3G/HD/SD-SDI video SFP optical input: LC (fiber) connectors; Single-Mode receiver, Medium Haul, non-MSA, no output; with software activation key
  • HDMI Output: Yes. From SDI 1, 2 or SFP

    Features
  • Viewing Angle: 160 (H) x 160 (V)
  • Level Meters: On-Screen for up to 16 Channels
  • Audio Channels (max): 16
  • Phase: Yes
  • Presets: Yes

    Physical
  • SFP Cage: Yes, 1 x SDI SFP, 1 x MADI SFP
  • Rack Height: 1RU
  • Power Consumption: 65 Watts typical
  • Power Supply: Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved.
  • Additional Options: Available API's: Get Available Presets; Get Preset Information; Get Active Preset; Apply Preset; Set Mute/Unmute Clusters; Set Solo Cluster; Set Solo Channel; Source Select
  • Dimension Width: 19.0" (483mm)
  • Dimension Height: 1.75" (45mm)
  • Dimension Depth: 5.5" (140mm)
  • Net Weight: 7.5 lbs. (3.4 kg)
  • Shipping Dimensions: 23 x 12 x 6 in (LxWxH)


• Item Includes:

  • 1x Wohler IVAM1-3 1RU Triple Screen 16 Channel Dual Input 3G/HD/SD-SDI Audio and Video Monitor with Touch Screen Control
