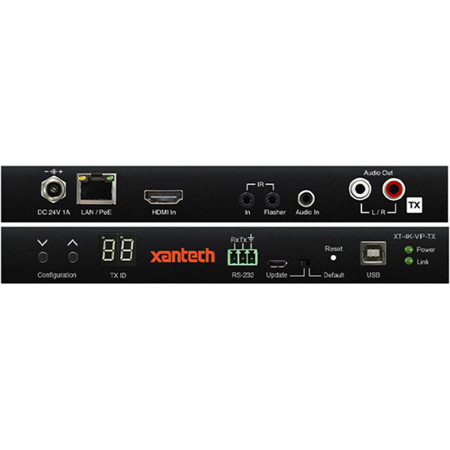

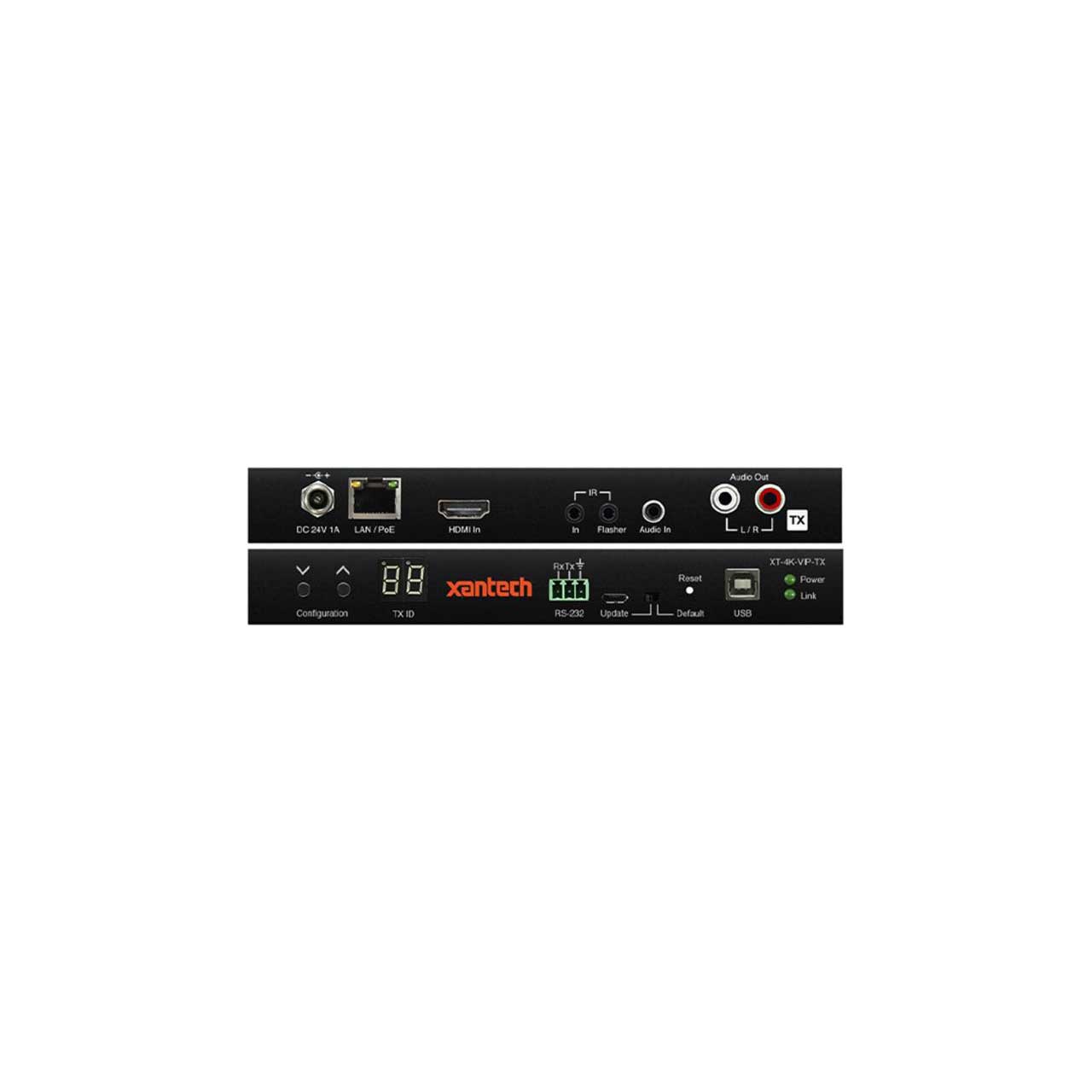

Xantech XT-4K-VIP-TX 4K Video Over IP Transmitter with Audio Breakout


free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    XT-4K-VIP-TX - Overview

    4K Video Over IP Receiver with Audio Breakout and Independent Signal Routing over 1Gb Network
    The Xantech Premium Video over IP (VIP) platform enables distribution of HDMI video over a 1Gb Network switch. The XT-4K-VIP-TX and XT-4K-VIP-RX are HDCP 2.2 compliant Transmitters and Receivers that use visually lossless compression technology to deliver HDMI, Bi-directional IR, RS-232 and USB/KVM up to lengths of 100m over standard network architecture. The XT-4K-VIP-TX/RX can be powered via PoE from a Network switch or powered locally should a switch either not be used or not support PoE. With multiple configuration options available, this Video over IP solution is ideal for both commercial and residential installations.

    • Features:

      • Advanced UHD video over 1Gb Network
      • Virtually unlimited system size
      • Connect to any supported Layer 2 / Layer 3 Managed Switch for HDMI video distribution
      • Supports up to 4K HDR UHD video (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz4:2:0)
      • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
      • Video up-scaling and down-scaling
      • Features 4 operational modes:
        Matrix distribution (Requires 1Gb network switch)
        Video wall (Requires 1Gb network switch)
        One-to-one HDMI extender (No network switch required)
        One-to-many HDMI splitter (No network switch required)
      • HDCP 2.2 Compliant
      • Advanced EDID management
      • Analog L/R audio embedding and de-embedding on XT-4K-VIP-TX Transmitter
      • Analog L/R audio breakout on XT-4K-VIP-RX Receiver
      • Bi-directional RS-232 and IR pass through
      • USB 2.0 connectivity (backwards compatible with USB 1.1) for KVM and other USB devices
      • PoE (Power over Ethernet) to power Xantech products from PoE switch
      • Local 24V 1A power input should network switch not support PoE, sold separately
      • Simple configuration via web-GUI through the XT-4K-VIP-ACM
      • HDMI audio embedding supports up to 192 Khz, XT-4K-VIP-RX analog audio output supports up to 96Khz only
      • RS-232, IR and Telnet/IP integration for control of the VoIP system using Xantech XT-4K-VIP-ACM
    • Specifications:

      • Shipping Info
      • Length: 10 (Inches)
      • Width: 6.4 (Inches)
      • Height: 2.1 (Inches)
      • Weight: 1.75 (Lbs)

        Other Specifications
      • Video output: 1 x HDMI Type A, female
      • Audio input: 1 x 3.5mm L/R analog audio
      • Audio output: 2 x RCA L/R analog audio
      • Video input/Ethernet port: 1 x LAN RJ45 connector
      • Video/Ethernet extension: 1 x LAN RJ45 connector (PoE 9W)
      • USB / KVM: 2 x USB, Type A
      • RS-232 serial port: 1 x 3-pin Phoenix connector
      • IR input: 1 x 3.5mm stereo jack
      • IR flasher: 1 x 3.5mm mono jack
      • Firmware update: 1 x USB Micro B
      • Accessories: Mounting kit included
      • Operating temperature: 32°F to 104°F
      • Storage temperature: -4°F to 140°F
    • GTIN:
