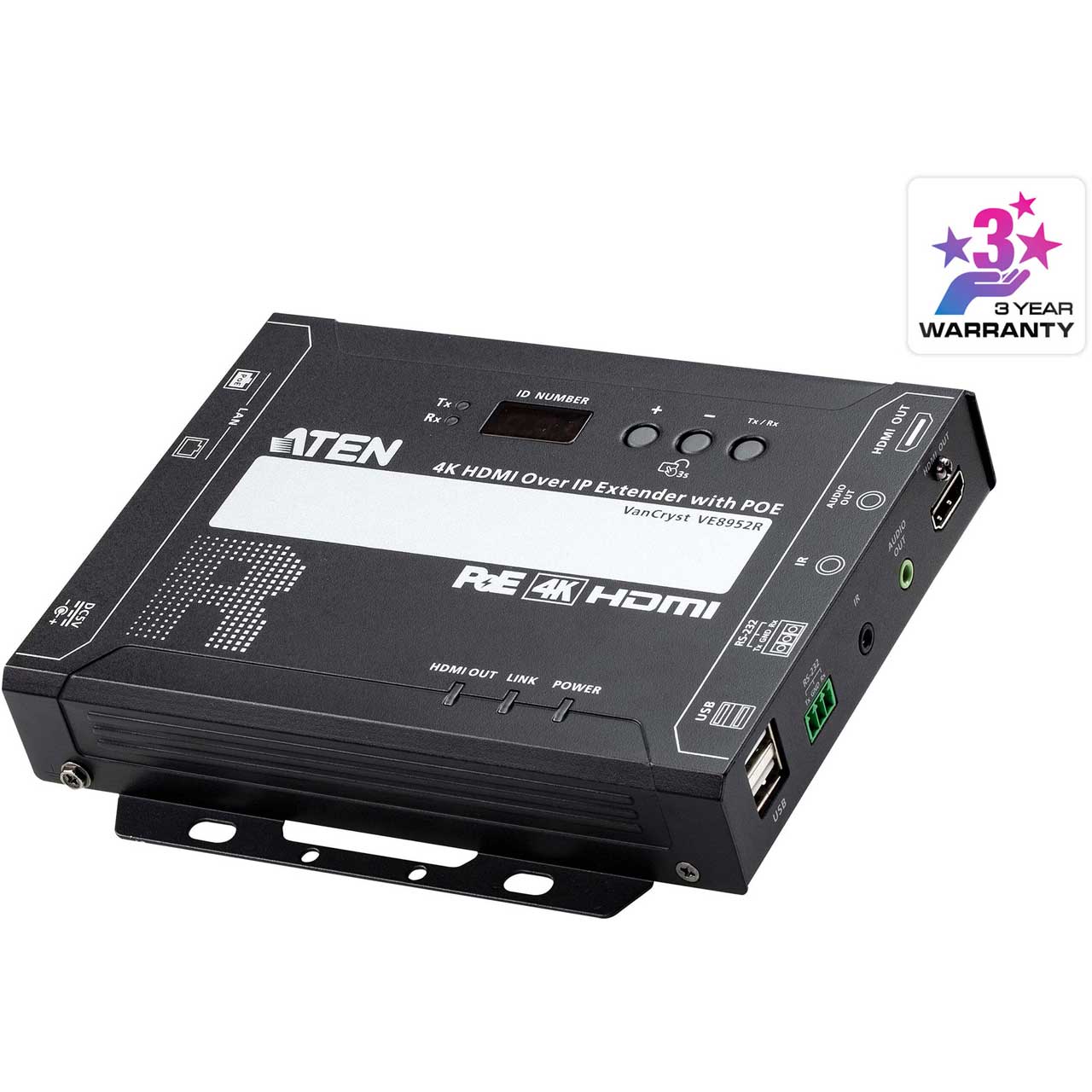

ATEN VE8952R 4K HDMI over IP Receiver with PoE

ITEM #: ATEN-VE8952R MFG #: VE8952R

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$1,236.08

Our Price:

$1,112.48

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    VE8952R - Overview

    The ATEN VE8952R 4K HDMI over IP Receiver with PoE delivers visually lossless 4K AV signals with low latency over long distance via a standard Gigabit network. It is an effective and easy-to-use solution that directly addresses the challenges system integrators encounter when deploying AV over IP.

    Limitless Scalability and Flexibility

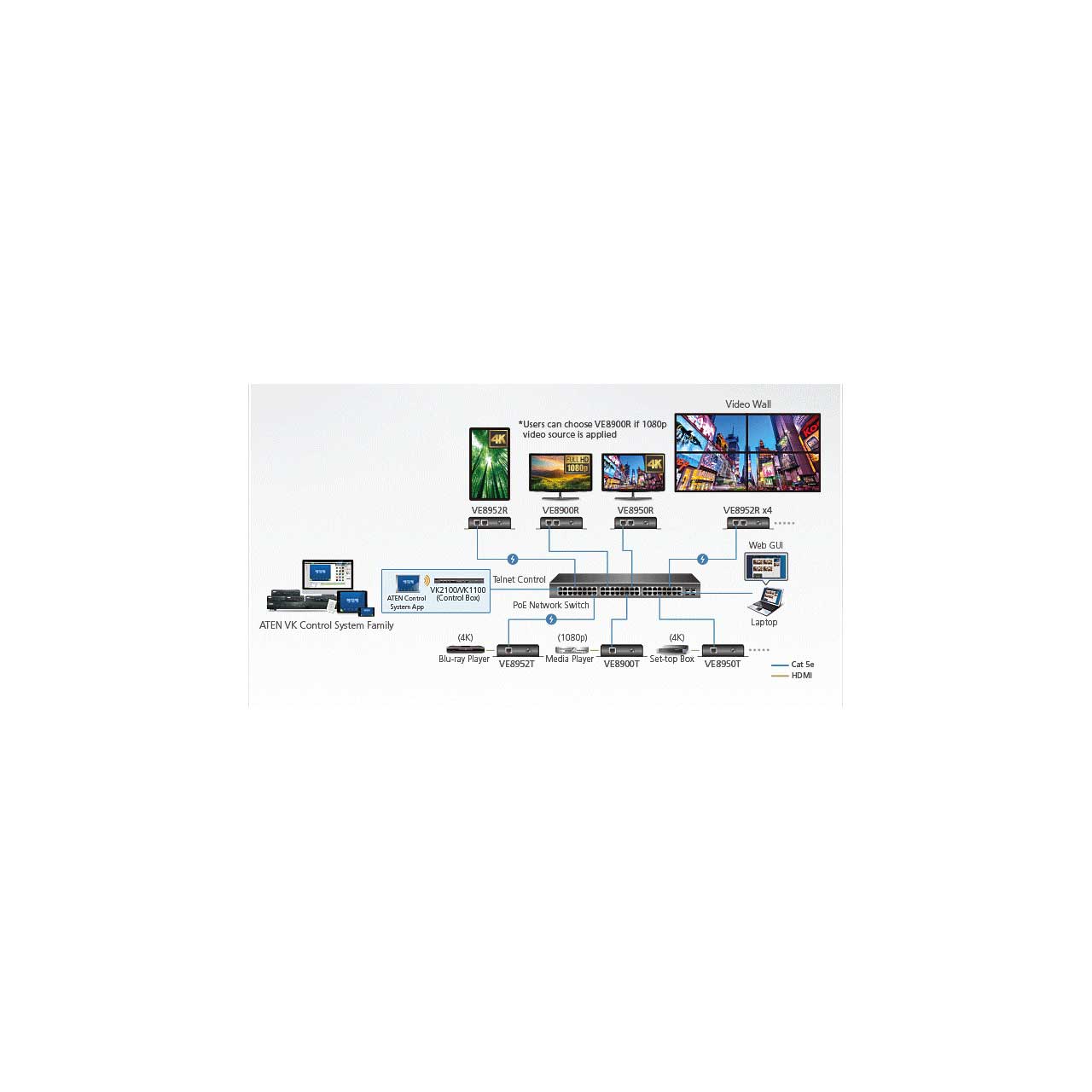

    From a simple point-to-point setup to hundreds of endpoints, it offers flexibility, scalability and multi-functionality in extender, splitter, matrix switch, and video wall applications.

    No Complicated IP Setup
    Allows you to effortlessly switch input sources via top panel pushbuttons/ID display and offers simple configuration that requires no extensive IT experience.

    No Additional Server PCs or Software Required
    Effortlessly manage your AV over IP system by logging in to any receiver from the intuitive web GUI with drag and drop operation.

    Go Further for Less with Daisy Chaining
    Easily expand your AV network coverage without cable clutter or extra network switches while also lowering per-port costs.

    Locate Anywhere without the Need for Power Cabling
    With PoE support, you can easily place VE8952R units where they are needed the most without having to install additional power cabling and outlets.

    Flexible Control with Mobile App
    Manage and control any VE8952R with a dedicated app (VE8950/VE8900 Control App) that allows instant preview, monitoring, and switching of video sources to streamline your operations.

    • Features:

      • Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN
      • Delivers visually lossless high-quality video up to 4K @ 30 Hz 4:4:4
      • Daisy Chaining - Connects multiple displays through a single port
      • Video Wall Support
      • Ensures stunning quality video using ATEN advanced video lossless compression technology
      • EDID Expert™ selects the optimum EDID settings for smooth power-up, high-quality display and the best video resolution across different screens
      • Offers different levels of video compression rate including Smooth, Balance, and High Quality for users to choose depending on practical usage
      • Integrated solution - Compatible with ATEN Control System, allowing users to directly operate VE8900/VE8950/VE8952 via CLI Telnet, RS-232 protocol, or Mobile Control App
      • Effortless operation - One click to effectively operate VE Manager, TV, projector, source player, and related equipments via touch panel and keypad

    • Specifications:

      • Video Output
      • Interfaces: 1 x HDMI Type A Female (Black)
      • Impedance: 100 Ω
      • Max. Distance: 3 m (2L-7D03H)

        Video
      • Max. Data Rate: Average: 150 ~ 500Mbps
      • Compliance: HDMI, HDCP Compatible
      • Max. Resolutions / Distance: Up to 4K@100m (Cat 5e/6, point to point) *4K supported: 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

        Audio

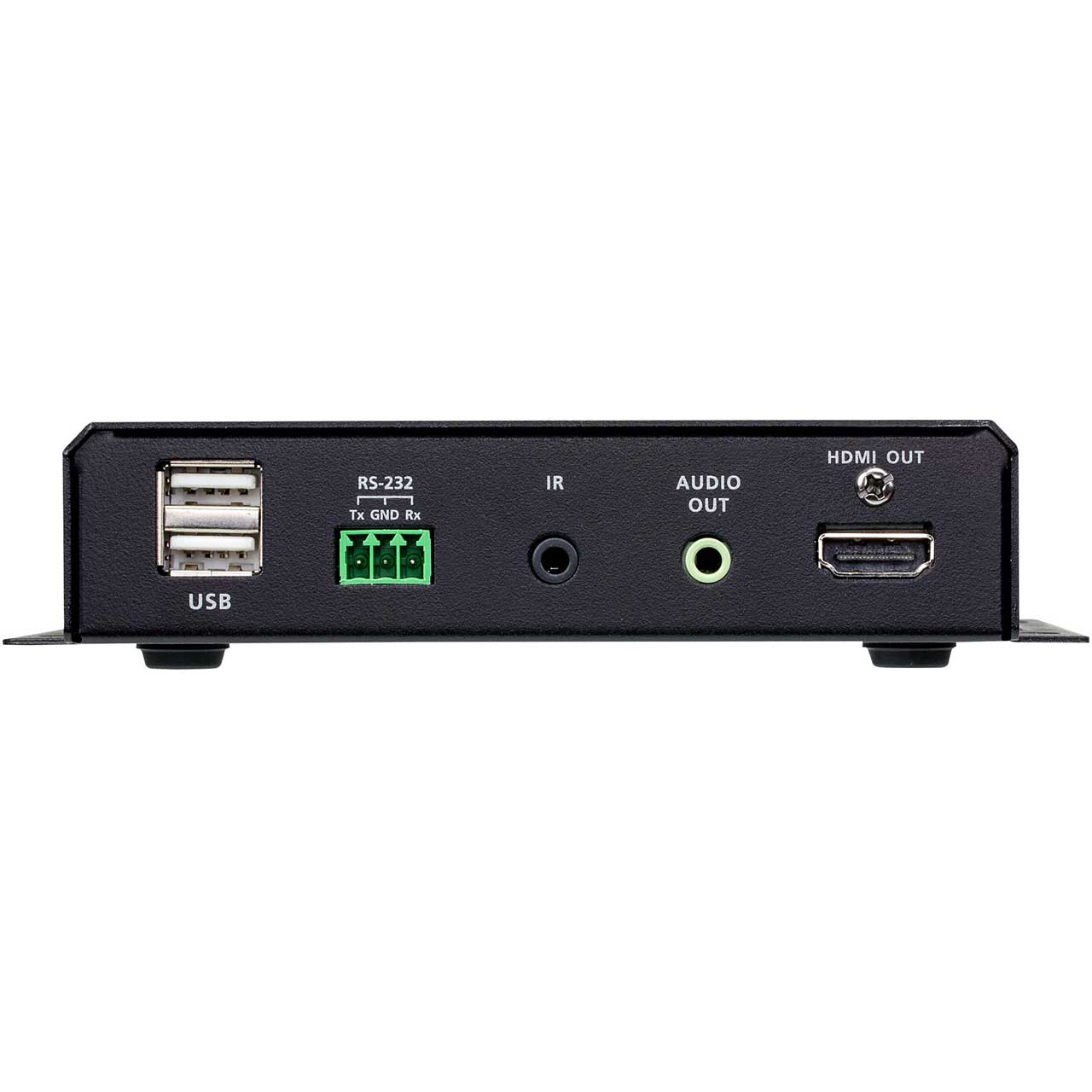

      • Output: 1 x HDMI Type A Female (Black) 1 x Mini Stereo Jack Female (Green)

        Connectors

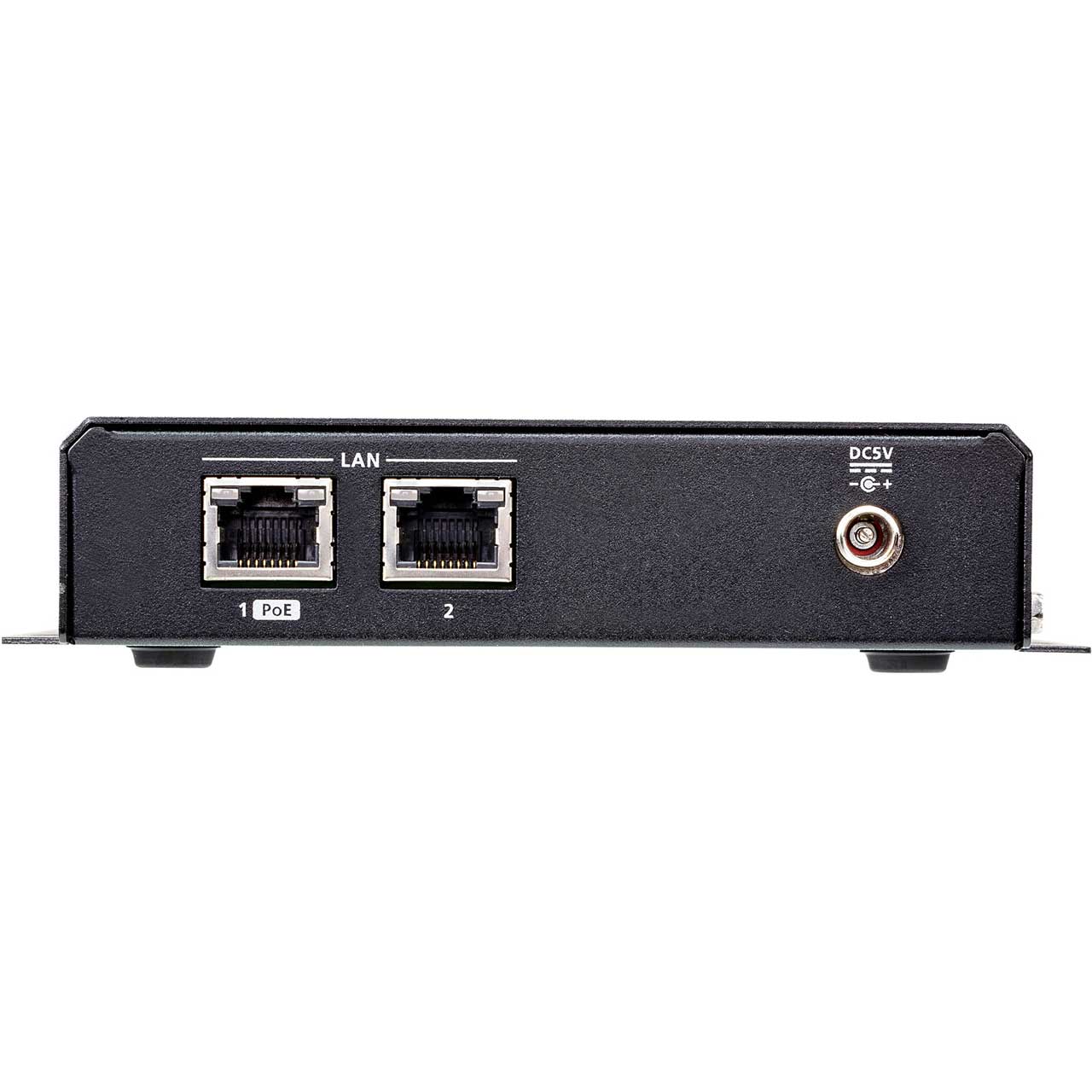

      • Unit To Unit: 2 x RJ-45 Female
      • Power: 1 x DC Jack (Black) with locking or 1 x RJ-45 (Power Over Ethernet, POE)

        Control
      • IR: 1 x Mini Stereo Jack Female (Black)
      • RS-232: Connector: 1 x Terminal Block, 3 pole
      • Baud Rate: 19200, Data Bits:8,
      • Stop Bits:1, no parity and flow control
      • USB: 2 x USB Type A Female (Black)

        Pushbuttons
      • ID Number Selection: 3 x Push buttons
      • Power Consumption: DC5V:5.22W:46BTU
      • POE:6.52W:52BTU

        Environmental
      • Operating Temperature: 0 - 40°C
      • Storage Temperature: -20 - 60°C
      • Humidity: 0 - 80% RH, Non-Condensing

        Physical Properties
      • Housing: Metal
      • Weight: 1.5 lb
      • Dimensions (L x W x H) with bracket: 6.7 x 5.78 x 1.18 in.
      • Dimensions (L x W x H) without bracket: 6.54 x 4.92 x 1.14 in.

    • Item Includes:

      • 1x VE8952R 4K HDMI over IP Receiver with PoE
      • 1x RS-232 Terminal Block
      • 1x Power Adapter
      • 4x Foot Pads
      • 1x User Instructions

    • GTIN:

      0672792012211
