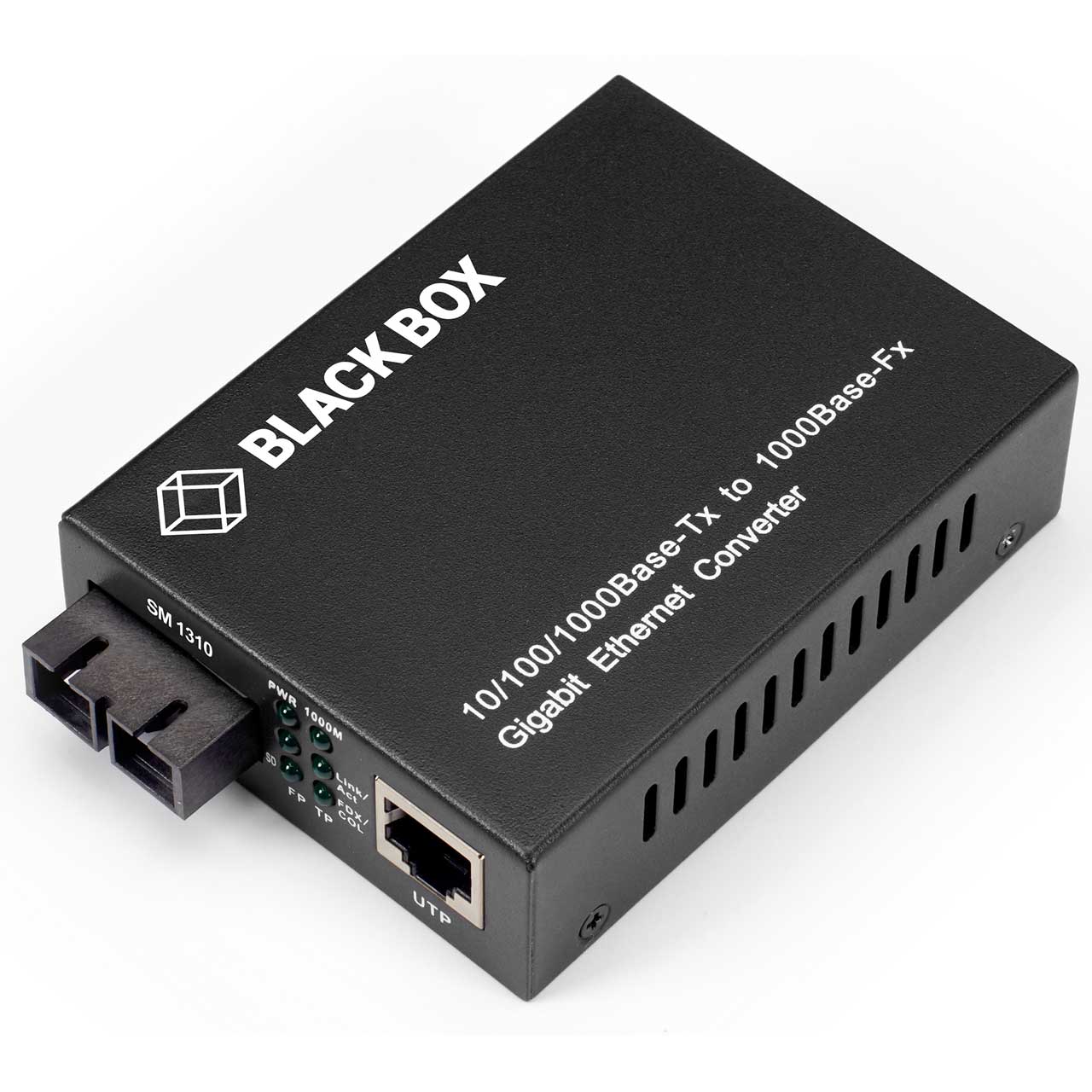

Black Box LGC212A Networking Gigabit Ethernet Media Converter - 10/100/1000Mbps Copper to 1000-Mbps Singlemode 1310nm/SC

LGC212A - Overview

• Features:

  • Converts 10/100/1000BASE-TX to 1000BASE-LX at fiber port speed


• Specifications:

  • Wavelength: 1310-nm
  • Approvals: FCC Class B , CE , RoH S

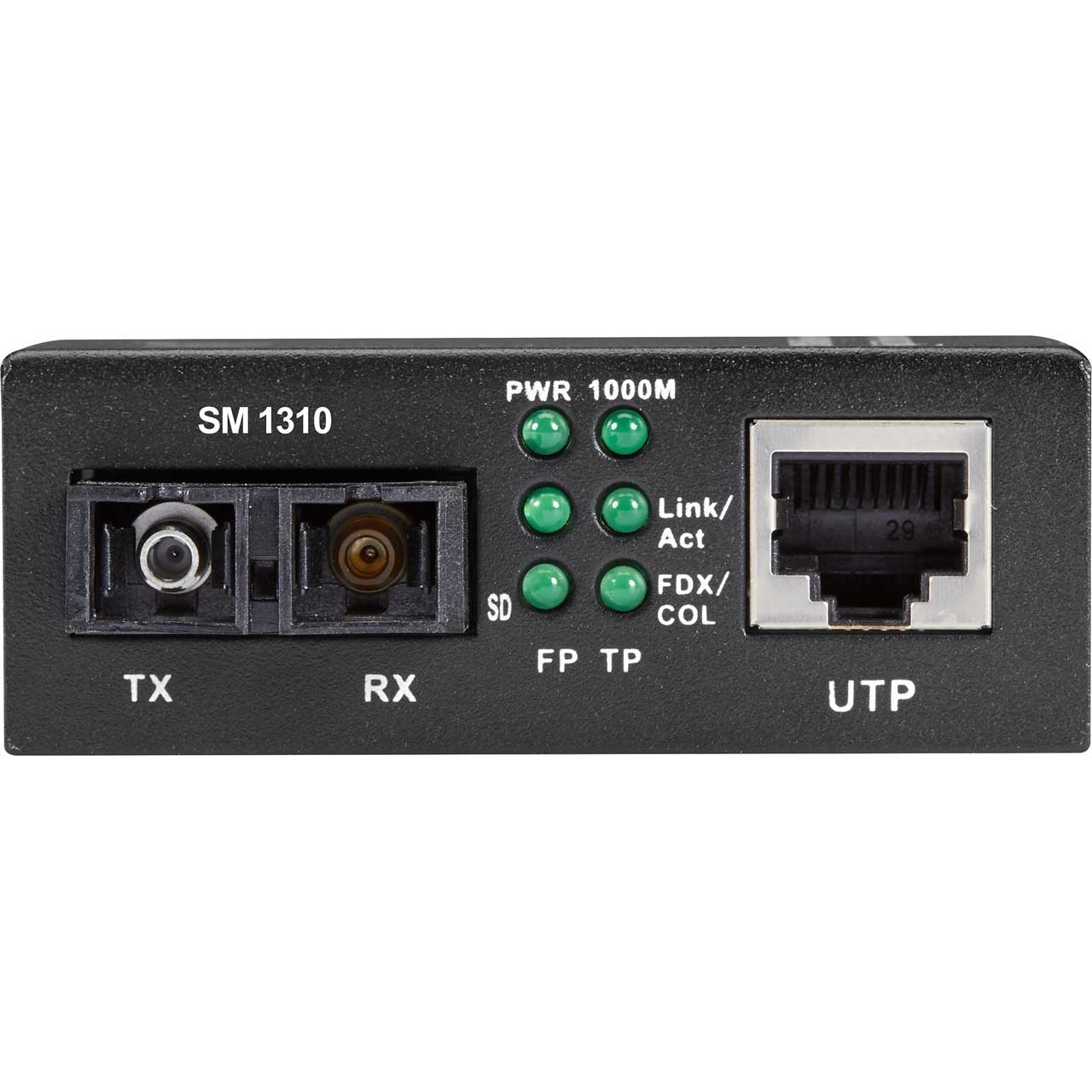

  • Connectors: (1) RJ - 45; (1) pair of SC
  • Dimensions: 1" H x 3.7 " W x 2.7 " D (2 .5 x 9.4 x 6.9 cm)
  • Distance: CATx: 328 ft . (100 m); SM fiber: 6.2 mi. (10 km)
  • Forwarding Rate: 10 Mbps: 14,880 pps; 100 Mbps: 148 ,800 pps; 1000 Mbps: 1,480,000 pps
  • Media Supported: CATx UTP/STP; Single-mode fiber (8.3/125 µm, 9/125 µm, 10/125 µm)
  • Operating temperature: 32 to 12 2° F (0 to 50° C)

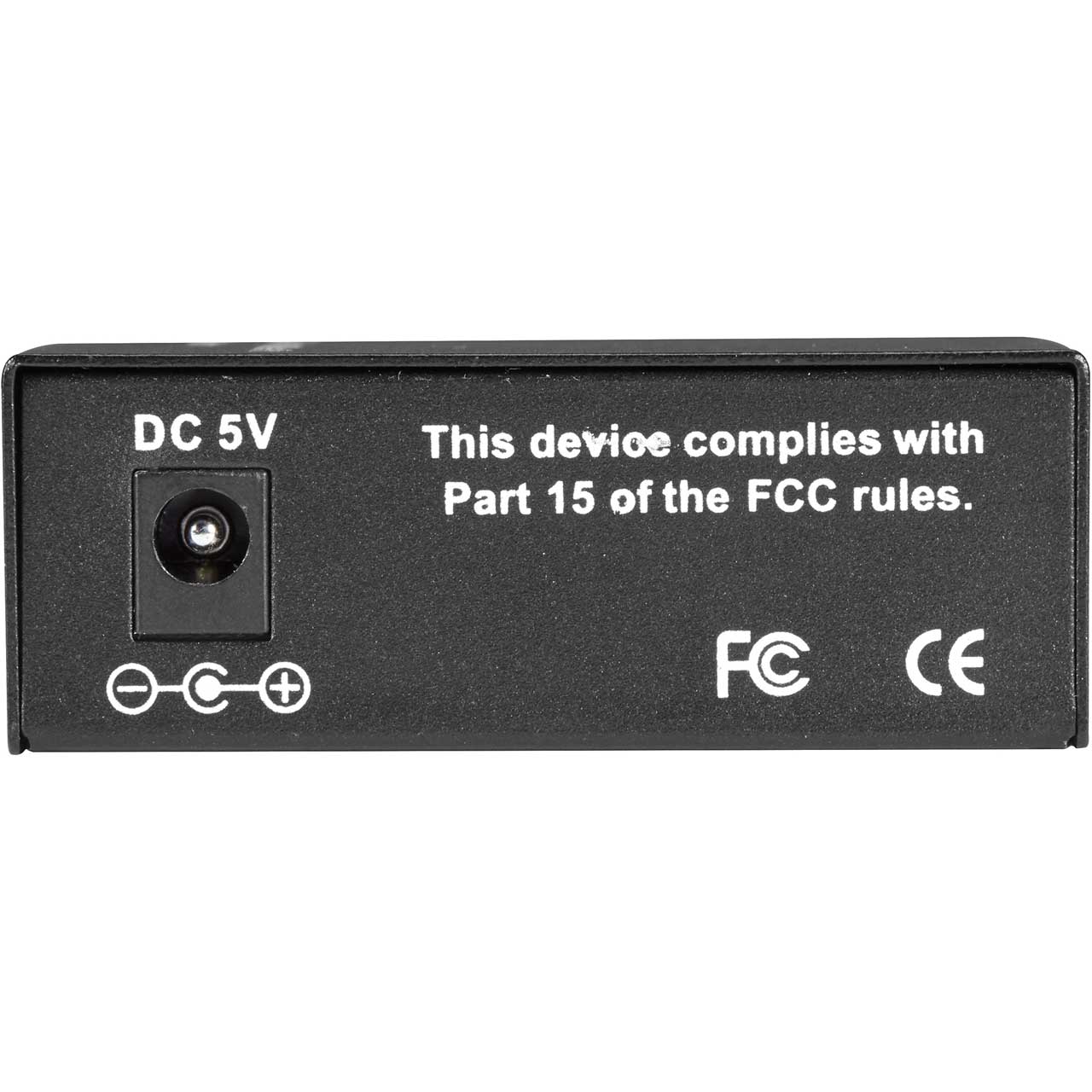

  • Power: Media converter: 5 VD C, 2.5 W, barrel connector;
  • External power adapter included: Wall type, 100-240 VAC, 50/60 Hz, 5 VDC, 1A with 4 plug clips for US, EU, UK, AU
  • Standards: IEEE 802.3, IEEE 802.3U, 10/100BASE-TX, 100BASE-FX, IEEE 802.3x flow control for full-duplex mode, 802.3ab, 1000BASE-T, 802.3z 1000BASE-X
  • Storage temperature: -4 to +158° F (-20 to +70° C)
  • Weight: 0.7 lb. (0.3 kg)

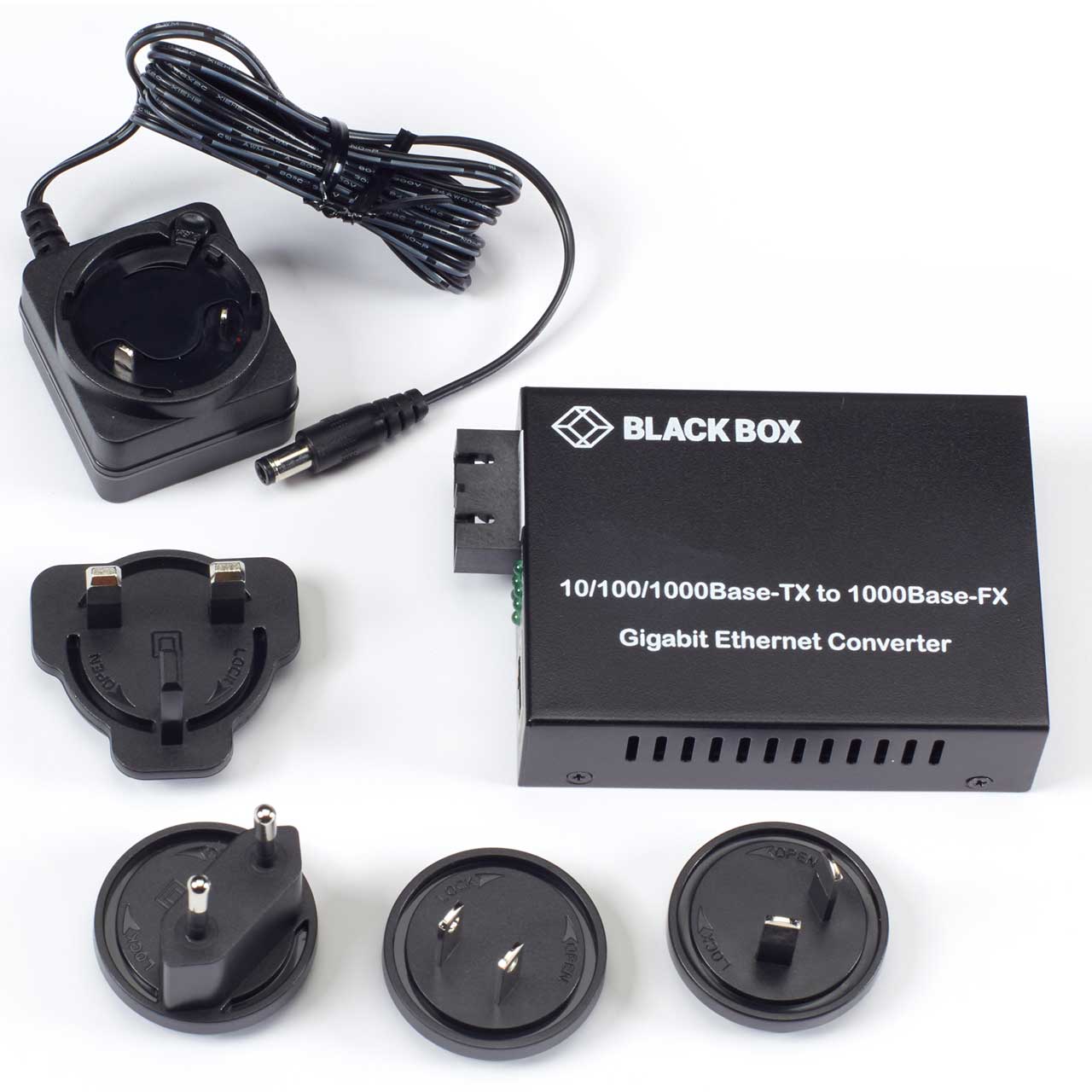

• Item Includes:

  • 1x 10/100/1000BASE-TX to 1000BASE-FX Media Converter, Single-mode
  • 1x 5-VDC power adapter
