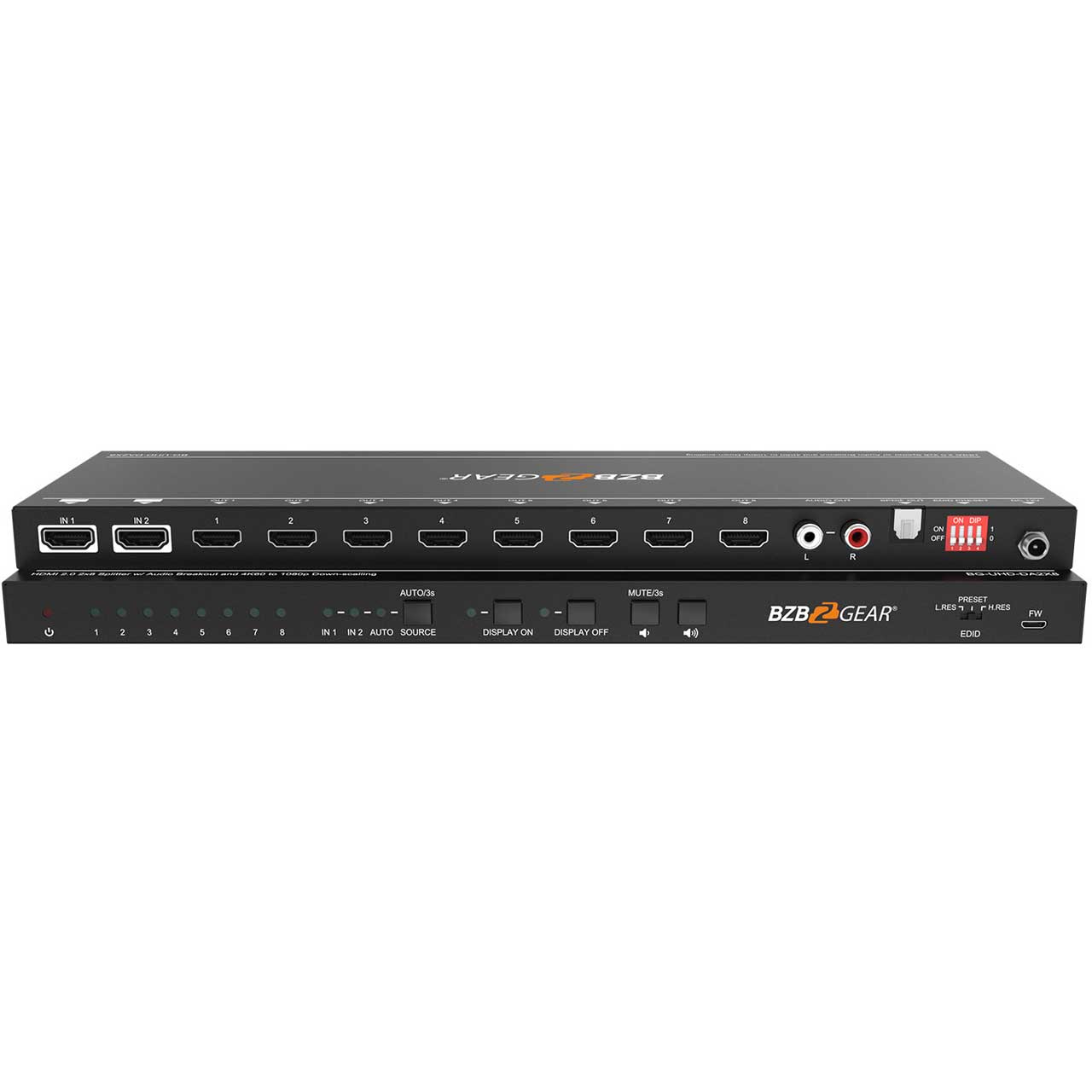

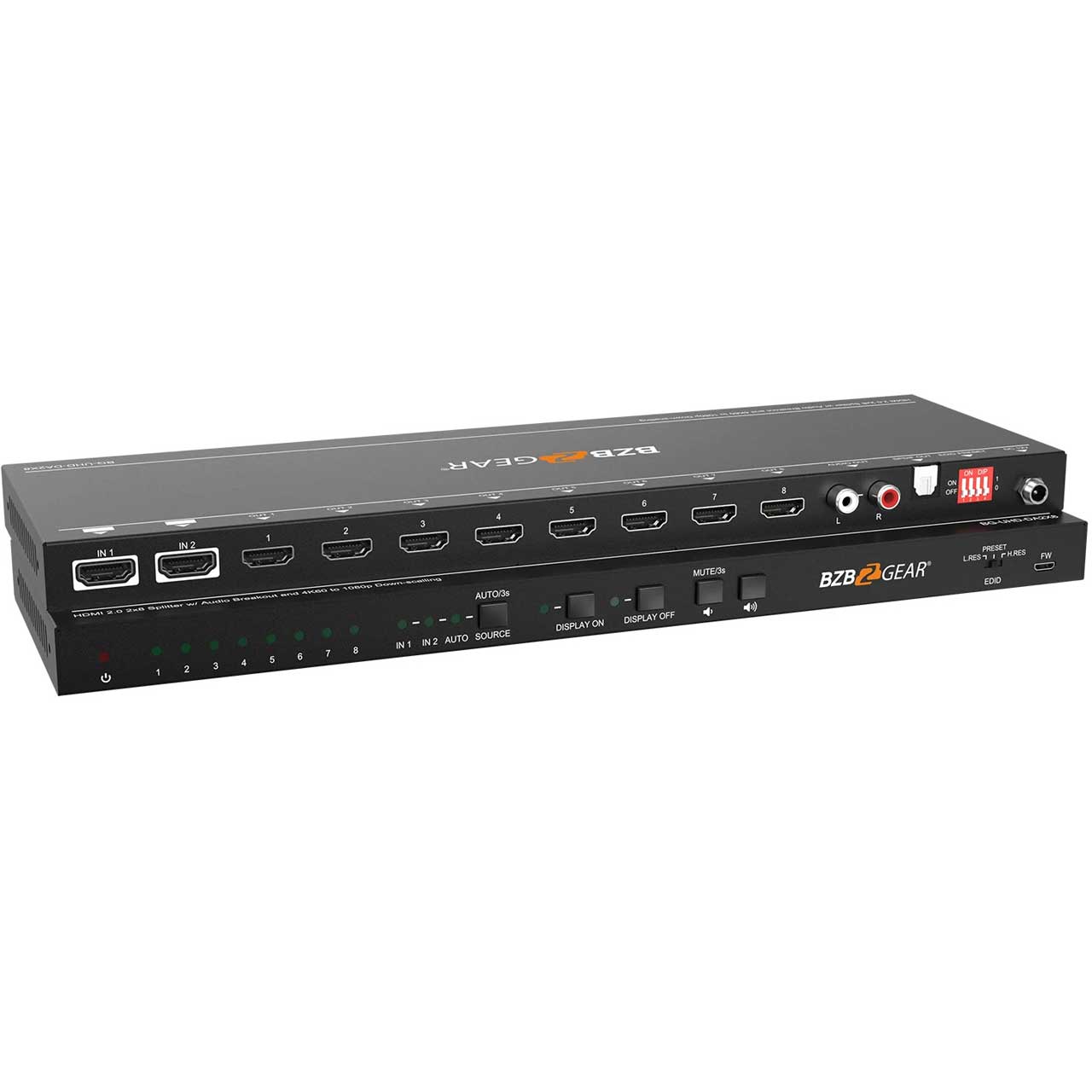

BZBGEAR BG-UHD-DA2X8 2x8 4K 60Hz UHD HDMI Splitter/Distribution Amplifier with CEC Turn On/Off TV

BG-UHD-DA2X8 - Overview

18Gbps high bandwidth

• Features:

  • HDMI 2.0 and video resolutions up to 4K@60Hz 4:4:4.
  • HDMI inputs HDCP 2.2 and outputs HDCP 1.4 compliant.
  • Video resolution down-scaling: the 4K input can be automatically downscaled to 1080p to support legacy displays.
  • 18Gbps high bandwidth.
  • RCA (L/R) jack and Toslink connector for audio extraction.
  • Advanced EDID management: multiple preset and user defined.
  • Built-in equalizer for signal enhancement to avoid signal attenuation in transmission.
  • CEC control to turn on/off displays and adjust volume for supported devices.
  • Provides LEDs to indicate the current operating status and to assist troubleshooting and installation.
  • Firmware upgradable via the Micro-USB port


• Specifications:

  • Video Input
  • Input: (2) HDMI
  • Input Connector: (2) Female type-A HDMI
  • HDMI Input Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
  • HDMI Standard: 2.0
  • HDCP Version: 2.2
  • CEC: Supported
  • Video Output: Output (8) HDMI
  • Output Connector: (8) Female type-A HDMI
  • HDMI Output Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
  • HDMI Standard: 2.0
  • CEC: Supported


  • Audio
  • De-embedded Output: (1) AUDIO OUT;(1) SPDIF OUT
  • Output Connector: (1) RCA (L/R) jack; (1) Toslink connector
  • HDMI Audio Format: LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, Dolby Digital® Plus, DTS:X, and DTS-HD® Master Audio pass-through
  • Stereo Analog: L/R
  • Audio Format: PCM
  • Toslink Digital Audio Format: PCM, Dolby Digital, DTS, DTS-HD
  • Frequency Response: 20Hz - 20KHz, ±3dB
  • Max Output Level: 2.0Vrms ± 0.5dB. 2V = 16dB headroom above -10dBV (316mV) nominal consumer line level signal THD+N <0.05% (-80 dB), 20Hz - 20KHz bandwidth, 1KHz sine at 0dBFS level (or max level),SNR >80dB, 20Hz ~ 20KHz bandwidth
  • Crosstalk Isolation: >70dB, 10KHz sine at 0dBFS level (or max level before clipping)
  • L-R Level Deviation: < 0.3dB, 1KHz sine at 0dBFS level (or max level before clipping)
  • Frequency Response: Deviation <± 0.5 dB 20Hz ~ 20KHz
  • Output Load Capability: 1k ohm and higher (supports 10x paralleled 10k ohm loads)
  • Stereo Channel Separation: >70dB@1kHz



  • Control

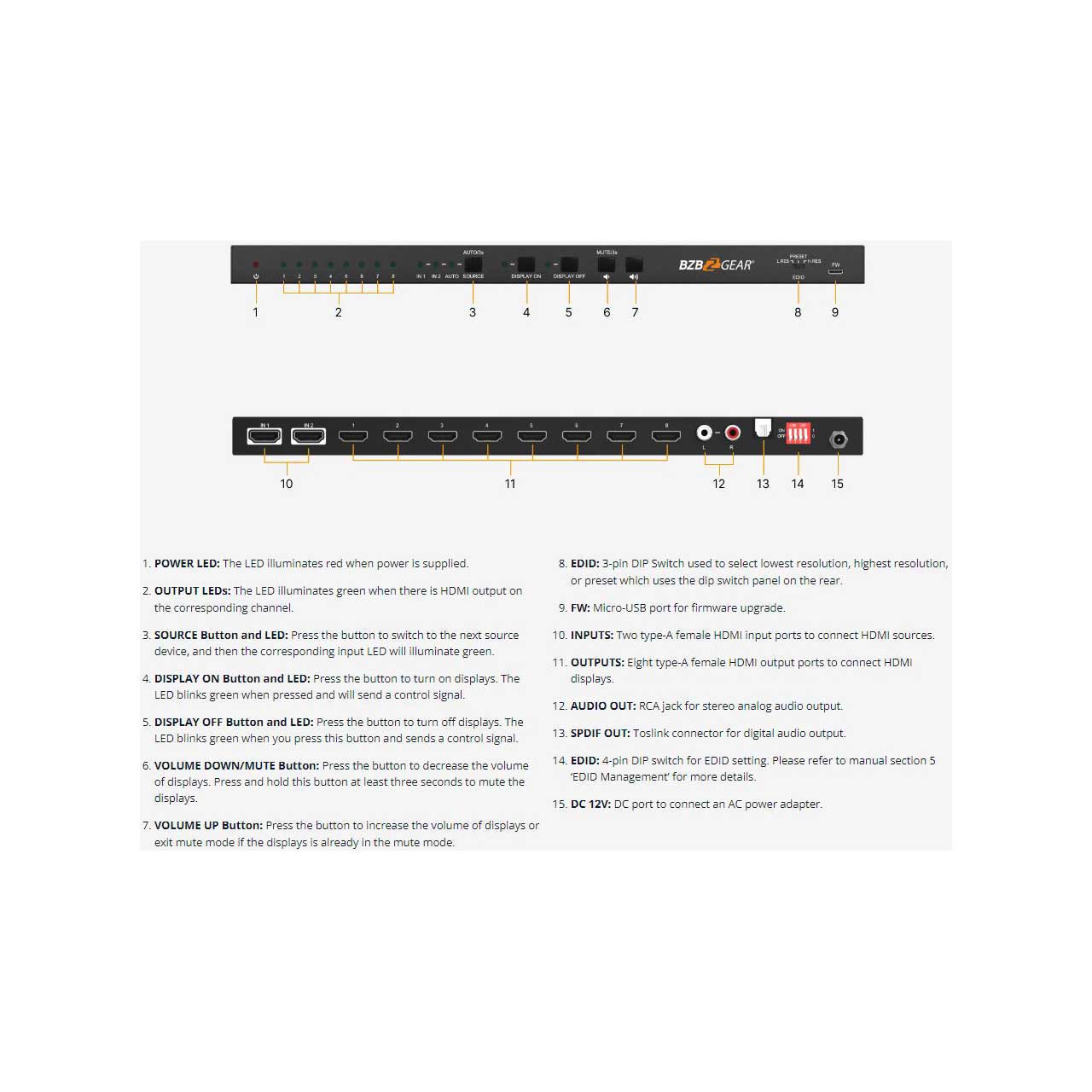

  • Control: Part (5) Control buttons, (1) EDID 3-pin DIP switch, (1) EDID 4-pin DIP switch, (1) Micro-USB port



  • General
  • Bandwidth: 18Gbps
  • Operation Temperature: 14°F ~ 131°F / -10°C ~ +55°C
  • Storage Temperature: -13°F ~ 158°F / -25°C ~ +70°C
  • Relative Humidity: 10%-90%
  • Power Supply Input:100V~240V AC;
  • Output: 12V DC 1A
  • Power Consumption: 12W(Max)
  • Dimensions: (W*H*D) 12.6" x 0.8" x 3.9" [324mm x 20mm x 100mm]
  • Net Weight: About 2lbs [900g]


• Item Includes:

  • 1x HDMI 2.0 2x8 Splitter
  • 2x Mounting Ears with 4 Screws
  • 4x Plastic Cushions
  • 1x Power Adapter (12V DC 1A)
  • 1x User Manual


• Warranty:

  • 3 Year Warranty
