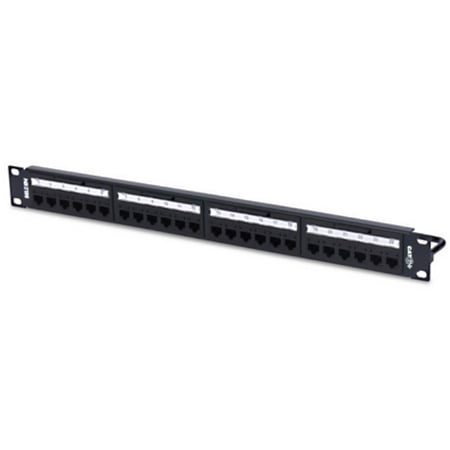

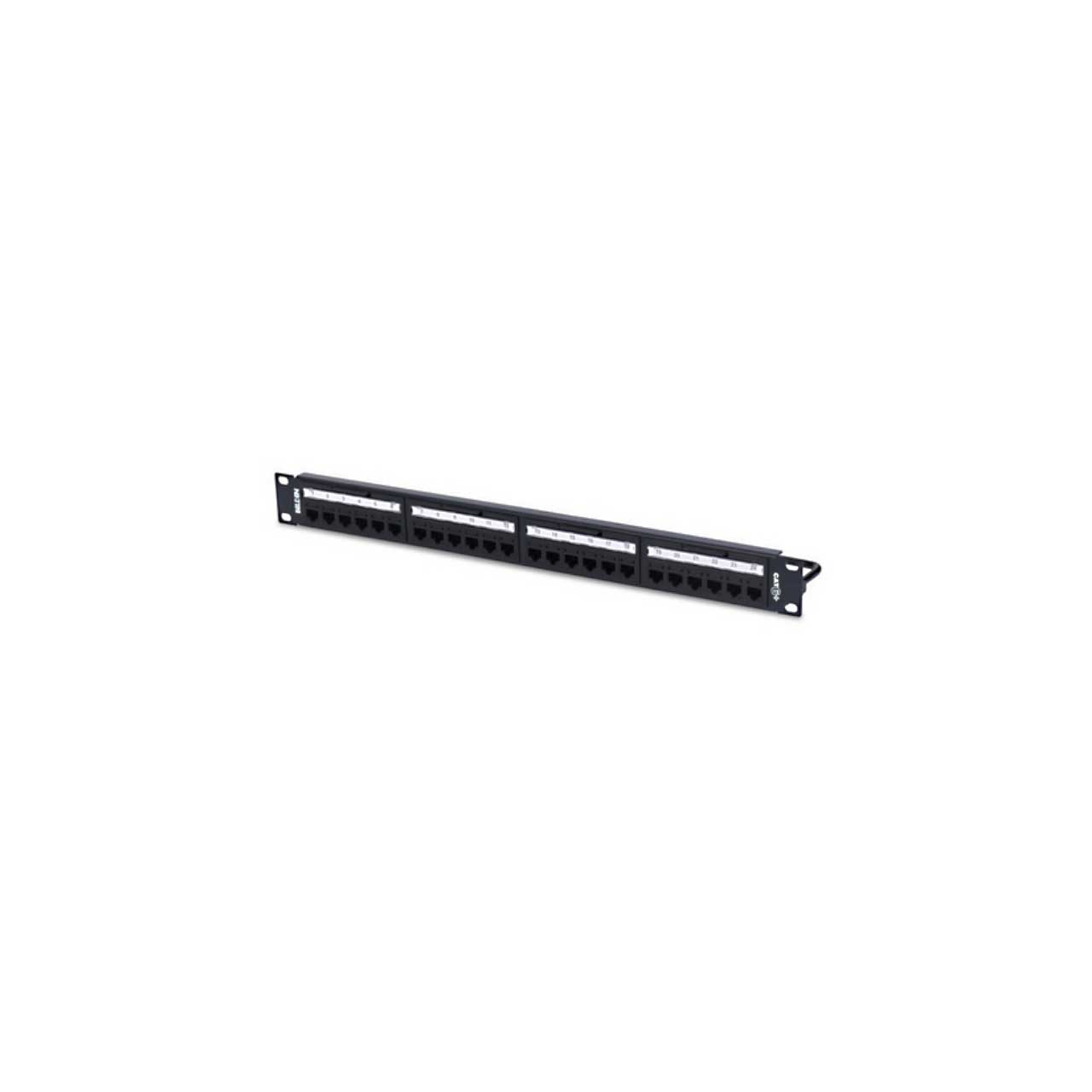

Belden RV6PPF1U24BK CAT6plus REVConnect 1U 24-Port Patch Panel Flat - Black (Preloaded)

ITEM #: BL-RV6PPF1U24BK MFG #: RV6PPF1U24BK

Primary Image
Belden
Free Shipping with $49 Minimum Order

List Price:

$333.14

Our Price:

$231.19

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

RV6PPF1U24BK - Overview

Belden RV6PPF1U24BK is a CAT6+ REVConnect flat 1U 24-port patch panel (preloaded). Suitable for 2400, 3600, 4800 Systems, TIA Category 6, ISO Class E, 1GBASE-T applications.

To support faster deployment in enterprise networks, REVConnect Patch Panels are based on innovative REVConnect termination technology, designed with timesaving features for installers and end-users. The patch panels can be terminated from the rear or front. Removable 6-port modules with a unique cable-measuring
feature keeps cables organized during the termination process and improves cable management. Patch panels can be identified using labels or icons.

  • Features:

    • Preloaded Panels are fully assembled with 24 or 48 jack housings and REVConnect cores
    • Single-port modularity using standard REVConnect jacks
    • Cable management bar included (one for 24-port, two for 48-port)
    • Pre-printed ID card and labeling window for port identification
    • Label sheets (sold separately - AX107527) can be printed using LabelFlex software (optional)
    • Available in Category 5e, 6 and 6A, standard black or white (for low-light environments) and flat or angled configurations


  • Specifications:

    • Height: 1.73 in
    • Width: 19.000 in
    • Depth: 2.000 in
    • Port Count: 24 Port
    • Front Connection: Flush
    • Packaging: Individually packaged in a cardboard box.
    • Weight: 1.846 lbs
    • Max Capacity: 24 connectors (preloaded)
    • Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute (Signals to Ground)
    • Current Rating: 1.300 A
    • Insulation Resistance: 500 M-Ohm Minimum
    • Termination Resistance: 2.5 mOhm
    • Installation Temp Range: -10°C To +60°C
    • Storage Temp Range: -40°C To +70°C
    • Operating Temp Range: -10°C To +60°C
    • Footprint/Type: REVConnect
    • Tool Compatibility: REVConnect Termination Tool (RVUTT01)
    • Plug /Jack Compatibility: RJ45
    • Cable/Connector Retention: 15 lbs
    • Connector/Hardware Retention: 20 lbs
    • Plug/Connector Retention: 11.250 lbs
    • UL Rating: UL94V-0
    • IEC Compliance: IEC 60603-7
    • Data Category: Category 6+
    • TIA/EIA Compliance: Category 6 - TIA 568.2-D, ISO/IEC 11801-1, TIA TSB-5021
    • IEEE Compliance: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBase TTM (up
    • to 100W)
    • Other Compliance: UL 1863, ANSI/TIA 1096-A (formely FCC Part 68-F)
    • Environmental Space: Indoor
    • EU Directive 2011/65/EU (ROHS II): Yes
    • MII Order #39 (China RoHS): EUP 50
    • Safety Listing: c(UL)us Listed


  • Item Includes:

    • RV6PPF1U24BK REVConnect 1U 24-Port Patch Panel Flat - Black (Preloaded)
