    RV6PPF1U48BK - Overview

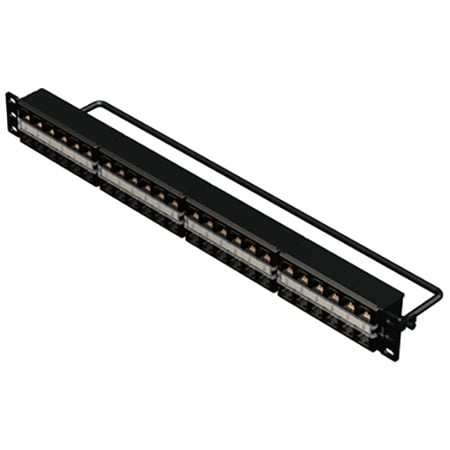

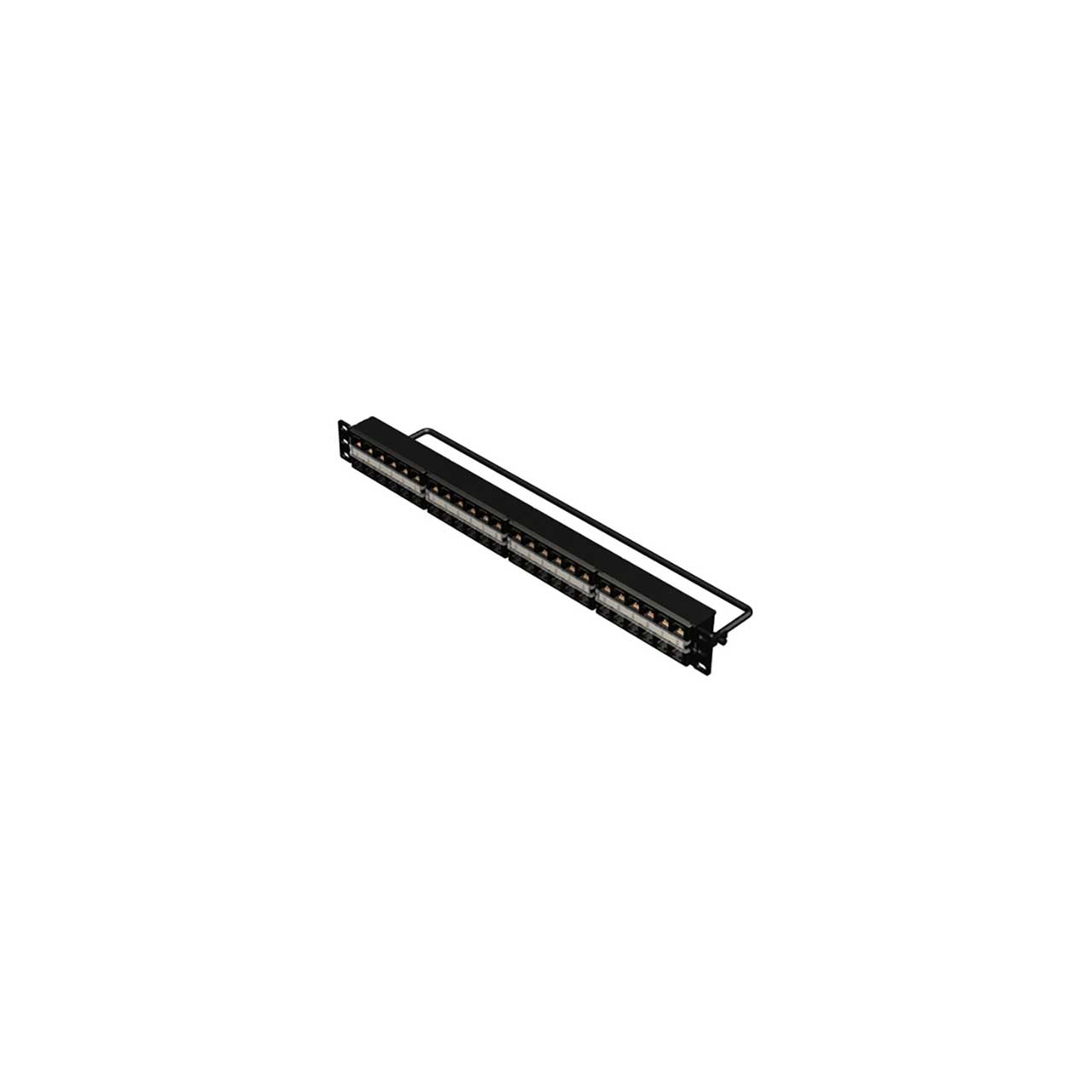

    Belden RV6PPF1U48BK is a CAT6+ REVConnect flat 1U 48-port patch panel (preloaded). Suitable for 2400, 3600, 4800 Systems, TIA Category 6, ISO Class E, 1GBASE-T applications.

    To support faster deployment in enterprise networks, REVConnect Patch Panels are based on innovative REVConnect termination technology, designed with timesaving features for installers and end-users. The patch panels can be terminated from the rear or front. Removable 6-port modules with a unique cable-measuring
    feature keeps cables organized during the termination process and improves cable management. Patch panels can be identified using labels or icons.

    • Features:

      • Preloaded Panels are fully assembled with 24 or 48 jack housings and REVConnect cores
      • Single-port modularity using standard REVConnect jacks
      • Cable management bar included (one for 24-port, two for 48-port)
      • Pre-printed ID card and labeling window for port identification
      • Label sheets (sold separately - AX107527) can be printed using LabelFlex software (optional)
      • Available in Category 5e, 6 and 6A, standard black or white (for low-light environments) and flat or angled configurations


    • Specifications:

      • Height: 1.73
      • Width: 19
      • Depth: 2
      • Port Count: 48 Port
      • Front Connection: Flush
      • Packaging: Individually packaged in a cardboard box.
      • Weight: 3.047
      • Max Capacity: 48 Connectors (Preloaded)
      • Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
      • Current Rating: 1.300 A
      • Insulation Resistance: 500 M-Ohm Minimum
      • Termination Resistance: 2.5 mOhm
      • Installation Temp Range: -10°C to +60°C
      • Storage Temp Range: -40°C to +70°C
      • Operating Temp Range: -10°C to +60°C
      • Footprint/Type: REVConnect
      • Tool Compatibility: REVConnect Termination Tool (RVUTT01)
      • Plug /Jack Compatibility: RJ45
      • Termination Front Connection: Mated Connection
      • Termination Front Connection Durability: 750 Cycles
      • Termination Rear Connection: Mated Connection
      • Termination Rear Connection Durability: 20 Cycles
      • Cable/Connector Retention: 15 lbs
      • Connector/Hardware Retention: 20 lbs
      • Plug/Connector Retention: 11.250 lbs
      • UL Rating: UL94V-0
      • Data Category: Category 6
      • TIA/EIA Compliance: Category 6 - TIA 568-C.2, ISO/IEC 11801-1, TIA TSB-5021
      • IEEE Compliance: Power Over Ethernet (PoE) IEEE 802.3at type 1 and 2 (up to 30W), IEEE802.3bt/D1.7 type 3 and 4 (up to 100W), CISCO UPOE (up to 60W), Power over HDBaseTTM (up to 100W)
      • Other Compliance: UL 1863, IEC 60603-7, ANSI/TIA 1096-A (formely FCC Part 68-F)
      • Environmental Space: Indoor


    • Item Includes:

      • RV6PPF1U24BK REVConnect 1U 48-Port Patch Panel Flat - Black (Preloaded)
