Blustream MFP72 7x2 Multi-Format Presentation Switcher

MFP72 - Overview

• Features:

  • Switcher can function in 2 modes:
  • - Splitter mode - both HDMI outputs display the same image from any video input
  • - Switcher mode - HDMI output 1 and 2 are independently controlled
  • HDMI output 1 can view only HDMI inputs 1-4 (up to resolutions of 4K)
  • HDMI output 2 can view all HDMI and analog video inputs with associated audio (up to 1080p resolution)
  • Built-in video scaling, both up-scaling and downscaling capabilities
  • Video inputs support industry standard video resolutions including VGA-WUXGA and 480i-4K (including 800x600 @60 & 75Hz)
  • Scaled video output resolutions: 720p, 1080p, 1280x1024, 1024x768, 1360x768, 1440x900, 1680x1050
  • Audio embedding - independent analog L/R audio input can be embedded to HDMI outputs + Analog L/R audio and Coaxial digital outputs concurrently (feature available for HDMI output 1 + 2 in 'Split mode', 'Switch mode' = HDMI output 2 only).
  • HDMI audio breakout to Analog L/R audio and Coaxial digital outputs concurrently (linked to output 2 in 'Switch mode')
  • Volume control - controls volume output of HDMI, Analog L/R audio and Coaxial digital outputs
  • Supports 3D signal display
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission
  • Supplied with Blustream IR receiver and IR link cable

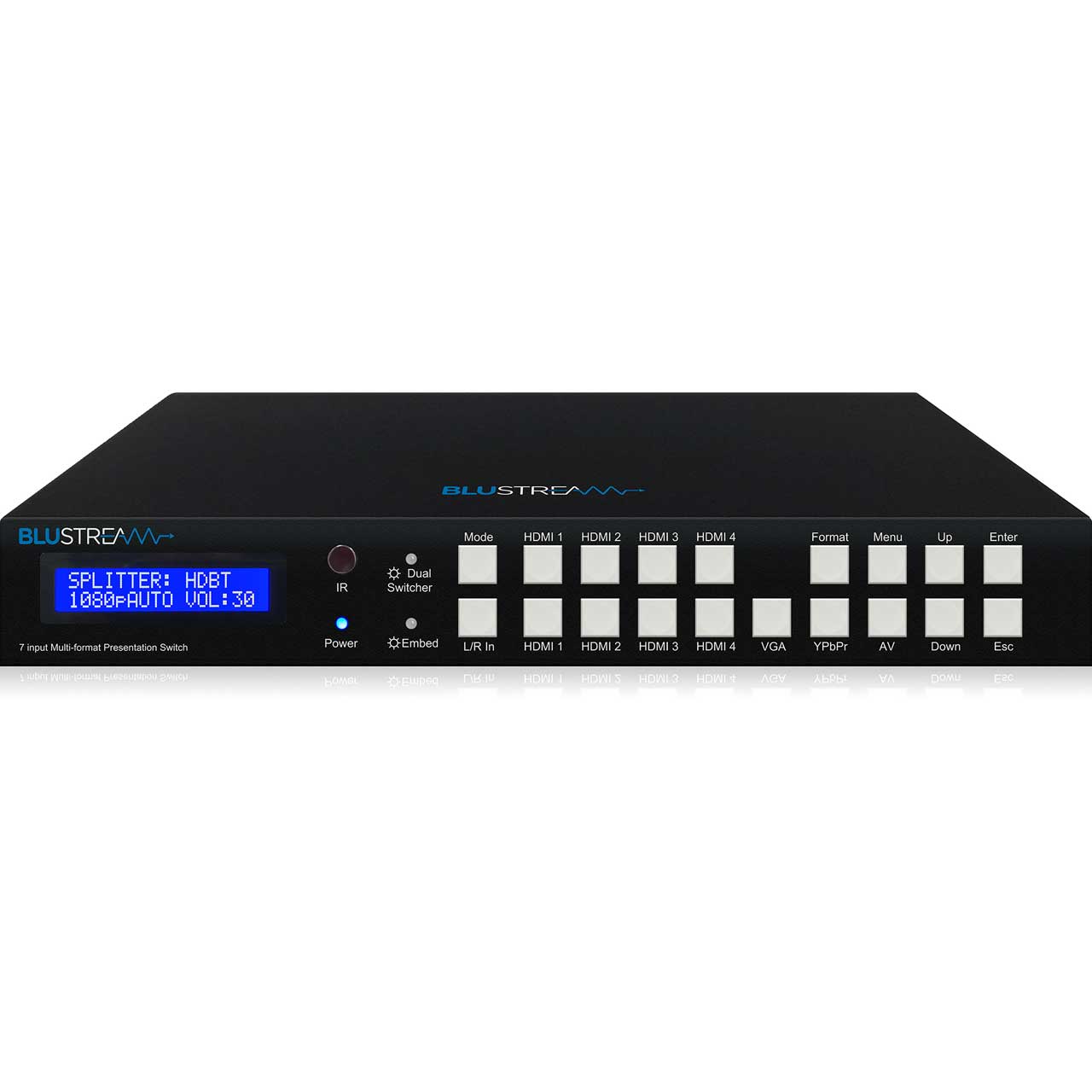

  • Control via front panel, IR and RS-232
  • 3rd Party drivers available for all major home control brands
  • HDCP1.4 compliant


• Specifications:

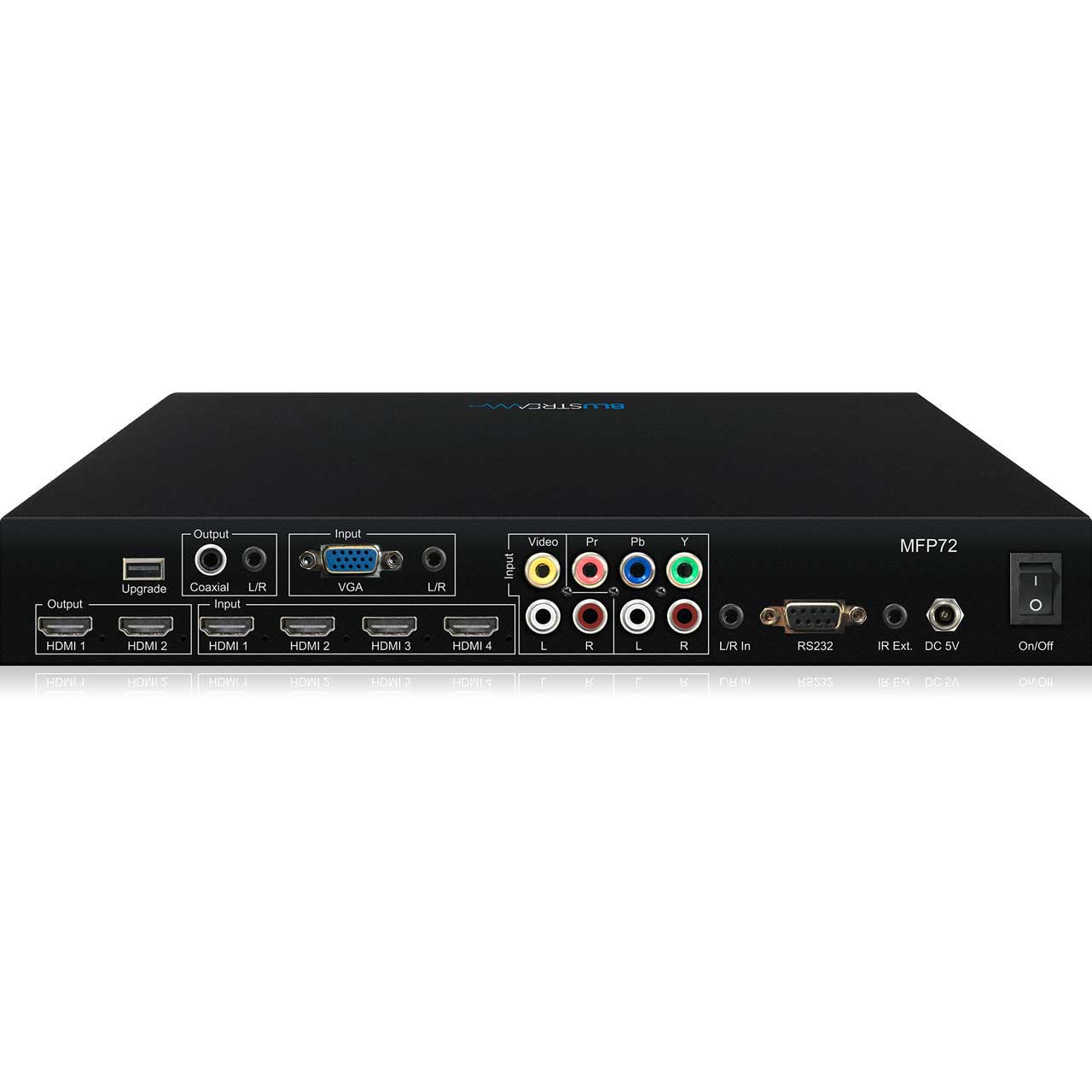

  • Video Input Connectors: 4 x HDMI Type A, 1 x VGA, 1 x Composite, 1 x YPbPr
  • Video Output Connectors: 2 x HDMI Type A
  • Audio Input Connectors: 2 x Analog audio 3.5mm stereo jack, 4 x Analog audio RCA (2x L/R)
  • Audio Output Connectors: 1 x Analog audio 3.5mm stereo jack, 1 x S/PDIF Coaxial digital
  • RS-232 serial port: DB-9 connector
  • IR Input ports: 1 x 3.5mm stereo jack
  • Casing Dimensions (W x H x D): 323mm x 45mm x 130mm, without feet
  • Dimensions Including Connections (W x H x D): 322mm x 45mm x 140mm
  • Shipping Weight: 1.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/2A DC


• Item Includes:

  • 1x MFP72
  • 1x 5V/2A DC Power Supply
  • 1x IR Remote Control
  • 1x IR Receiver
  • 1x IR Control Cable - 3.5mm-3.5mm Cable (IRCAB)
  • 1x Mounting Kit
  • 1x User Manual


• Warranty:

  • 3 Year Warranty


• GTIN:

  9340242001092
