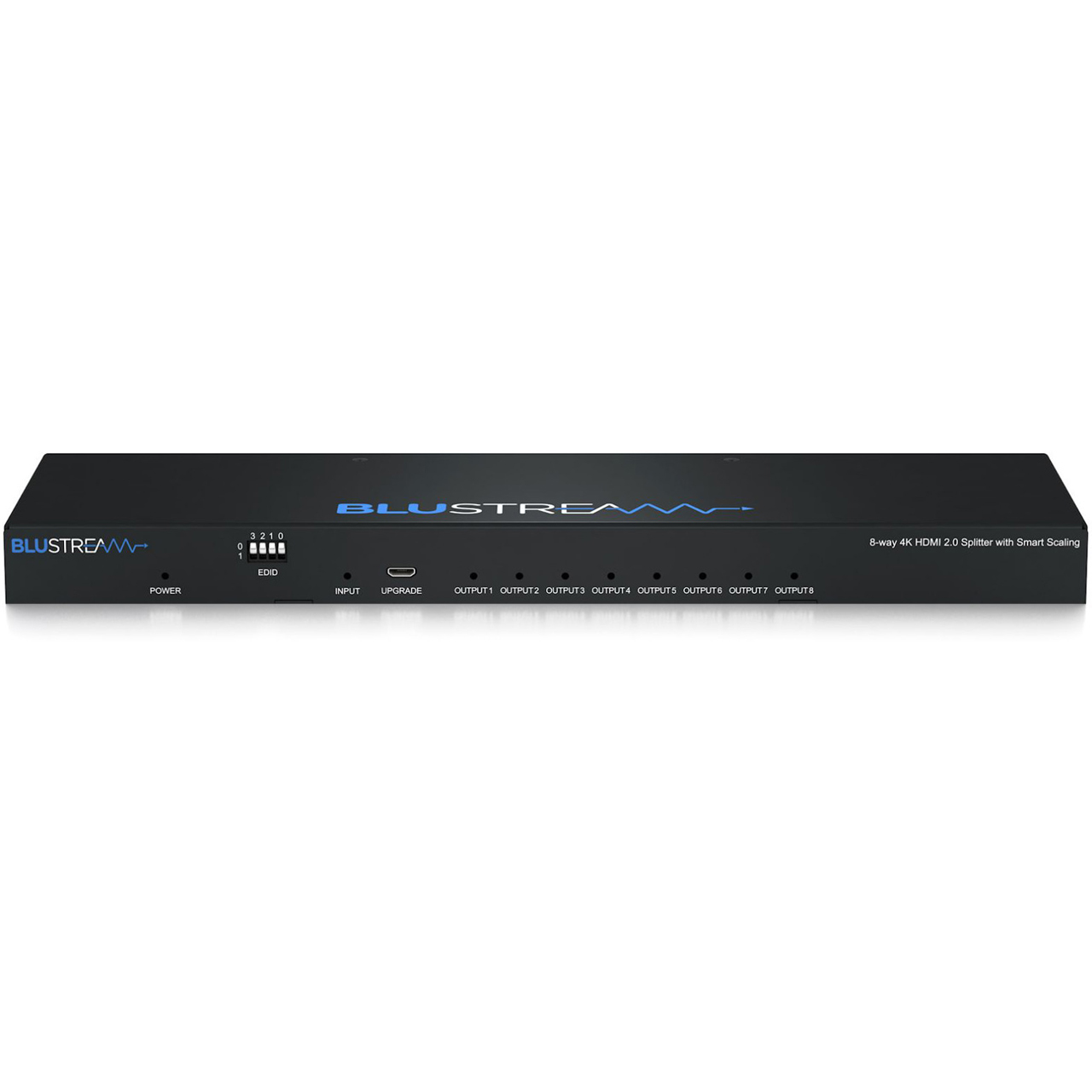

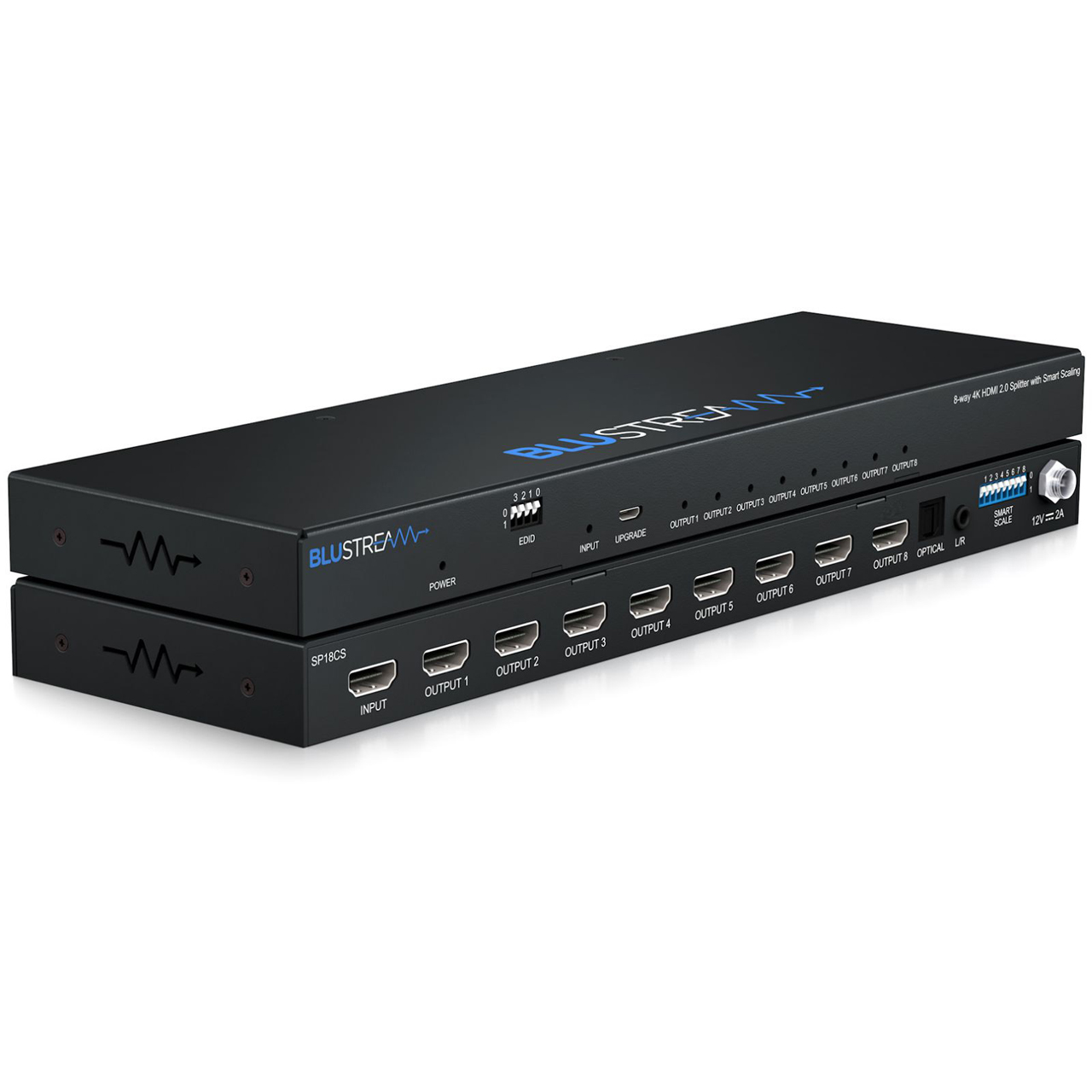

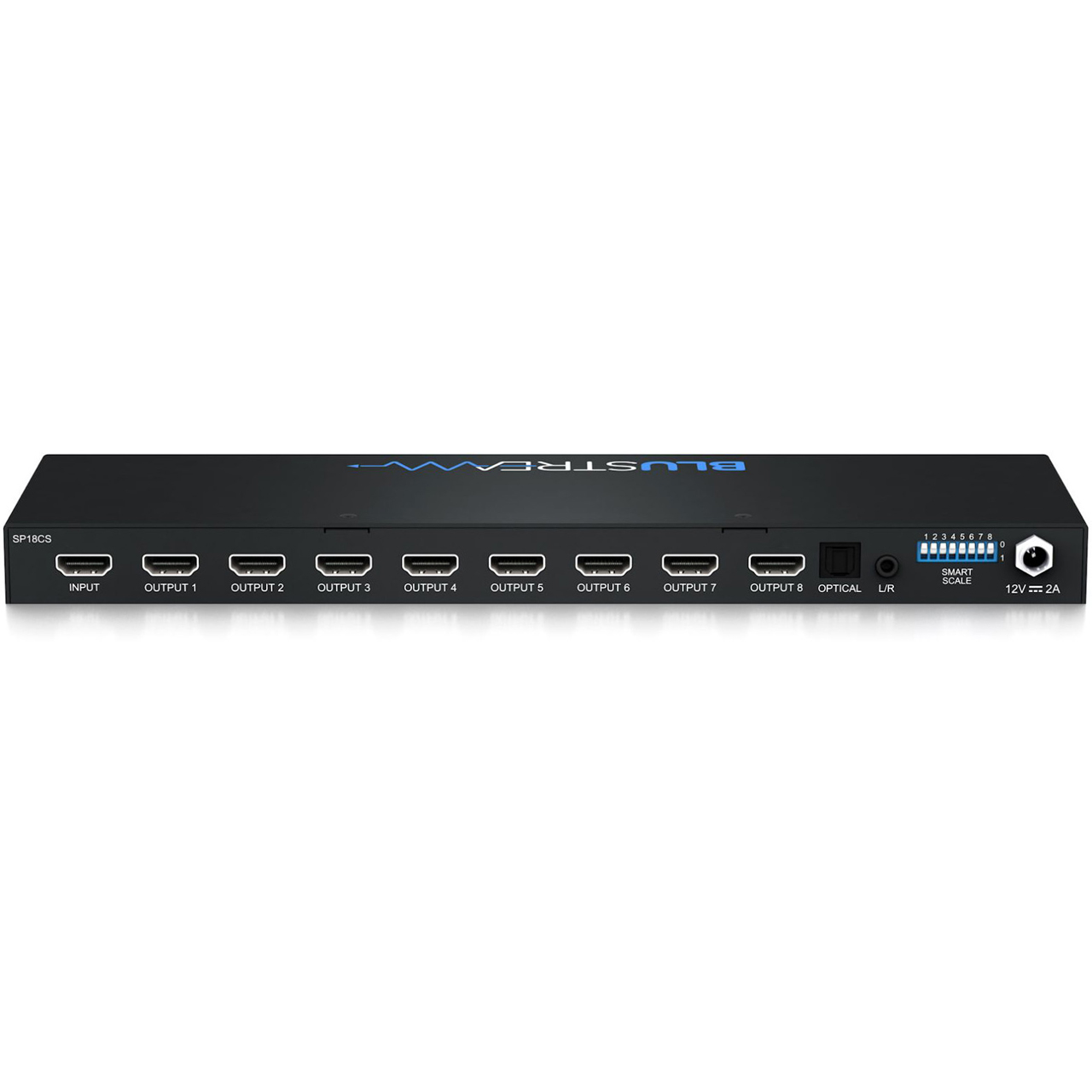

Blustream SP18CS 8-Way 4K HDMI 2.0 HDCP 2.2 Splitter with Smart Scaling/Audio Breakout/EDID Management

SP18CS - Overview

Sends a single HDMI source to Eight simultaneous outputs with both digital (S/PDIF) and analog audio breakout!

• Features:

  • Features 1 HDMI input that is replicated to 8 HDMI outputs
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4
  • Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to analog L/R audio and optical digital outputs concurrently
  • CEC (Consumer Electronic Command) will only pass between the source device and the sink connected to output 1
  • Advanced EDID management
  • HDCP 2.2 Support


• Specifications:

  • Video Input Connectors: 1x HDMI Type A
  • Video Output Connectors: 8x HDMI Type A
  • EDID: 4-PIN DIP switch
  • Smart Scale: 4-PIN DIP switch
  • Audio Output Connectors:
    - 1x Digital (Optical)
    - 1x Analog audio L/R (3.5mm stereo Jack)
  • Dimensions (WxDxH): 7.99" x 3.31" x 0.91" (203mm x 84mm x 23mm), without feet
  • Shipping Weight: 1.76lbs (0.8kg)
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Power Supply: 5V/2A DC


• Item Includes:

  • 1x SP18CS
  • 1x 5V/2A DC power supply
  • 1x Mounting Kit
  • 1x Quick Reference Guide


• Warranty:

  • 5 Year Warranty


• GTIN:

  0934024200408
