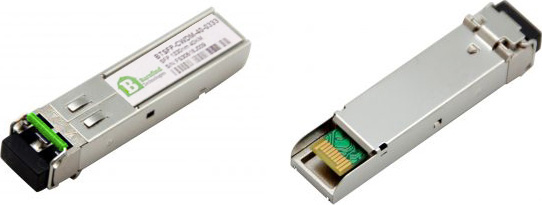

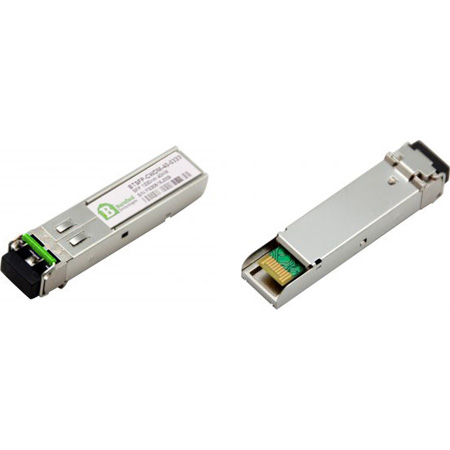

Barnfind BT-CWDM-10-3G41 Single Mode 3Gbps SFP Transceiver - 1410nm - SDI/HD-SDI/3G-SDI - 10km
Questions? Ask a Markertek Expert:
800-522-2025 Email

Barnfind BT-CWDM-10-3G41 Single Mode 3Gbps SFP Transceiver - 1410nm - SDI/HD-SDI/3G-SDI - 10km

Manufacturer: Barnfind-USA

Item #: BRN-BTCWDM103G41   •   MFG #: BT-CWDM-10-3G41


List Price:$260.00
Our Price:$247.00

free ship


More on the way, usually ships in 3-10 business days
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.

    California Residents:
    Cancer and Reproductive Harm -


    The Barnfind BT-CWDM-10-3G Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. HD over fiber at 1570nm transported alongside 3Gbps SDI at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.

    Barnfind CWDM Mux/Demux can support up to 18 wavelengths between 1270nm to 1610nm in 20nm increments when com fiber is ITU-T G.694.2, however if com fiber is ITU-T G.652, we recommend adopt 1270nm and 1290nm instead of 1390nm and 1410nm because of water peak loss.
    Barnfind provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications.

    CWDM Mux/Demux is a flexible, low-cost solution that enables the expansion of existing fiber capacity.The CWDM Mux/Demux lets operators make full use of available fiber bandwidth in local loop and enterprise architectures. Barnfind CWDM Mux/Demux is a universal device capable of combining up to 18 optical signals into a fiber pair or single fiber. It is designed to support a broad range of architectures, ranging from scalable point-to-point links to two fiber-protected rings

    • Features

      • SMPTE 297-2006 Compatible
      • Hot-Pluggable SFP Footprint LC Optical Transceiver
      • Small Form-Factor Pluggable (SFP) MSA compatible
      • Speed from 50Mbps to 3Gbps with up to 10km Singlemode Fiber
      • Support Video Pathological Patterns for S D-SDI, HD-SDI and 3G-SDI
      • Power Budger > 20 dB
      • 18-CH CWDM: 1270 nm to 1610 nm
      • SFF-8472 Digital Diagnostic Function
      • Single +3.3 V Power Supply
      • RoHS-6 Compliant
      • 0 to 70°C Operation
      • Hot Pluggable
      • Class 1 Laser International Safety Standard IEC-60825 Compliant
    • Specifications

      • 8/16 optical channels
      • Center wavelengths according to ITU-T G.694.2
      • Channel center wavelength 1290~1590 nm
      • Channel clear passband ITU +/- 7 nm
      • Insertion loss 8ch-2.5dBm, 16ch-3.5dBm (max)
      • Passband ripple 0.5dBm (max)
      • Adjacent channel isolation 30dBm (min)
      • Non-adjacent channel isolation 45dBm (min)
      • Return loss 45dBm (min)
      • Directivity 45dBm (min)
      • Polarization dependent loss 0.1dBm (max)
      • Operating temperature range -20C to +70C(optional -40C to +85C)
      • Storage temperature handling - 40 to + 85C
      • Maximum power handling 300mW
