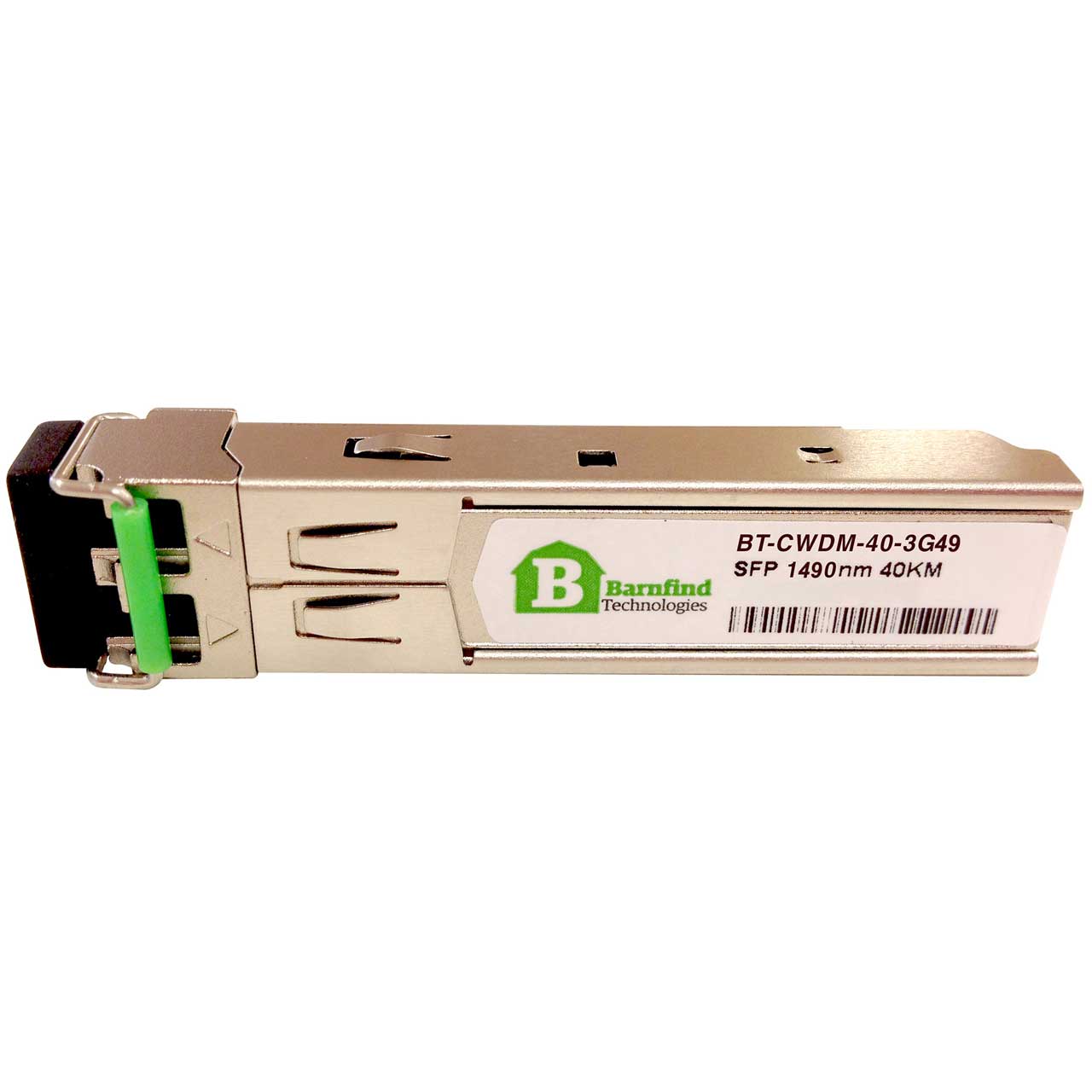

Barnfind BT-CWDM-40-3G49 SFP CWDM Module Maximum Data Rate 2.5 Gbps Distance 40km - 24.8 Miles - 1490nm

ITEM #: BT-CWDM-40-03G49 MFG #: BT-CWDM-40-3G49

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:


Our Price:


Availability: Temporarily Out of Stock
iAvailability Description Popup

    BT-CWDM-40-3G49 - Overview

    Barnfind BT-CWDM-40-3G49 is an SFP CWDM Module with Maximum Data Rate of 2.5 Gbps and a Distance of 24.8 Miles at a wavelength of 1490nm. The CWDM Mux/Demux is a passive technology that allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. HD over fiber at 1570nm transported alongside 3Gbps SDI at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.

    Barnfind CWDM Mux/Demux can support up to 18 wavelengths between 1270nm to 1610nm in 20nm increments when com fiber is ITU-T G.694.2, however if com fiber is ITU-T G.652, we recommend adopt 1270nm and 1290nm instead of 1390nm and 1410nm because of water peak loss.

    Barnfind provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications.

    BT-CWDM-40-3G49 - Required Accessories

      BT-CWDM-40-3G49 - Recommended Accessories
