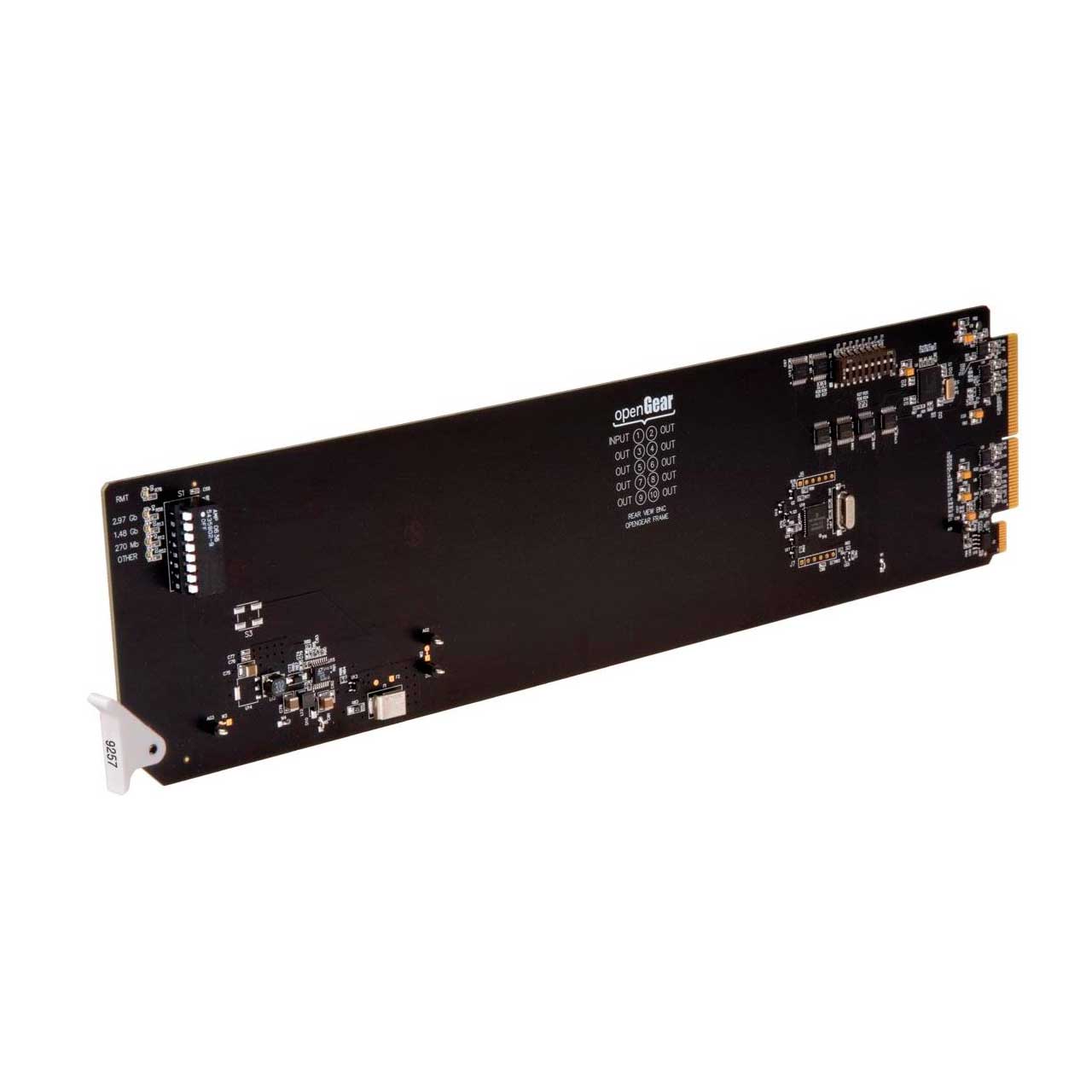

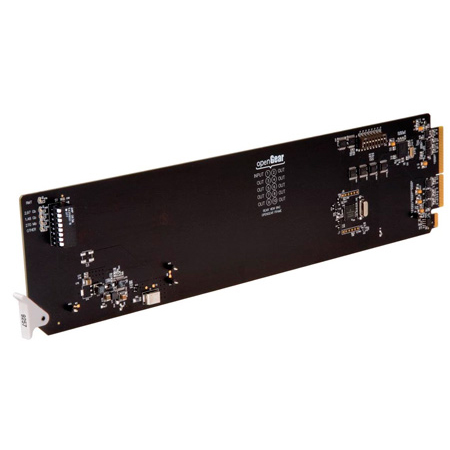

Cobalt Digital 9257 openGear 1x9 MADI Audio Distribution Amplifier Card

ITEM #: CB-9257 MFG #: 9257

free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    9257 - Overview

    The Cobalt 9257 provides an award-winning card-based solution for distribution of AES10 MADI signals. The card supports sampling frequencies up to 96 kHz, with a 64-channel payload supported at the industry standard 48 kHz sampling rate (all other sampling rates specified as valid per AES10-2003 are also supported at various payload capacities). Utilizing the openGear open-architecture platform, the 9257 offers scalable incorporation and the easy-to-use DashBoard setup and control operator interface. Up to 20 of the 9257 cards can be installed in an 8321 frame.

    The 9257 can reliably equalize up to 250m of 1694A, and offers DashBoardT display and alarm for input signal status and LOS alarms. The card is available with several Rear I/O Module choices that offer BNC, DIN1.0/2.3, or HD-BNC connectors. Full user remote and card-edge monitor/control allows full card status and control access locally or across a standard Ethernet network.

    • Features:

      • Card-based design allows scalability, with up to 20 input channels per frame
      • Low power/high-density design; only 3.3 watts per card
      • Up to 250m 1694A receive EQ capability
      • Remote control/monitoring via DashBoard software
      • Specifically designed and optimized for AES10 MADI interface
    • Specifications:

      • MADI (AES10-2003) Input
      • Number of Inputs: 1
      • Impedance: 75 O
      • Data rates: 125 Mbps
      • Level: 0.15 - 0.6 Vp-p

        MADI (AES10-2003) Outputs
      • Number of Outputs: 9 (max.)
      • Impedance: 75 O
      • Level: 0.3 - 0.6 Vp-p
      • Jitter: 0.1 UI
