Camplex CMX-TACNGO-3GTR 3G-SDI to Fiber Optic Converter/Extender & Tactical Cable Reel System - 1000 Foot


Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

CMX-TACNGO-3GTR - Overview

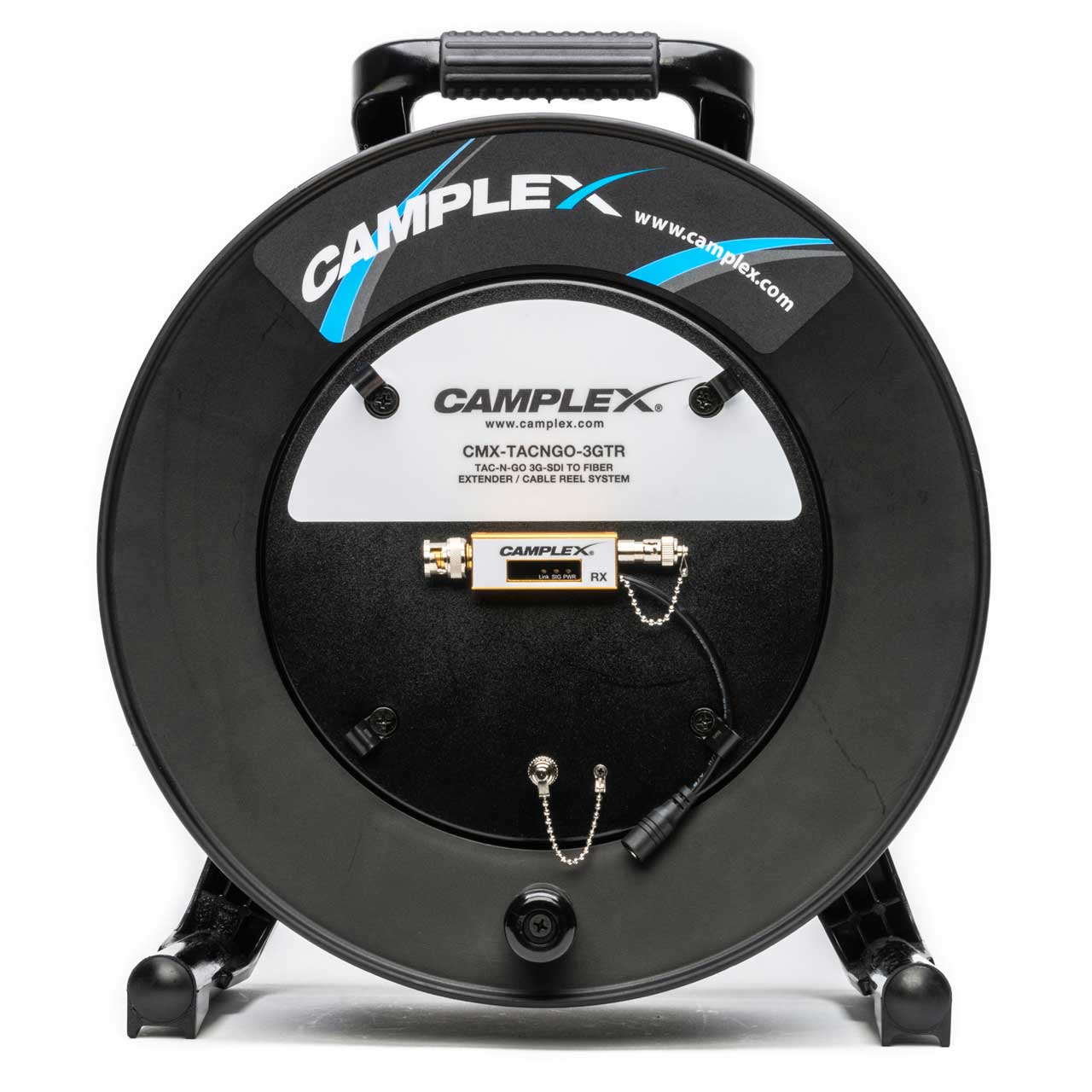

The field and on-location choice for fast deployment and simplified extension of 3G-SDI video over fiber is the Camplex Tac-N-Go 3GTR. It is the perfect solution for running camera signals to your production switcher or production switcher output signals to playout. The system employs the Camplex 3GSDI fiber converter combined with a field reliable ST fiber tactical snake reel.

The transmitter and receiver of the Camplex TACNGO-3GTR need just 5-volts of power making it an ideal compact tool for outside broadcast productions and live event video shoots. The fiber converters not only extend a 3G-SDI signal supporting 1080p@60Hz but can also carry SDI or SD signals when a monitoring solution is required.

The system receiver features an optical power meter that displays signal strength for added confidence that your production is always live and on the air. By utilizing a super rugged reel, a lightweight BNC cable can be connected to your camera to keep weight at a minimum while the use of a fiber based system ensures nearly zero loss over extreme distances.

Single mode connections are completed with bayonet lock ST connectors to ensure positive mating. The system fully supports SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI) and SMTPE- 259M (SD-SDI) signals.

  • Features:

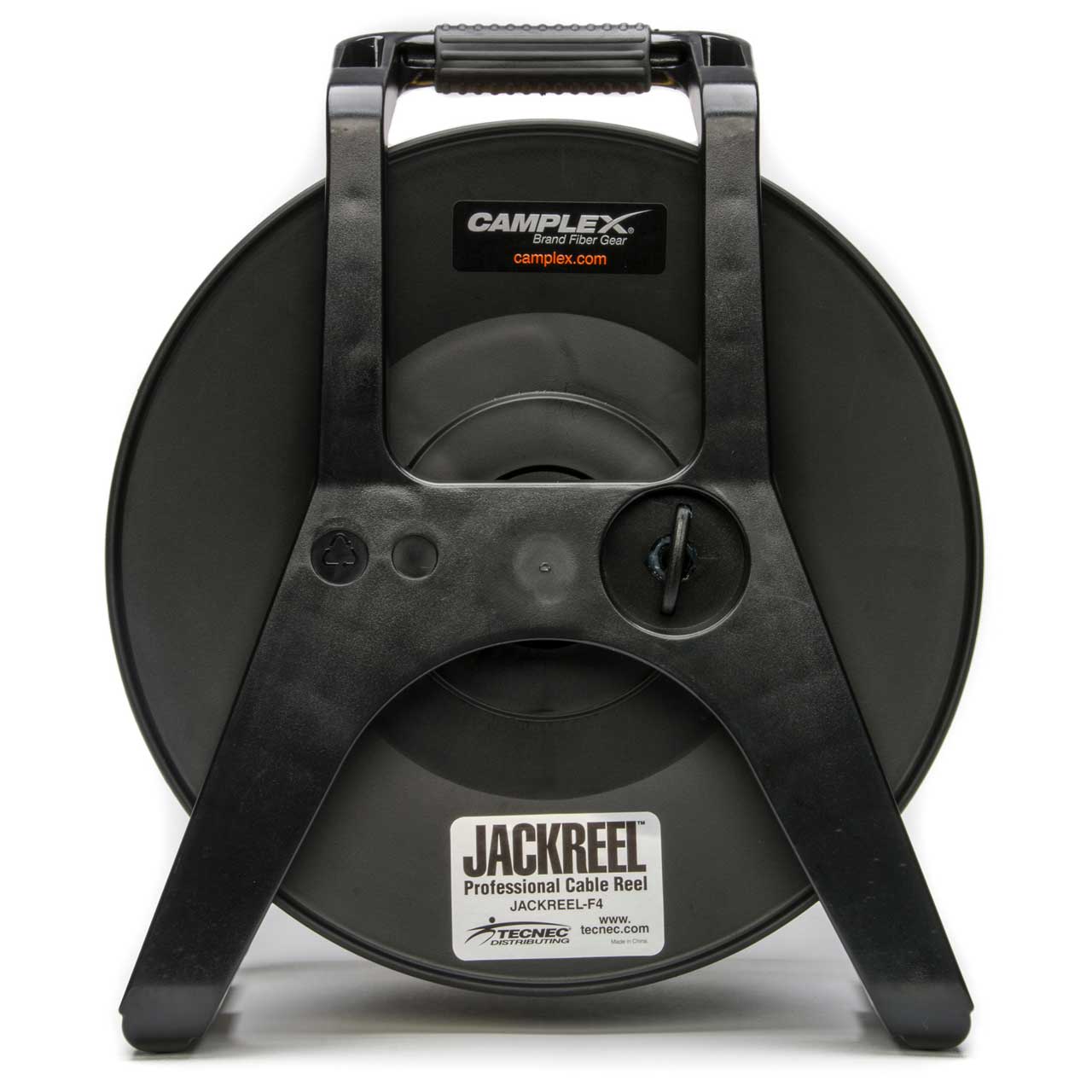

    • Rugged Cable Reel for Fast and Easy Field Deployment

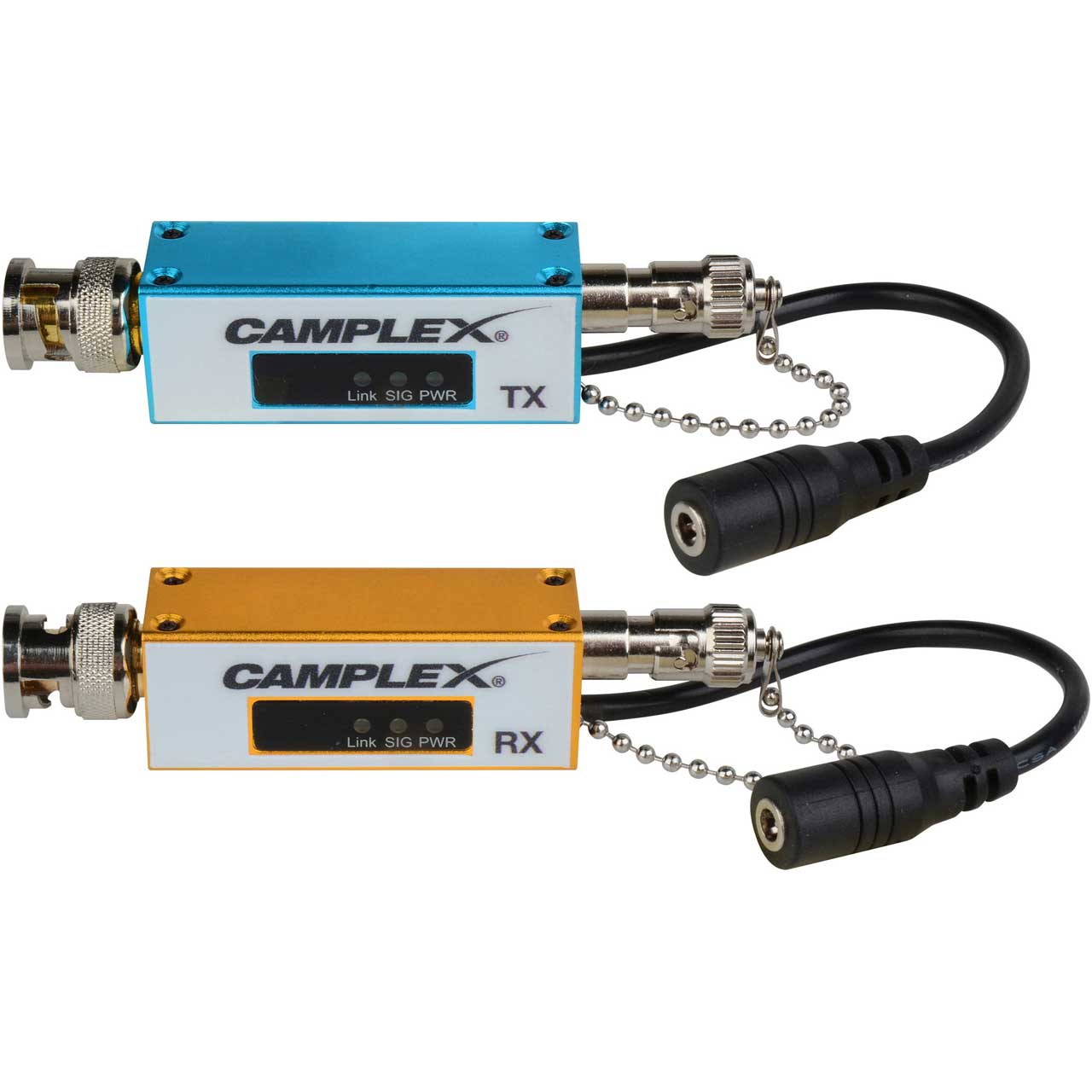

    • SDI Fiber Converter/Extender
    • Resolutions up to 1080p@60Hz
    • Link, Signal, and Power LED Indicators
    • ST Single Mode
    • Video Bandwidth: 3Gbps
    • Supports SMPTE-292M(HD-SDI), SMTPE- 259M(SD-SDI), SMPTE-424M(3G-SDI)
    • RoHS Compliant
  • Specifications:

    • Input Impedance 75Ω
    • Signal Level: 800mVp-p +/- 50mV
    • Wavelength: 1310nm
    • Converter Dimensions: 1.97 x 0.78 x 0.78 in / 50 x 20 x 20mm / Weight: 0.36 lb/ 160g

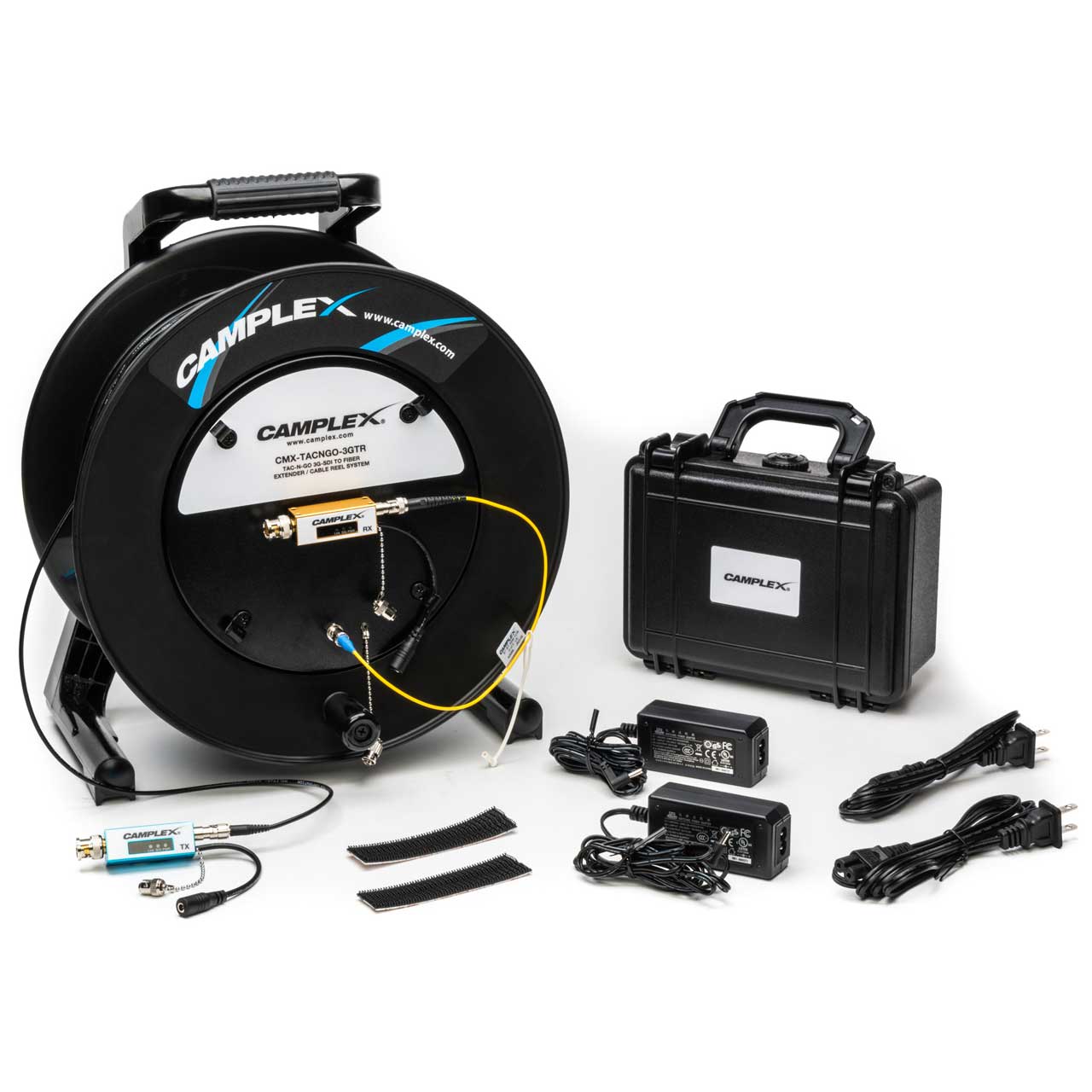

  • Item Includes:

    • (1) CMX-3GSDI-TR singlemode 3G/HD/SD SDI over fiber extender kit
    • (2) power supplies

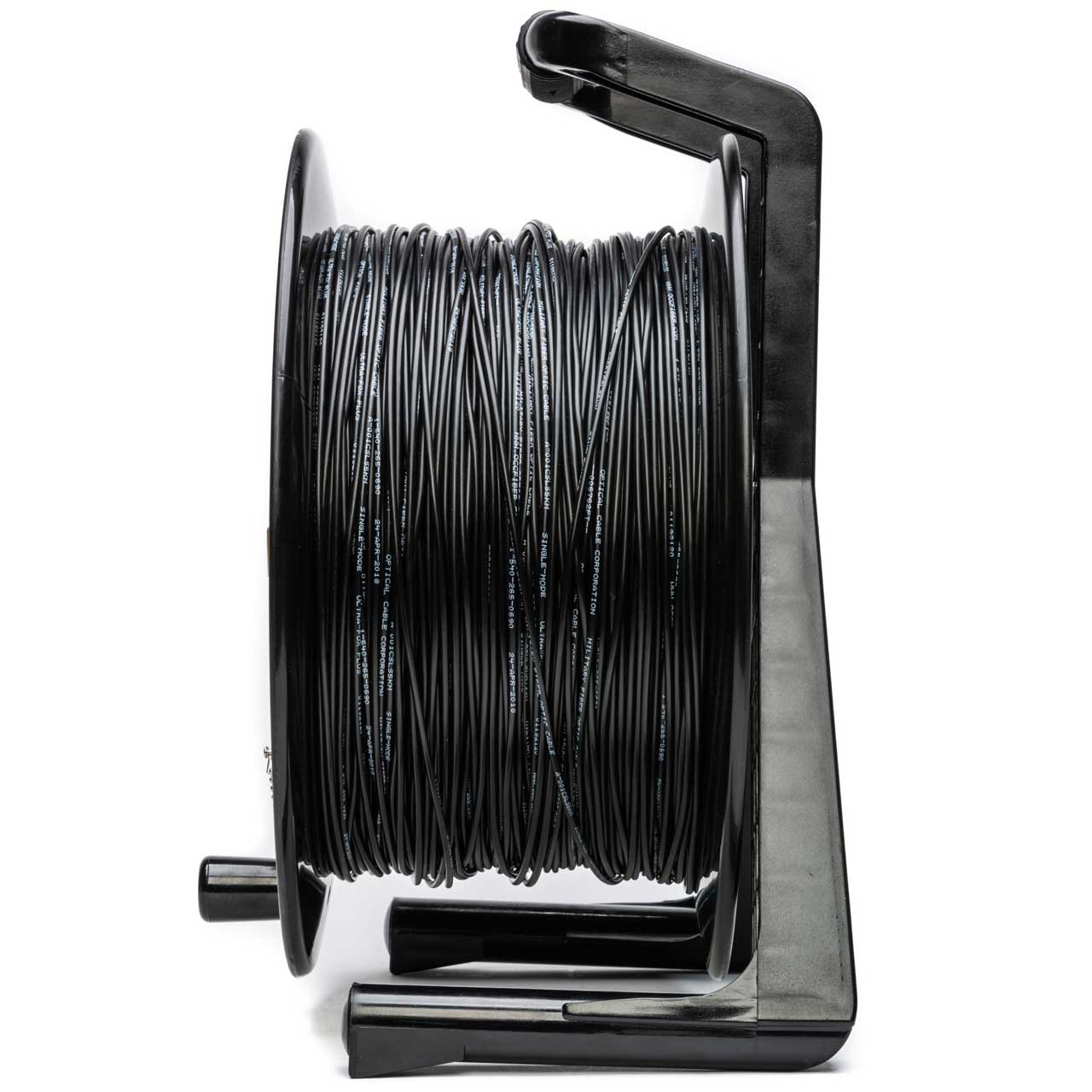

    • 1000 ft tactical fiber optic cable with ST connectors on reel
  • Warranty:

    • 1 Year
