UHD M-OTR - Overview

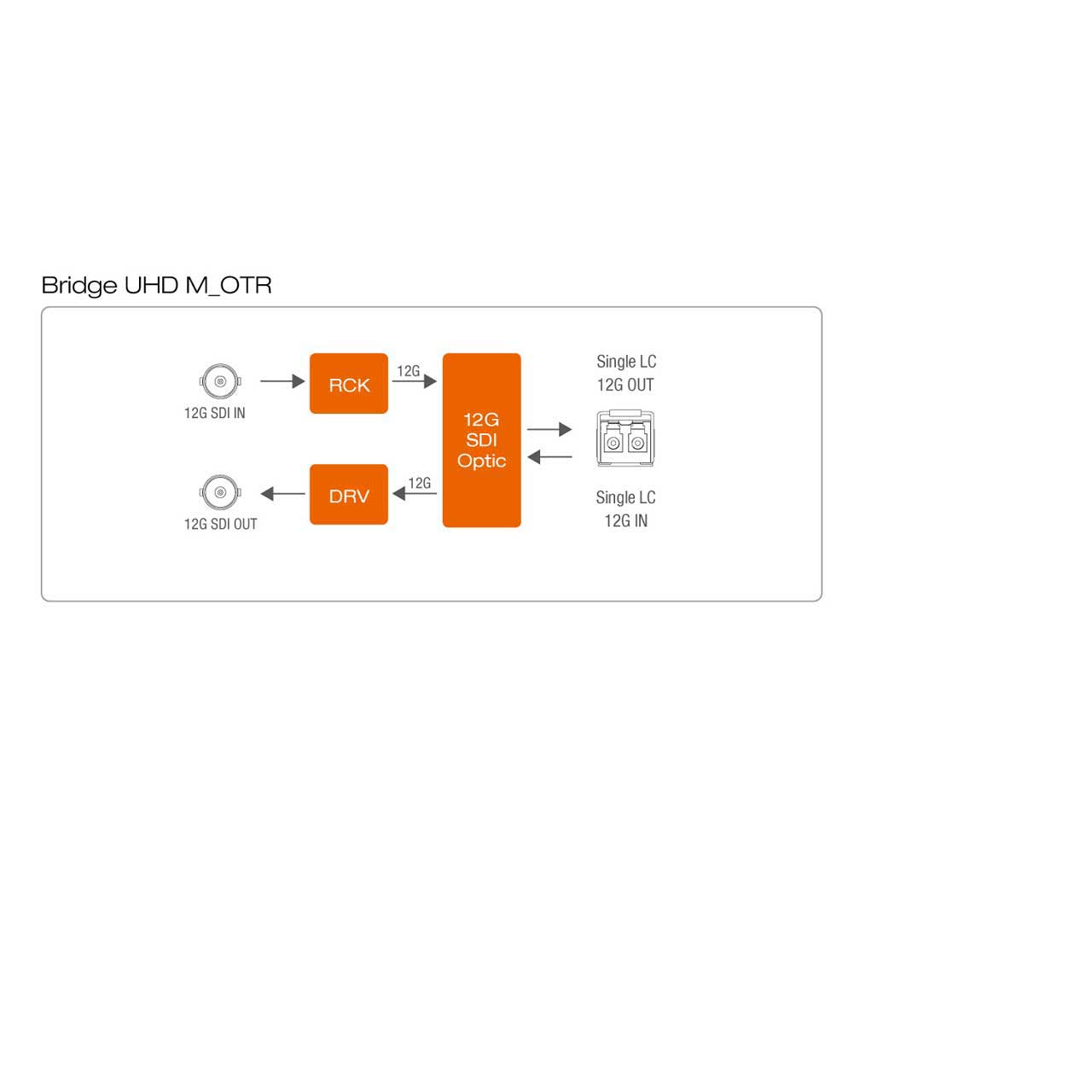

The Digital Forecast Bridge UHD M_OTR is a device for converting 12G SDI to optical signal for long range transmission as well as enabling Bi-directional transmission by Dual core. Allows for cable runs up to 10 km (32,808 ft or 6 1/4 miles) over standard duplex singlemode fiber optic cable

Please note! Sold individually. 1 unit only. A pair is needed for signal to be transmitted.

Features:
- Standard SDI(SD,HD,3G,6G,12G) format supported
- Bi-directional transmission (TX + RX)
- Optional Optic Interface (SFP module slot)
- LC Dual mode, max 10Km
- 12V DC Power supply (Operational Voltage Range : 7 ~ 17V DC)
Specifications:
- Physical:
- Dimension (W x H x D): 80 x 59.4 x 22.5 (mm)
- Weight: 105g
- Power Level: 5V ~ 17 VDC
- Power Consumption: 3.1 Watts (Max: 4 Watts)
- Operating Temperature: 0°C ~ 55°C
- Humidity: 0 to 95% RH, non-condensing
- Data Rate:12G
- Signal Level: 800mVp-p +/- 50m

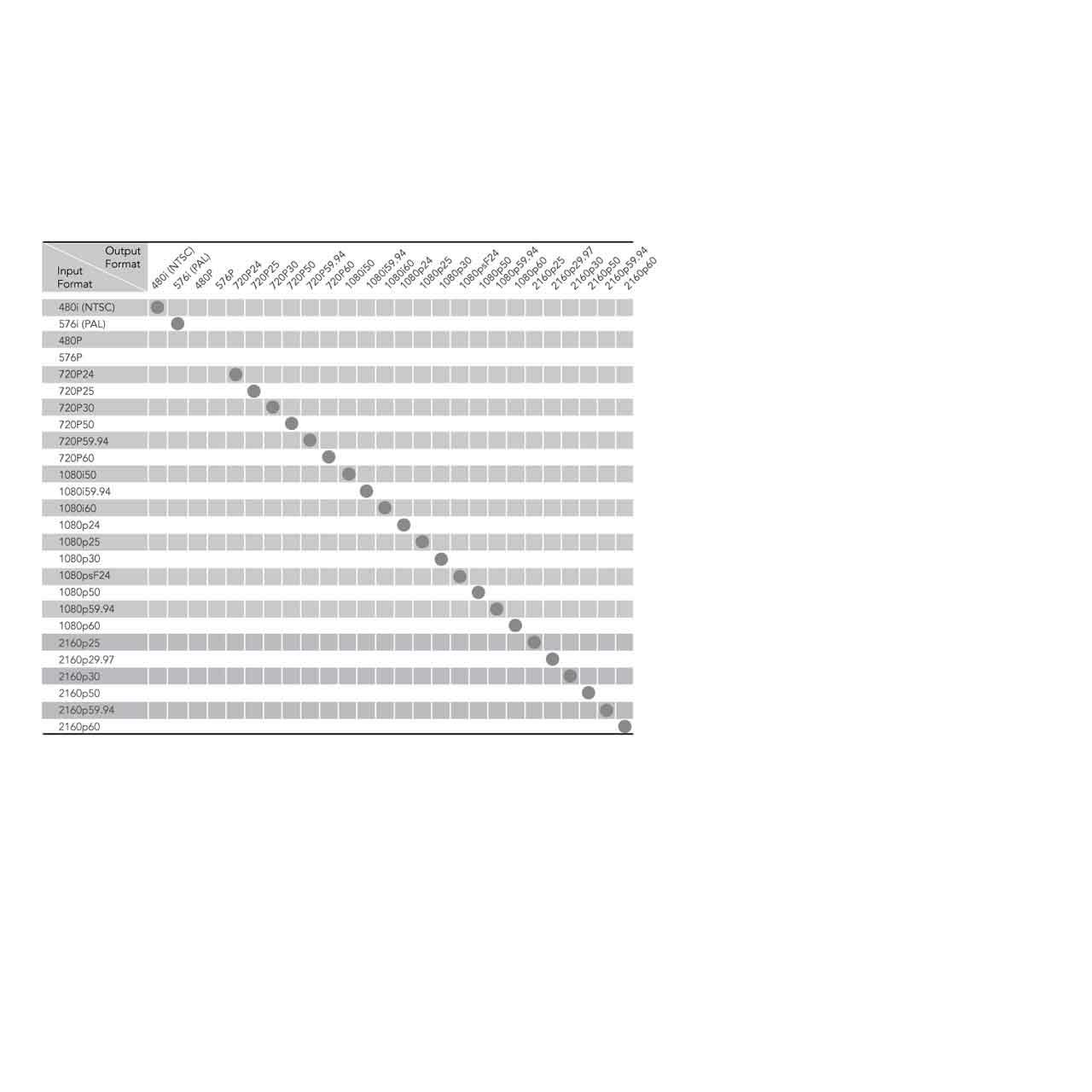

  Digital Video Specs:
- SMPTE-296M: 720P (60/59.94/50)
- SMPTE-274M, SMPTE-292M: 1080i (60/59.94/50)
- SMPTE-424M: 1080p (60/59.94/50) 3G
- SMPTE-ST2081: 2160p (30/29.97/25) 6G
- SMPTE-ST2082: 2160p (60/59.94/50) 12G
Warranty:
- 2 Year Warranty
