Datavideo EZ Streaming Pkg C - Includes HS-1600T Mixer/2x PTC-140T PTZ Cameras with Mounts/100ft Cat6 Cable

ITEM #: DV-EZSTREAMPK-C MFG #: EZ STREAMING PACKAGE C

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$7,945.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


EZ STREAMING PACKAGE C - Overview

This Datavideo EZ Streaming Package C is a Video streaming bundle that provides the essentials to get you started streaming video. This package includes professional tools that will allow you grow as your production needs expand. The versatile and powerful PTC-140T is a low-cost SDI/HDMI PTZ (Pan-Tilt-Zoom) camera, which features 20x optical zoom, 10 digital zoom that delivers sharp and clean video. Included in this bundle is a professional wall mount suited for this camera. The HS-1600T is a cost-effective 4-Channel 1080p HDMI digital video switcher with easy-to-use professional features, takes the transmitted HDMI video from the HDBaseT receiver. The HDMI, Cat6 cable then takes the mixed signal to the NVS-33, a H.264 Video streaming encoder and MP4 recorder is ideal for streaming to YouTube and Facebook.

  • Features:

    • PTC-140TH
    • Made with HDBaseT Technology
    • Stunning Full HD resolution
    • 20x Optical Zoom, 10x Digital Zoom
    • Advanced 2D/3D noise reduction function
    • Simple multi-camera control at your fingertips
    • RMC-300C can control up to 24 PTC-140T cameras

      HS-1600T
    • The Web Streaming Studio for Producers on the Move
    • Made for mobility. Made for the web.
    • Variety of video and audio input/output
    • Made with HDBaseT Technology
    • Built-in H.264 recorder for SD cards
    • Stream to Facebook Live, YouTube, Twitch, and more
    • Built-in camera control.
    • 17.3" LED Backlit Monitor

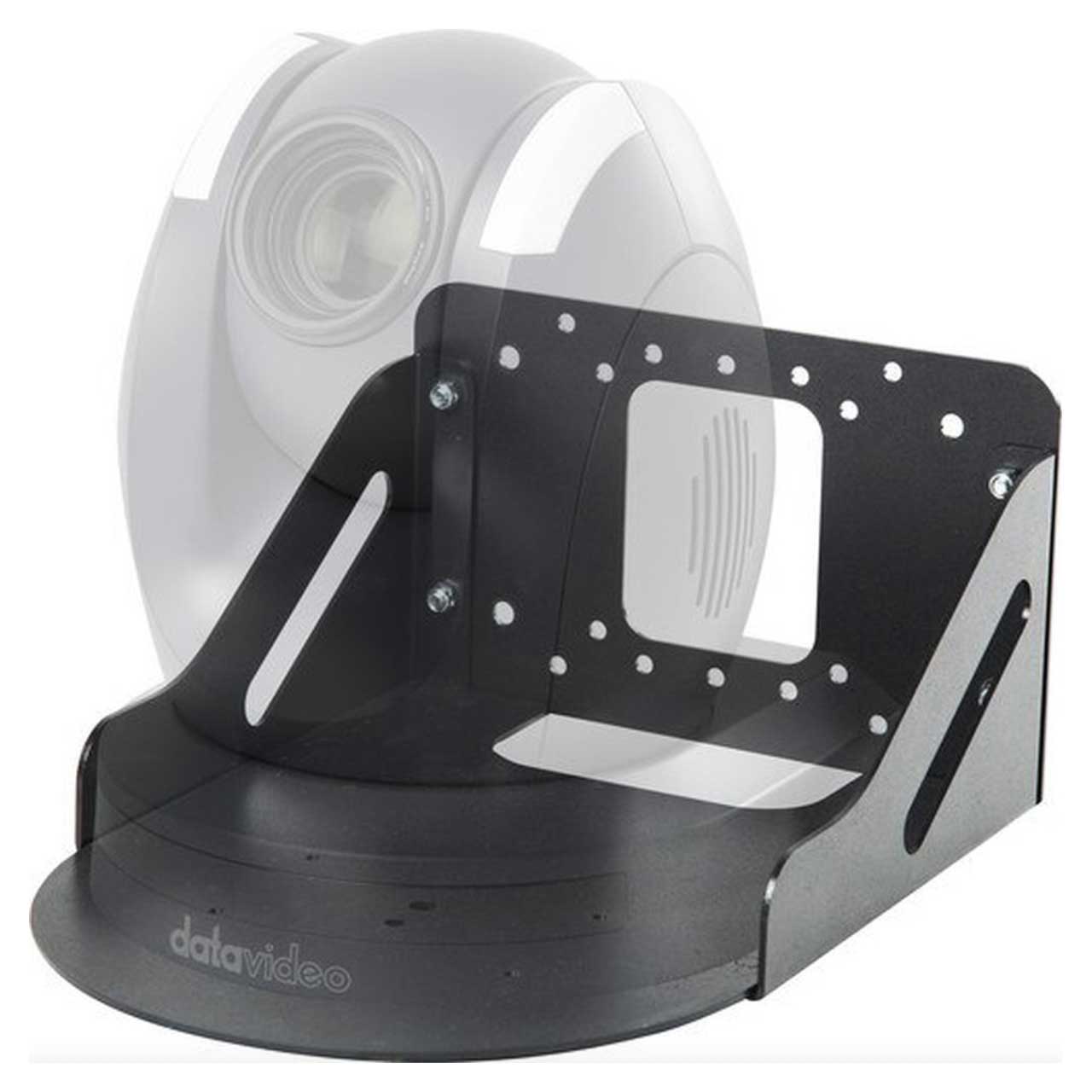

      WM-1
    • Flexible, durable setup
    • Versatile
    • Durable

  • Specifications:

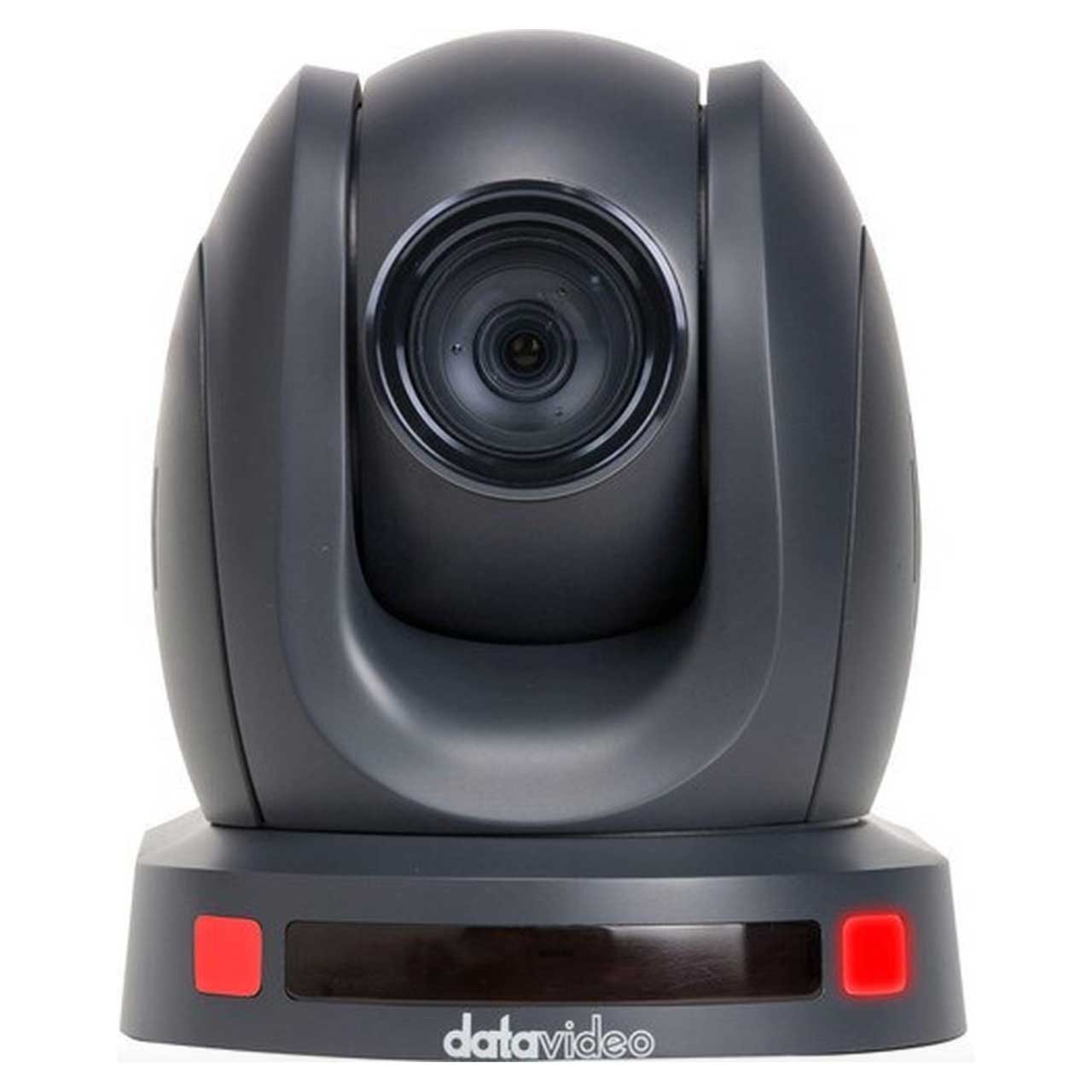

    • PTC-140T
    • Video Formats
      1080p 60/59.94/50/30/29.97/25
      1080i 60/59.94/50
      720p 60/59.94/50
    • Image Sensor: 1/2.8 inch high quality HD CMOS sensor
    • Effective Pixels (approx.): 2.07 Mega pixels
    • S/N Ratio: >55dB
    • Min. Illumination: 0.5Lux (F1.8, AGC ON)
    • Electronic Shutter: Auto / Manual
    • Zoom Ratio: 20x Optical Zoom, 10x Digital Zoom
    • Gamma Control: Off / Normal
    • Iris Control: Auto / Manual
    • Digital Noise Reductions: Yes
    • On-Screen Display (OSD): English, Simplified Chinese
    • White Balance: Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
    • AGC / Gain Control: Auto / Manual
    • Mirror / Flip Image: Yes
    • Focus Mode: Auto / Manual
    • Panning / Tilting Range: Pan: 340° , Tilt: +90° to -30°
    • Panning / Tilting Speed: Pan: 0.1~60°/sec, Tilt: 0.1~30°/sec
    • Preset: 255 Position
    • Focal Length: f=5.2 (wide) to 98 (tele) mm, F1.6 to F3.5
    • Field of View (Horizontal, Wide), Approx. 54.7° (WIDE END) / 3.3° (TELE END)
    • Image Compensation: Backlight Compensation
    • Video Output: HDBaseT (PoE) x1, RJ-45 x1
    • Audio Input: Line In (IP Stream Output)
    • Tally LED: Dual color (Red, Green)
    • Filter: M52.0 x 0.75 Thread with UV Protection
    • Protocol: VISCA, DVIP
    • Remote Control Interface and Transmit Distance: RS-232, Lan (RJ-45), HDBaseT
      (RJ-45)/ DVIP on Receiver Box: Transmit up to 100m
    • Video Compression Format: H.264, H.265, Dual stream output
    • Audio Compression Format: AAC/MP3/PCM Audio compression
      HD IP Interface: 100M IP port(100BASE-TX); Support DVIP
    • Network Protocol: RTSP, RTMP
    • F/W Update: Ethernet
    • IR Control: Yes
    • Camera Control Unit: HS-1500T/HS-1600T/RMC-180/RMC-300C
    • Tripod Mount: 1/4-20 UNC
    • Options: WM-1
    • Color: Black/White
    • Dimension (LxWxH): 156 x 182 x 186 mm
    • Weight: 1.6 kg
    • Operating Temp. Range: 0~40 °C
    • Power: DC 12V 12W

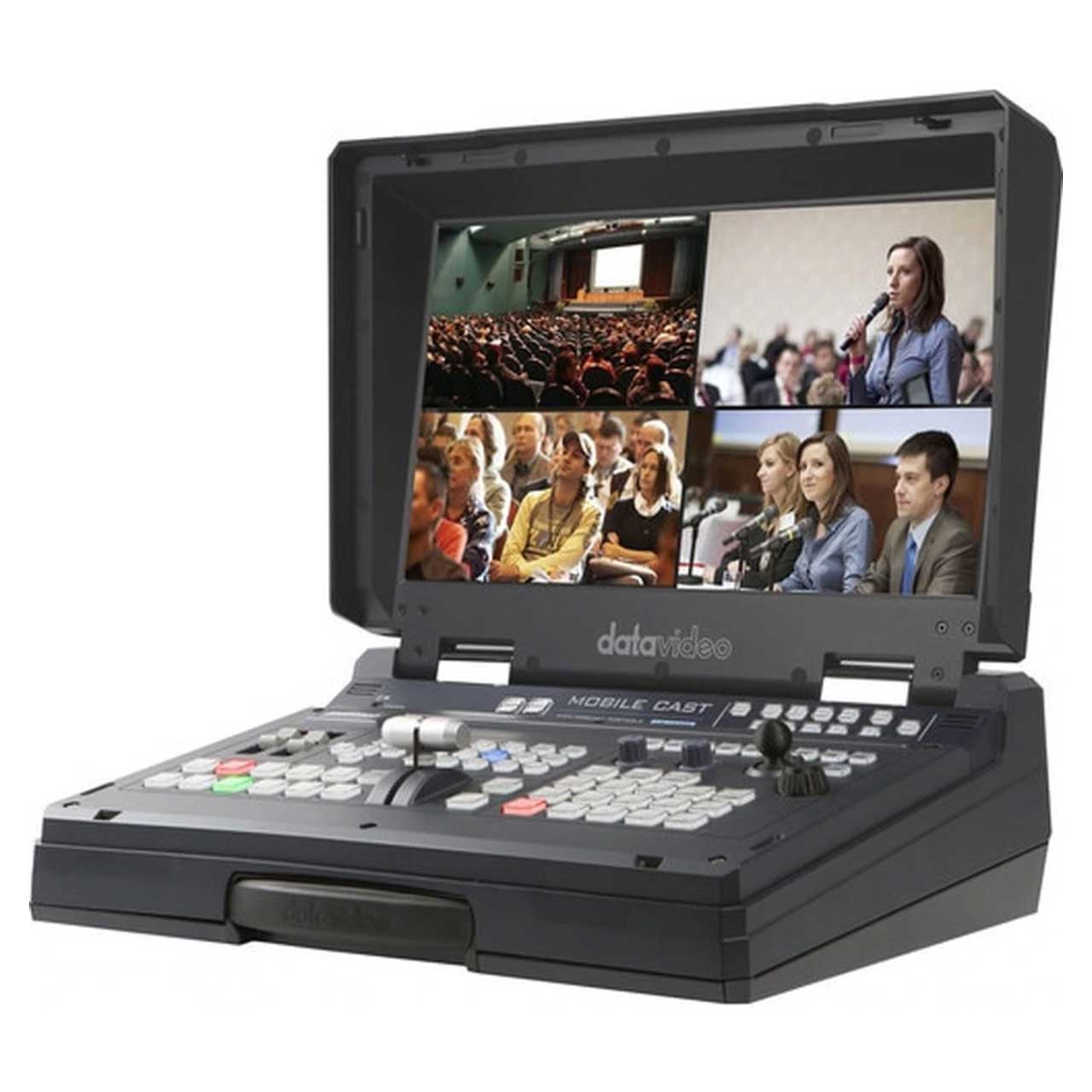

      HS1600T
    • Video Standard: HD & SD
    • Video Format
      1080p 50/59.94/60Hz
      1080i 50/59.94/60Hz
      720p 50/59.94/60Hz
      576i/p 50Hz
      480i/p 59.94Hz
    • Video Input: 3 x HDBaseT, 1 x HDMI
    • Computer Graphic Interface: 1 via HDMI
    • Down-converted Output: Yes
    • Video Output: 3 x HDMI PGM, 1 x STREAM (RJ-45)
    • Audio Input: 2x Balanced XLR, 1x Stereo RCA (L/R), De-embedded Digital Audio
    • Audio Output: 1x Stereo headphone
    • Embedded Audio Support: 2 ch Audio embedded
    • Audio Delay Calibration: N/A
    • A+V Switching: N/A
    • USK: 1x USK Lumakey
    • DSK: N/A
    • Picture in Picture: 1
    • Logo Insertion: N/A
    • Built-in Audio Mixer: Yes, 4 channels
    • Built-in Monitor Display: 17.3" HD TFT LED backlit, 1920x1080 pix
    • Built-in Intercom & Tally:N/A
    • Streaming Video Encode: H.264 / AVC, Main/ High Profile
      Configurable Bit-rate up to 10Mbps
    • Streaming Audio Encode: AAC-LC, Configurable bit rate range from 32Kbps to
      384Kbps, Sample rate: 48KHz, 16bit
    • Streaming Protocol: TS over TCP/UDP (unicast & multicast), RTSP over
      HTTP/TCP/UDP (RTSP Elementary Streaming), RTMP/RTMPS (Publish)
    • Streaming Control: Web browser UI for configuration and control Socket commands
    • Recording File System: FAT, exFAT, NTFS
    • Recording File Format: MP4
    • Recording Setting Control: Web UI for system configuration and control
    • Special Features: Built-in camera controller
    • Dimension (LxWxH): 17.91 x 13.97 x 5.27 Inches
    • Weight: 17.2 Lbs (7.8 kg), Reinforced Plastic Case
    • Power: DC 48V, 4.16A
    • Operating Temp. Range: 32~104°F
    • Options: CB-60/61/62

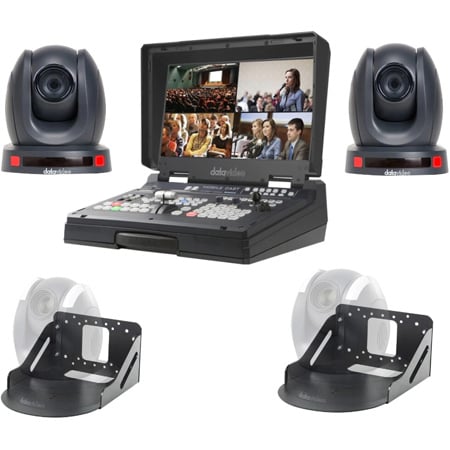

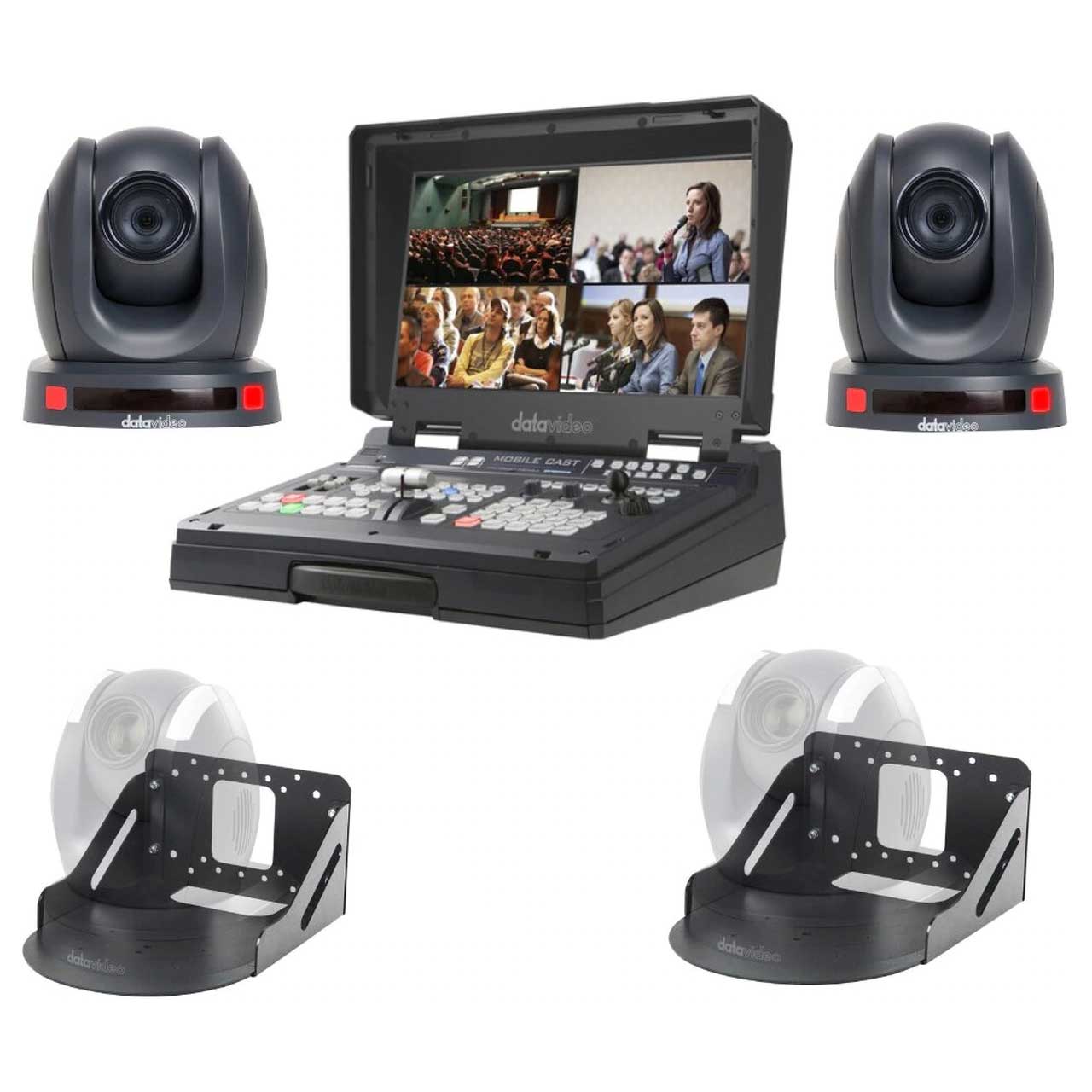

  • Item Includes:

    • 1x Datavideo HS-1600T HDBaseT Portable Video Streaming Studio
    • 2x Datavideo WM-1 Wall Mount
    • 2x Datavideo PTC-140T PTZ Camera
    • 1x 100 Foot CAT6 Cable
