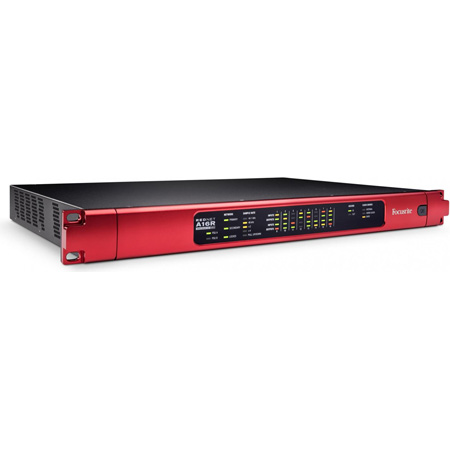

Focusrite REDNET-A16R-MKII 16x16 Analog Interface for Dante Networks with Channel Level Control for Inputs & Outputs

AMS-REDNET-A16R-MKII - Overview

• Features:

  • 16-channel bi-directional analog interface for Dante networks, with additional two-channel AES3 I/O.
  • Precision A-D and D-A conversion with 119dB dynamic range, flat from 20Hz-20 kHz (+/-0.15dB)
  • Individual input/output channel level control using RedNet Control software.
  • Dual PSUs with locking IEC inlets
  • Dual locking etherCON connectors for Primary and Secondary network connections.
  • Power supply and ethernet redundancy with auto switchover in case of failure.
  • Front-panel LED indicators for PSU, network, sample rate, signal present and clock source status
  • Sample rate conversion on the AES3 inputs allows external equipment to run at any sample rate
  • Analog I/O on four AES59 standard DB25 connectors.


• Specifications:

  Input / Output Trim
  • Input Trim: - 78 to 0dB in 1dB steps (per channel)
  • Output Trim: - 78 to 0dB in 1dB steps (per channel)

    Line Inputs
  • 0dBFS Reference Levels: +18 or +24dBu (switchable)
  • Frequency Response: 20h-20kHz ± 0.1dB
  • THD + N: <-105dB (0.0005623%) unweighted, 20Hz-20kHz; -1dBFS input
  • EIN: -95dBu 'A' - Weighted (typical)
  • Signal-to-Noise Ratio: 119dB 'A' - Weighted (typical)
  • Converter Dynamic Range: 120dB 'A' - Weighted (typical), 10Hz-20kHz

    Line Outputs
  • 0 dBFS Reference Levels: +18 or +24dBu (switchable)
  • Frequency Response: 20Hz-20kHz ± 0.1dB
  • THD + N: <-100dB (0.001%) unweighted, 20Hz-20kHz; +23dBu input
  • Noise in Presence of Signal: -94dBu 'A' - Weighted (typical)
  • Dynamic Range: 118dB 'A' - Weighted (typical)
  • Converter Dynamic Range: 120dB 'A' - Weighted (typical), 10Hz - 20kHz

    Crosstalk
  • Input to Output or Input : <-100dB unweighted, 20Hz-20kHz; +23dBu input
  • Output to Input or Output: <-100dB unweighted, 20Hz-20kHz; -1dBFS input

    Digital Input Sample Rate Converters
  • Sample Rate Range: 32kHz to 216kHz
  • Gain Error: - 0.3dB
  • Dynamic Range: >138dB
  • THD + N: <-130dB (0.00003%)
  • Latency: 11 to 45 samples (network and sample rate dependent)

    Digital Performance
  • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% /-0.1% / +0.1% /+4.167%) at 24 bit
  • Clock Sources: Internal, Word Clock, DARS or from Dante Network Master.
  • External Word Clock Range: Nominal sample rate ±7.5%

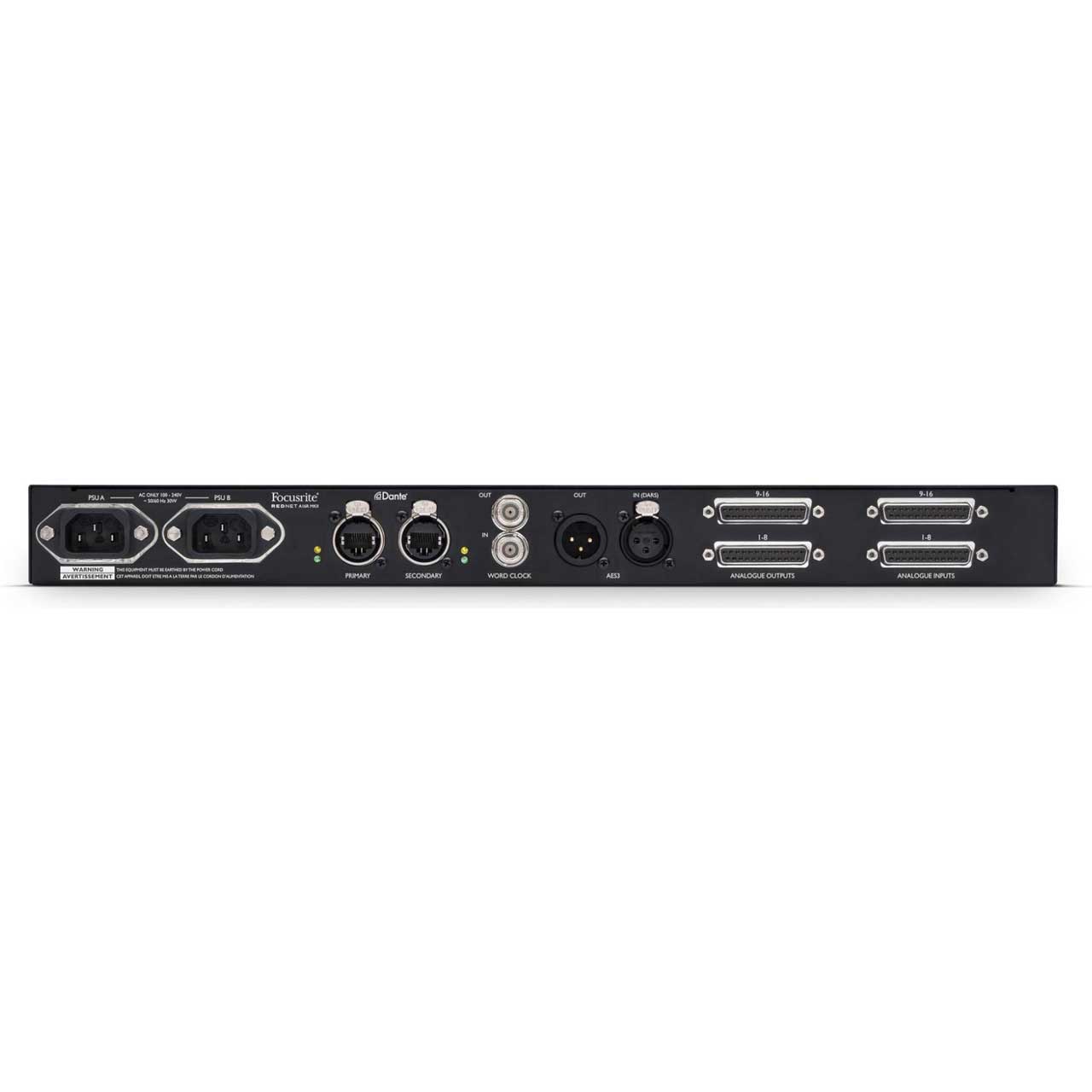

    Rear Panel Connectivity
  • Analogue Inputs: Line Inputs: 2 x DB - 25 connectors
  • Analogue Outputs: Line Outputs: 2 x DB - 25 connectors

    AES3
  • Channel Count: 2 x 2 AES3 channels
  • Input (optional DARS): 1 x Female XLR (Switchable with analogue input channels 15 and 16 at quad rates)
  • Output: 1 x Male XLR (Duplicate of analogue output channels 15 and 16 at quad rates)

    Word Clock
  • Word Clock Input: 1 x BNC 75Ω port (switchable termination)
  • Word Clock Output: 1 x BNC 75Ω port


• Item Includes:

  • 1x RedNet A16R MkII
  • 2x IEC AC Mains Cable
  • 2x IEC Retaining Clips
  • 1x Focusrite Pro Information Guide
  • 1x RedNet Control
  • 1x RedNet PCIe Drivers
  • 1x Audinate Dante Controller
