Multidyne HD-3000-TRX-ST 3G Two-Way Multi-rate HDSDI Over Fiber Optic Converter / Transceiver Over 2 Fiber Connections

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Multidyne HD-3000-TRX-ST 3G Two-Way Multi-rate HDSDI Over Fiber Optic Converter / Transceiver Over 2 Fiber Connections

    Manufacturer: Multidyne

    Item #: HD-3000-TRX-ST   •   MFG #: HD-3000-TRX-ST




    Our Price:$679.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


    • Special Order Item: non-cancelable, non-returnable, non-refundable.


    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    HD-3000-TRX

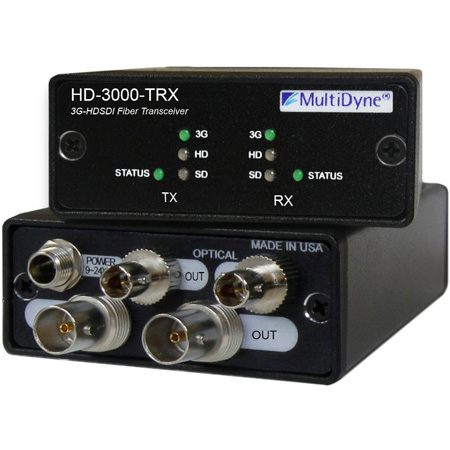

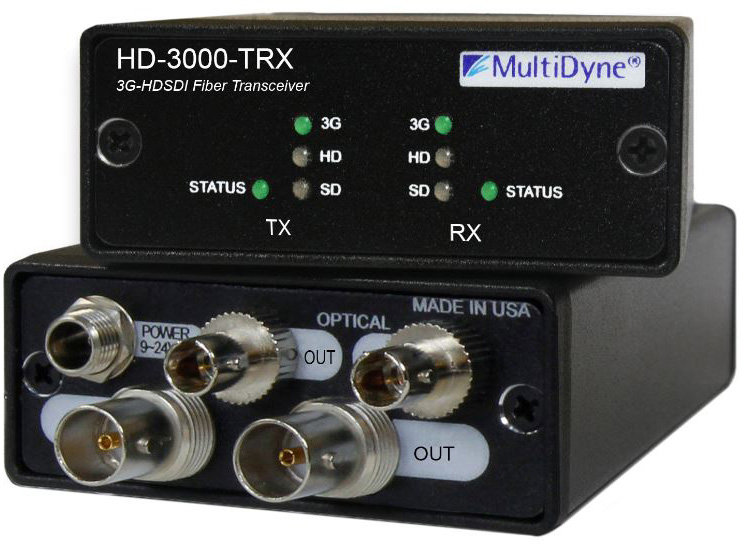

    The transceiver model, designated by model number HD-3000-TRX, is essentially a -1TX (transmitter) and a -1RX (receiver) in the same enclosure, but without loopthru or DA connectors. It includes 1 fiber IN and 1 reclocked fiber OUT optical connector, one reclocked serial digital video OUT 75-Ohm BNC connector and one serial digital video IN 75 Ohm BNC connector. As on the transmitter, only signals above 125 MBPS should be applied to the BNC input. The -TRX front panel includes 2 groups of Rate and STATUS LEDs, one for the transmit
    section and one for the receive section. Each includes Rate LEDs with the same functionality as on the other models. The receive section has an Optical Signal Strength STATUS LED, and the transmit section has a Carrier Detect STATUS LED, each with the same functionality as described for the other models.

    The HD-3000 is a family of nine compact, portable fiber optic transmitters, receivers, and transceivers. The different modules can send one or two HD/SDI signals over individual fibers, or two signals over a single strand, one-way or bidirectionally. The unique HD-3000 "Drop & Repeat" unit allows a signal to be received at one location and continue on via fiber to one or more additional locations.


    Applications:
    Sports production
    Remote camera links
    Distance learning
    OB Van Inter-connects
    Pre-fibered venues
    Courtesy feeds

    Please note! For best performance over longer distances at the highest bit-rates, single mode fiber is recommended.


    • Features

      • 3G HDSDI Transceiver
      • Drop and Repeat Functionality
      • OLED Display with Menu Driven Control and Configuration
      • Dual Re-Clocked Outputs & Loop Through
      • Cable EQ

    • Specifications

      • Signal Count ...................... 1 or 2 (model dependant)
      • Data Rate............................................5 Mb/s to 3 Gb/s
      • Reclock & Automute ................ SMPTE 425M (2.97Mb/s), 292M (1.49Mb/s), ..259M-C (270Kb/s) (enable/disable via int. dip switch)
      • Input/Output Level...................800 mV (peak to peak)
      • Input/Output Impedance ................................75 Ohms
      • Return Loss................> 15 dB typical (5 - 1500MHz) .... > 10 dB typical (1.5 - 3GHz)
      • Cable Equalization (Gepco VSD2001/Belden 1694A):
      • 270 MHz ............................................ up to 500m
      • 1.5 GHz .............................................. up to 200m
      • 3 GHz ................................................. up to 150m
      • Nominal Optical Loss Budget Values
      • TX Laser output power (std./DFB)-5 dBm/0 dBm
      • RX Sensitivity, HD/SDI (bars)................ -22 dBm
      • Wavelengths................................... 1310nm (standard) .... 1310/1550nm (WDM) or 1271-1611nm (CWDM)
      • Fiber Compatibility...........Multimode or Single Mode (Single Mode recommended)
      • Dimensions (WxLxD)................. 2.75" x. 1.125" x. 5"
      • Weight...................................................................7 oz.
      • Power Input...................................................9-24VDC
      • Power Consumption.......................<5 [email protected]
      • Temperature Range .................................. 0° to +70°C
      • Humidity Range........... 0 to 95% RH, Noncondensing
      • Laser Safety .........................................Class 1 Laser
      • Other ................................................................RoHS
