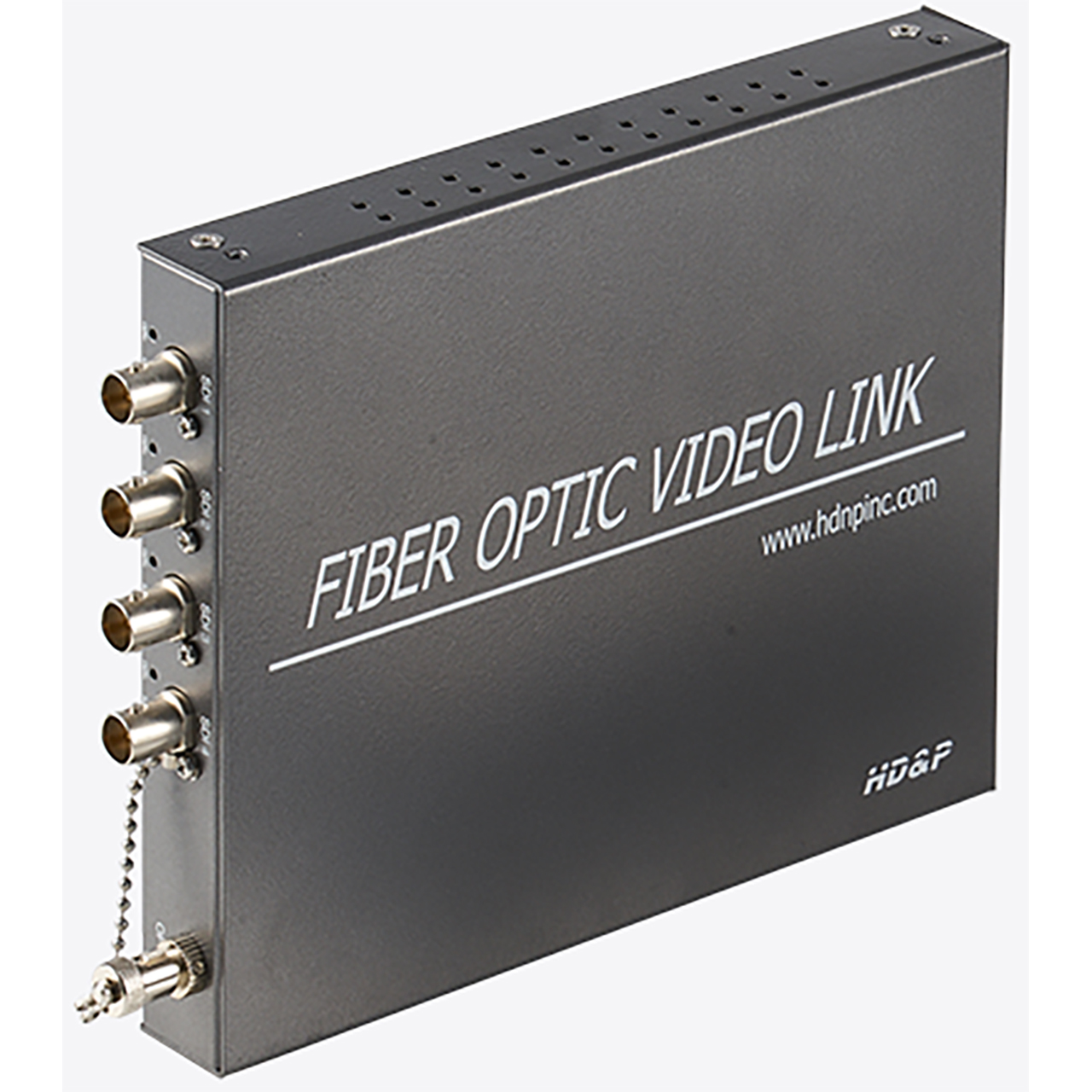

HD&P HD4V 4-Channel 3G-SDI Video Extender TX / RX Set - ST Fiber Connector

HD4V-T-RX - Overview

• Features:

  • Supports 4 channel 3G/HD-SDI video
  • Supports SMPTE 424M, 292M, 259M
  • Error free SDI pathological pattern operation
  • Equalizer and cable driver are included

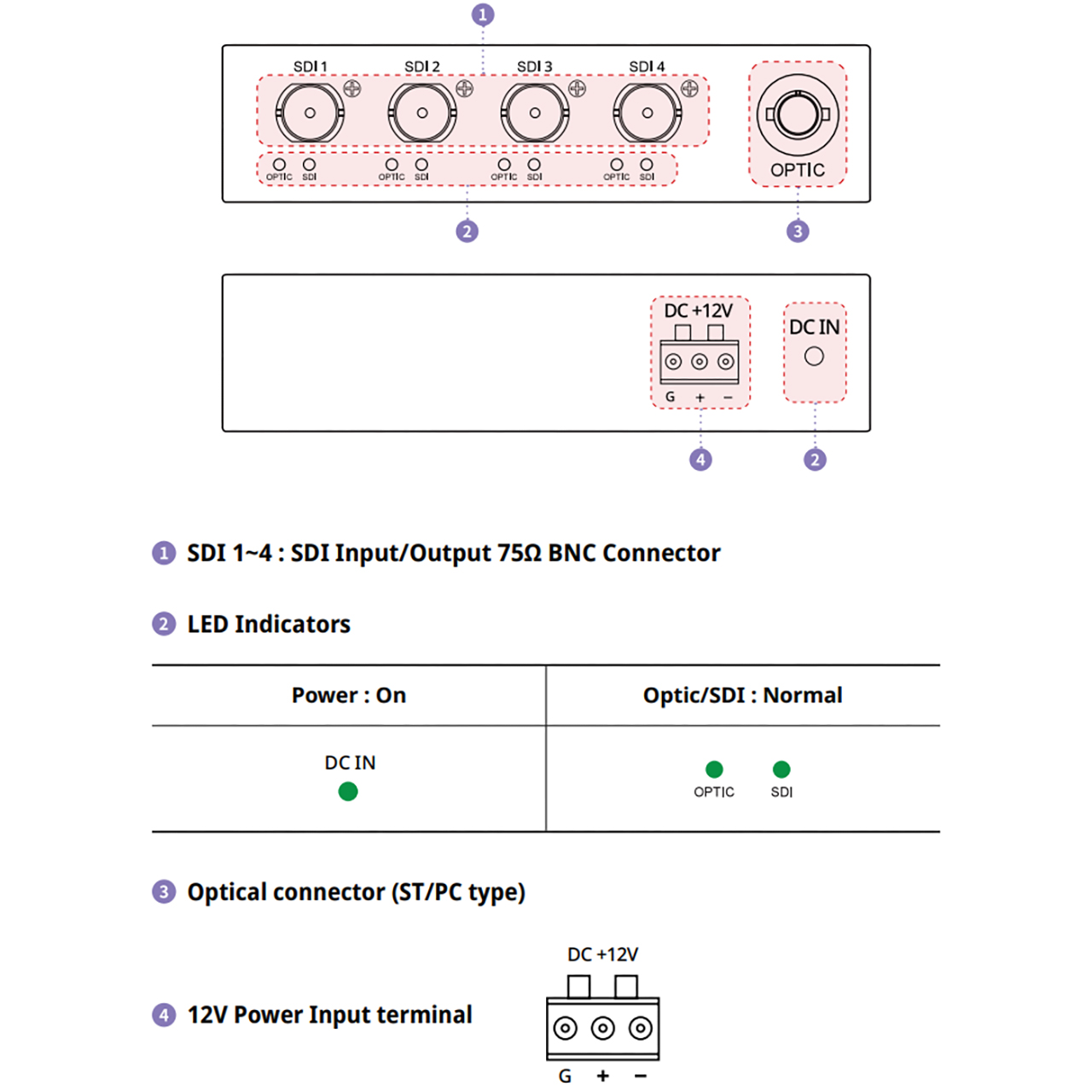

  • LED indicator for operation status
  • 750ohm BNC and ST optical connector(customizable)


• Specifications:

  • Video
  • Signal Format: SMPTE-424M, SMPTE-292M, SMPTE-259M
  • Signal Level: 800 mV Vp-p ±50 mV
  • Data rate: Up to 2.97Gbps
  • Jitter*:
    - < 1.0 UI - Timing Jitter
    - < 0.2 UI - Alignment Jitter
  • Electrical Connector: BNC (75Ω)
    Note: *Total Jitter at the end of Receiver output Maximum value.

    Optical
  • Wavelength: CWDM wavelength
  • Transmitter:
    - Output power: -3 ~ -0dBm
    - Extinction Ratio 7dB
  • Receiver:
    - Sensitivity -22dBm
    - Maximum Overload 0dBm
  • Distance (Typ.): 30km*
  • Fiber Type: Single mode and Multimode
  • Optical Connector: ST Connector
  • Number of Fibers: 1
    Note: *The maximum distance coverage may be greater than these typical numbers, depending on fiber type, fiber bandwidth, connector, splicing losses, chromatic dispersion, environmental factors, etc.

    Mechanical
  • Power Supply: DC12V, 1.5A Adaptors
  • Operating Temperature: -4° to 167°F (-20° to 75°C)
  • Humidity: 0 to 95% RH, non-condensing
  • Dimensions (WxDxH): 5.81 x 7.11 x 1" (147.5 x 180.7 x 25.4mm)


• Item Includes:

  • 2x HD4V converters
  • 2x DC12V Power supply, 1.5A Adapters
  • 2x Mounting flanges
