Datavideo HS-1600T-3C150TCM - HS-1600T MKII Streaming Studio with Three PTC-150TL Cameras and Carry Case

ITEM #: HS1600T3C150TCM MFG #: HS-1600T-3C150TCM

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the HS1600T3C150TCM

HS-1600T-3C150TCM - Overview

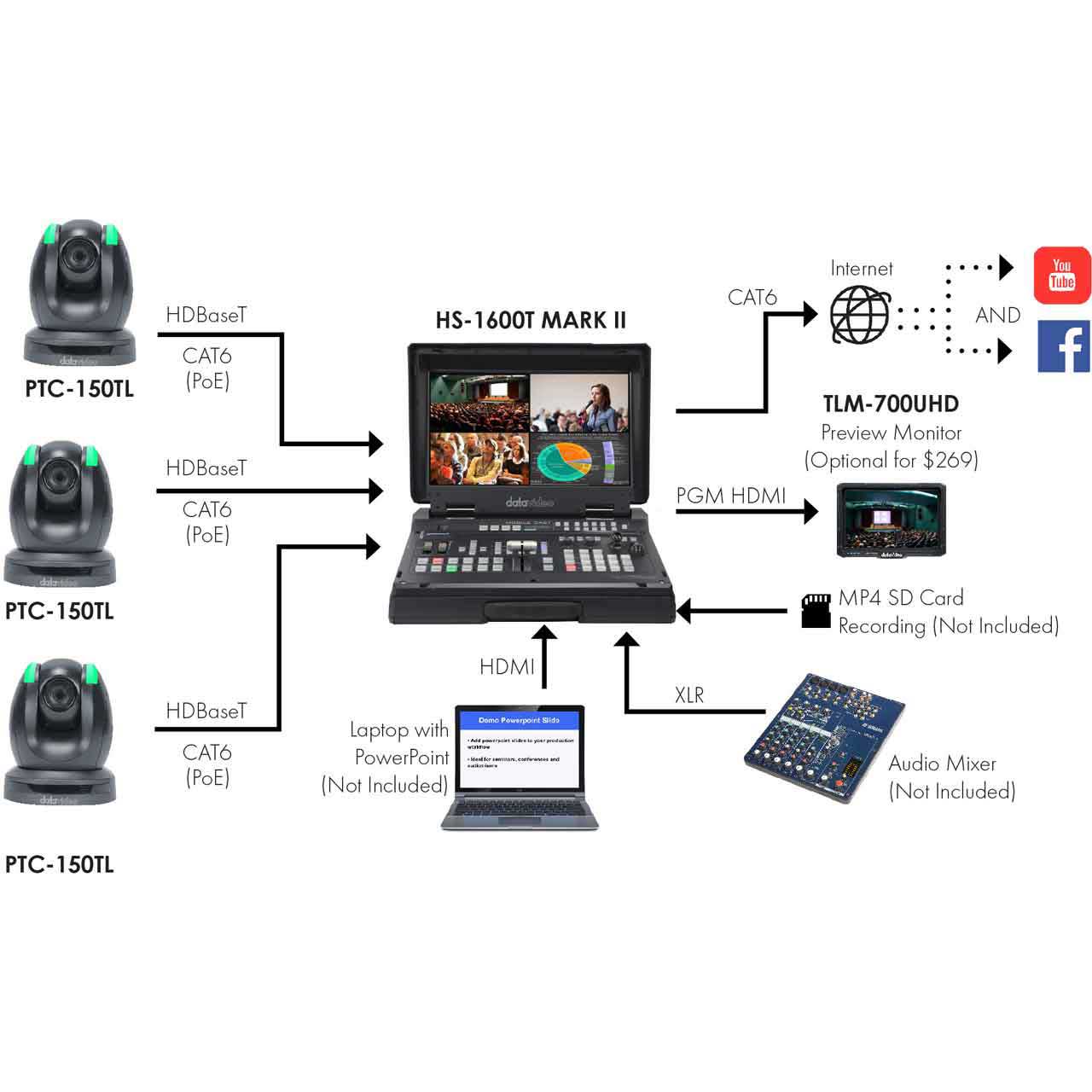

Shoot and stream live events, news, and podcasts in HD/SD with Datavideo's 4-Channel HD/SD HDBaseT Portable Video Streaming Studio kit which includes three PTC-150TL cameras. This versatile system allows you to connect, direct, and stream from virtually anywhere!

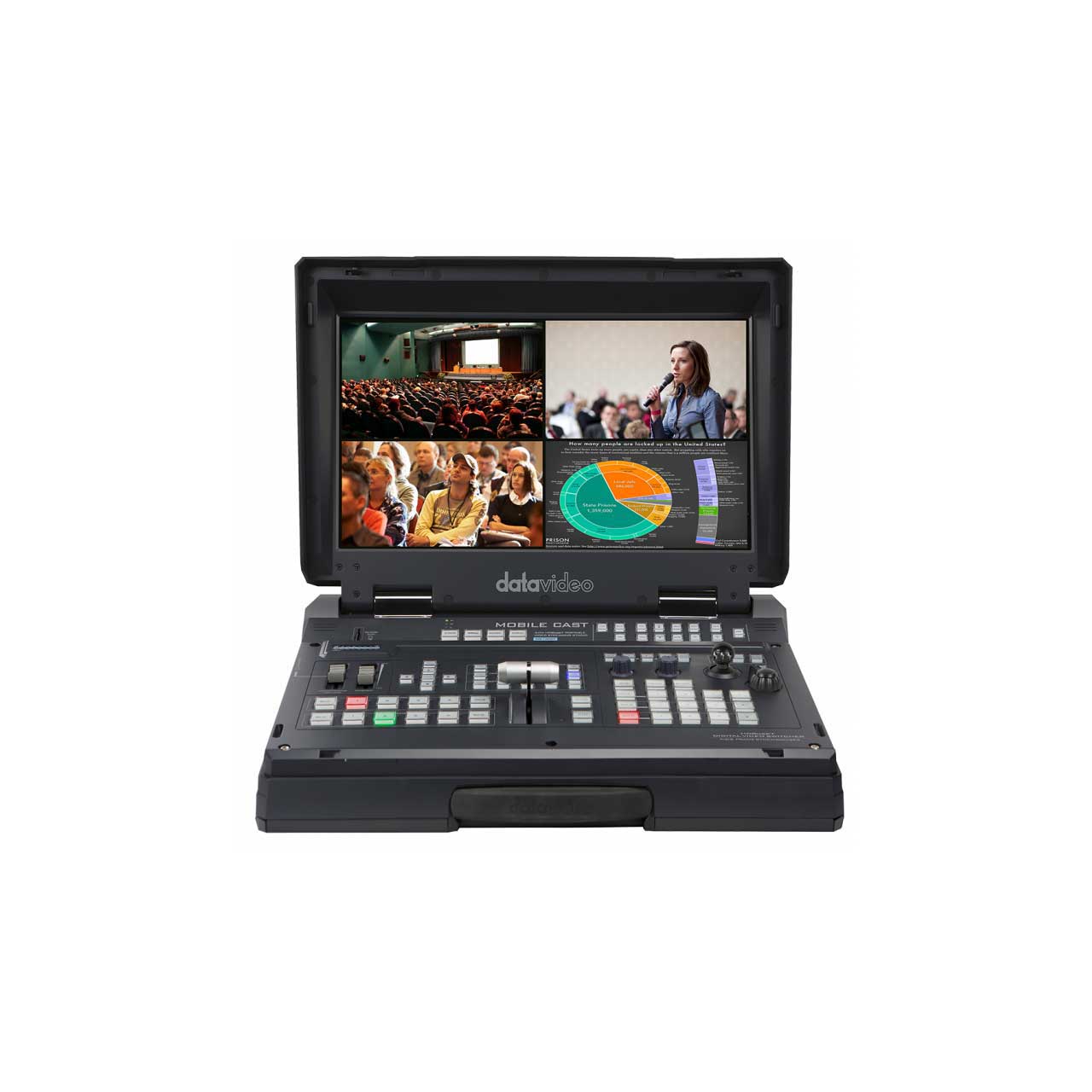

The Datavideo HS-1600T Mark II is an all-in-one live video production and streaming solution designed with a single operator in mind. This HDBaseT switcher uses a single Cat6 cable to provide power, video, camera control and tally lamp, in a compact and portable footprint. The HS-1600T Mark II brings a new level of simplicity to production workflows. You'll set up faster and easier thanks to its portable "briefcase" design and HDBaseT Technology. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook at the same time. This increase in flexibility greatly reduces setup time, allowing you to mount the cameras in challenging locations (like spots without nearby power outlets) It's volunteer and novice friendly allowing you to produce and stream any live event meeting, tradeshow, townhall, government event, worship, sports, and musical performances.

  • Features:

    • Stream to Facebook Live, YouTube, Twitch, and more
    • Built-in H.264 recorder for SD cards
    • Volume control
    • Preview Program
    • Menu / Power control
    • Built-in camera control
    • Switcher / Transitions control


  • Specifications:

    • Video Standard: HD & SD
    • Video Formats: 1080p 50/59.94/60Hz, 1080i 50/59.94/60Hz, 720p 50/59.94/60Hz, 576i/p 50Hz 480i/p 59.94Hz
    • Input Routable / Crosspoint: N/A
    • Video Input: 3 x HDBaseT, 1 x HDMI
    • Computer Graphical Interface: 1 via HDMI
    • Down-Converted Output: Yes
    • Video Output: 3 x HDMI PGM, 1 x HDBaseT (RJ-45), 1 x Stream Port (RJ-45)
    • Analog Audio Input: 2 x Balanced XLR 1 x Stereo RCA (L/R), De-embedded Digital Audio
    • Analog Audio Output: 1x Stereo headphone, Digital Embedded Audio
    • Support: Input: 2 Channel, Output: 2 Channel
    • Audio Delay Calibration: N/A
    • A+V Switching: N/A
    • USK: 1x USK Lumakey support
    • DSK: N/A
    • Picture in Picture: 1
    • Logo Insertion: N/A
    • Built-in Audio Mixer: Yes, 4 Channels
    • Built-in Monitor Display: 17.3" HD TFT LED backlit, 1920x1080 pixels
    • Built-in Intercom & Tally: N/A
    • Streaming Video Encode: H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps
    • Streaming Audio Encode: AAC-LC. Configurable bit rate ranging from 32Kbps to 384Kbps Sample rate: 48KHz, 16bit
    • Streaming Protocol: TS over TCP/UDP (unicast & multicast), RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) RTMP/RTMPS (Publish)
    • Streaming Control: Web browser UI for configuration and control Socket commands
    • Recording File System: FAT, exFAT, NTFS
    • Recording File Format: MP4
    • Recording Setting Control: Web UI for system configuration and control
    • Dimensions (LxWxH): 455 x 355 x 134 mm
    • Weight: 17.2 Lbs (7.8 Kg), Reinforce Plastic Case
    • Accessory: CB-60/61/62
    • Power: DC 48V, 4.16A
    • Operating Temp.: Range 0~40 °C

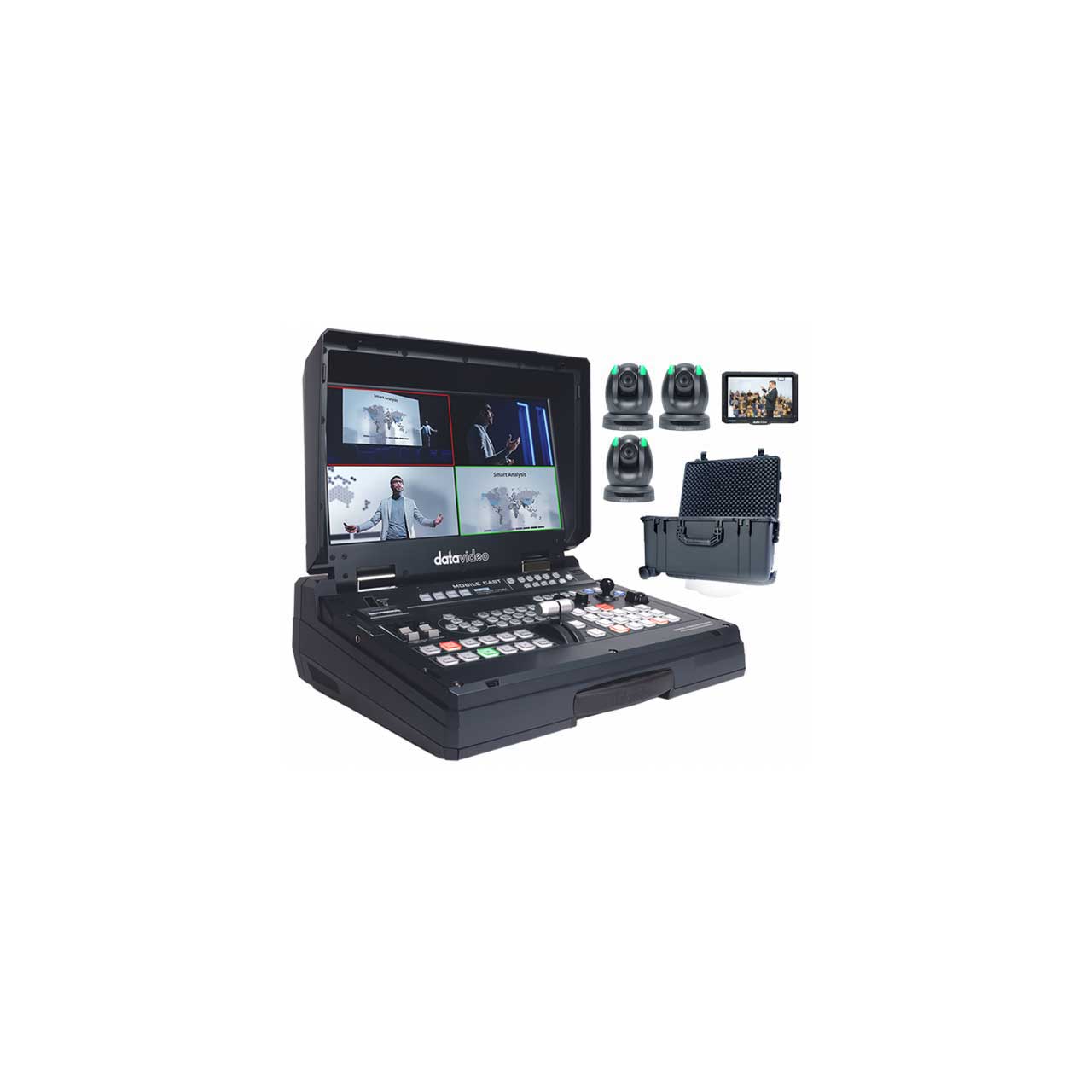

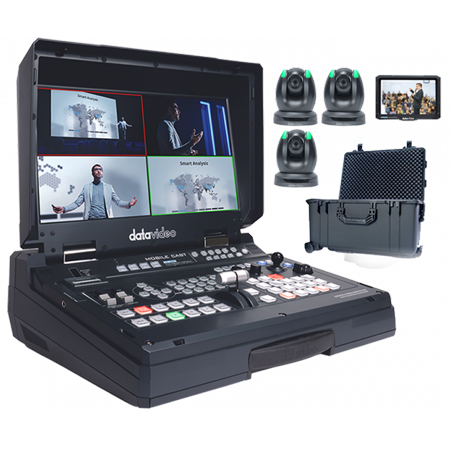

  • Item Includes:

    • 1 HS-1600T MKII

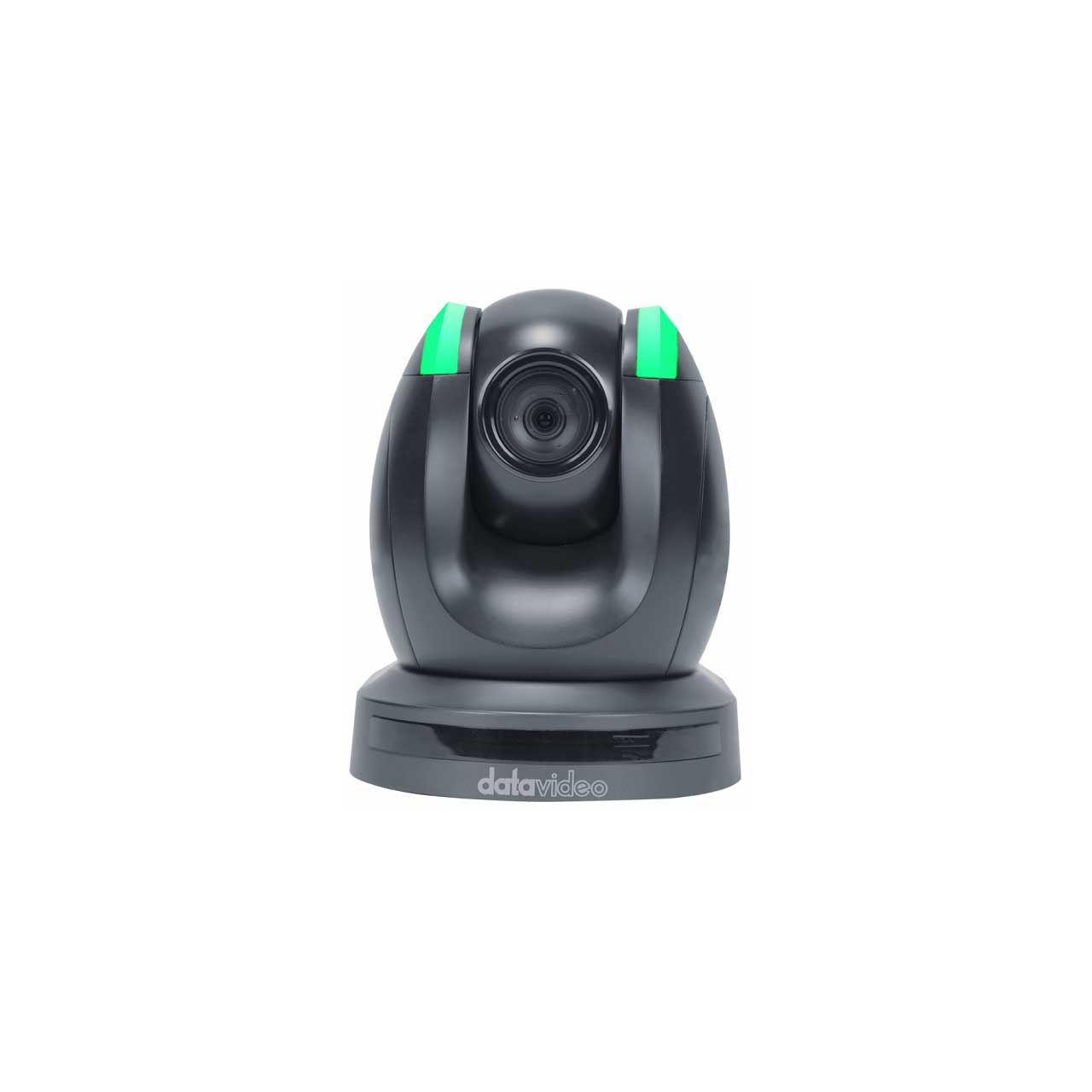

    • 3 PTC-150TL PTZ Cameras

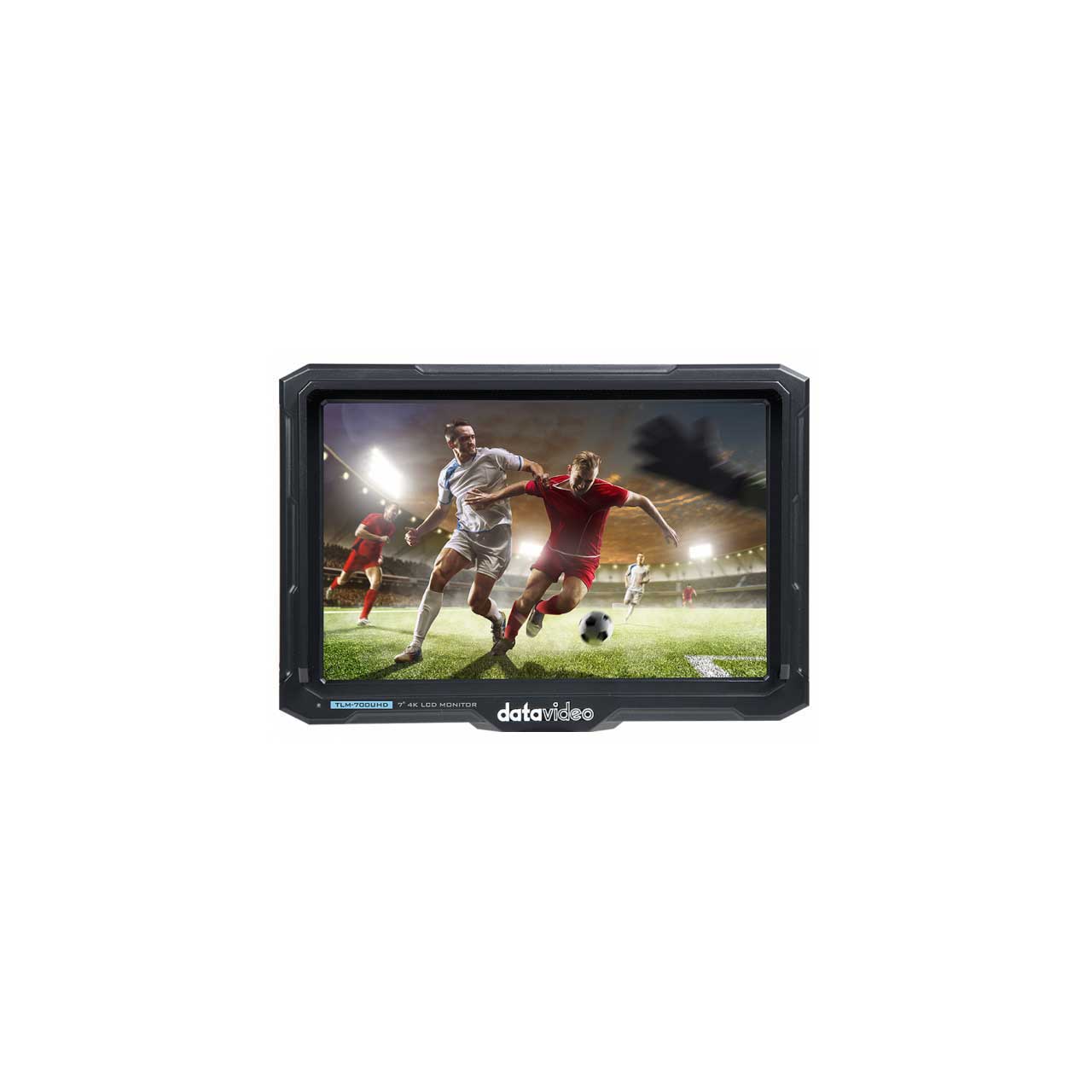

    • 1 TLM-700UH D Monitor
    • 1 HC-800FS rolling carry-case
