KanexPro EXT-SDHDX 3G-SDI to HDMI Converter
  • KanexPro EXT-SDHDX 3G-SDI to HDMI Converter
  • KanexPro EXT-SDHDX 3G-SDI to HDMI Converter

Questions? Ask a Markertek Expert:
800-522-2025 Email

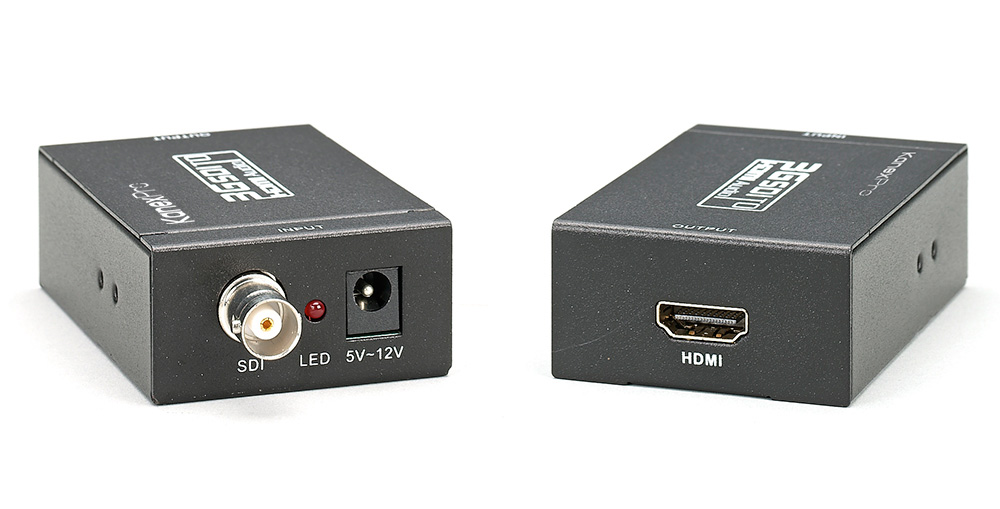

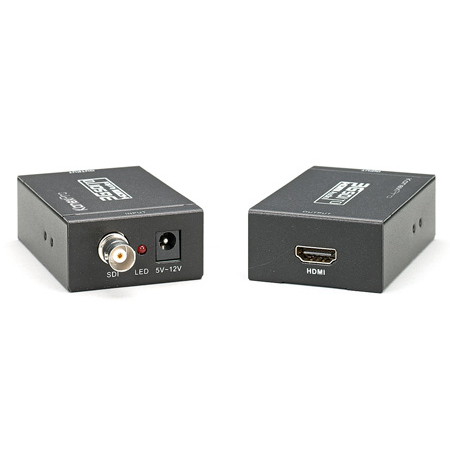

KanexPro EXT-SDHDX 3G-SDI to HDMI Converter

Manufacturer: KanexPro

Item #: KAN-EXT-SDHDX   •   MFG #: EXT-SDHDX



List Price:$79.95
Our Price:$67.49

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

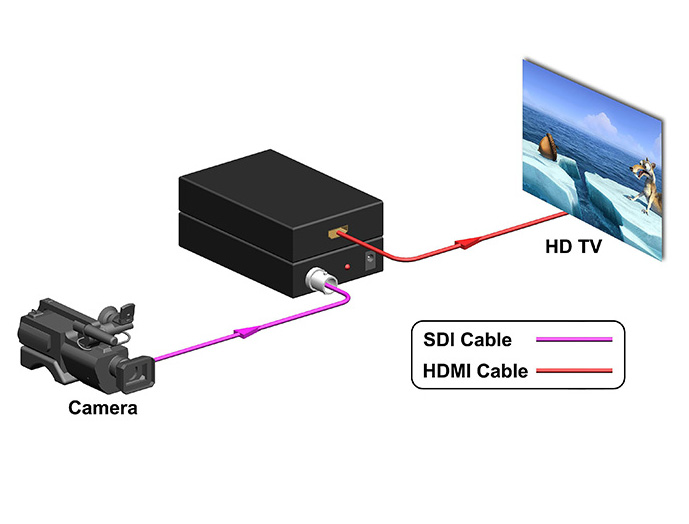

    The KanexPro SDI to HDMI converter is an inexpensive version for our SDI customers looking to simply convert SDI signals to HDMI. It supports SDI, 3G-SDI & HD-SDI to an HD display or any monitor equipped with an HDMI jack. It supports signal re-clocking and equalization for longer SDI runs ideal for broadcasting and house of worship centers.

    Perfect for broadcast monitoring to HDMI displays. It will save you a ton of money compared to buying special monitors with the capability to purchase an even more specialized, proprietary SDI cards.

    NOTE: This only converts from SDI to HDMI and does not support 4K at this time.


    • Features

      • Get the highest quality 3G-SDI conversion to HDMI
      • Integrated Audio de-embedder for 8-channel / 48KHz audio
      • Supports multiple video resolutions: SDI 525i, 625i
      • HD: 720p 24, 25,30,50 & 60 Hz.
      • HD: 1080i 50 & 60 Hz.
      • HD: 1080p 24, 25,30, 50 & 60 Hz.
      • Data rates up to 2.97 Gbps
      • Supports conversion to SMPTE 425M Level A 1080p 50/59.94/60 4:2:2 10-bit
      • SDI Input Cable Length Support - up to 300m
      • HD mode length up to: 130m
      • One way SDI output with re-clock function
      • Supports cascading of multiple SDI's in application
      • Automatically switches between SD, HD and 3 Gb/s SDI standards
      • Compact in size, perfect for mobile broadcasting units and users

      • NOTE: RG59 cable is required for SDI transmission, we recommend a 75-ohm high quality coaxial cable.

    • Specifications

      • Video Input
      • Input: 1 x SDI
      • Input Connector: 1 x BNC
      • Input Video Signal: SD/HD/3G SDI

      • Video Output
      • Output: 1 x HDMI Female
      • Output connector: HDMI
      • Output Video Signal: SD/HD/3G SDI/DVI/ HDMI

      • Resolutions (HDTV)
      • 1080p,1920 x 1080
      • 720p; 1280 x 720
      • 1280 x 720, 480i (NTSC mode) 576i Standard PAL mode

      • Enviromental
      • Operating Temperature: 0°C to +70°C
      • Operating Humidity: 10% to 85 % RH (no condensation)
      • Storage Temperature: -10°C to +80°C
      • Storage Humidity: 5% to 90 % RH (no condensation)
      • Regulatory Approvals Converter: FCC, CE, UL
      • Regulatory Approvals Power Supply: FCC, CE, UL

      • Mechanical
      • Size: (LWH): 3.14" x 1.61" x 0.98"
      • Weight (net): 0.33 lbs (150g)
      • Power Requirements
      • External power supply: 5V -12V
      • Power consumption: 5 W
      • Warranty: 1 year parts & labor

    • Item Includes

      • 3G-SDI to HDMI converter
      • 5V DC power supply
      • Operation manual

    • Warranty

      • 1 Year
