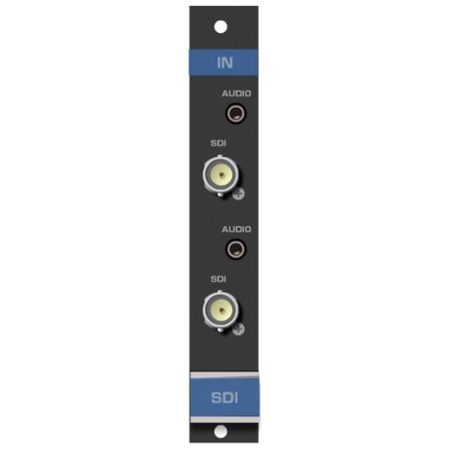

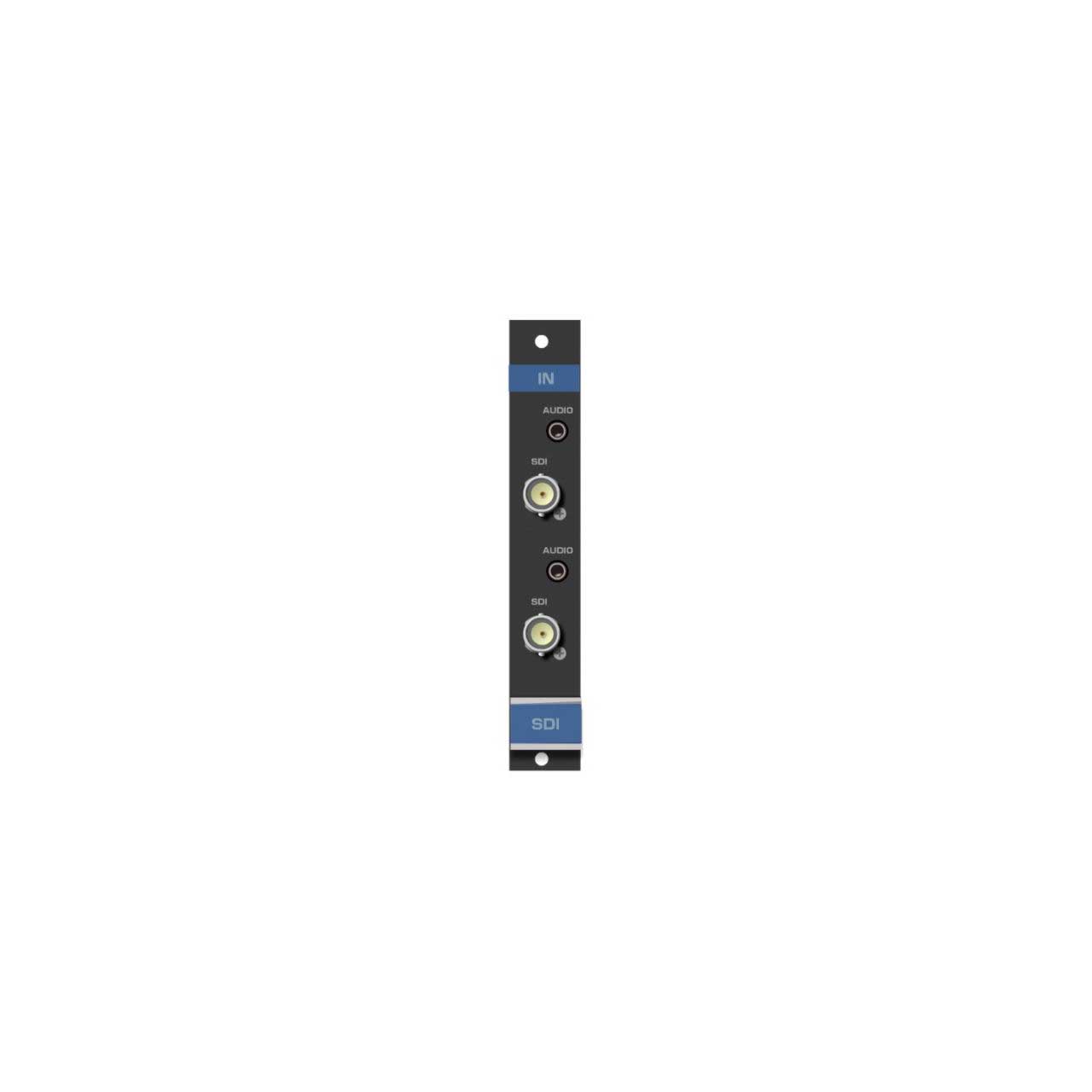

Kramer SDIA-IN2-F16 2-Channel SDI with Analog Audio Input Card for VS-1616 Series Switchers

SDIA-IN2-F16/STANDALONE - Overview

2-Channel SDI with Analog Audio Input Card

• Features:

  • Max. Data Rate - 3Gbps.
  • Multi-Standard Operation - SDI, HD-SDI, 3G HD-SDI.
  • Stereo Audio Embedding.


• Specifications:

  • PORTS
  • 2 unbalanced analog audio on 3.5mm mini jack connectors, 2 SDI, 75Ω on BNC connectors


  • TOTAL BANDWIDTH
  • 3Gbps


  • MAXIMUM RANGE
  • 300m (980ft) - SD, 200m (655ft) - HD 1080p, 90m (295ft) - 3G 1080p


  • 3D PASS THROUGH
  • Not supported


  • POWER CONSUMPTION
  • 6W


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • SAFETY REGULATORY COMPLIANCE
  • CE


  • ENVIRONMENTAL REGULATORY COMPLIANCE
  • Complies with appropriate requirements of RoHs and WEEE


• Item Includes:

  • SDIA-IN2-F16 2-Channel SDI with Analog Audio Input Card


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063071349
