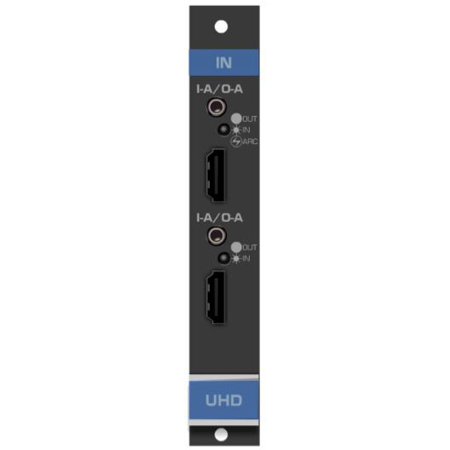

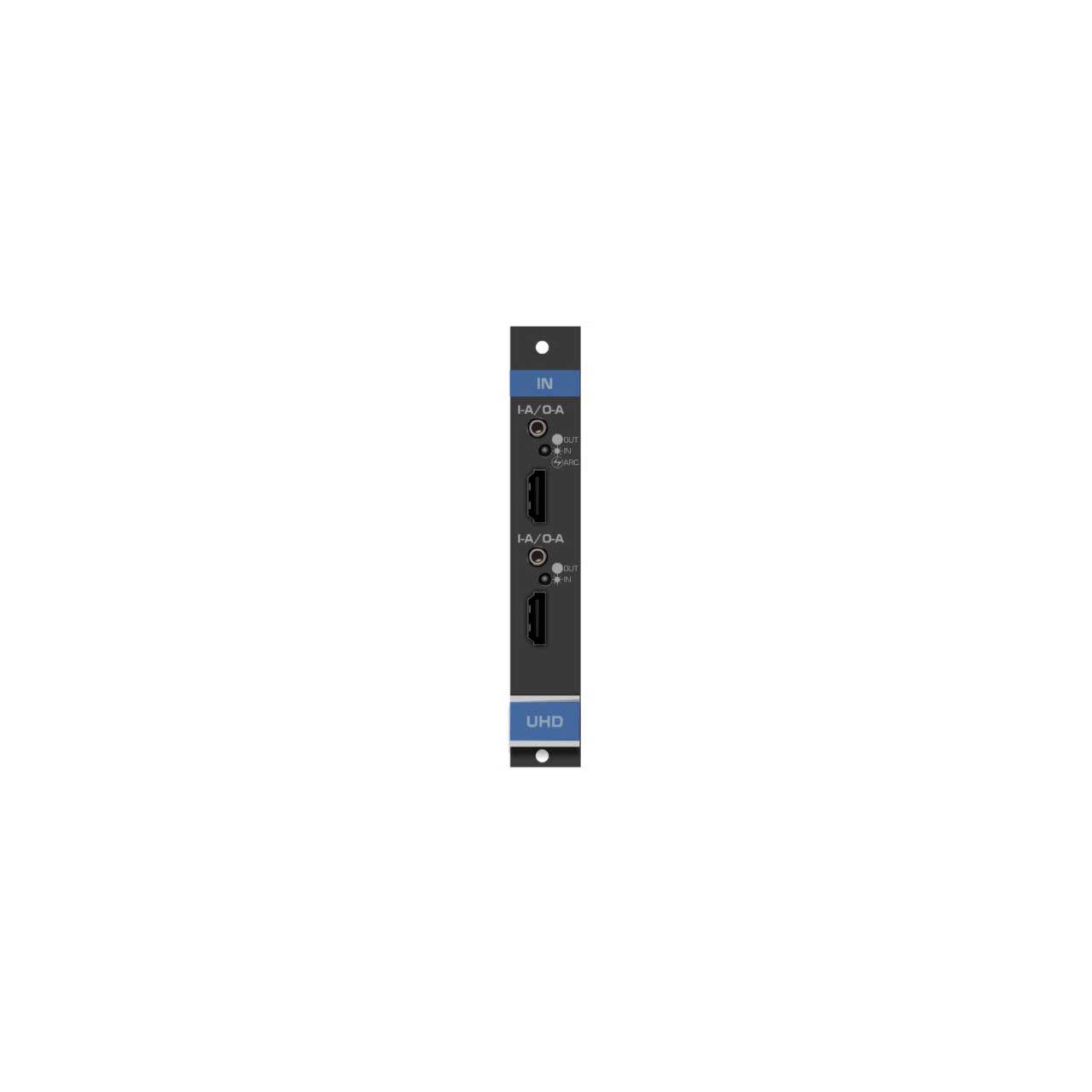

Kramer UHDA-IN2-F16 2-Ch 4K60 4:2:0 HDMI Input Card w/Selectable Embedded/De-embedded/ARC Analog Audio for VS-1616

UHDA-IN2-F16/STANDALONE - Overview

Resolution - Up to 4K60 (4:2:0)

• Features:

  • Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
  • Max. Resolution - 4K@60Hz (4:2:0).
  • HDMI Support - 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 multi-channel audio.
  • Analog Audio Embedding/De-embedding - On the same jack and ARC on the upper port.
  • HDTV Compatible.
  • HDCP Compliant.
  • 3D Pass-Through.
  • EDID Capture - Copies and stores the EDID from a display device.
  • Kramer Equalization and re-Klocking Technology.


• Specifications:

  • PORTS
  • 2 HDMI,
  • 2 Analog audio on 3.5mm mini jacks


  • BANDWIDTH PER CHANNEL
  • 2.97Gbps per graphics channel


  • TOTAL BANDWIDTH
  • 8.91Gbps data rate


  • MAXIMUM RANGE
  • 10m (32ft) - 4K60 (4:2:0) or 4K30 (4:4:4), 15m (49ft) - 1080p 12 bit (deep color)
  • 3D PASS THROUGH
  • Supported


  • HDMI SUPPORT
  • 3D, Deep Color, x.v.Color™, ARC, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, 7.1 multi-channel audio


  • POWER CONSUMPTION
  • 5.2W


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • STANDARD COMPLIANCE
  • HDCP 1.4, HDTV compatible


  • SAFETY REGULATORY COMPLIANCE
  • CE


  • ENVIRONMENTAL REGULATORY COMPLIANCE
  • Complies with appropriate requirements of RoHs and WEEE


• Item Includes:

  • UHDA-IN2-F16 2-Ch 4K60 4:2:0 HDMI Input Card


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063077723
