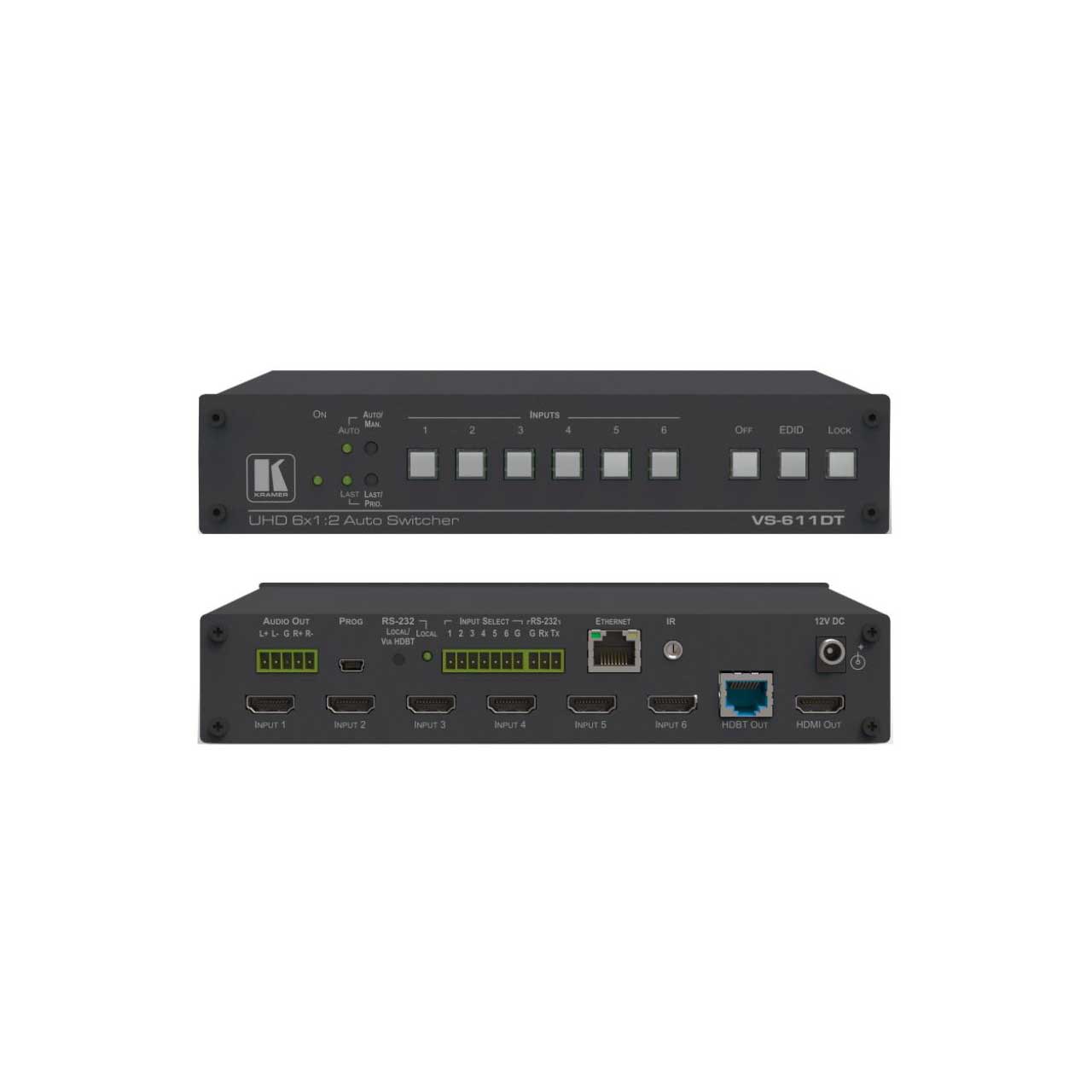

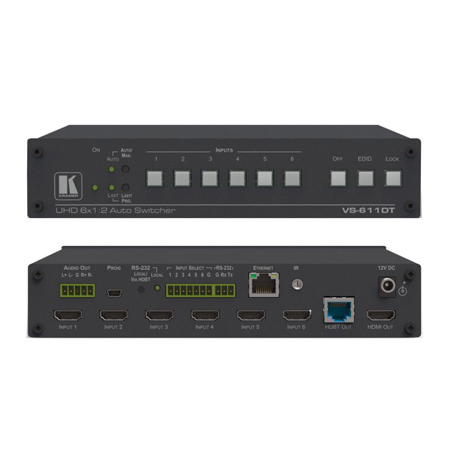

Kramer VS-611DT 6x1:2 4K60 4:2:0 HDMI Auto Switcher and PoE Provider over HDBaseT

VS-611DT - Overview

High-performance automatic switcher for HDMI

• Features:

  • Max. Data Rate - 8.91Gbps (2.97Gbps per graphic channel).
  • Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
  • HDTV Compatible.
  • HDCP Compliant - Works with sources that support HDCP repeater mode.
  • HDMI Support - Deep Color, Ethernet, ARC, 7.1 PCM.
  • Customized Audio Output - De-embed the audio from the HDMI input and route it to the balanced stereo audio line out, or de-embed HDMI ARC from the output and route it to the balanced stereo audio line out.
  • Features Kramer reKlocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • Step-in Master Support.
  • Auto-Power Off - When no HDMI input for 30 seconds (selectable).
  • Automatic Input Detection & Selection.
  • HDCP On/Off Switching.
  • EDID Configuration Options.
  • Selectable Switching - Manual or fast auto-switching according to last connected or preset priority.
  • Full HDBaseT Certification - Including bidirectional RS-232, Ethernet, IR and POE.
  • HDBaseT Extended Reach - Up to 100m at 4K@60Hz (4:2:0).
  • POE Source for HDBaseT Receivers.
  • Contact Closure - For remote manual switching override.
  • Firmware Upgrade - Over mini-USB, RS-232 or RJ-45 Web page.
  • Varied Control Options - Front panel keyboard, HDBaseT Ethernet, RS-232 local and over HDBaseT, IR.
  • Built-in Web Server.
  • Software Support - For Protocol 3000, K-Router Plus, EDID Designer, K-Upload.


• Specifications:

  • INPUTS
  • 6 HDMI connectors, 1 IR on a 3.5mm mini-jack


  • OUTPUTS
  • 1 HDMI connector, 1 HDBaseT on an RJ-45 connector, 1 balanced stereo audio on a 5-pin terminal block


  • PORTS
  • 1 Ethernet on an RJ-45 connector, 1 RS-232 connector on a 3-pin terminal block, 6 contact closures on a 7-pin terminal block,1 USB mini-A connector for firmware upgrading


  • MAX. DATA RATE
  • 8.91Gbps (2.97Gbps per graphic channel) with 4K@60Hz (4:2:0) support


  • COMPLIANCE WITH HDMI STANDARD
  • Deep Color, Ethernet, ARC, up to 7.1 Audio Channels, CEC


  • OUTPUT RESOLUTIONS
  • Up to UXGA, 4K x 2K, 4K @60 4:2:0


  • CONTROL
  • Local: front panel keyboard, contact closure, HDBaseT
  • local and over HDBaseT: RS-232, Ethernet, IR


  • SOFTWARE SUPPORT
  • Protocol 3000, K Router Plus, EDID Designer, K-Upload


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


  • POWER CONSUMPTION
  • 12V DC, 750mA


• Item Includes:

  • VS-611DT Switcher
  • 12V DC Power Supply
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063072537
