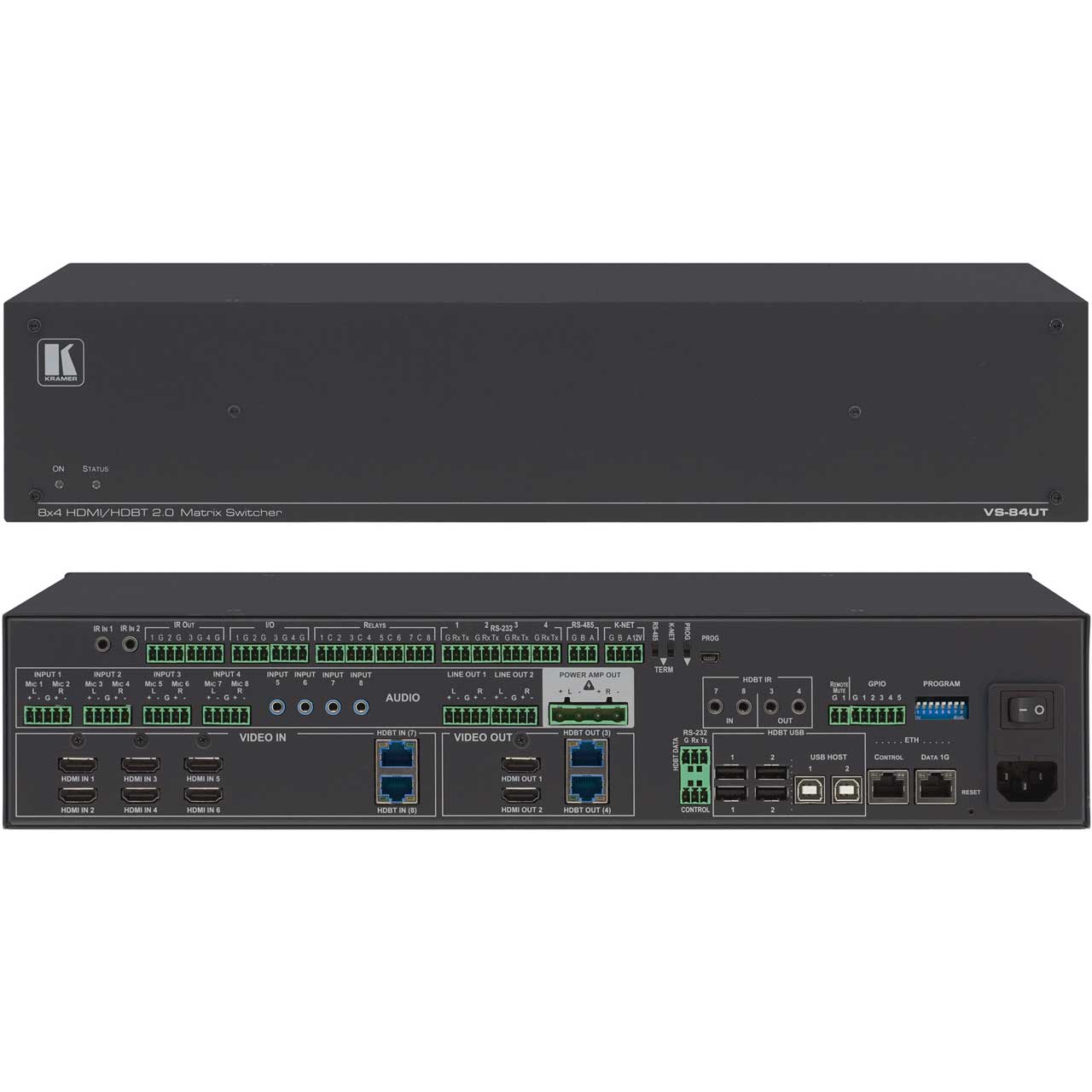

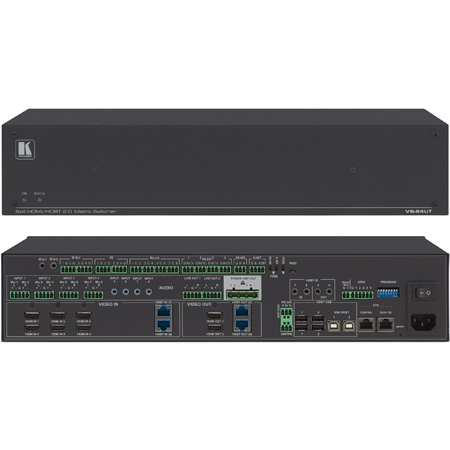

Kramer VS-84UT/110V All-in-One Presentation System w/ 8x4 4K60 4:2:0 HDMI/HDBaseT 2.0 Matrix Switching/PoE & Power Amp

VS-84UT/110V - Overview

All-in-One Presentation System

• Features:

  • Versatile All-in-One Solution - Provides a high-performance AV presentation matrix, powerful HDBaseT signal extender and fully featured, programmable master room controller in one unit.
  • High-Performance, Professional AV Matrix - Switches 6 4K@60Hz (4:2:0) HDMI inputs and 2 HDBaseT 2.0 signals to 2 4K@60Hz (4:2:0) HDMI outputs and 2 HDBaseT 2.0 signals at up to 10.2Gbps (3.4Gbps per graphics channel) data rate. Signals are HDCP and DVI compliant with Deep Color, 3D, and 7.1 PCM. Includes active source & acceptor detection, auto-switching and auto-scanning of inputs, and a non-volatile memory that retains the last configuration, after switching the power off and then on again.
  • Flexible Audio Extraction, Embedding and Control Options - Includes 4 balanced stereo or 8 microphone audio inputs (selectable), 4 unbalanced stereo inputs, 2 line-out balanced stereo audio outputs and one audio amplified output. Features audio volume control, audio breakaway and AFV (audio-follow-video) operation support. Global mute for both video and audio outputs enables smooth integration of the audio system with a public announcement audio system in case of an emergency event.
  • Powerful HDBaseT Extender - Extends signals up to 100m at 4K @60Hz (4:2:0), up to 130m (430ft) at full HD (1080p @60Hz 36bpp), and up to 180m (590ft) at ultra mode and full HD (1080p @60Hz 24bpp). Featuring Kramer reKlocking™ and Equalization Technology that rebuilds the digital signal to travel longer distances. Note: For optimum range and performance, use recommended Kramer cables.

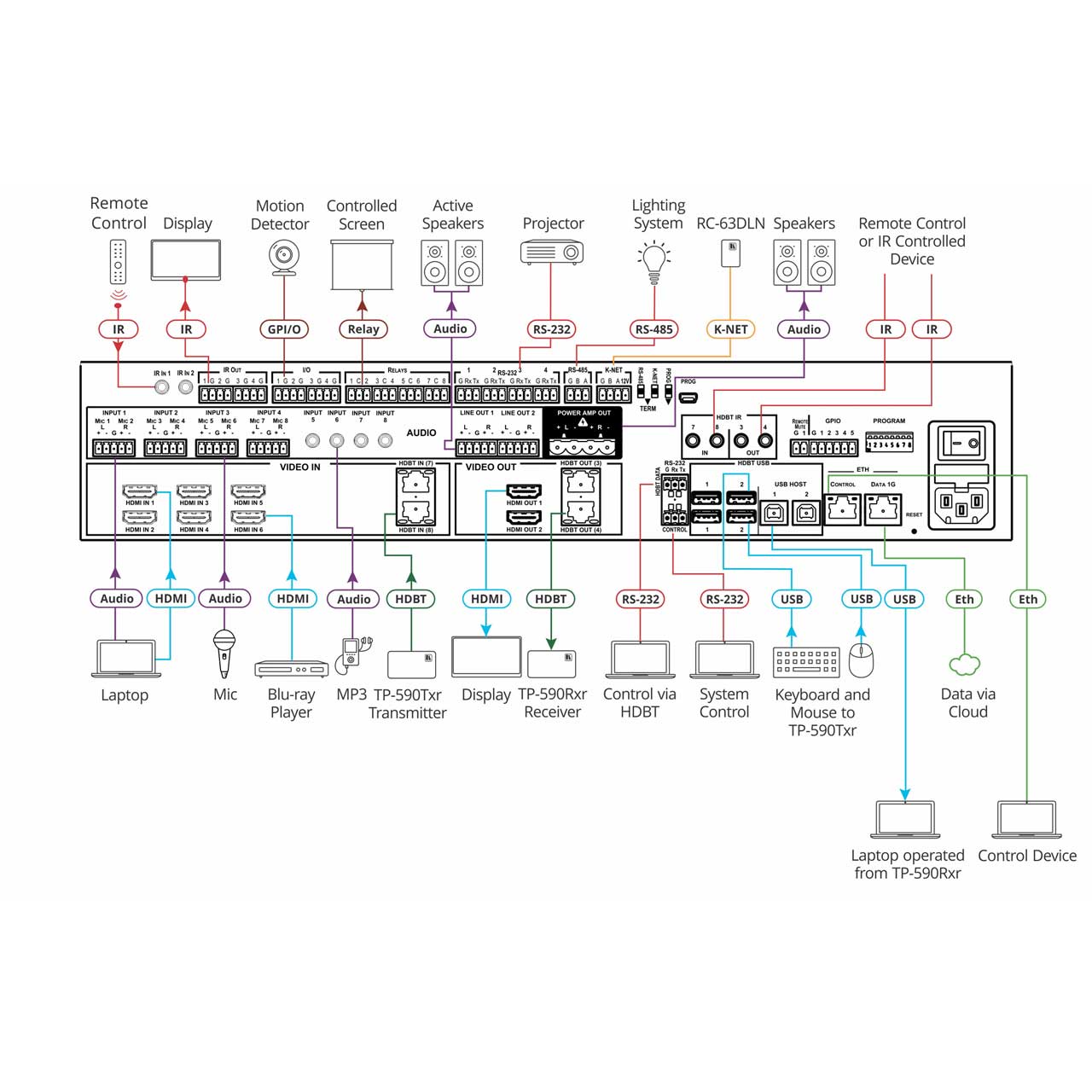

  • Programmable Master Room Controller - Connect multiple peripheral devices and control them using intuitive embedded web pages. Schedule actions and macros to automate device control.
  • Multi-Client IP - Simultaneous IP control communication with up to 15 IP control clients.
  • Diverse and Abundant Control Port Formats - Includes USB 1.1 & USB 2.0 (up to 127Mbps) via 2 USB type-A and 2 USB type-B ports, 6 IR Ports, 1 Ethernet port, 1 1G Ethernet port for HDBaseT tunneling, 1 K-NET™ connector; 1 RS-485 and 2 RS-232 bidirectional control ports, 4 IR emitter control ports, 4 GPI/O control ports, and 8 relay control ports.
  • IP Port Extension and Control - Ethernet port connects to control gateways for I/O port extending, and operating IP controlled devices
  • Provides Power and Control in a Single Connection - HDBaseT outputs provide PoE (Power over Ethernet) to compatible devices. K-NET™ connector carries power along with control communication to either a master room controller or auxiliary control keypad.
  • Control Volume, Sensors, Locks, and Lighting - Using 4 general-purpose (GPI/O) control ports configured as digital input, digital output or analog input interface.
  • Control Screens, Drapes, Shades, Blinds and IR sensors - Using 8 contact closure ports.
  • Compatibility with Kramer Software Solutions - Kramer Network Compatible - Remote control and management over customer IP network. Kramer K-Config™ Compatible - Windows based control program with easy configuration and upload to a room controller over customer IP network.
  • Advanced EDID Management per Input.


• Specifications:

  • INPUTS
  • 6 HDMI: On female HDMI connectors
  • 2 HDBaseT: On RJ-45/female HDMI connectors
  • 4 Unbalanced Stereo Audio: On 3.5mm mini jacks
  • 4 Balanced Stereo Audio/8 Balanced Mic (Selectable): On 5-pin/3-pin terminal block connectors
  • 2 IR: On 3.5mm mini jacks for IR tunneling via HDBaseT
  • 2 IR (room controller): On 3.5mm mini jacks


  • OUTPUTS
  • 2 HDMI: On female HDMI connectors
  • 2 HDBaseT: On female RJ-45 connectors
  • 2 Balanced Stereo Audio: On 5-pin terminal block connectors
  • 1 Stereo Speaker Output: On a 4-pin terminal block, 2x50W into 4Ω
  • 2 IR: On 3.5mm mini jacks for IR tunneling via HDBaseT


  • PORTS
  • 1 RS-232: On a 3-pin terminal block for Serial Tunneling via HDBaseT
  • 1 RS-232: On a 3-pin terminal block for Device Control
  • 4 (2+2) USB: On female USB-A connectors for USB Link Extension
  • 2 USB: On female USB-B connectors for USB Link Extension
  • 1 Ethernet Control: On an RJ-45 female connector for tunnelling data via HDBT ports
  • 1 Ethernet 1G: On an RJ-45 female connector for tunnelling data via HDBT ports
  • 1 100BaseT Ethernet: On an RJ-45 female connector for Device Control and LAN Extension
  • 1 K-NET 5mm Mini-jack (room controller): On a 4-pin terminal block connector for learning
  • 1 RS-485 (room controller): On a 3-pin terminal block connector
  • 4 RS-232 Serial (room controller): On 3-pin terminal blocks
  • 8 Relays (room controller): On 2-pin terminal block connectors (36V AC or DC, 2A, 60VAC maximum on non-inductive load)
  • 4 GPI/O (room controller): On 2-pin terminal blocks


  • EXTENSION LINE
  • Up to 100m (330ft): At 4K@60Hz (4:2:0)
  • Up to 130m (430ft): At Full HD (1080p @60Hz 36bpp)
  • Up to 180m (590ft): HDBaseT Ultra Mode and Full HD (1080p @60Hz 24bpp)
  • Compliance: HDBaseT 2.0


  • USER INTERFACE
  • Indicators: ON & STATUS LEDs
  • Configuration Switches: RS-485 Termination, RS-485 Termination, Programming


  • VIDEO
  • Max. Resolution: 4K UHD @60Hz (4:2:0) 24bpp resolution)
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Content Protection: HDCP 1.4


  • ANALOG AUDIO
  • Max Vrms Level: 1
  • THD + Noise: 0.03% @1kHz at nominal level


  • EXTENDED USB
  • Host Compliance: 1.1 and 2.0
  • Max Extended Line Rate Bandwidth: 127Mbps (out of max 480 USB)
  • Max Devices: 7
  • Max Hubs: 2
  • Max Ports per Hub: 8

    SUPPORTED PC WEB BROWSERS
  • Windows 7 and Higher: Internet Explorer (32/64 bit) version 10, Firefox version 30, Chrome version 35
  • MAC: Chrome version 35, Firefox version 30, Safari version 7
  • Optimal Resolution: 1920x1080
  • Minimal Resolution: 1024 x 768d


• Item Includes:

  • VS-84UT 8x4 HDMI/HDBT 2.0 Matrix Switcher
  • Rack ears (1 set)
  • Power Cord (1)
  • Rubber Feet (4)


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063088507
