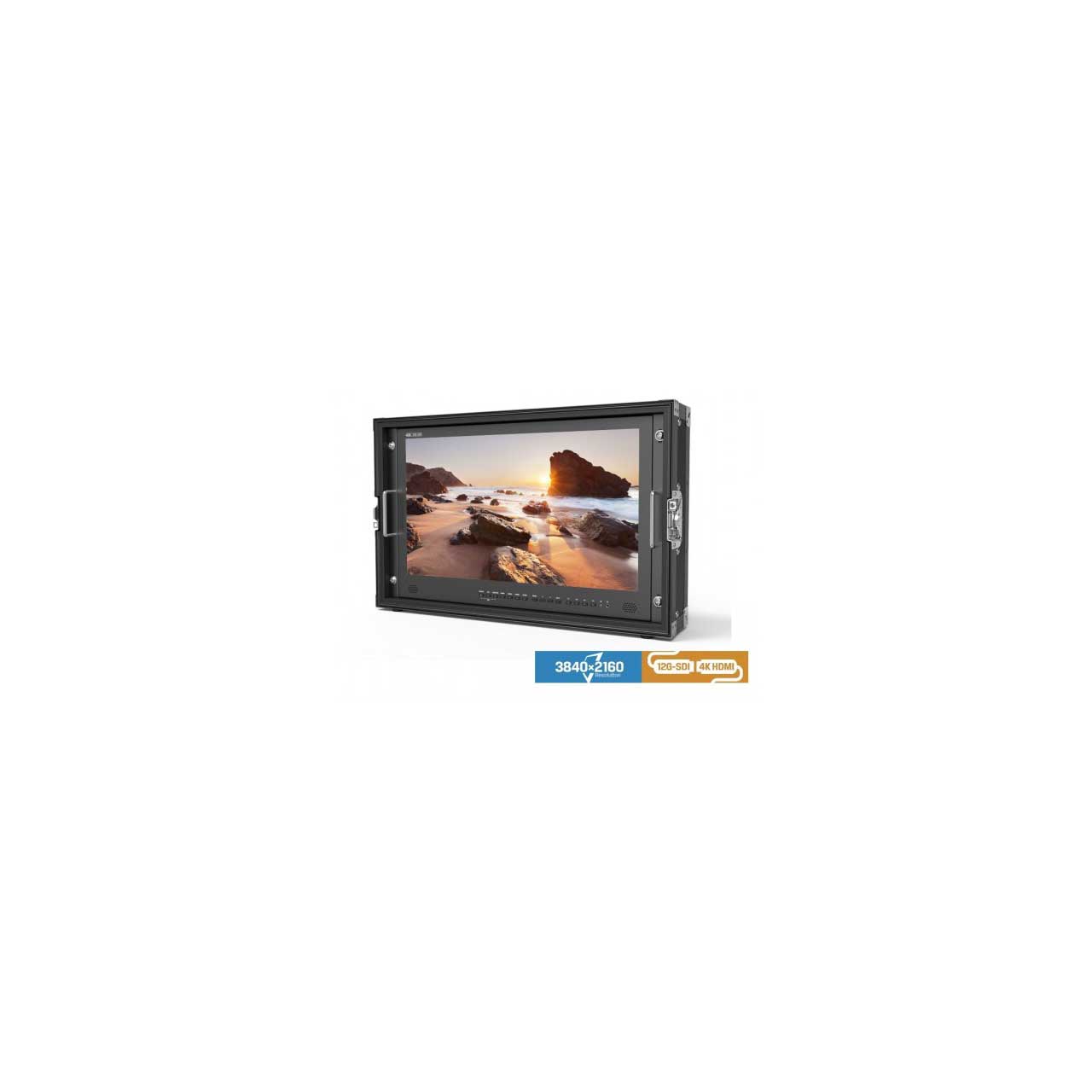

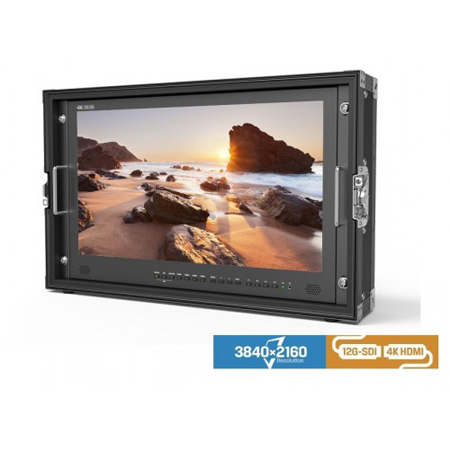

Lilliput BM230-12G-ABBP 23.8-Inch 12G-SDI 4K Broadcast Director Monitor with 12G-SDI - 4K HDMI Inputs - Gold Mount

ITEM #: LIL-BM23012GABBP MFG #: BM23012GABBP

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$1,799.00

Our Price:

$1,699.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    BM23012GABBP - Overview

    The Lilliput BM230-12G-ABBP is a 23" 4K resolution monitor with HDMI and SDI connectivity at 12G connectivity speeds. Designed for the professional video and film industry and is ideally suited for directors and camera operators operating 4K capable equipment.

    • Features:

      • 4k Ultra-HD Resolution
      • 12g SDI Input
      • Solid Transmission Distances
      • Image Flip Mode
      • 6u Rackmount Frame

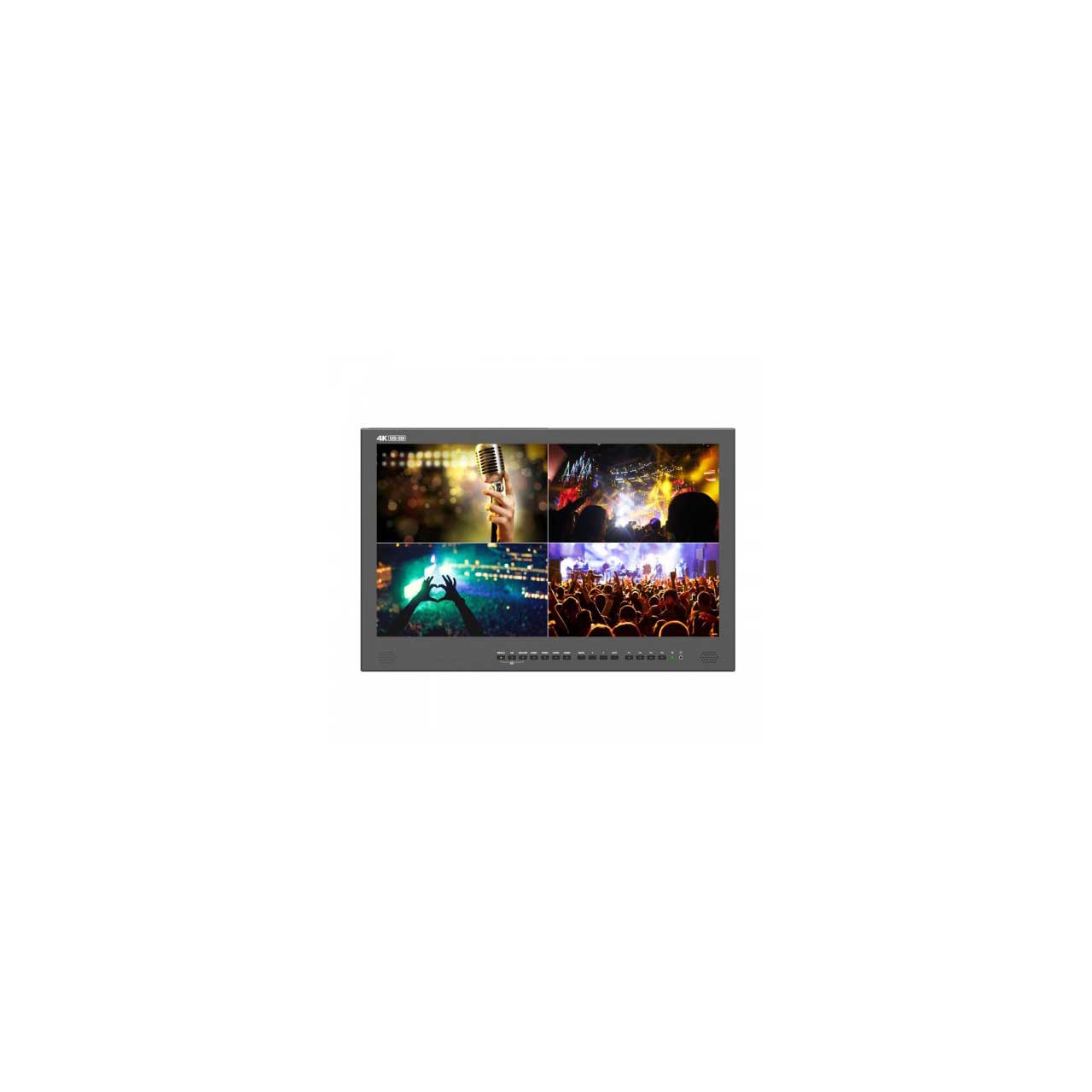

      • 4-Way Split Screen Display
      • Precision Colors With 1000:1 Contrast Ratio
      • Carry-On Suitcase For Superior Protection
      • Connectivity For All Video Standards
      • Metal Outer Housing
      • Programmable Function Keys
      • Optional Wireless Hdmi Receiver

    • Specifications:

      • Screen Size (diagonal): 23"
      • Aspect Ratio: 16:9
      • Native Resolution: 3840 x 2160
      • Viewing Angle (degrees): 178 / 178
      • Brightness Ratio (cd/m²): 330
      • Contrast Ratio: 1000:1
      • Backlight: LED
      • Video Inputs: 12G-SDI x 2 (backward compatible to 6G and 3G-SDI), 3G SDI x 2, HDMI x 4 (1 x HDMI 2.0 - 4K at 60Hz, 3 x HDMI 1.4 - 4K at 30Hz), DVI x 1, VGA x 1, Tally x 1
      • Video Outputs: 12G SDI x2, 3G-SDI x 2
      • Audio Outputs: Speaker x 2, 3.5mm Jack x 1
      • Input Power: DC12V - 24V (XLR)
      • Operating Temperature: -4 to 122°F (-20° - 50°C)

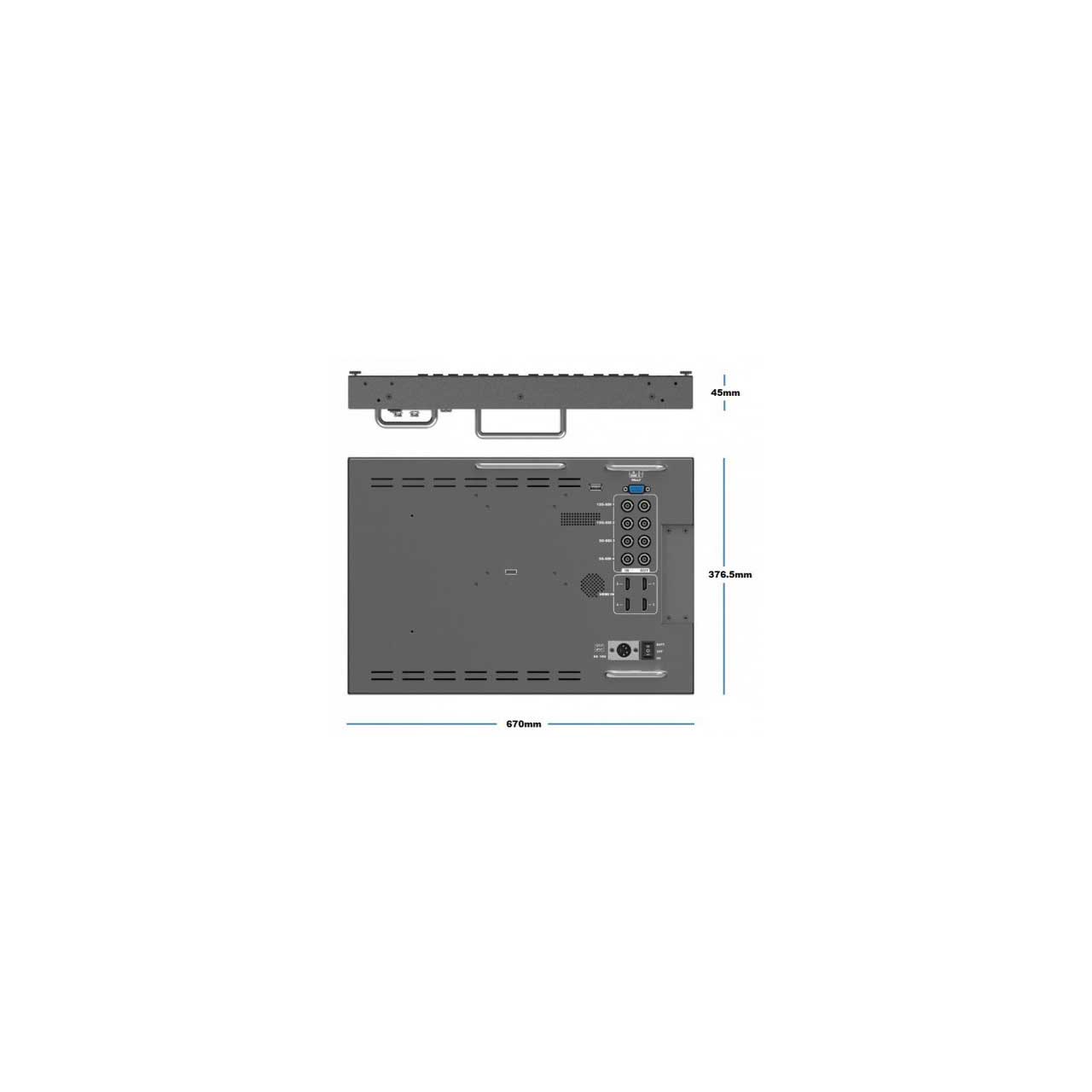

      • Dimensions 14.80 x 22.79 x 1.77in (376.5 x 579 x 45mm)
      • Dimensions With Case 16.41 x 26.22 x 6.81in (417 x 666 x 173mm)
      • Weight with Case: 18.95lbs (8.6kg)

    • Item Includes:

      • 1x Lilliput 23.8" 12G-SDI 4K IPS Monitor (Gold Mount)
      • 1x Folding Sunshade
      • 1x Battery Plate Bracket
      • 1x Gold Mount Plate
      • 1x Power Adapter
      • 1x Fixing Belt
      • 1x Tally Connector
      • 1x Carry Case
