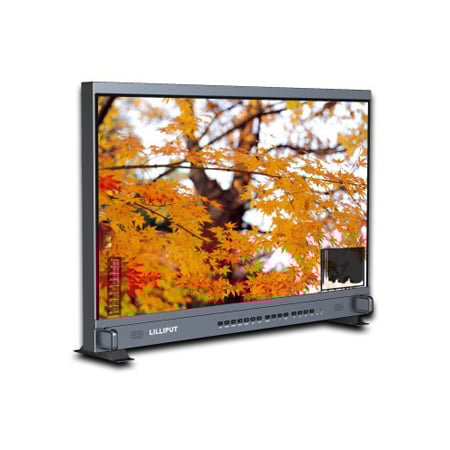

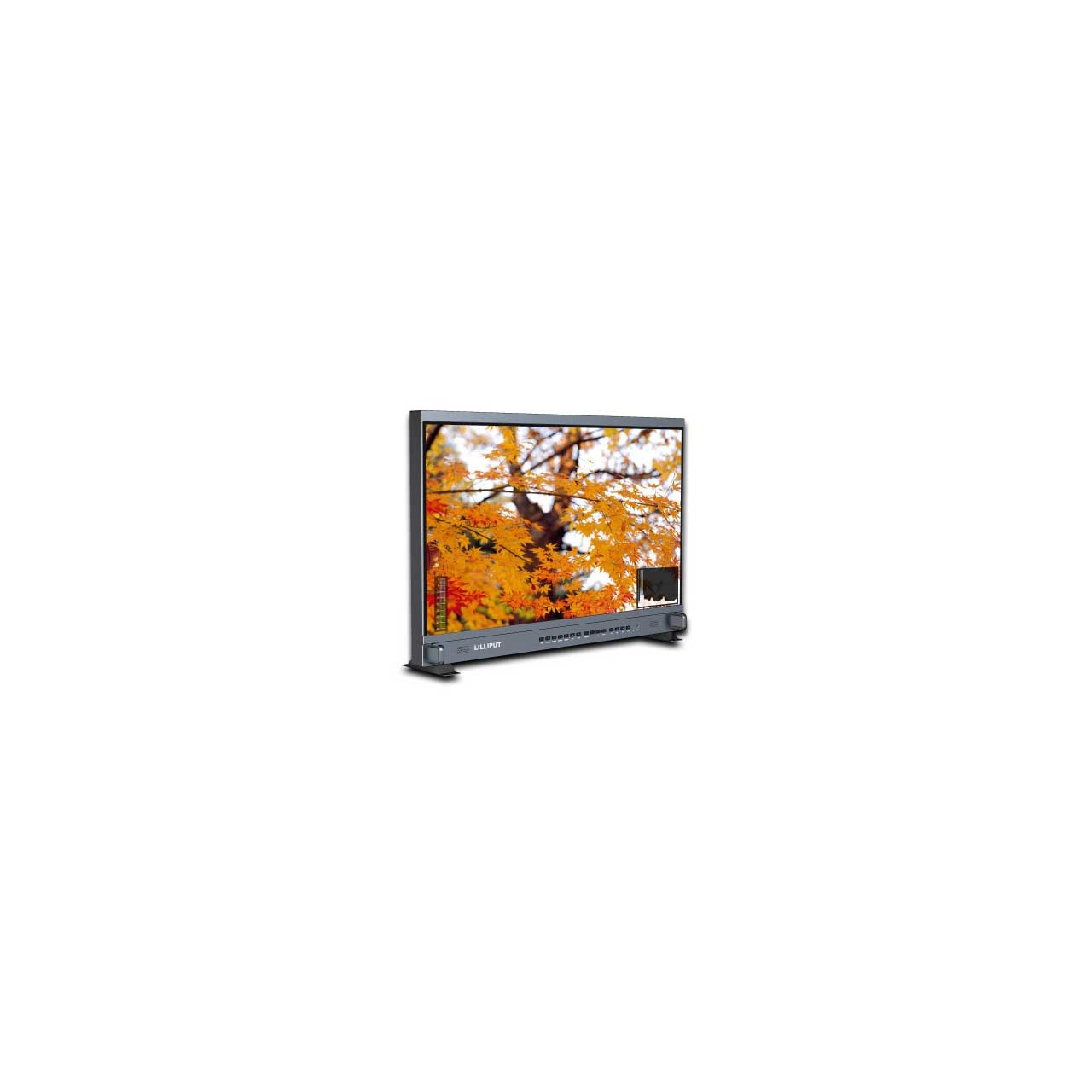

Lilliput 31.5in 4K HDMI Carry-On Broadcast Monitor with SDI HDR and 3D LUTS - V-Mount Battery Plate

BM310-4KS - Overview

• Features:

  • 3.5" 3840 x 2160 10-Bit Display
  • HDMI, SDI, DVI, and VGA Inputs
  • 178° H/V Viewing Angle
  • Built-In Monitoring Tools
  • On-Screen Markers and Focus Peaking
  • USB Input for 3D LUT Support
  • CNC Aluminum Construction


• Specifications:

  • Display
  • Size: 31.5"
  • Resolution: 3840x2160
  • Brightness: 350cd/m²
  • Aspect Ratio: 16:9
  • Contrast: 1300:1
  • Viewing Angle: 178°/178°(H/V)

    Video Input
  • SDI: 1x3G
  • HDMI: 2x HDMI 2.0, 2x HDMI 1.4
  • DVI: 1
  • VGA: 1
  • Audio: 2(L/R)
  • Tally: 1
  • USB: 1 (for upgarde and 3D-LUT loading)
  • Wireless Transmitter: 1 (optional)

    Video Loop Output
  • SDI: 1x3G


  • Audio
  • Ear Jack: 3.5mm
  • Built-in Speakers: 2

    Power
  • Operating Power: =7W
  • DC In: DC 12-24V (XLR)
  • Compatible batteries: V-Lock or Anton Bauer Mount
  • Current: 4.2A (15V)

    Environment
  • Operating Temperature: 14°F - 122°F (-10°C5 -50°C)
  • Storage Temperature: -4°F - 140°F (-20° - C60°C)

    Other
  • Dimension(LWD): 28.26" x 18.81 x 1.49 (718 x 478 x 38mm)
  • Weight: 29.32lbs (13.3kg)


• Item Includes:

  • 1x 4K HDMI Carry-On Broadcast Monitor
