Lilliput RM-7029S 3RU Dual 7 Inch Rackmount Monitor with 3G-SDI / HDMI 2.0

RM-7029S - Overview

• Features:

  • 160° Wide viewing angles
  • High Resolution: 1920x1200
  • High Brightness: 400cd/m2
  • High Contrast: 2000:1
  • Faster response time
  • TALLY interface with indicating light
  • Firm & thin design


• Specifications:

  • Display
  • Size: Dual 7" LED backlit
  • Resolution: 1920x1200
  • Brightness: 400cd/m²
  • Aspect Ratio: 16:10
  • Contrast: 2000:1
  • Viewing Angle: 160°/160° (H/V)
  • HDR: ST 2084 300/1000/10000 / HLG
  • Supported Log Formats: Slog2/Slog3, Arrilog, Clog, Jlog, Vlog, Nlog or User
  • LUT Support: 3D-LUT (.cube format)

    Video Input
  • SDI: 2x 3G
  • HDMI: 2x HDMI(supports up to 4K 60Hz)
  • LAN: 1x

    Video Loop Output
  • SDI: 2x 3G-SDI
  • HDMI: 2x HDMI 2.0 (supports up to 4K 60Hz)

    Supported In/Out Formats
  • SDI:
    - 1080p 60/50/30/25/24
    - 1080pSF 30/25/24
    - 1080i 60/50
    - 720p 60/50
  • HDMI:
    - 2160p 60/50/30/25/24
    - 1080p 60/50/30/25/24
    - 1080i 60/50
    - 720p 60/50

    Audio In/Out
  • Speaker: None
  • Ear Phone Slot: 2x

    Power
  • Current: 1.5A
  • DC In: DC 10V - 24V
  • Power Consumption: =16W

    Environment
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage Temperature: -4°F - 158°F (-20°C - 70°C)

    Other

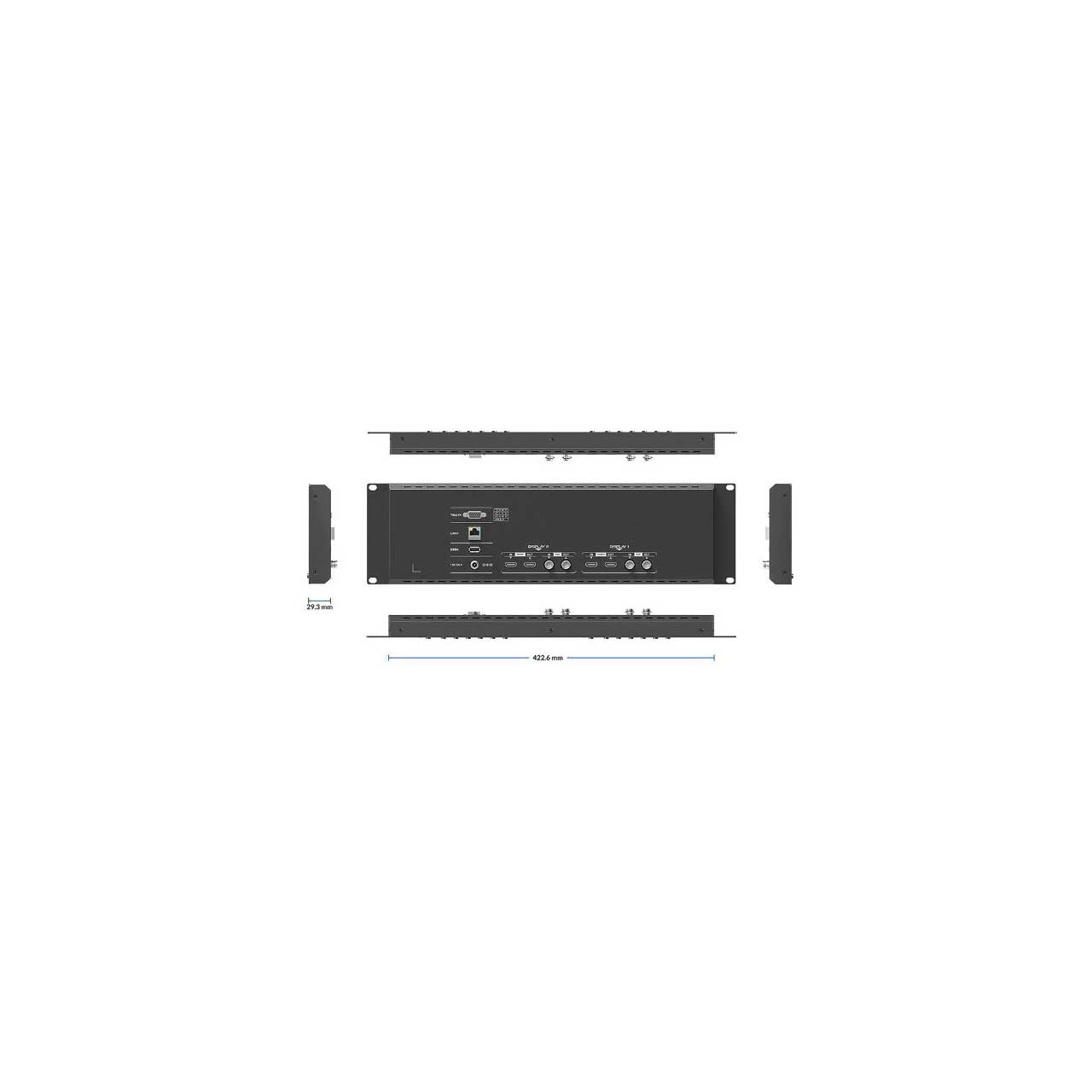

  • Dimensions (LxWxD): 18.89" x 5.89" x 1.15" (480mm x 131.6mm x 29.3mm)
  • Weight: 4.85lbs (2.2kg)


• Item Includes:

  • 1x RM-7029S 3RU Dual 7 Inch Rackmount Monitor


• GTIN:

  6950821602072
