    TS3019-RX - Overview

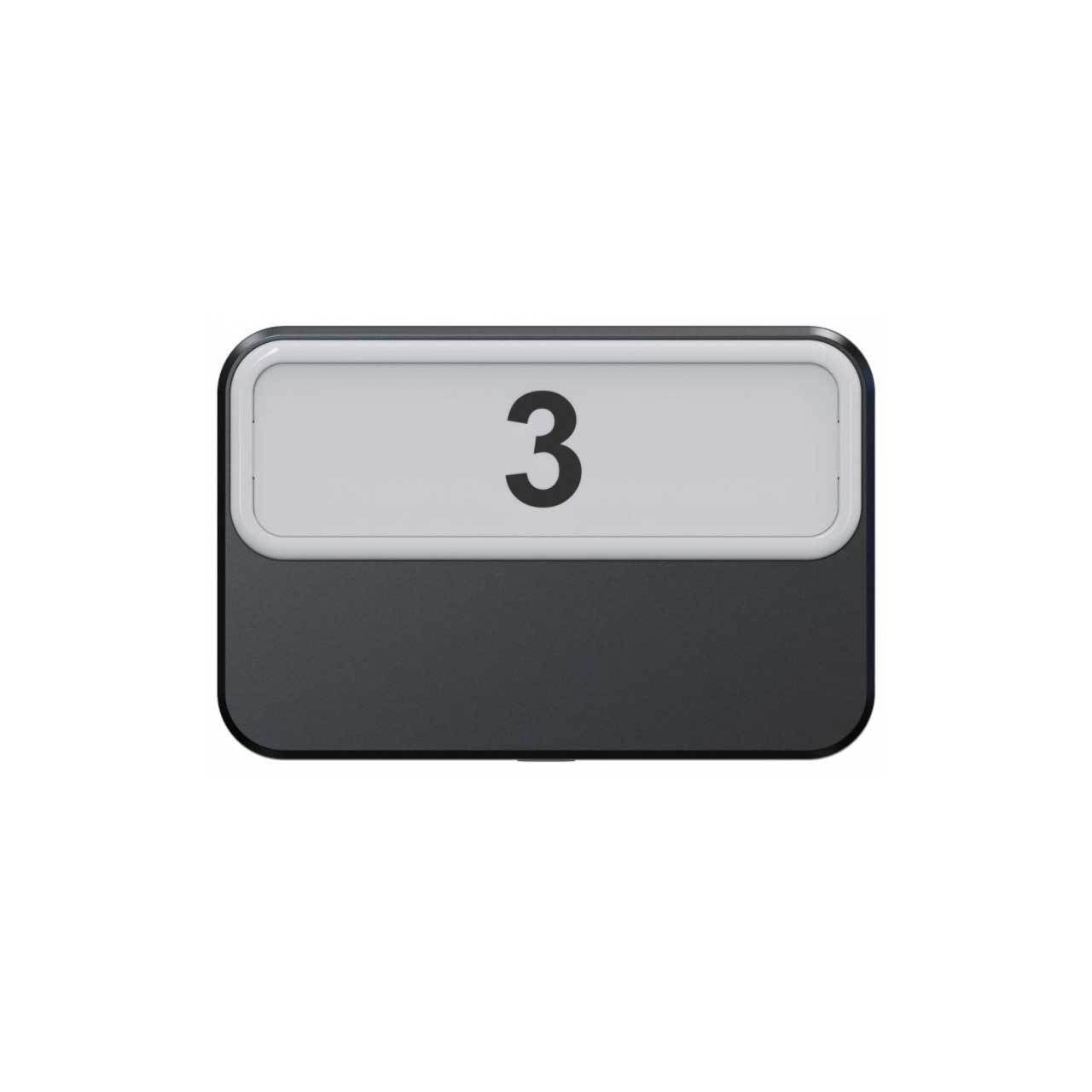

    The AVMATRIX TS3019-RX tally lamp can recieve the tally signal transmitted from a video switcher with up to a 200m (line-of-sight) distance. There are both front and rear indicator lights on the tally lamps with 4-level brightness that can be adjusted. Users can also check signal strength and power statuses easily.

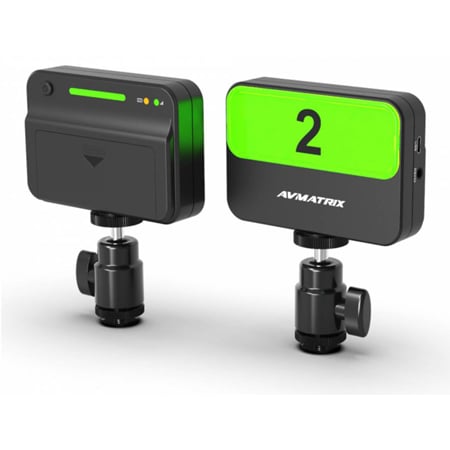

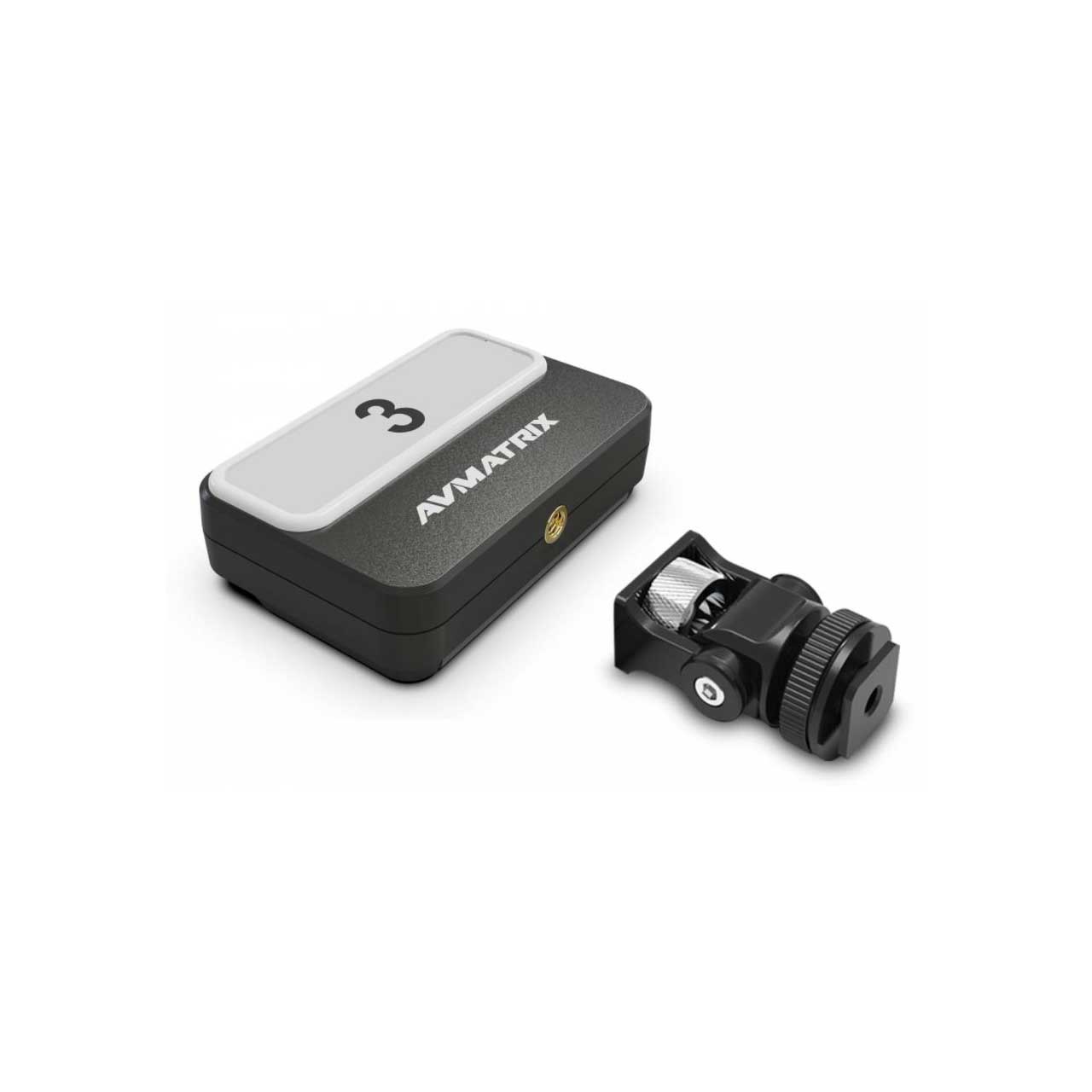

    Hot Shoe Mounting
    The tally lamp is designed with a 1/4 inch hotshoe hole. It is easy for installation and operation can be widely used in different application scenarios.

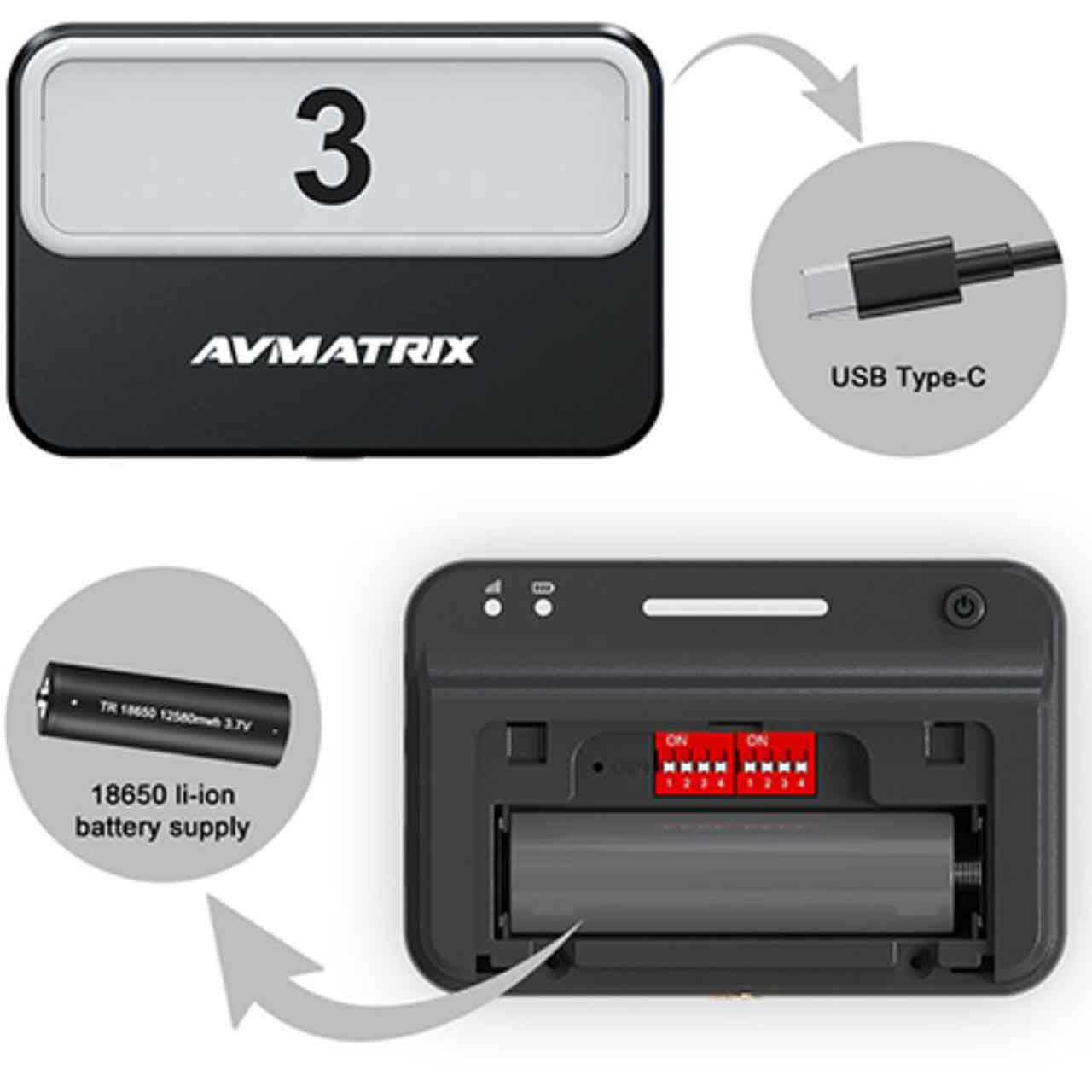

    Dual Power Supply
    The tally lamp can be powered by USB type-C or 18650 li-ion batteries. It supports large-capacity battery installation, which is convenient for outdoor applications. It also can be charged by USB.

    • Features:

      • Both front and rear indicators on the lamps with 4-level adjustable brightness
      • Visible signal strength and battery status on the tally lamp
      • Tally lamp can be powered by USB type-c or 18650 li-ion battery
      • 1/4 inch hot shoe for tally lamp installation
    • Specifications:

      • Tally Lamp Parameters

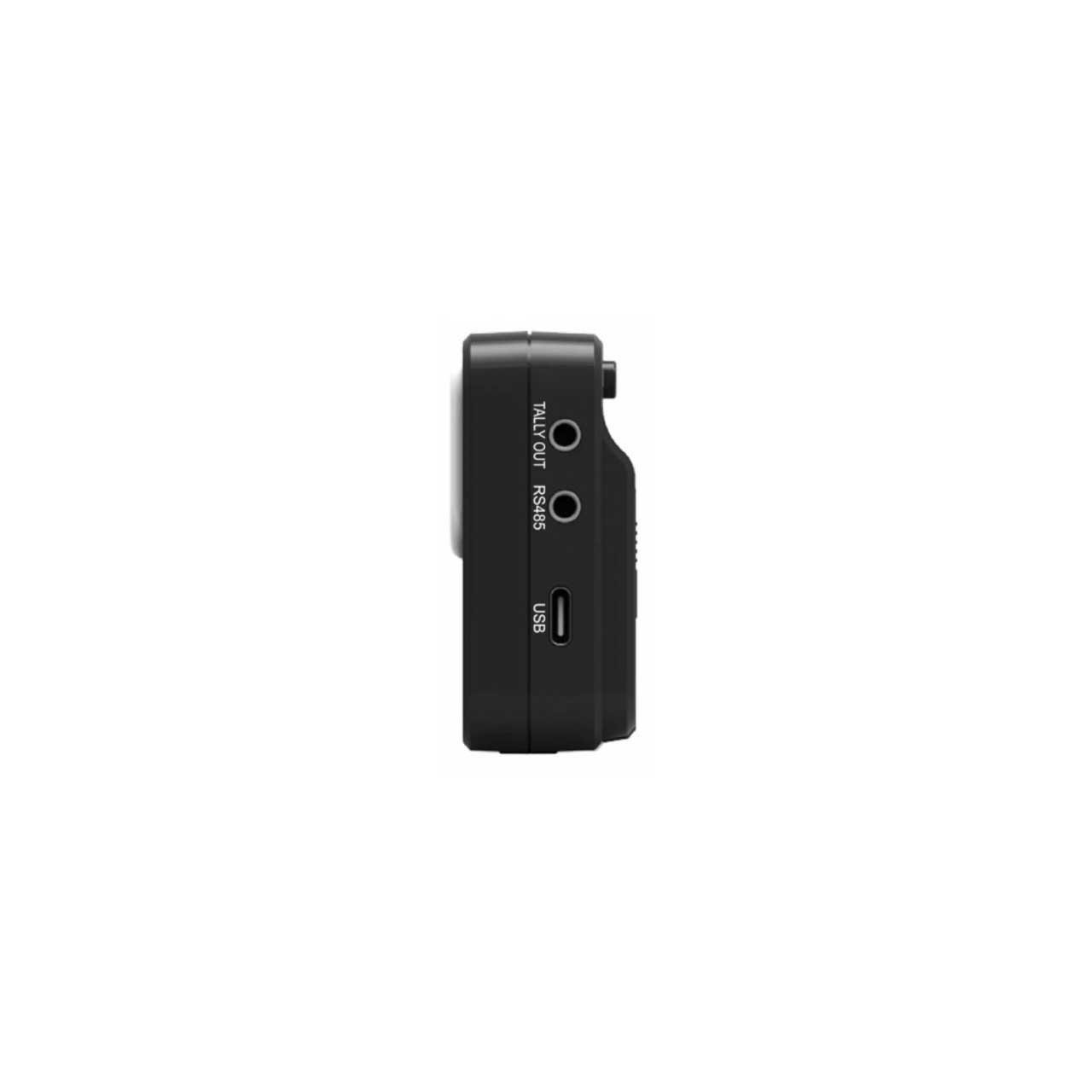

      • Connections: 1x USB Type-C, 1x Rs-485, Tally out
      • Power Supply: 5V USB power supply or 18650 li-ion battery (optional) power supply
      • Brightness: Support 4-level brightness
      • Battery Operating Time: Up to 9 hours (depending on battery capacity and lamp brightness/usage environment
      • Power: Working voltage - 5V, Power Consumption - &gel 2.5W; Battery Charging Current: 5V 1A
      • Mounting Hole: 1/4 inch hotshoe

      • Dimensions: 98.5 x 65 x 26.5mm
      • Weight: 90g (tally lamp without battery)
      • Temperature: Working - -20°C ~ 60°C / Storage - -30°C ~ 70°C
    • Item Includes:

      • 1x AVMATRIX TS3019-RX Tally Lamp for TS3019 Wireless Tally System (Each)
