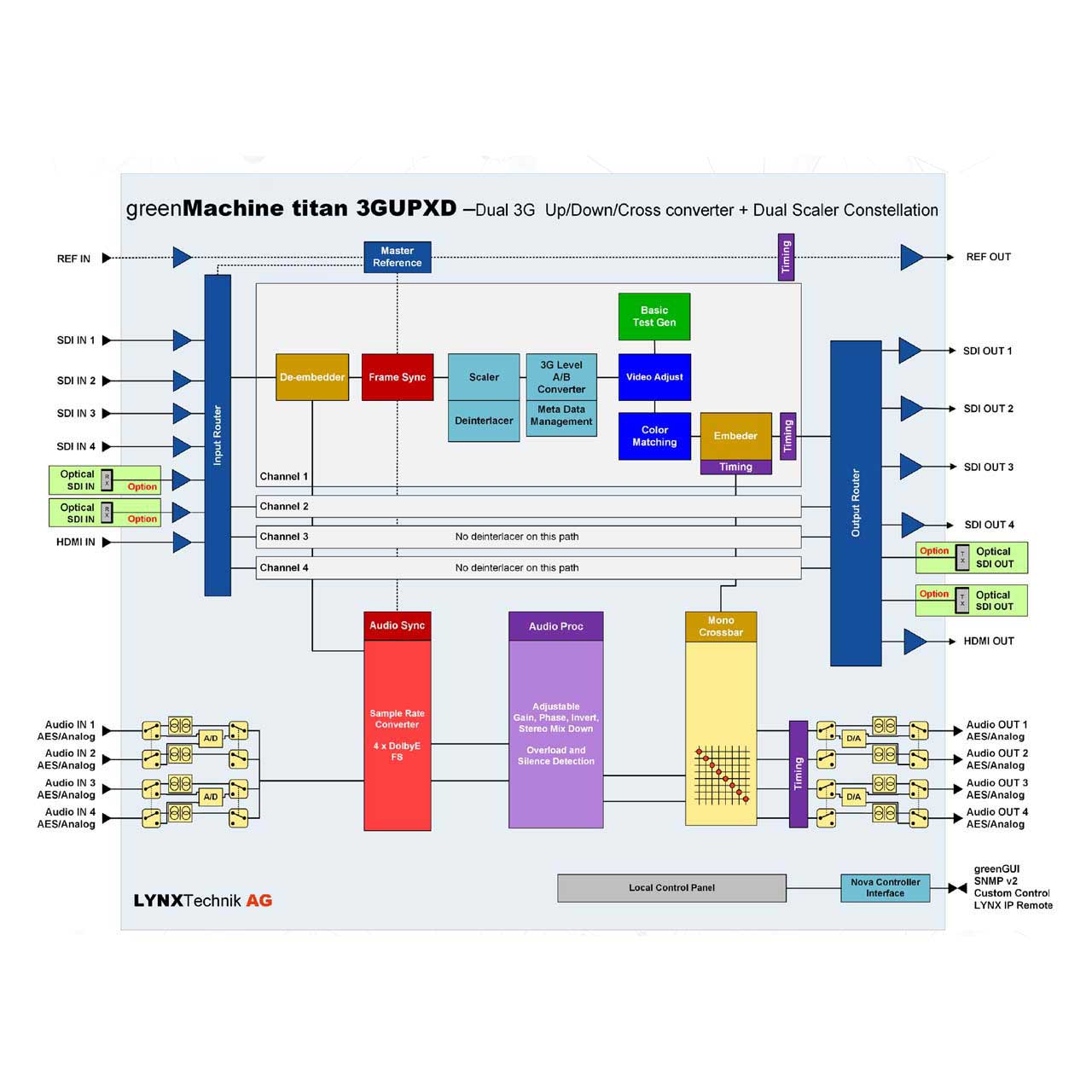

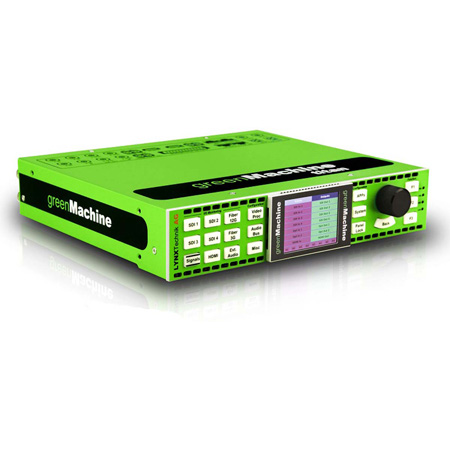

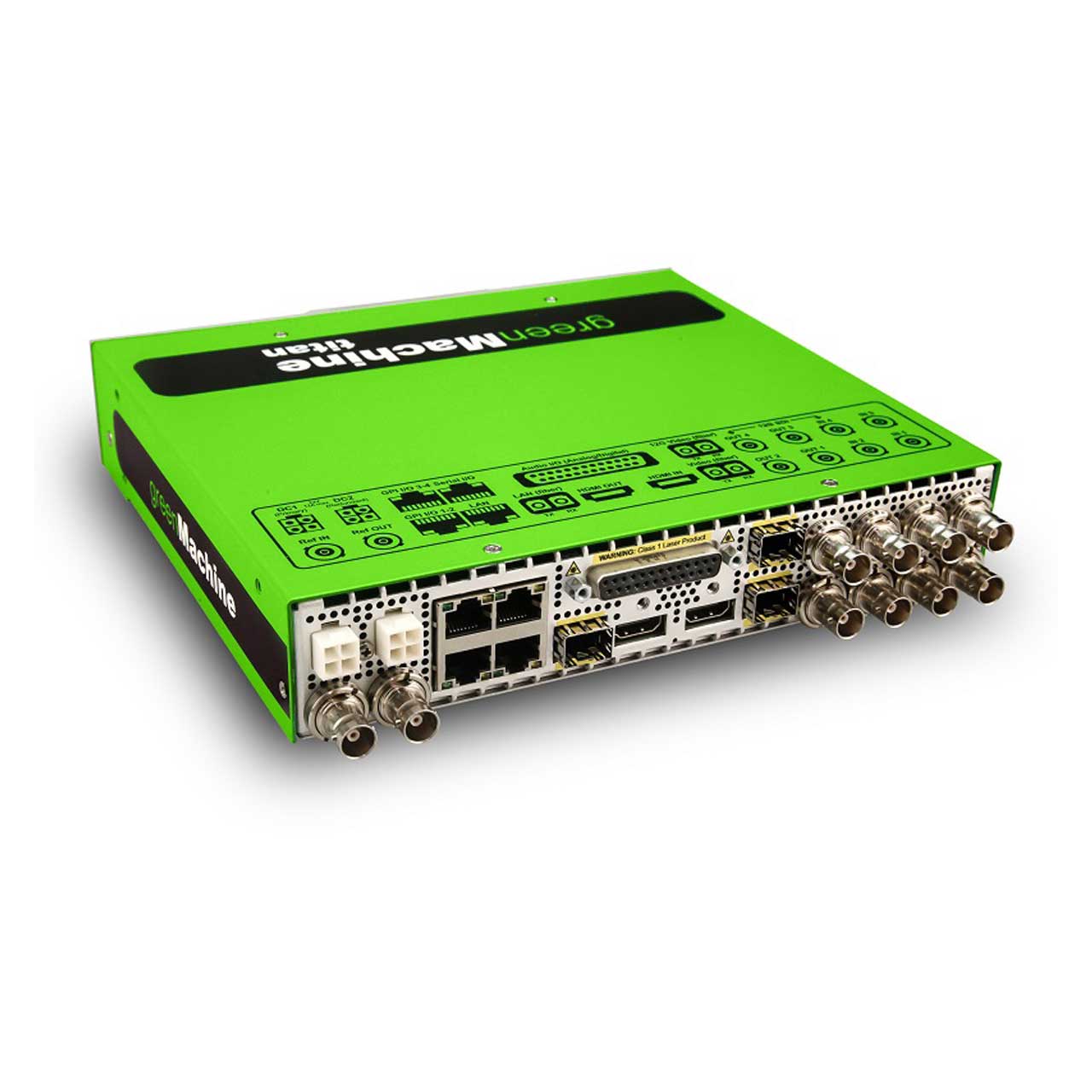

The LYNX Technik GMPT3GUPXDUS greenMachine 4 channel frame synchronizer is a fully featured video frame synchronizer for formats up to 3Gbit/s SDI. This product is designed for applications that require dependable broadcast quality frame synchronization with full audio processing capability. The included scalers allow for spatial conversions of the video signal including a versatile Region of Interest (ROI) selection. 2 of the scalars have de-interlacers for high quality interlaced video to progressive video conversions.

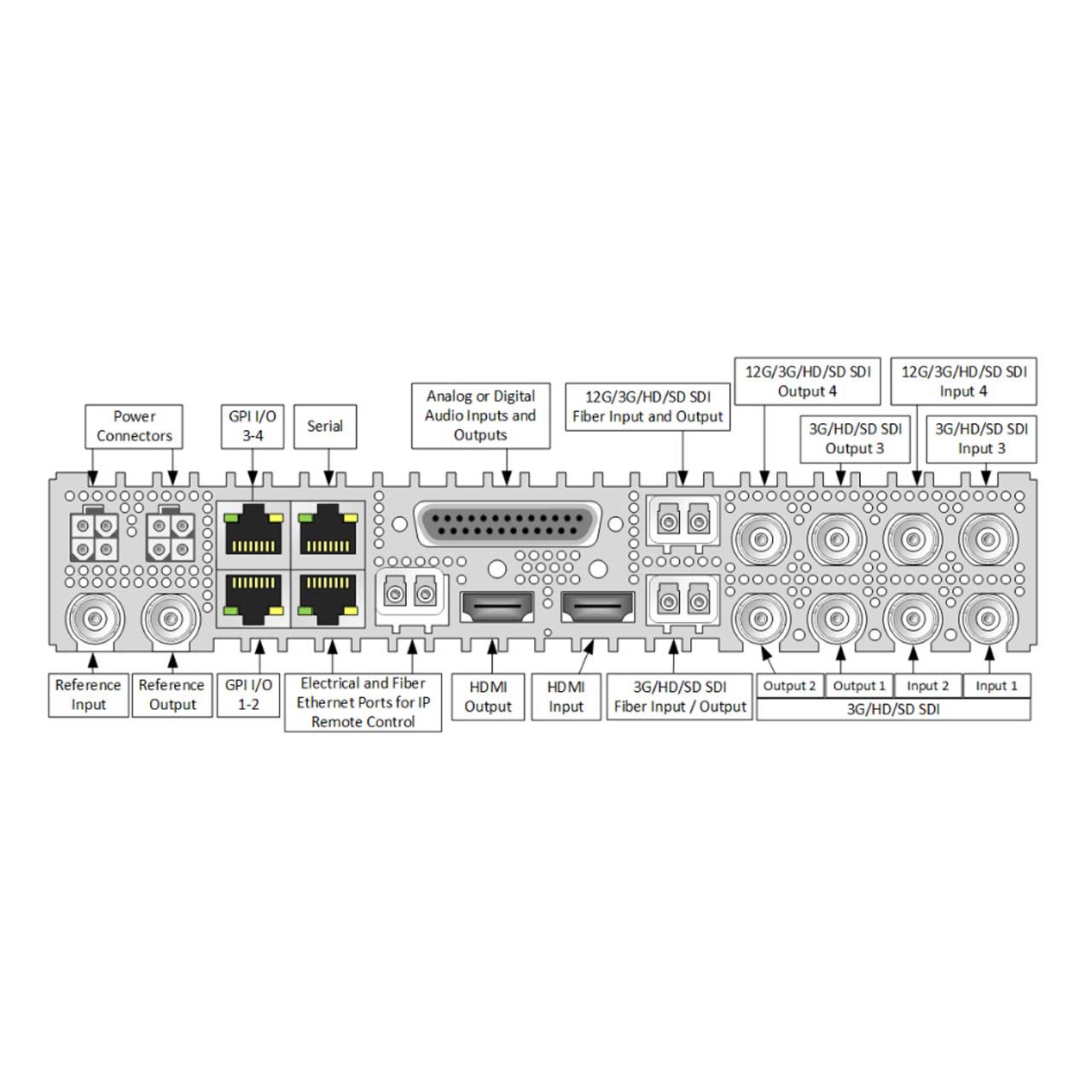

A bi-level SD reference signal as well as a tri-level HD reference signal can be used to synchronize the video signals. A timed reference output (SD or HD) is also provided. Input for processing can be BNC, Fiber or HDMI. Output can also be BNC, fiber or HDMI (optional fiber SFPs ordered separately).
Each greenMachine is preloaded with all the available constellations (configurations). This package has the GMC-3GUPXD constellation loaded and licensed. You can freely load any of the available constellations (configurations) for testing and evaluation at any time, the video and audio will be watermarked until licensed. You can have multiple constellations licensed for the same machine and switching between configurations takes only a few seconds. Constellations can also be shared if you have more than one greenMachine on the network.
Please Note! For more information, visit the Data Sheets Tab
