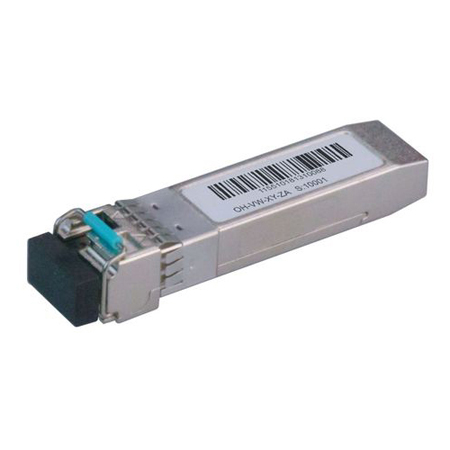

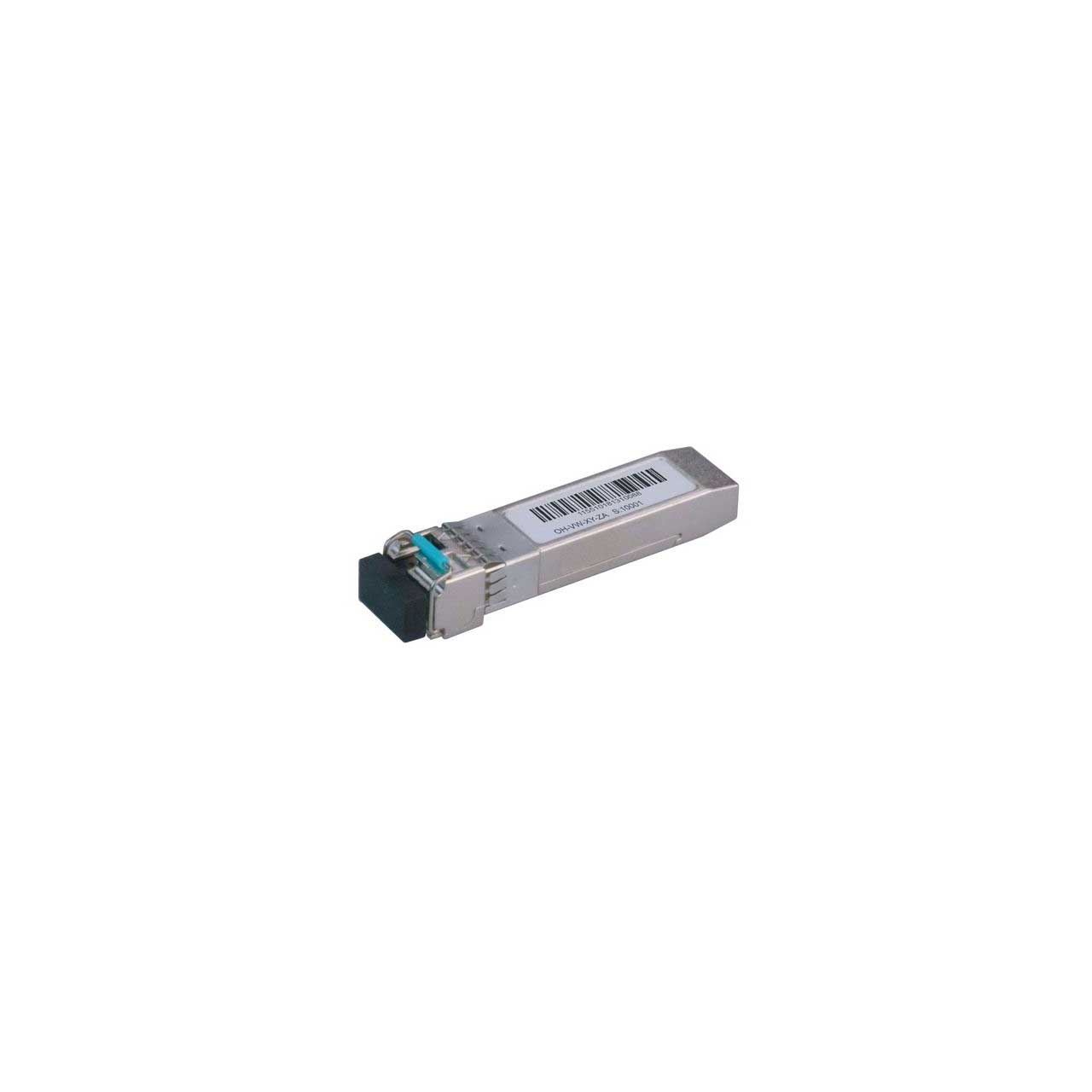

LYNX Technik OH-BD-10G-1330-LC Optical Bi-Directional 10Gbit Ethernet Optical Transceiver SFP - 1330nm - LC Connector

Name: LYNX Technik OH-BD-10G-1330-LC Optical Bi-Directional 10Gbit Ethernet Optical Transceiver SFP - 1330nm - LC Connector
Brand: LYNX Technik Inc
SKU: LNX-OBD10G1330LC
Price: 213.75 USD
Availability: PreSale

ITEM #: LNX-OBD10G1330LC MFG #: OH-BD-10G-1330-LC

LYNX Technik Inc

List Price:

$225.00

Our Price:

$213.75

Add to Wish List Leasing Options

Availability: Typically Ships in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Required Accessories

Recommended Accessories

Reviews

Attachments

Required Accessories

Recommended Accessories

OH-BD-10G-1330-LC - Overview

The Lynx OH-BD-10G-1330-LC is a 10 Gbit/s bidirectional optical transceiver. The TX wavelength is 1330 nm, RX wavelength are between 1260 nm and 1280 nm.

This SFP is typically used in simple WDM closed loop point to point applications and is intended to be paired with the OH-BD-10G-1270-LC SFP at the other end of the fiber link. The SFP is hot swappable.

Features:
- SDI multi-rate optical bidirectional transceiver for 10Gbit or 1Gbit
- 1 port bidirectional operation over single fiber (singlemode)
- 1330nm TX Wavelength / 1260-1280nm RX Wavelength
- Pluggable and hot swappable
- Lead free and RoHS compliant
Specifications:
- TX Specifications
- Wavelength:
  Min: 1320nm
  TYP: 1330nm
  Max: 1340nm
- Optical Power Range: 1dBm - 5 dBm
- Linear Extinction Ratio: 3.5dBm

  RX Specifications
- Receiver Sensitivity: -15dBm
- Wavelength:
  Min: 1260nm
  TYP: 1270nm
  Max: 1280nm
- Overload: 0.5dBm
- Loss of Signal Asserted: -30dBm
- Loss of Signal De-Asserted: -18dBm

  Mechanical
- Size (Not Including Connector - Typ): 2.24 x 0.53 x 0.49" (57 x 13.4 x 12.4mm)
- Weight: 0.11Lbs (50g)
- SFP Connector Pinning: MSA
- Fiber Connections: LC (Simplex) - Singlemode
- Operating Temperature Range: 32° to 158°F (0° to 70°C)
- Power Supply Voltage: 3.3V DC
- Power Consumption Max.: 430 mA
- Humidity (Non condensing): 90%
