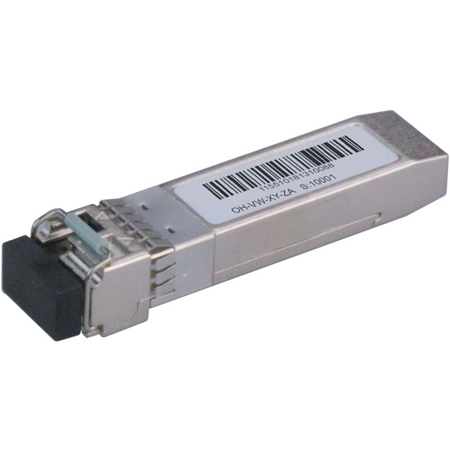

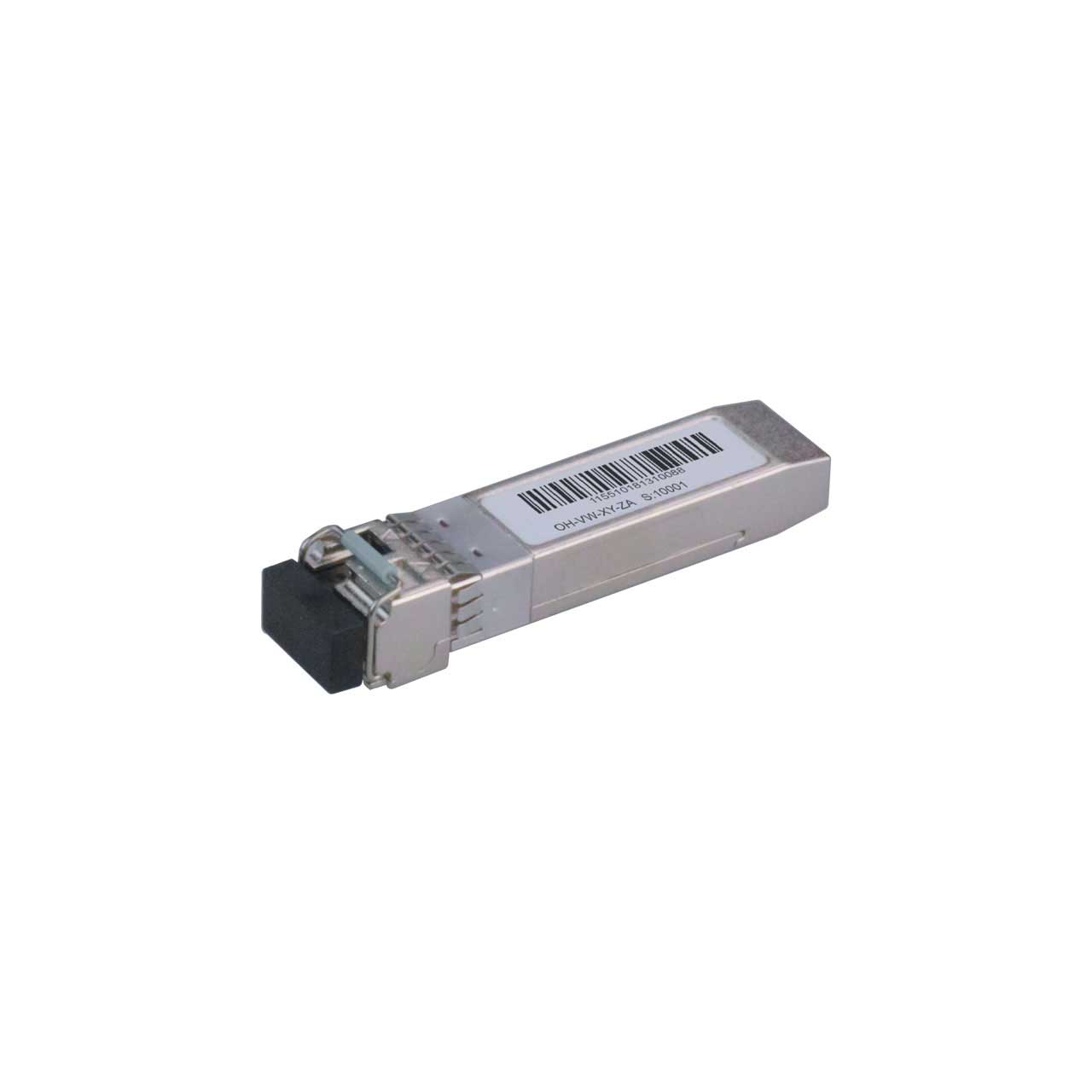

LYNX Technik OH-BD-10G-1270-LC 10 Gbit/s LC Simplex - Singlemode Bidirectional Optical Data Transceiver

OH-BD-10G-1270-LC - Overview

• Features:

  • Optical, bidirectional transceiver for 10 Gbit or 1 Gbit
  • 1 port bidirectional operation over single fiber (singlemode)
  • 1270 nm TX Wavelength / 1320-1340 nm RX Wavelength
  • Pluggable and hot swappable
  • Lead free and RoHS compliant


• Specifications:

  • TX Specifications
  • Wavelength:
    Min: 1260nm
    TYP: 1270nm
    Max: 1280nm
  • Optical Power Range: 1dBm - 5 dBm
  • Linear Extinction Ratio: 3.5dBm

    RX Specifications
  • Receiver Sensitivity: -15dBm
  • Wavelength:
    Min: 1320nm
    TYP: 1330nm
    Max: 1340nm
  • Overload: 0.5dBm
  • Loss of Signal Asserted: -30dBm
  • Loss of Signal De-Asserted: -18dBm

    Mechanical
  • Size (Not Including Connector - Typ): 2.24 x 0.53 x 0.49" (57 x 13.4 x 12.4mm)
  • Weight: 0.11Lbs (50g)
  • SFP Connector Pinning: MSA
  • Fiber Connections: LC (Simplex) - Singlemode
  • Operating Temperature Range: 32° to 158°F (0° to 70°C)
  • Power Supply Voltage: 3.3V DC
  • Power Consumption Max.: 430 mA
  • Humidity (Non condensing): 90%


• GTIN:

  4250479328198
