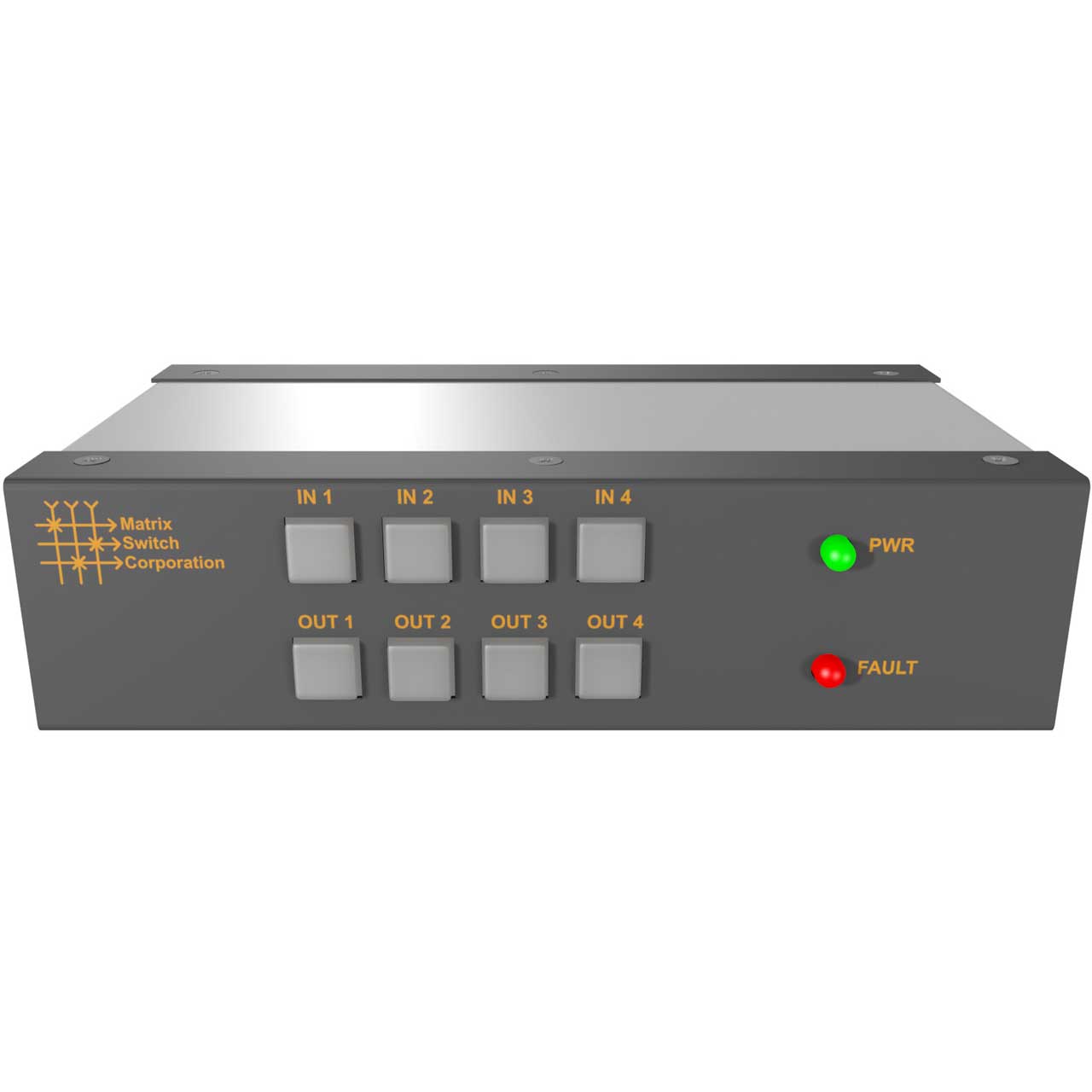

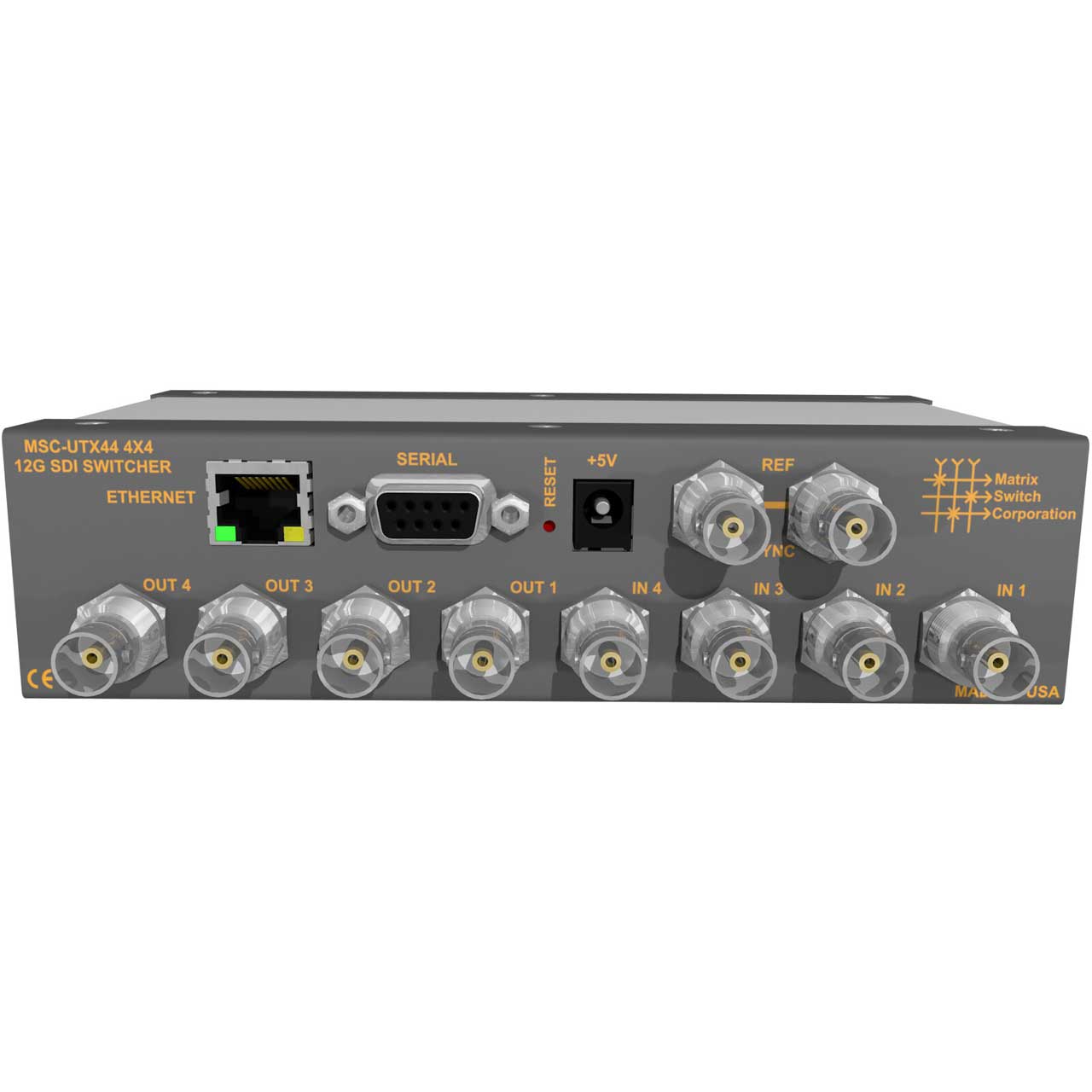

Matrix Switch MSC-UTX44L 4 Input 4 Output 12G-SDI Video Router With Button Panel

ITEM #: MSC-UTX44L MFG #: MSC-UTX44L

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$1,295.00

Our Price:

$1,139.60

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


MSC-UTX44L - Overview

Matrix Switch MSC-UTX44L SDI routing switcher has 4 inputs and 4 outputs, supports reclocking of standard 12G/6G/3G/HD/SD SDI rates (including single link 4K and UHD formats), automatic bypass of non-standard rates between 20 Mbit/s and 12 Gbit/s, and passes all SDI embedded audio/ancillary data. In addition any output can be independently muted. Switch on vertical sync is provided with the sync reference input with a pass-through connector and provides support for Tri-level sync and NTSC/PAL black burst signals.

Matrix Switch Corporation routers provide several options for control and system integration. The built-in webpage interface offers a convenient method for control and configuration using a PC or mobile device (Interactive Demo). In addition to Matrix Switch Corporation's powerful yet easy to use MASCOT protocol, there is also support for some common 3rd party protocols. Additional control interfaces on this router include: USB, RS-485, RS-232, and TCP/IP over the Ethernet interface.

Matrix Switch Corporation Remote Panels can also be used with this router for remote control up to a virtually unlimited distance over TCP/IP. The built-in button panel provides an additional interface for directly changing the matrix routing state.

Made in USA

  • Features:

    • Re-clocks standard SDI rates 12G/6G/3G/HD/SD (11.88 / 5.94 / 2.97 / 1.485 / 0.270 Gbit/s)
    • Auto bypass of non-standard SDI rates from 20 Mbit/s to 12 Gbit/s
    • Passes SDI embedded audio and ancillary data
    • Different SDI rates can be used on different inputs interchangeably and without restriction
    • Inputs can be switched to multiple outputs without restriction
    • Outputs can be individually muted
    • Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
    • Store and recall up to 10 preset salvos
    • Includes button control panel interface
    • Supports Matrix Switch Corporation Remote Panels
    • Ethernet port for control via built in web page interface or TCP/IP ports
    • Interactive web page interface (Interactive Demo)
    • Serial control via RS-232 port
    • RS-485 port for an additional high speed long distance capable control interface
    • Support for some common 3rd party protocols for added integration flexibility
    • Real Time Operating System (RTOS) with 32 bit ARM processor
    • System software updates from webpage interface
    • Compact enclosure design with a depth of only 4 inches
    • Less than 2 pounds
    • External DC power supply
    • Redundant power supply included
    • Complies with all relevant FCC, U/L, CE, and RoHS requirements
    • Backed by a full 2 year manufacturer parts and labor warranty

  • Specifications:

    • General
    • Inputs: 4
    • Outputs: 4
    • Size: 6.60" x 1.75" x 4"
    • Weight: 2.0 lbs
    • USA List Price: $1,295
    • Power: 7.5 VDC 2A Adapters (6-18 VDC)
    • Power Connector: 5.5mm OD 2.1mm ID twist locking coaxial
    • Panel Type: Buttons
    • Ethernet: 10/100 Base-T Auto MDIX
    • Made in: USA
    • Operating Temp.: 0 - 70C
    • Storage Temp.: -10 - 90C
    • MTBF: 50,000+ Hours
    • MTTR: < 48 Hours

      SDI Inputs
    • Connector Type: BNC
    • Data Rates: 19 Mbit/s through 12.0 Gbit/s
    • Input Return Loss: > 15dB @ HD, > 12dB @ 3G
    • Input Impedance: 75 Ohms +/- 1%
    • Input Level: 800 mV P-P +/- 20%
    • Cable Equalization: 450m @ SD, 260m @ HD, 180m @ 3G, 60m @ 6G, 40m @ 12G (1694A coax)

      SDI Outputs
    • Connector Type: BNC
    • Data Rates: 19 Mbit/s through 12.0 Gbit/s
    • Re-clocking Data Rates: 11.88 Gbit/s, 5.94 Gbit/s, 2.97 Gbit/s, 1.485 Gbit/s, 270 Mbit/s
    • Output Return Loss: > 15dB @ HD, > 12dB @ 3G
    • Output Impedance: 75 Ohms +/- 1%
    • Output Level: 800 mV P-P +/- 5%
    • Output Jitter: < 0.2 UI

      SDI Standards
    • SD Formats: 625/25 PAL and 525/29.97 NTSC
    • HD Formats: 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60
    • 3G Formats: 1080p50, 1080p59.94, 1080p60
    • 2K Formats: 2048 x 1556/23.98/24/25
    • UHD Formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • 4K Formats: 2160p23.98, 2160p24, 2160p25
    • Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 372M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
    • Video Sampling: 4:2:2 and 4:4:4
    • Audio Sampling: 24 bit @ 48 KHz
    • Color Precision: 4:2:2 and 4:4:4 10 bit
    • Color Space: YUV or RGB
    • Metadata Support: Ancillary data as defined by SMPTE 352M

      Reference Sync
    • Connector Type: Analog BNC with pass-through
    • Format: Tri-Level Sync and NTSC/PAL Black Burst

  • Item Includes:

    • 1x Matrix Switch MSC-UTX44L 4 Input 4 Output 12G-SDI Video Router With Button Panel
