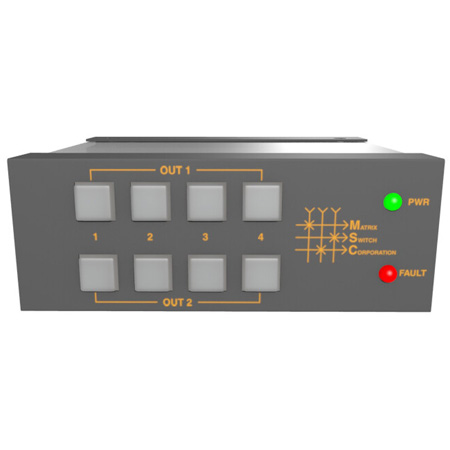

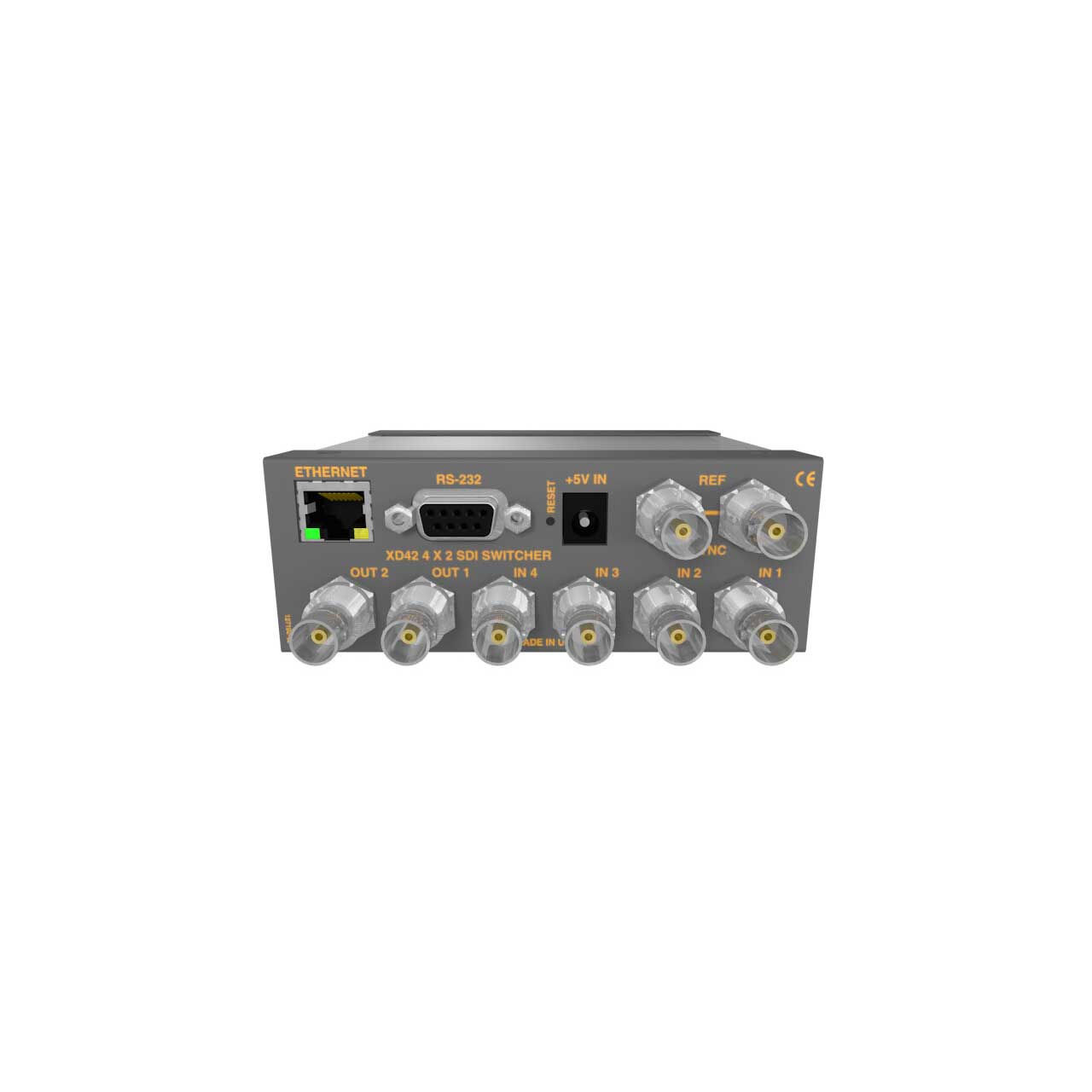

Matrix Switch MSC-XD42L 4 Input - 2 Output - 3G-SDI Video Router with Button Panel
  • Matrix Switch MSC-XD42L 4 Input - 2 Output - 3G-SDI Video Router with Button Panel
  • Matrix Switch MSC-XD42L 4 Input - 2 Output - 3G-SDI Video Router with Button Panel

Questions? Ask a Markertek Expert:
800-522-2025 Email

Matrix Switch MSC-XD42L 4 Input - 2 Output - 3G-SDI Video Router with Button Panel

Item #: MSC-XD42L   •   MFG #: XD42L



List Price:$825.00
Our Price:$726.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The MSC-XD42L SDI routing switcher has 4 inputs and 2 outputs, supports reclocking of standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 20 Mbit/s and 3 Gbit/s, and passes all SDI embedded audio/ancillary data. In addition any output can be independently muted. Switch on vertical sync is provided with the sync reference input with a pass-through connector and provides support for Tri-level sync and NTSC/PAL black burst signals.

    Matrix Switch Corporation routers provide several options for control and system integration. The built-in webpage interface offers a convenient method for control and configuration using a PC or mobile device (Interactive Demo). In addition to Matrix Switch Corporation's powerful yet easy to use MASCOT protocol, there is also support for some common 3rd party protocols. Additional control interfaces on this router include: RS-485, RS-232, and TCP/IP over the Ethernet interface.

    Matrix Switch Corporation Remote Panels can also be used with this router for remote control up to a virtually unlimited distance over TCP/IP. The built-in button panel provides an additional interface for directly changing the matrix routing state.


    • Features

      • Re-clocks standard SDI rates 3G (2.97 Gbit/s), HD (1.485 Gbit/s), and SD (270 Mbit/s)
      • Auto bypass of non-standard SDI rates from 20 Mbit/s to 3 Gbit/s
      • Passes SDI embedded audio and ancillary data
      • Different SDI rates can be used on different inputs interchangeably and without restriction
      • Inputs can be switched to multiple outputs without restriction
      • Outputs can be individually muted
      • Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
      • Store and recall up to 10 preset salvos
      • Includes button control panel interface
      • Supports Matrix Switch Corporation Remote Panels
      • Ethernet port for control via built in web page interface or TCP/IP ports
      • Interactive web page interface (Interactive Demo)
      • Serial control via RS-232 port
      • RS-485 port for an additional high speed long distance capable control interface
      • Support for some common 3rd party protocols for added integration flexibility
      • Real Time Operating System (RTOS) with 32 bit ARM processor
      • System software updates from webpage interface
      • Compact enclosure design with a depth of only 5 inches
      • Less than 2 pounds
      • External DC power supply
      • Redundant power supply included
      • Complies with all relevant FCC, U/L, CE, and RoHS requirements
      • Backed by a full 2 year manufacturer parts and labor warranty

    • Specifications

      • General
      • Inputs: 4
      • Outputs: 2
      • Size: 5 x 1.75 x 5 Inches
      • Weight: 2.0 lbs
      • Power: 5.0 VDC 2A Adapters (6-18 VDC)
      • Power Connector: 5.5mm OD 2.5mm ID coaxial
      • Panel Type: Buttons
      • Ethernet: 10/100 Base-T Auto MDIX
      • Operating Temp: 32 - 158°F
      • Storage Temp: 14 - 194°F
      • MTBF: 50,000+ Hours
      • MTTR: < 48 Hours

        SDI Inputs
      • Connector Type: BNC
      • Data Rates: 19 Mbit/s through 3.0 Gbit/s
      • Input Return Loss: > 15dB @ HD, > 12dB @ 3G
      • Input Impedance: 75 Ohms +/- 1%
      • Input Level: 800 mV P-P +/- 20%
      • Cable Equalization: 400m @ SD, 140m @ HD, 120m @ 3G (1694A coax)

        SDI Outputs
      • Connector Type: BNC
      • Data Rates: 19 Mbit/s through 3.0 Gbit/s
      • Re-clocking Data Rates: 2.97 Gbit/s, 1.485 Gbit/s, 270 Mbit/s
      • Output Return Loss: > 15dB @ HD, > 12dB @ 3G
      • Output Impedance: 75 Ohms +/- 1%
      • Output Level: 800 mV P-P +/- 5%
      • Output Jitter: < 0.2 UI

        SDI Standards
      • SD Formats: 625i25 PAL and 525i29.97 NTSC
      • HD Formats
        720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94
        720p60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25 1080PsF25
        1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60
      • 3G Formats: 1080p50, 1080p59.94, 1080p60
      • 2K Formats: 2048 x 1556p23.98/24/25
      • Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
      • Video Sampling: 4:2:2 and 4:4:4
      • Audio Sampling: 24 bit @ 48 KHz
      • Color Precision: 4:2:2 and 4:4:4 10 bit
      • Color Space: YUV or RGB
      • Metadata Support: Ancillary data as defined by SMPTE 352M

        Reference Sync
      • Connector Type: Analog BNC with pass-through
      • Format: Tri-Level Sync and NTSC/PAL Black Burst
