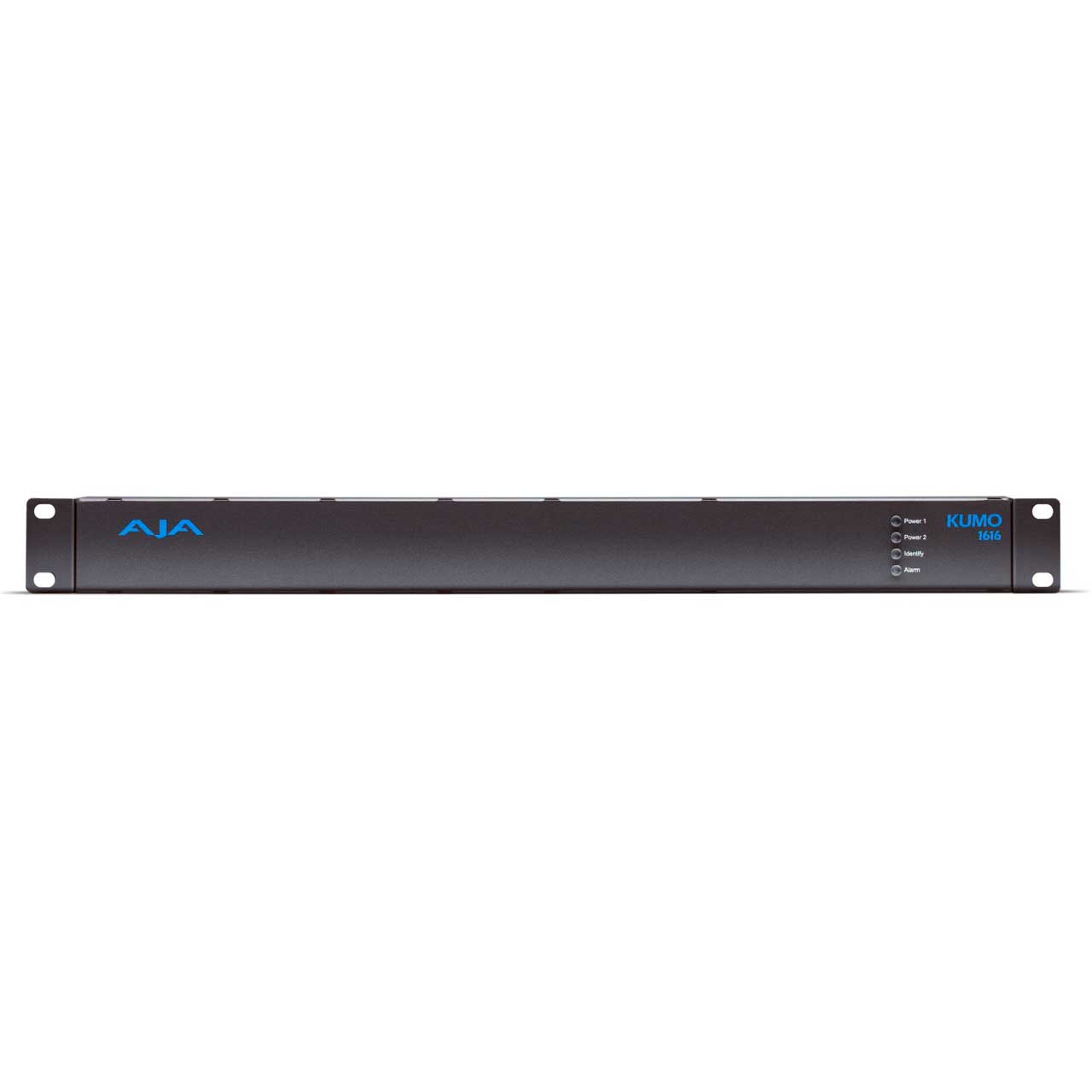

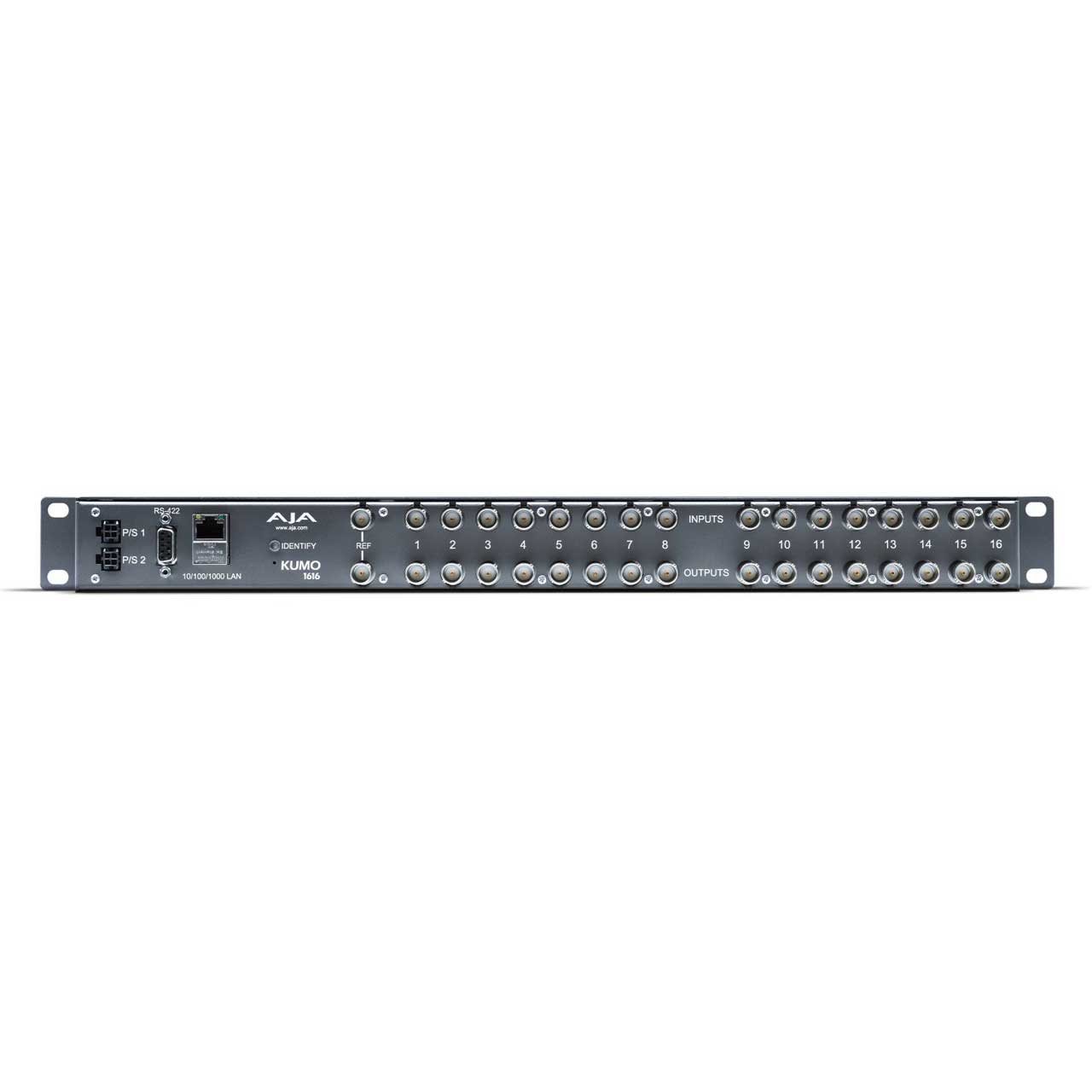

AJA KUMO 1616 16x16 Compact 3G-SDI Router with 1 Power Supply

ITEM #: AJA-KUMO1616 MFG #: KUMO 1616

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:


Availability: In Stock
iAvailability Description Popup

    KUMO 1616 - Overview

    Compact 16x16 3G-SDI Router!

    The AJA KUMO 1616 is designed for medium sized facilities and mobile trucks. KUMO 1616 features SIXTEEN 3G-SDI inputs and SIXTEEN 3G-SDI outputs, perfect for combining multiple cameras, monitors, editing systems, tape decks and file based recorders into a seamless workflow.

    KUMO compact SDI routers provide powerful signal control and support full broadcast specifications for 3G-SDI with quality that exceeds SMPTE specifications. The super-compact form is just a few inches deep, making it a perfect fit for any broadcast, production, or postproduction environment. That's mobile sports trucks and edit suites to corporate video installations or live theatrical A/V rigs.

    Whether you're building a mobile truck, edit suites or an AV flypack, get the routing capabilities you need at a price that fits well within your budget. KUMO routers are so affordable they can be used in place of traditional DAs to distribute signals to multiple locations. KUMO routers provide an incredible price/performance ratio while still maintaining the highest quality standards.

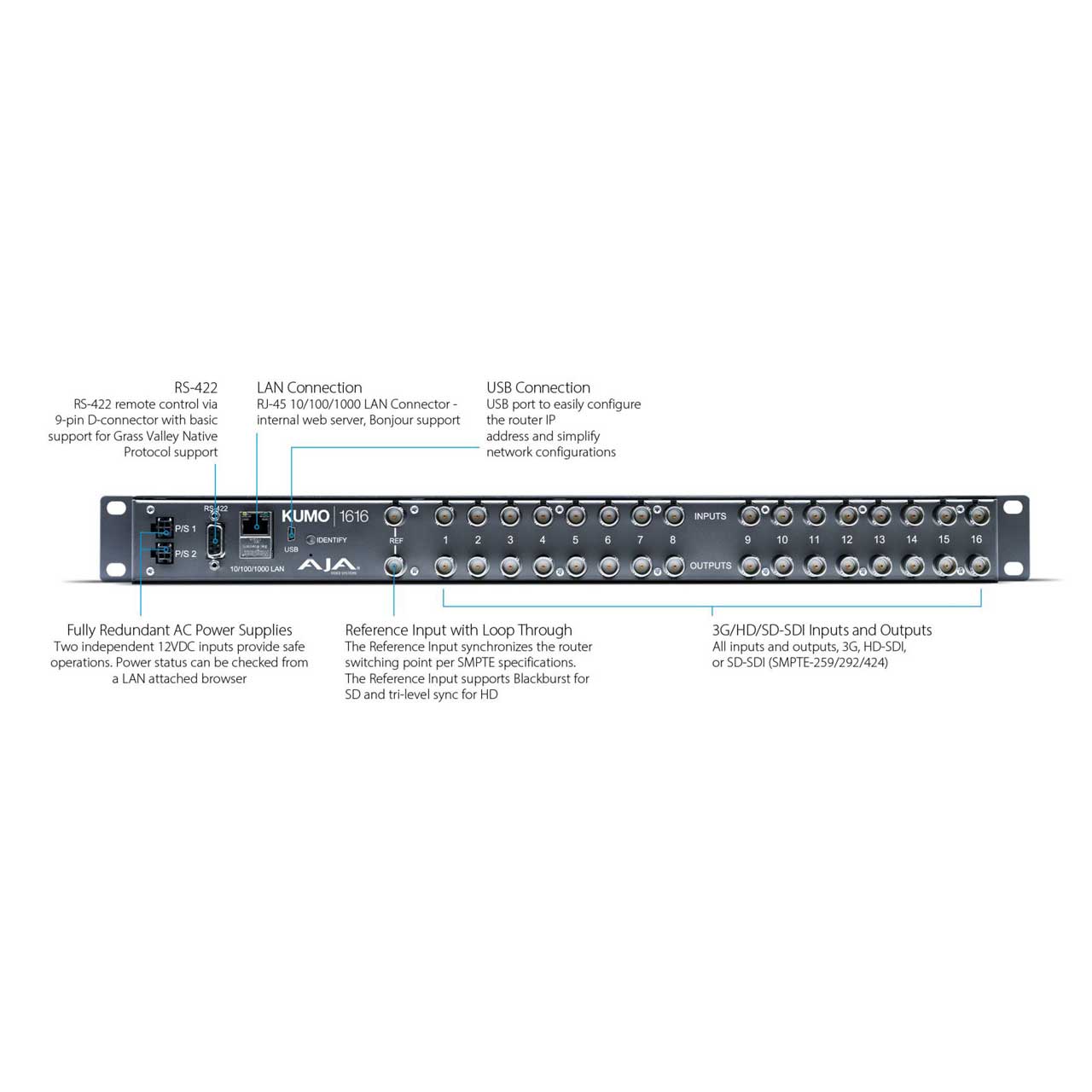

    • Features:

      • 16x 3G-SDI inputs and outputs
      • Small, portable form factor
      • Quad cable support for 4K/UltraHD
      • Redundant power supply (option)
      • Eight salvos per router
      • Embedded web server for remote control
      • USB port to easily configure the router IP address
    • Specifications:

      • Ancillary Data
      • Passes all SDI embedded ancillary data including audio

      • Up to 8 Salvos can be configured and saved in each KUMO router

        Cable Equalization
      • (Belden 1694A)
      • 3 Gbps, up to 140m
      • 1.5 Gbps, up to 200m
      • 270 Mbps, up to 400m
      • Automatic operation

      • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
      • All other rates are passed through and not reclocked

        Switching Modes
      • Single, Dual, and Quad link modes
      • Switches in vertical blanking per SMPTE RP-168

        Control Panel Compatibility
      • AJA KUMO CP - 1RU X-Y Ethernet control panel
      • AJA KUMO CP2 - 2RU X-Y Ethernet control panel

        Reference Input
      • External, 2x BNC
      • Looping, nonterminating
      • Blackburst or tri-level sync

        Network Interface
      • 1x RJ-45, 10/100/1000 Ethernet
      • Supports AJA KUMO Ethernet control panels, direct connect or networked
      • Basic support for Grass Valley Native Protocol
      • Embedded web server for remote control

        USB Interface
      • 1x Mini-USB for IP configuration using AJA eMini-Setup

        Machine Control
      • RS-422, Grass Valley Native Protocol
      • 9-pin D-connector pinout is as follows:
        1 -- GND
        2 -- RX-
        3 -- TX+
        4 -- GND
        5 -- No Connection
        6 -- GND
        7 -- RX+RX+
        8 -- TX-
        9 -- GND
        Shell -- GND
    • Warranty:

      • Five year warranty
