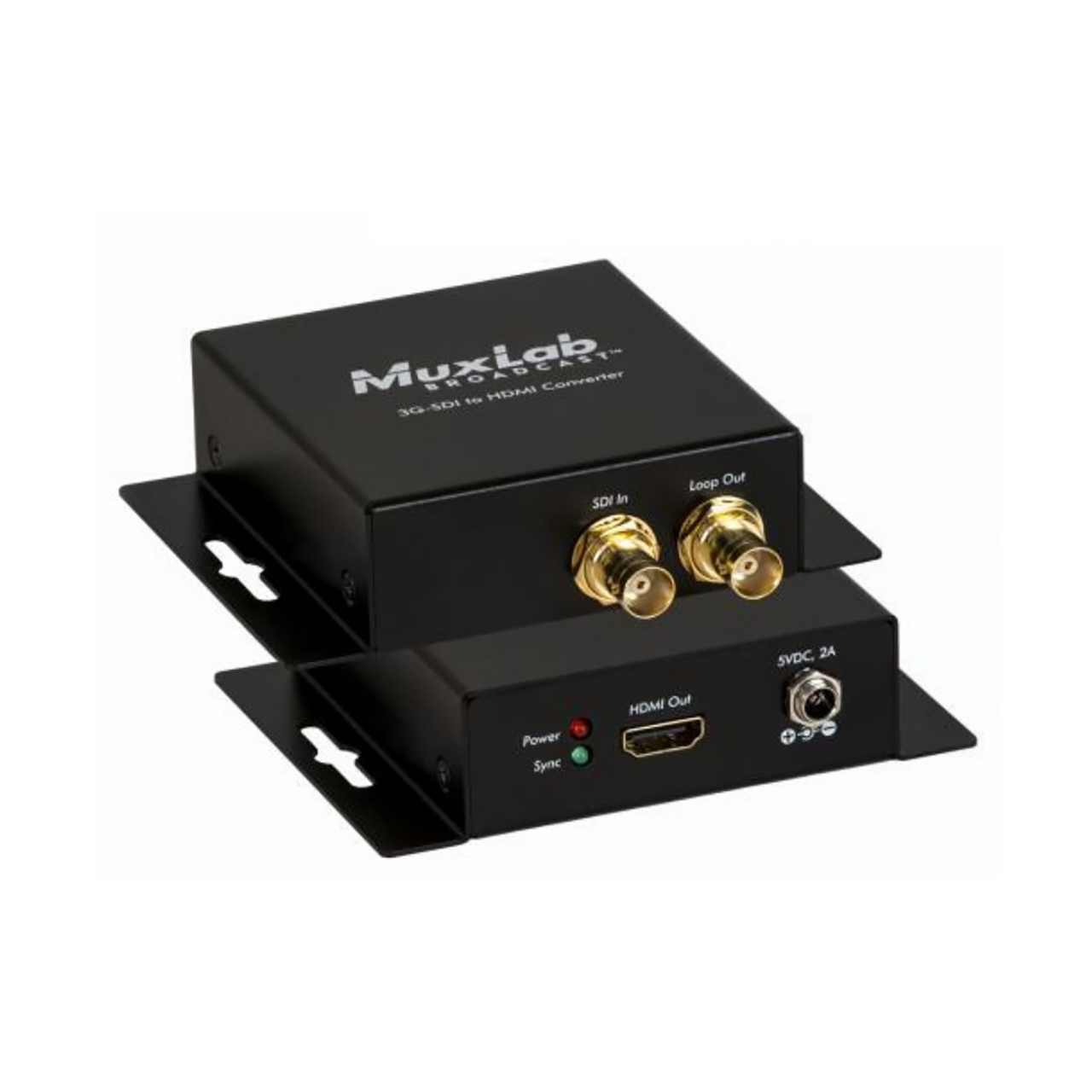

MuxLab 500717 3G-SDI to HDMI Converter

ITEM #: MUX-500717 MFG #: 500717

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
MuxLab Inc
Free Shipping with $49 Minimum Order

List Price:

$370.00

Our Price:

$255.00

After Savings:

$229.50

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Muxlab Instant Savings!Enjoy instant savings on select Muxlab products. Get yours today through Markertek while the savings last!
Report Lower PriceLarge Quantity Quote

500717 - Overview

The MuxLab 500717 is a 3G-SDI to HDMI Converter thay allows SDI equipment to be connected to an HDMI Display. The 3G-SDI to HDMI Converter converts the SDI signal back to HDMI, supporting resolutions of 480i (SD-SDI), 720p/1080i (HD-SDI) and 1080p (3G-SDI). The 3G-SDI to HDMI Converter provides a low jitter and re-clocked outputs allowing for unit daisy chain.

Typical Applications:
• Video Production & Broadcasting
• Studio-to-Studio & Post production
• Outside Broadcasting Vehicle
• Mobile Video & Live Events
• SDI Camcorder
• Medical Imaging Display

  • Features:

    • Auto 3G/HD/SD-SDI detection & conversion
    • View SDI source video on a lower cost HDMI display
    • Supports up to 1080p
    • 3G-SDI up to 300ft (90m) via RG59 coax
    • Low jitter & re-clocked output
    • Supports daisy chain
    • Wall mountable
    • LED diagnostics


  • Specifications:

    • Weight: 1.72lbs (0.780kg)
    • Dimensions: 2.95" x 5.51" x 7.87" (20cm x 14cm x 7.50cm)
    • Environment: HDMI 1.3a, 3G-SDI, HD-SDI & SD-SDI
    • Devices: Camera, plasma, projectors, monitors, TV
    • Transmission: Transparent to the user
    • Detection: Auto Detection of the 3G/HD/SD-SDI Signal.
    • Bandwidth: 2.97Gbps & 2.975/1.001Gbps
    • Signals: HDMI 1.3a & SDI protocol.
    • Supported Resolution 3G-SDI: 1080p50/59.94/60Hz (4:2:2)
    • Supported Resolution HD-SDI:
      - 1080p/23.98/24/25/29.97/30Hz
      - 720p/50/59.94/60Hz
      - 1080i/50/59.94/60Hz
    • Supported Resolution SD-SDI: NTSC (59.94Hz), PAL (50Hz)
    • Audio: Up to 8 Audio Channels
    • Input Signal:
      - 3G-SDI: SMPTE-424M
      - HD-SDI: SMPTE 292M, 296M
      - SD-SDI: SMPTE 259M
    • Connectors:
      - 2x BNC Female 75Ω, Gold Plated
      - 1x HDMI Type A receptacle.
    • Cable Equalization:
      - 3G-SDI up to 300ft (90m)
      - HD-SDI up to 500ft (150m)
      - SD-SDI up to 1000ft (300m)
    • Cable: 1x RG59 or better cable required.
    • Power Supply: 1x 110V - 240V/5VDC power supply with interchangeable blades.
    • Power Consumption: 3.0W (Max)


  • Item Includes:

    • 1x 3G-SDI to HDMI Converter


  • Warranty:

    • 2 Year Limited Warranty
