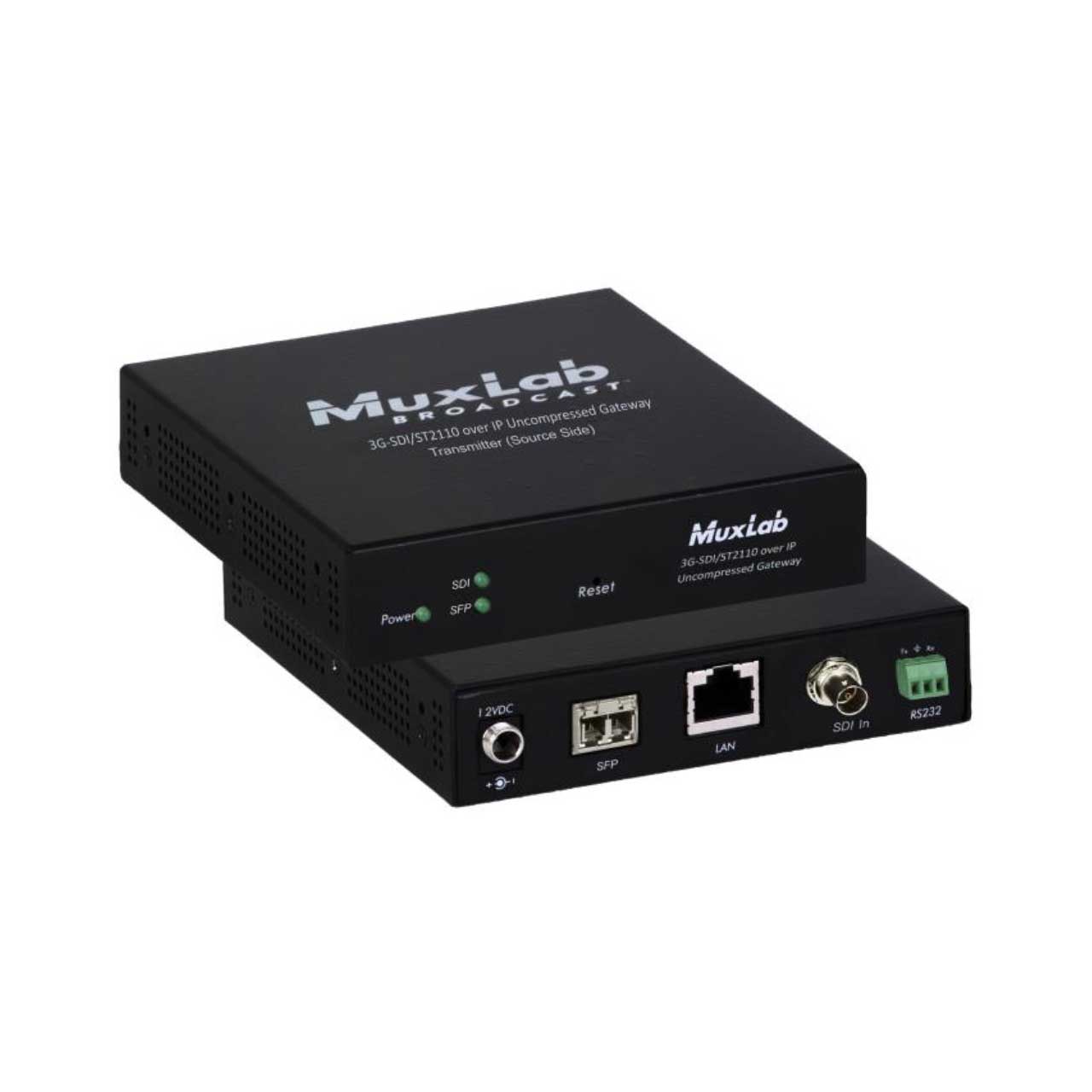

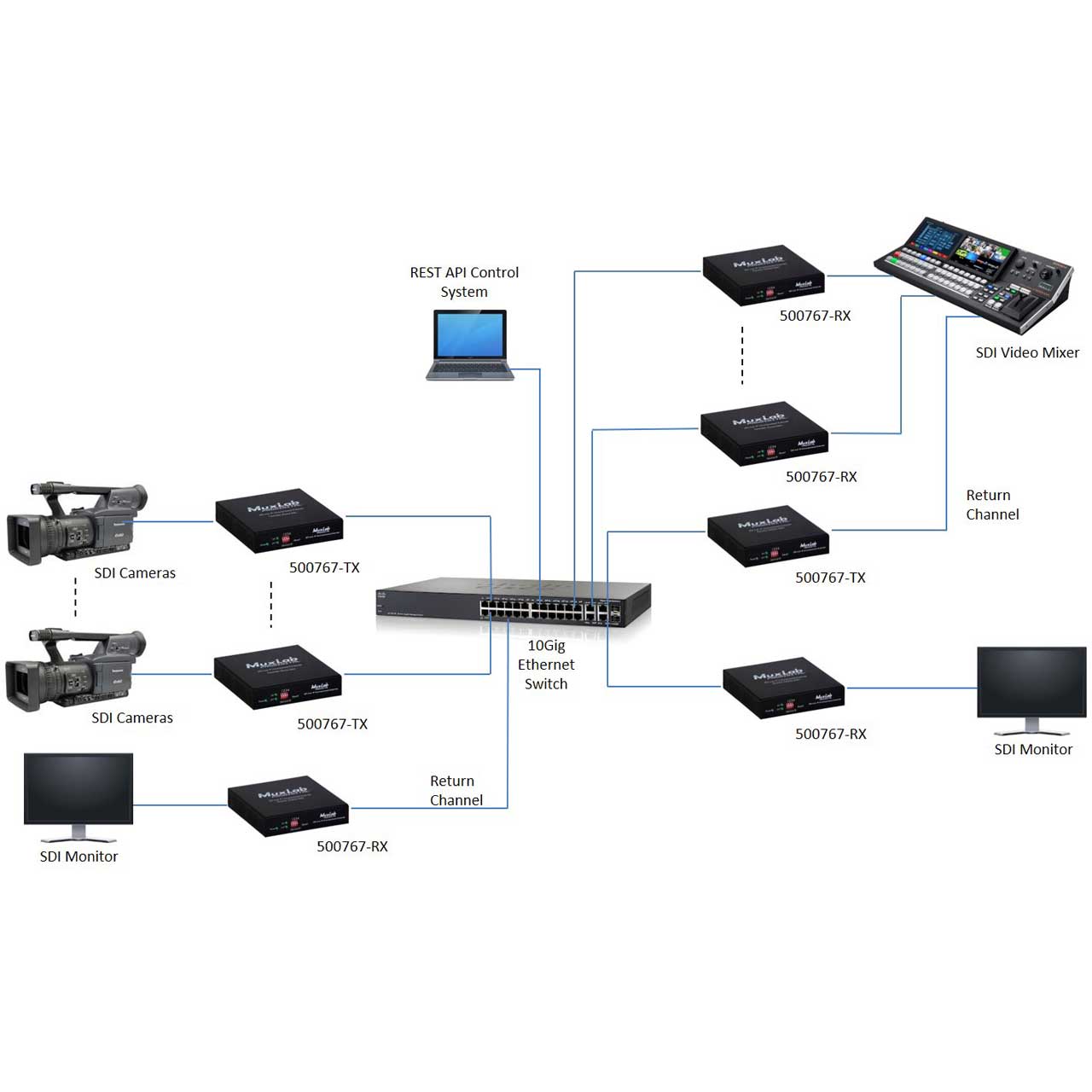

The MuxLab 500767-TX-MM 3G-SDI/ST2110 over IP Uncompressed Gateway Converter allows HD-SDI and 3G-SDI equipment to be extended up to 100ft (30m) via UTP Cat 5e/6 cable or up to 1300ft (400m) via duplex multimode OM4 fiber with LC connectors, at up to 1080p resolution @ 60Hz uncompressed, in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint configurations are also possible by connecting several units to a 10G Ethernet network. The unit provides a 1G Ethernet Switch port to connect additional network devices, and an RS232 port for remote control of end devices.
This device supports SMPTE ST-2110, and can be managed through its Web interface and an NMOS system via a RestAPI.
Applications:
Commercial broadcast AV systems
News/sports/TV stations
Movie networks
