Osprey 96-02022 Talon Pro 4K HEVC/AVC Encoder
  • Osprey 96-02022 Talon Pro 4K HEVC/AVC Encoder
  • Osprey 96-02022 Talon Pro 4K HEVC/AVC Encoder

Questions? Ask a Markertek Expert:
800-522-2025 Email

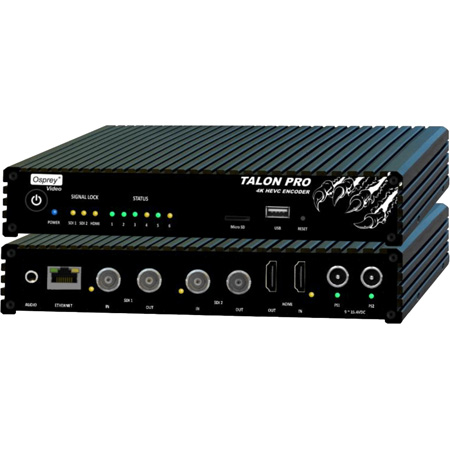

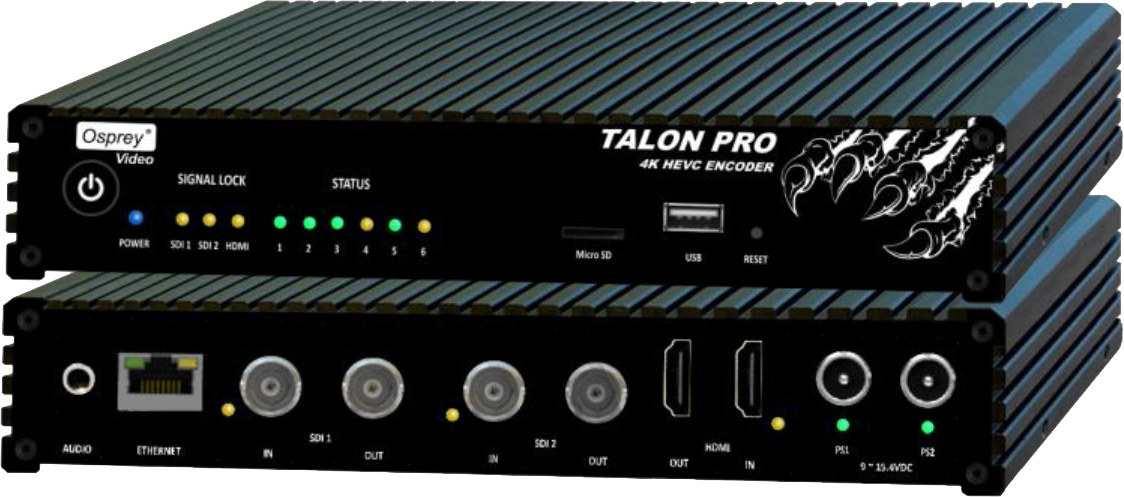

Osprey 96-02022 Talon Pro 4K HEVC/AVC Encoder

Manufacturer: Osprey Video

Item #: OSP-96-02022   •   MFG #: 96-02022




Our Price:$2,290.00

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Osprey Talon PRO 96-02022 is a 4K HEVX/AVC encoder. The Talon Series are small form-factor Video Encoders designed to be easy to use, portable, and easily stream both your standard definition and high definition content to broadband and mobile networks. They feature a fan-less design with a low power consumption of <7W. The wide input voltage range of 9VDC - 15.4VDC also make it perfect candidates for battery operated equipment and installations.


    • Features

      • H.265 / H.264 Encoding
      • 3 Independent Encodes
      • Redundant Power Inputs
      • Small Fanless Form Factor
      • Unbalanced Stereo Audio Input

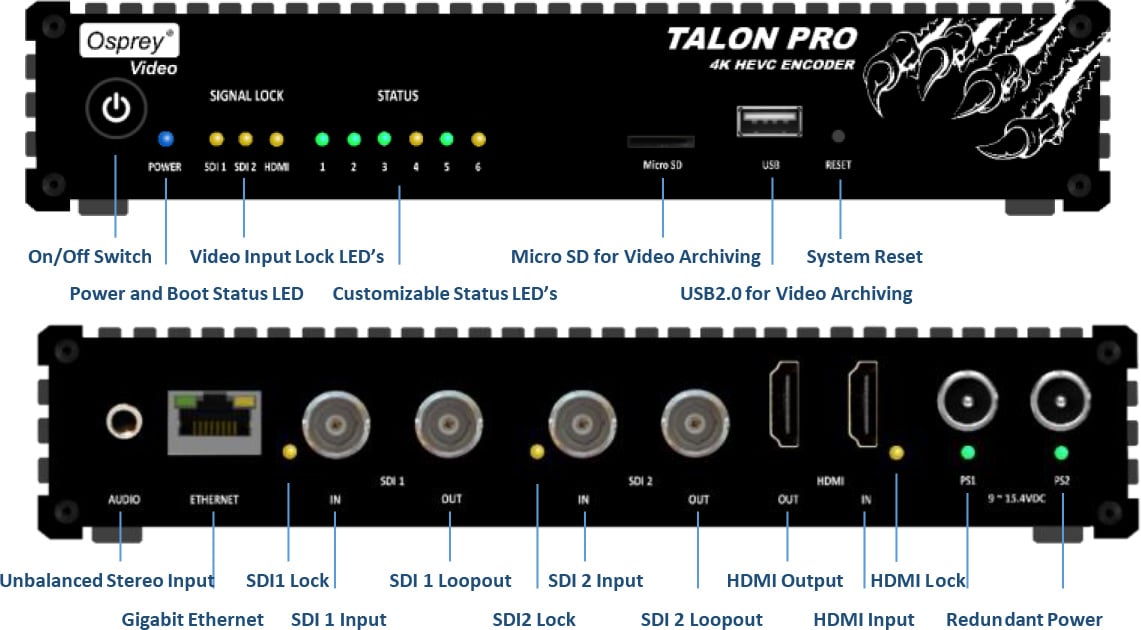

      • 2x 3G-SDI plus 1x 4K30 HDMI® Inputs
      • RTMP(S), RTP, RTSP, TSRTP and UDP
      • CEA608 and CEA708 Closed Captions
      • Six Configurable Dual Color Status LED's
      • User Selectable Loopouts (Active and Passive)
      • Web-Based / Wireless Configuration and Video Monitoring
      • HDMI Output for Post-Processing Monitoring of any Input
      • USB and Micro SD Card Interfaces for .MP4 or .TS Format Video Archiving
      • Included Mounting Features - Desktop, Wall Brackets, ¼" Camera Mount
      • 1U Side by Side Rackmount Option with included Redundant Power Supplies

    • Specifications

      • Video Inputs:
      • 2x 3G/HD/SD-SDI with Loopouts*
      • 1x HDMI 1.4 UHD
      • Note: *Selectable as active or passive loopouts

        Audio Inputs:
      • 2x Embedded SDI
      • 1x Embedded HDMI
      • 1x Analog unbalanced stereo

        Video Input Resolution:
      • Up to 3840x2160 (UHD) 30fps on HDMI
      • Up to 1920x1080 60fps on SDI

        HDMI Output:
      • Selectable preview of any input

        Streaming Transports:
      • RTMP, UDP, RTP, RTSP, SRT™, Zixi™,

        MPEG2 TS over UDP, TSRTP
      • Saving to MP4 and TS file
      • CDN integration

        Video Processing:
      • Upscale/Downscale, Frame rate
      • Conversion, De-interlacing, Text Overlay,
      • Region of Interest, Image Rotation

        Video Compression:
      • H.264 (AVC), H.265 (HEVC), MJPEG

        Encoding Controls
      • Bitrate from 100Kbps to 15Mbps
      • Frame rate Full, Half, Quarter and Sixth
      • Low Latency option <55ms

        Closed Captions
      • Re-embeds existing CEA608/708 captions

        Audio Compression:
      • AAC-LC, AAC-HE, AAC-HEv2

        Audio Sample Rate
      • 32kHz, 44.1kHz, 48kHz
      • Audio Bitrate 12Kbps to 384Kbps

        Storage
      • Micro SD card
      • USB drive

        Power
      • 9.0 - 15.4VDC - 7W
      • Redundant power connections
