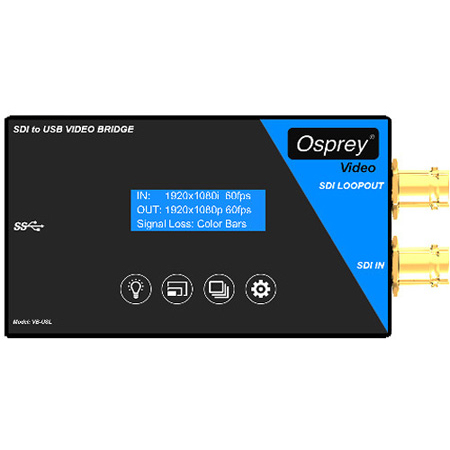

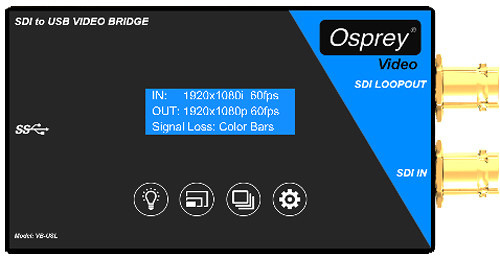

Osprey Video VB-USL SDI to USB 3.0 Video Capture Device with Loopout

ITEM #: OSP-VB-USL MFG #: 97-21422

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OSP-VB-USL

97-21422 - Overview

The VB-USL USB Video Bridge capture device series includes 3G-SDI and HDMI models providing wide-ranging adaptability for complex workflows. Connecting directly to your computer's USB 3.0 port, the Video Bridge is true plug-and-play, requiring no drivers in Windows, Linux, or Mac OS X.

Two control scenarios support varying user requirements. Software control mode passes all available rates and resolutions to the capture software. Manual mode allows the pre-selection of a frame rate and resolution, allowing the user to control the load delivered to the USB bus.

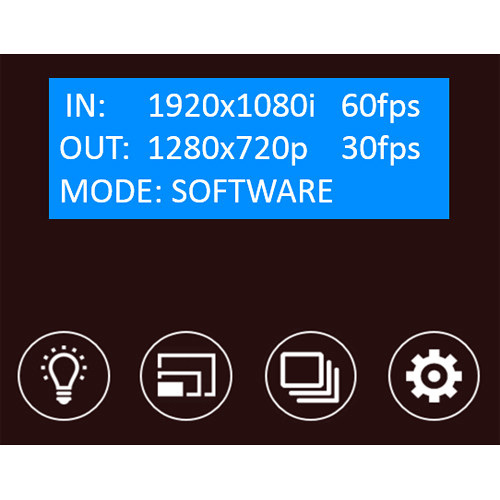

A "Follow Input" selection passes the input 1 to 1 to the host PC. For confidence monitoring, the input and output resolutions, and frame rates are displayed on the unit's LCD screen.

  • Specifications:

    • Video Formats Out (YUV 422):
    • Frame rates 24, 25, 30, 50, 60
    • Resolution: 1920x1080; 1680x1050; 1440x900; 1360x768; 1280x1024; 1280x800; 1280x768; 1280x720; 1024x768; 1024x576; 960x540; 856x480; 800x600; 768x576; 720x576; 720x480; 640x480; 640x360
    • Video Input: 3G-SDI, SMPTE 259/292/424, YUV422; SD, HD, 3G Auto Detect
    • Audio Input: 2-Channel SDI Embedded Audio, 48kHz Sample Rate
    • Interfaces: Full Size BNC; Micro B USB 3.0 UVC/UAC Compliant
    • Size: 4" x 2.4" x 0.65"
    • Weight: 0.25lb
    • Power: 5V USB Powered; 4.5W max
  • Item Includes:

    • USB Capture Device
    • 3-ft USB Cable
  • Warranty:

    • 2 Years
  • GTIN:
