    DINET DAN-RX2 - Overview

    Dual Output Dante Endpoint
    The DAN-RX2 is a 2-channel 24bit/96kHz digital to analog endpoint that allows you to output audio from a Dante or AES67-compliant network for connection to professional audio systems.

    Robust digital audio distribution
    The DAN-RX2 is a road-worthy digital receiver capable of delivering two channels of analog audio to any location from a Dante or AES-67 compliant network. Balanced XLR outputs include a ground lift and a separate headphone amp with its own level control is included for local testing or personal monitoring. The RJ45 network connection is compatible with Neutrik etherCON connector carriers to prevent accidental disconnection and protect cable terminations. Redundant powering is available for critical applications by using the included external power supply and Power over Ethernet (PoE) simultaneously, and the DAN-RX2 can be mounted in 19" equipment racks with the optional SA series rackmount adaptor kit.

    The DAN-RX2 is easy to use, with no setup required on the device itself. It is completely configured by Dante Controller, which manages digital audio routing across the Dante network. Dante Controller is a software application by Audinate™ that allows the user to manage all Dante-enabled devices across a network. Use Dante Controller to route audio to the DAN-RX2 and all other components on the network. Simply connect the DAN-RX2 to the network and it will automatically appear as an available output device within Dante Controller.

    The DAN-TX2 is easy to use, with no setup required on the device itself. It is completely configured by Dante Controller, which manages digital audio routing across the Dante network. Dante Controller is a software application by Audinate™ that allows the user to manage all Danteenabled devices across a network. Use Dante Controller to route audio from the DAN-TX2 to ny number of destinations on the network. Simply connect the DAN-TX2 to the network and it will automatically appear as an available transmit device within Dante Controller.

    Features:
    2 channel Dante to analog output device.
    24bit/96kHz digital to analog conversion.
    Stereo XLR outputs.
    Headphone amplifier with volume control, 2 x 1/4" and 3.5mm outputs.
    Ethercon network connection.
    PoE or external 15VDC power.
    AES67 compliant.
    Radial stand-alone chassis allows for rack mounting with optional kit.
    Not replacing the original RX.

    What is different on the RX2 vs the original RX:
    Rack-mountable stand-alone chassis.
    Neutrik Ethercon network connection.
    1/4" headphone outputs.
    AES67 compliant.

    DiNET DAN-RX2 Applications:

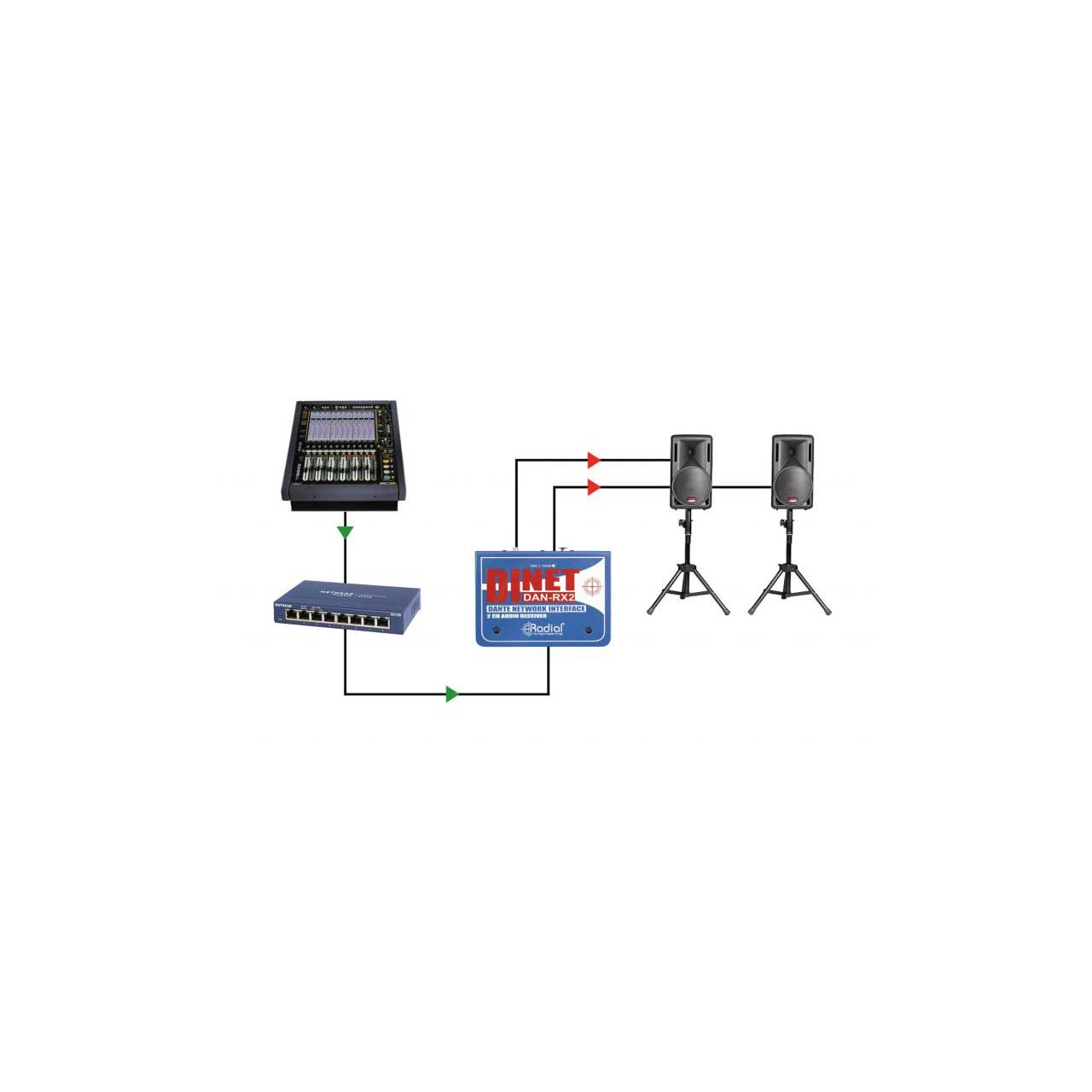

  • Using the DAN-RX2 to connect a small PA system

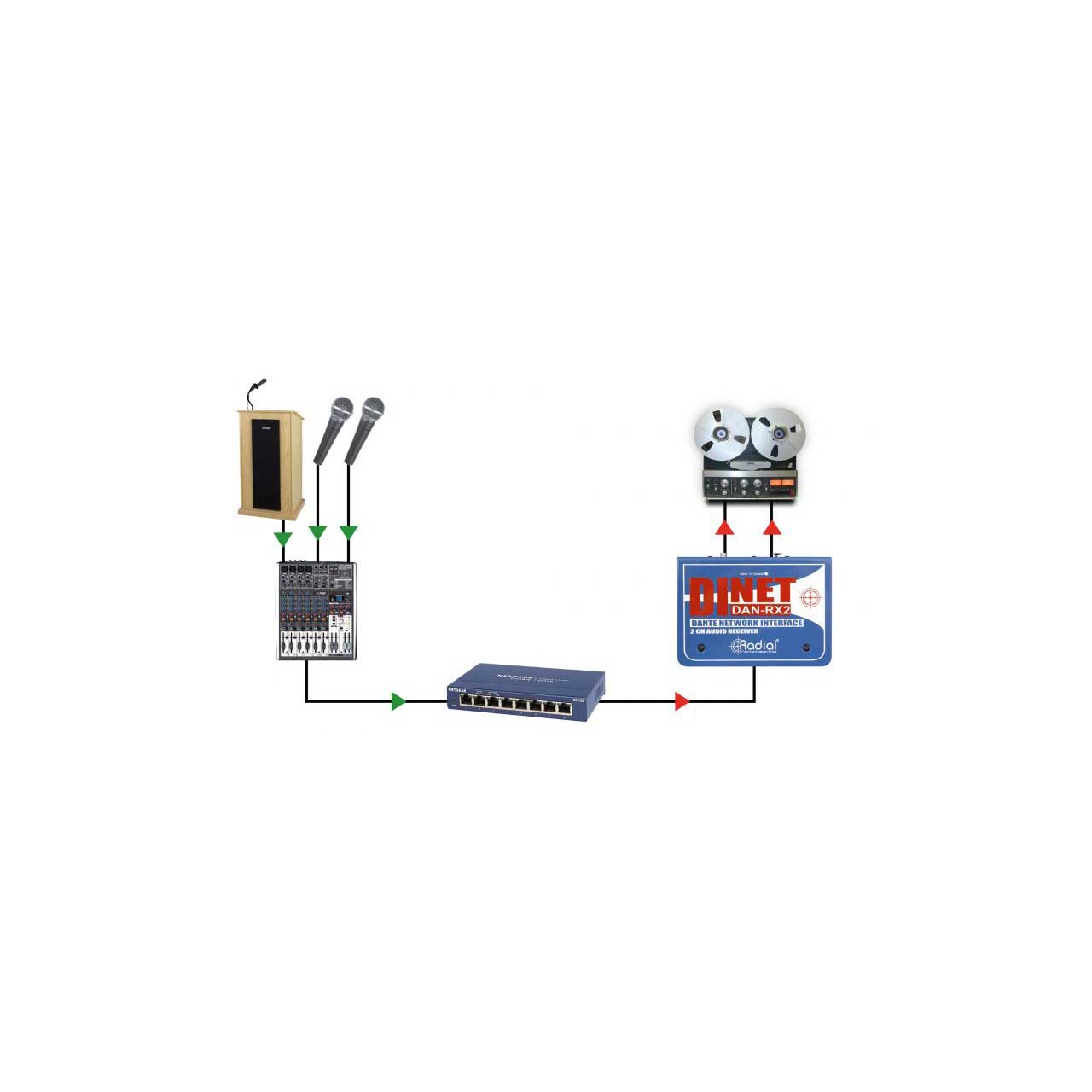

  • Using the DAN-RX2 for press distribution
  • Using the DAN-RX2 for personal monitoring
    • Features:

      • Stereo analog output device for Dante networks
      • Balanced XLR outputs for connection at mic or line level
      • Built-in headphone amplifier for personal monitoring
      • 24bit/96kHz digital to analog conversion
      • Compliant to AES67 specifications

    • Specifications:

      • Specifications
      • Audio circuit type: High current balanced active output device
      • Number of channels: 2
      • Frequency response: 20Hz-20kHz
      • Dynamic range: >100dB
      • Gain: +18dBu max @ 0dBFS
      • Total harmonic distortion: 0.007% @ -6dBFS
      • Output Impedance: 150Ω
      • Noise: 44.1kHz, 48kHz, 88.2kHz, and 96kHz

        Features
      • Input Connectors: 2x XLR male, 1x 3.5mm & 2x 1/4" headphone out
      • Output Connectors: 2x XLR male, 1x 3.5mm & 2x 1/4" headphone out
      • Extras: Bit Depth: 24 bit; Idle Channel Noise: -108dB; Channel Separation: >75dB; Power Consumption: 1.25W; Power over Ethernet (PoE): Class 1 IEEE 802.3af

        General
      • Construction: 14-gauge steel
      • Finish: Durable powder coat
      • Size (L x W x D): 4.5" x 2" x 6" (121 x 6 x 147mm)
      • Power: 15VDC 400mA (included) or PoE
      • Conditions: For use in dry locations only between 5°C and 40°C

    • Item Includes:

      • 15VDC power supply

    • Warranty:

      • Radial 3-year, transferable

    • GTIN:

      0676101044801
