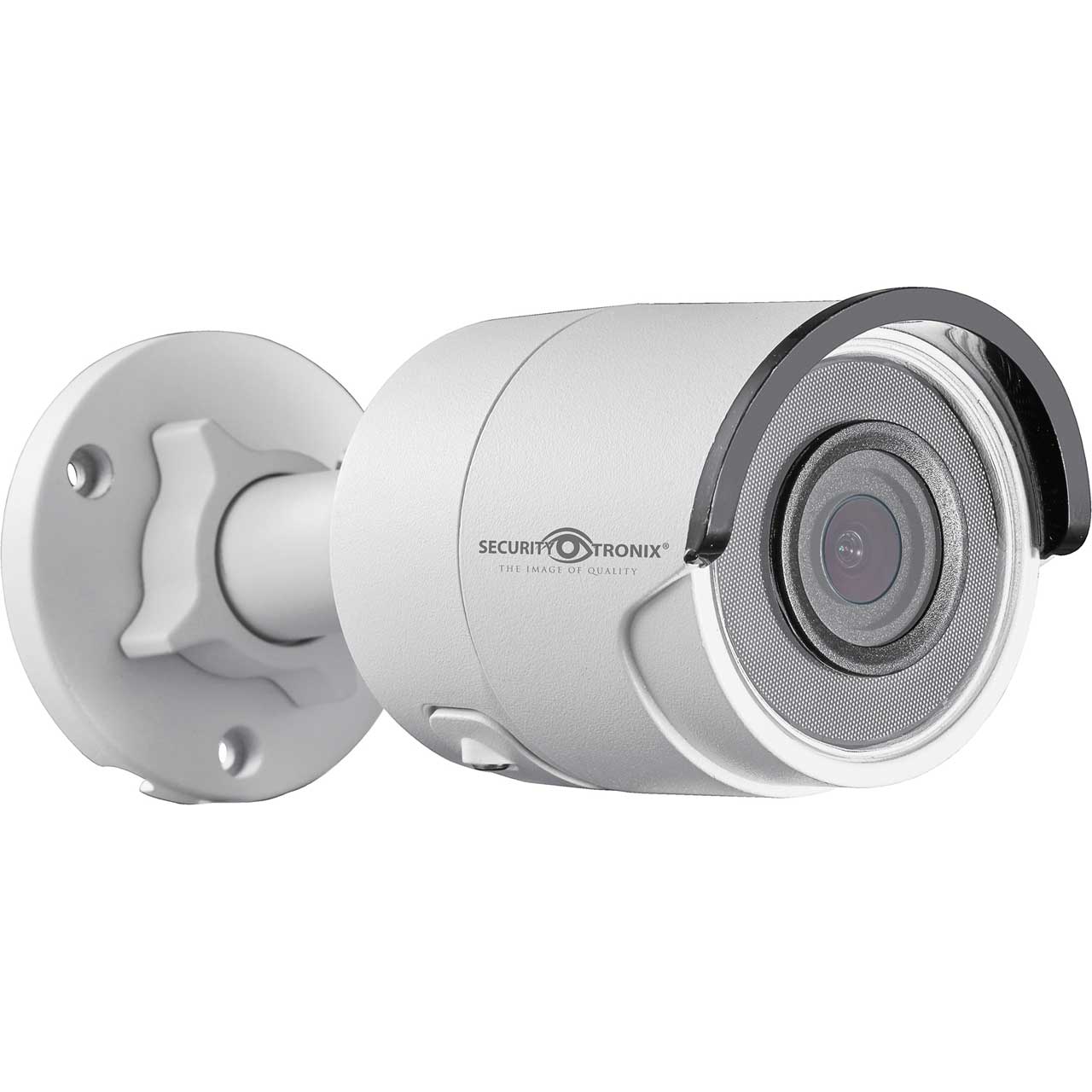

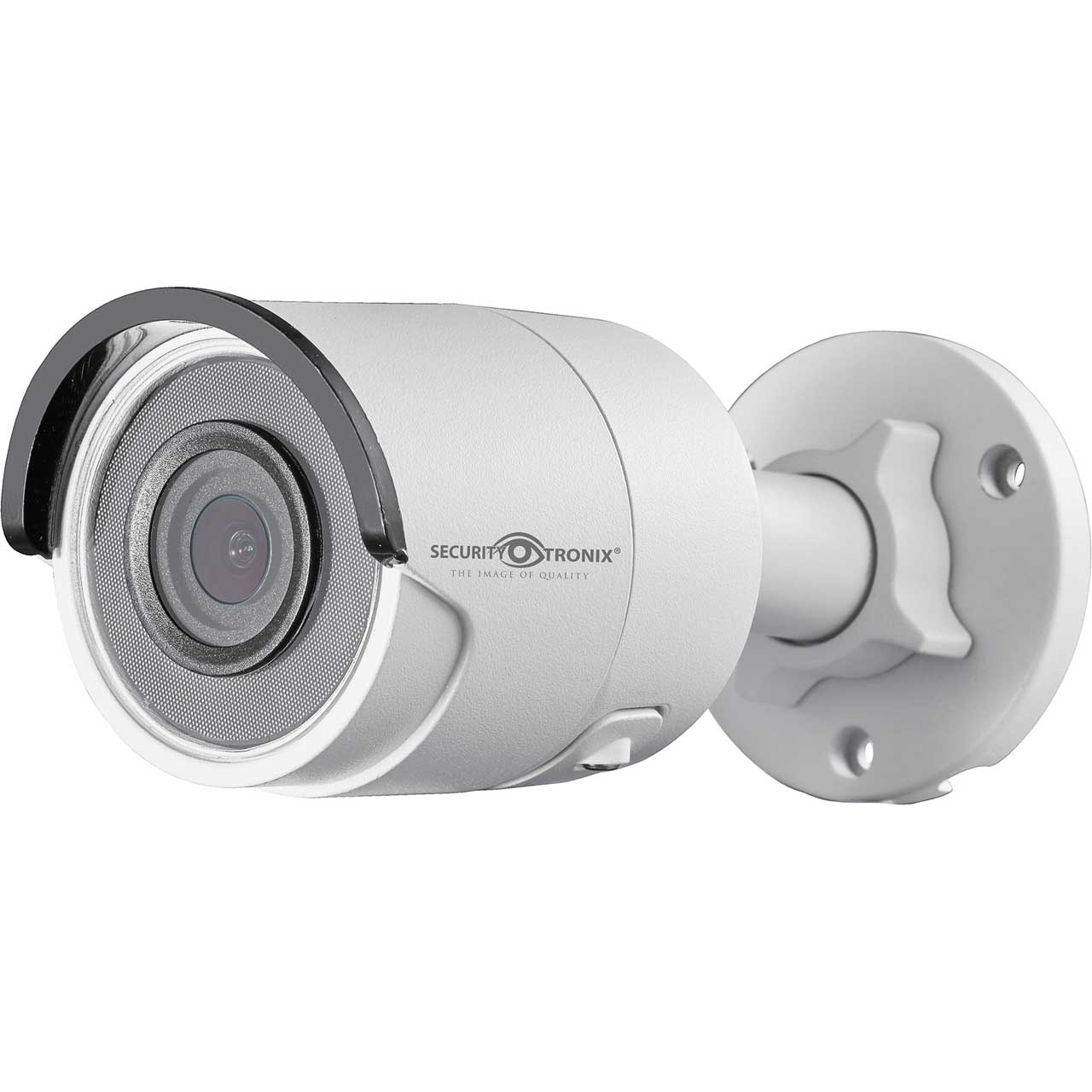

SecurityTronix ST-IP2FB 2MP IP Fixed Lens Mini Bullet POE Security Camera

ITEM #: SCT-ST-IP2FB MFG #: ST-IP2FB

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:

$109.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup


    ST-IP2FB - Overview

    This SecurityTronix ST-IP2FB compact design, 2 Mega Pixel High Resolution, IP fixed lens camera transmits and receives video and control data over a single network cable. It can be remotely configured across the network for video analytics, such as, object placement, object removal, face detection, and line crossing detection. Additional configuration options are available to trigger alarms, send email alerts and connect to the ST LIVE cloud based platform for retention of recorded video off site. Multiple video streams are available to send video for NVR recording and mobile device streams. The robust design includes an IP67 weather rating, Wide Dynamic Range (WDR) to provide a clear image when a lighting change occurs behind the subject being viewed, and IR LEDs allow the camera to see in total darkness up to 98 feet. The camera can be powered via PoE (power over Ethernet) or locally with a 12V DC power supply. Power supply not included.

    • Features:

      • 2MP High Resolution
      • HD real-time video
      • 3D DNR & DWDR & BLC
      • IR Distance up to 98 Feet
      • IP66 Weather rating
      • PoE Compatible
      • Compact design
      • Mounting bracket included

    • Specifications:

      • Camera
      • Image Sensor: 1/2.8" Progressive Scan CMOS
      • Min. Illumination:
      • 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
      • 0.028Lux @ (F2.0, AGC ON), 0 Lux with IR
      • Shutter Speed: 1/3s to 1/100,000s
      • Lens: 3.6mm or 2.8mm @ F2.0, Angle of view: 85°
      • Lens Mount: M12
      • Day & Night: IR cut filter with auto switch
      • Digital Noise Reduction: 3D DNR
      • Wide Dynamic Range: Digital WDR
      • Video Compression: H.264 / MJPEG
      • Video Bit Rate: 32 Kbps – 8 Mbps
      • Dual Stream: Yes

      • Max. Image Resolution: 1920 x 1080
      • Frame Rate 50Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720) 60Hz: 30fps(1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
      • Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
      • Backlight Compensation: Yes, zone optional
      • ROI: Supported

        Network
      • Network Storage: NAS (Support NFS,SMB/CIFS)
      • Alarm Trigger: Motion Detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
      • Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
      • Security: User Authentication, reset button, dual stream, watermark, password protection, privacy mask
      • Standard: ONVIF, PSIA, CGI, ISAPI

        Interface
      • Communication Interface: 1 RJ45 10M/100M Ethernet interface
      • Reset Button: Yes

        General
      • Operating Conditions: -30° to 60°C (-22° to 140 °F)
      • Humidity: 95% or less (non-condensing)
      • Power Supply: 12 VDC ± 10% - PoE (802.3af) (not included)
      • Power Consumption: 5W MAX (Max. 7 W as IR cut filter on)
      • Ingress Protection Level: IP66
      • IR Range: Up to 98 Feet
      • Dimensions: 2.8 x 2.8 x 6.7" (70.9 x 71.7 x 170mm)
      • Weight: 1.1Lbs (500g)
