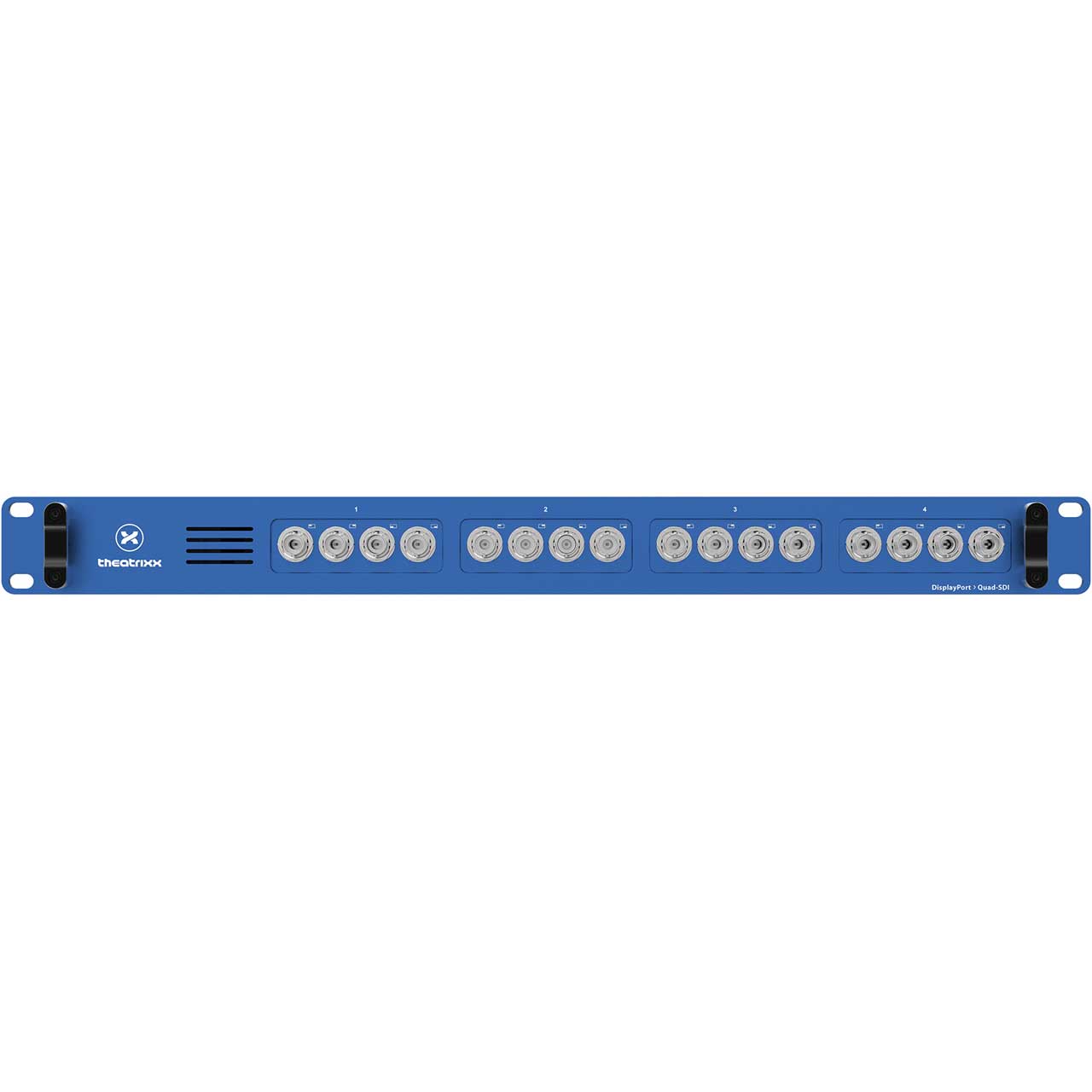

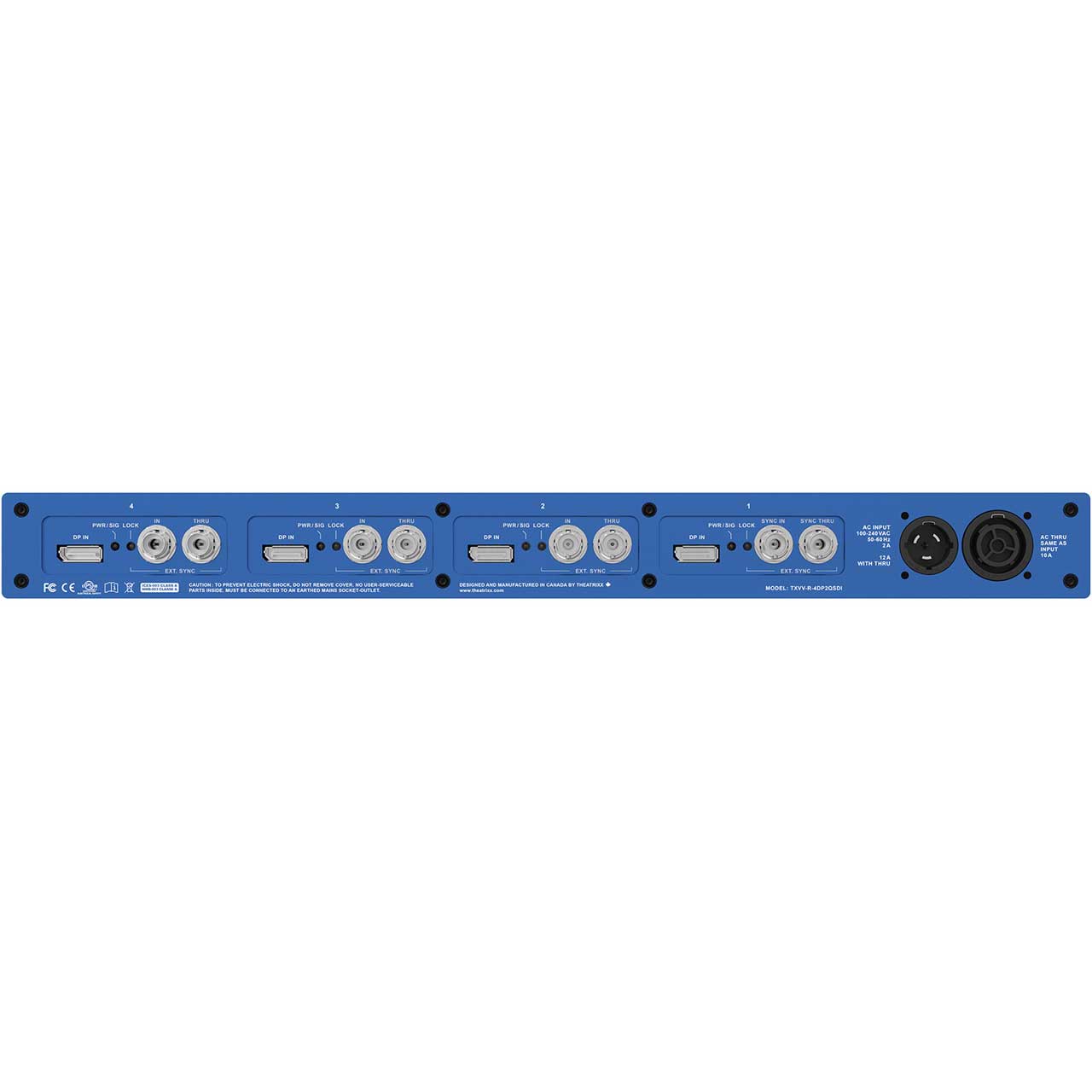

Theatrixx XVVR-4DP2QSDI 1RU DisplayPort to Quad 3G-SDI Converter - 4 Channels


Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    XVVR-4DP2QSDI - Overview

    While 4K video sources are well on their way to becoming commonplace in professional and consumer electronics, and 8K right is around the corner, there is still a fair amount of signal transport and display solutions utilizing Full-HD infrastructure. 3G-SDI is a proven, reliable transport medium and trusted by millions of users worldwide, and a staggering amount of displays and projectors are still being shipped with native Full-HD support. Meanwhile, 4K sources such as computers and media servers are readily available, and this often creates a case of wastage when the displays can't use the full pixel output of a source.

    The Theatrixx XVVR-4DP2QSDI is a DisplayPort to Quad-SDI converter - the ideal bridge between your 4K sources and Full-HD displays. It has been designed with a single function in mind: take a 4K50/60, DisplayPort 1.2 input signal, and slice it into four 1080p60 quadrants on 3G-SDI connectors.

    Featuring 4 processing channels in a compact 1U enclosure, the device is capable of taking 4x 4K60 DisplayPort inputs and delivering 16 Full-HD, 1080p60 outputs simultaneously with zero configuration. Latency is kept to a minimum thanks to a simplified yet robust processing architecture.

    Each processing channel features a Gen-Lock input and loop thru for external synchronization, and the device is capable of generating a test pattern when no signal is applied to its input. The DisplayPort to Quad-SDI converter is future proof, enabling multiple channels to be synchronized together to handle combined resolutions of 8K, 16K, and more.

    • Features:

      • Internal or external (tri-level) sync source with automatic detection
      • Less than 2 frames latency
      • Built-in test pattern automatically enabled when no signal present (or black field, user-selectable)
      • Pre-configured EDIDs for both 60Hz and 50Hz (user-selectable)
      • Also available as a single-channel module in stage box or reversible module format
    • Specifications:

      • Connections
      • Processing Modules: 4 fully independent DP to Quad SDI with sync
      • Video Input: 4x DisplayPort 1.2
      • Video Output: 4x Quad-link 3G-SDI BNC (16 BNC)
      • Sync Input: Tri-level sync (BNC) with loop-thru

        Supported Signals
      • DisplayPort 1.2 / HDMI 2.0 input (4K60P 4:4:4)
        4096x2160p @ 60/50 fps
        4096x2160p @ 30/25/24 fps
        3840x2160p @ 60/50 fps
        3840x2160p @ 30/25/24 fps
        1920x1080p @ 60/50 fps
        1920x1080p @ 30/25/24 fps
        1920x1080i @ 60/50 fps
      • Quad-Link 3G-SDI Output (4 x 1080P 4:2:2): 4096x2160p @ 60/50/30/25/24 fps 3840x2160p @ 60/50/30/25/24 fps
      • Embedded Audio Support: Up to 8 channels, 24 bit, 48 kHz
      • Default EDID: 3840x2160p @ 60 or 50 fps (selectable)

        Power Requirements
      • Power Supply
        Built-in power supply
        PowerCon input/loop thru
      • Power Consumption: 100W max
      • Operational Voltage Range: 90-250 V 50-60 Hz

      • Dimensions (HxDxW): 1.7 x 7 x 19" (43.43 x 178 x 482.6mm)
      • Weight: 8.25Lbs (3.75kg)

      • Operating Temperature: 32° to 104°F (0° to 40°C)
      • Relative Humidity: 0 to 90% non-condensing
    • Item Includes:

      • 1x xVision DisplayPort to Quad SDI
      • 1x Power Cable
