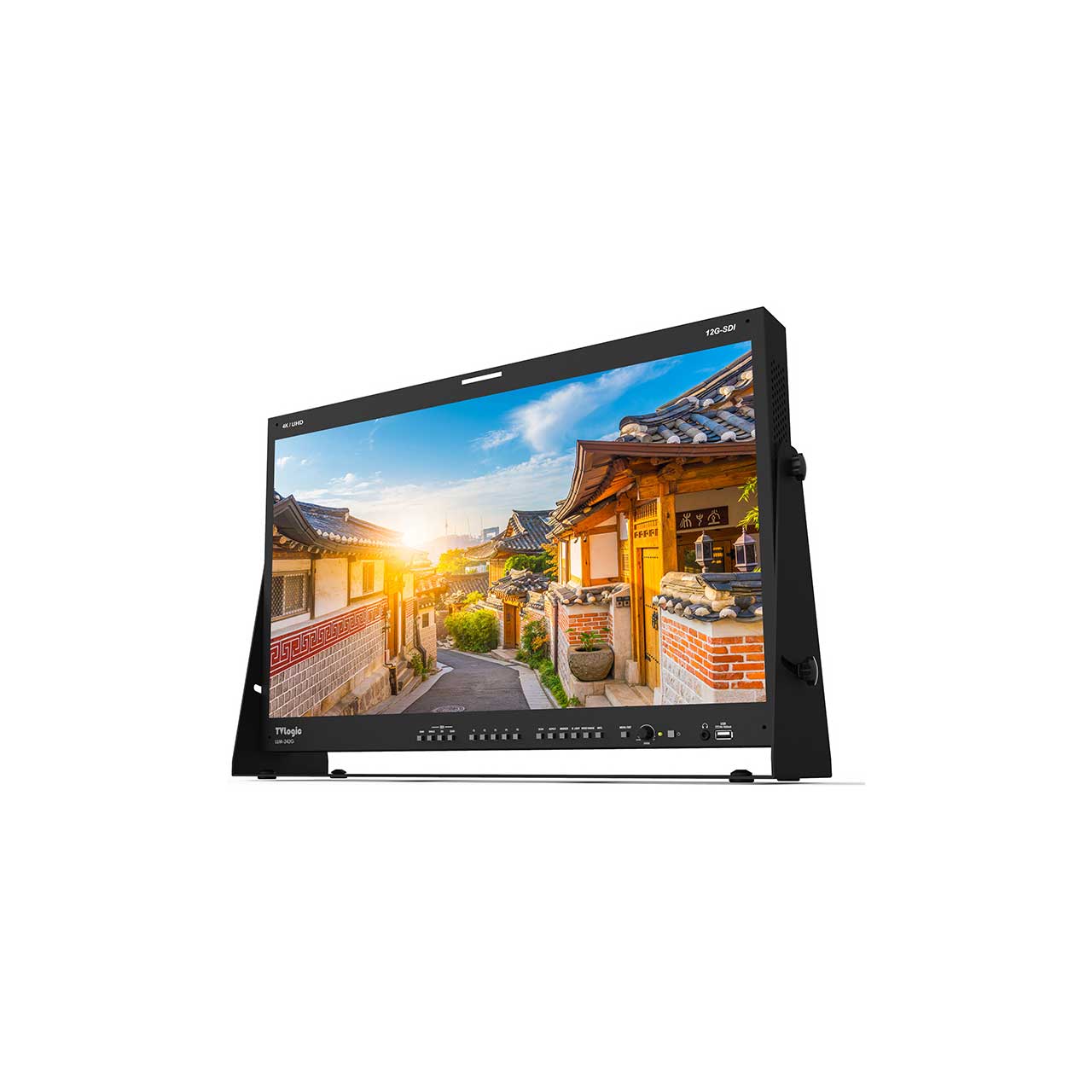

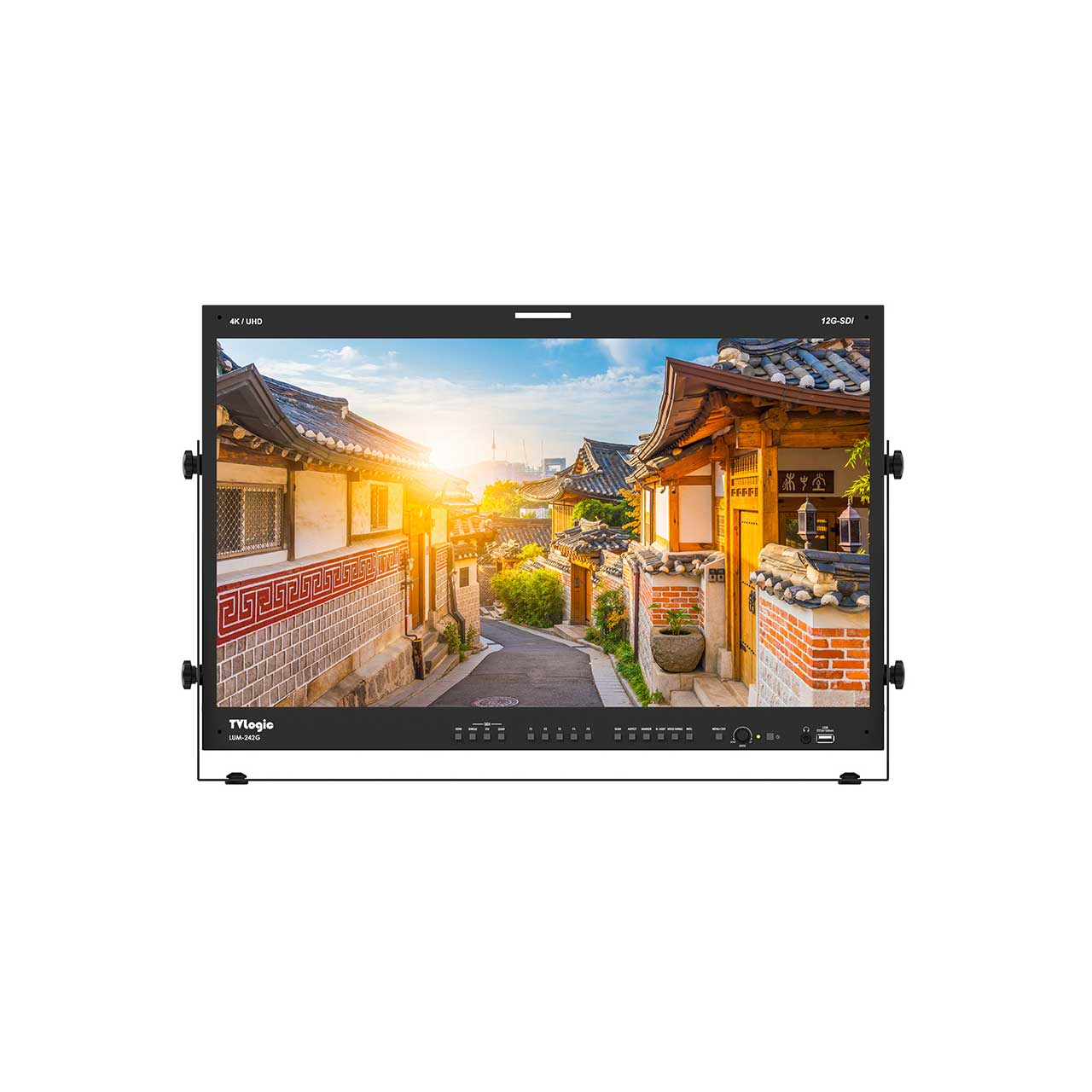

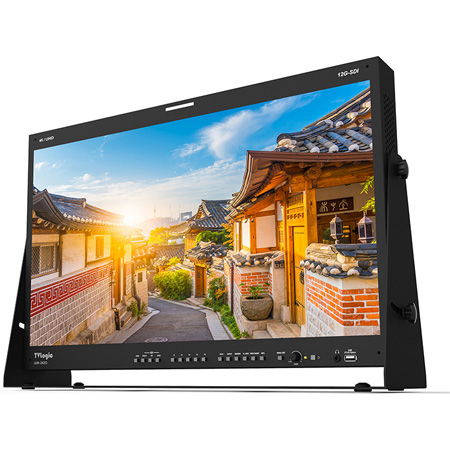

TV Logic LUM-242G DCI-UHD Monitor - 3840 x 2160 - 10 Bit IPS LCD - 1200 to 1 Contrast Ratio - 500 CD/M2 - 24 Inch

Name: TV Logic LUM-242G DCI-UHD Monitor - 3840 x 2160 - 10 Bit IPS LCD - 1200 to 1 Contrast Ratio - 500 CD/M2 - 24 Inch
Brand: TVLogic
SKU: TVL-LUM-242G
Price: 6655.50 USD
Availability: InStock

ITEM #: TVL-LUM-242G MFG #: LUM-242G

TVLogic

List Price:

$7,395.00

Our Price:

$6,655.50

Add to Wish List Leasing Options

Availability: Ships Factory Direct, Typically in 3-10 Business Days

Report Lower Price Large Quantity Quote

Overview

Recommended Accessories

Reviews

Required Accessories

Recommended Accessories

LUM-242G - Overview

The LUM-242G is a 24 inch UHD resolution (3840 x 2160) monitor with maximum luminance of 500nit, contrast ratio of 1,200:1, wide color gamut and wide viewing angle. Equipped with 4 BNCs (2x12G-SDI + 2x3G-SDI) and HDMI 2.0 interface, it supports various video formats up to 4K/60p through single-link 12G-SDI, Quad 3G-SDI and HDMI 2.0. In addition to various professional features such as Waveform monitor and Vectorscope, the LUM-242G provides HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.

Features:
- HDR Emulation
- 1:1 Pixel Mapping Modes for SD/HD
- Waveform/Vector Scope
Specifications:
- Display
- Size: 24"
- Resolution: 3840 X 2160 (16 : 9)
- Pixel Pitch: 0.137mm
- Color Depth: 1.07B
- Viewing Angle: 178°(H) / 178°(V)
- Luminance: HDR 500cd/m2
- Contrast Ratio: 1200:1
- Display Area: 526(H) x 296(V) mm

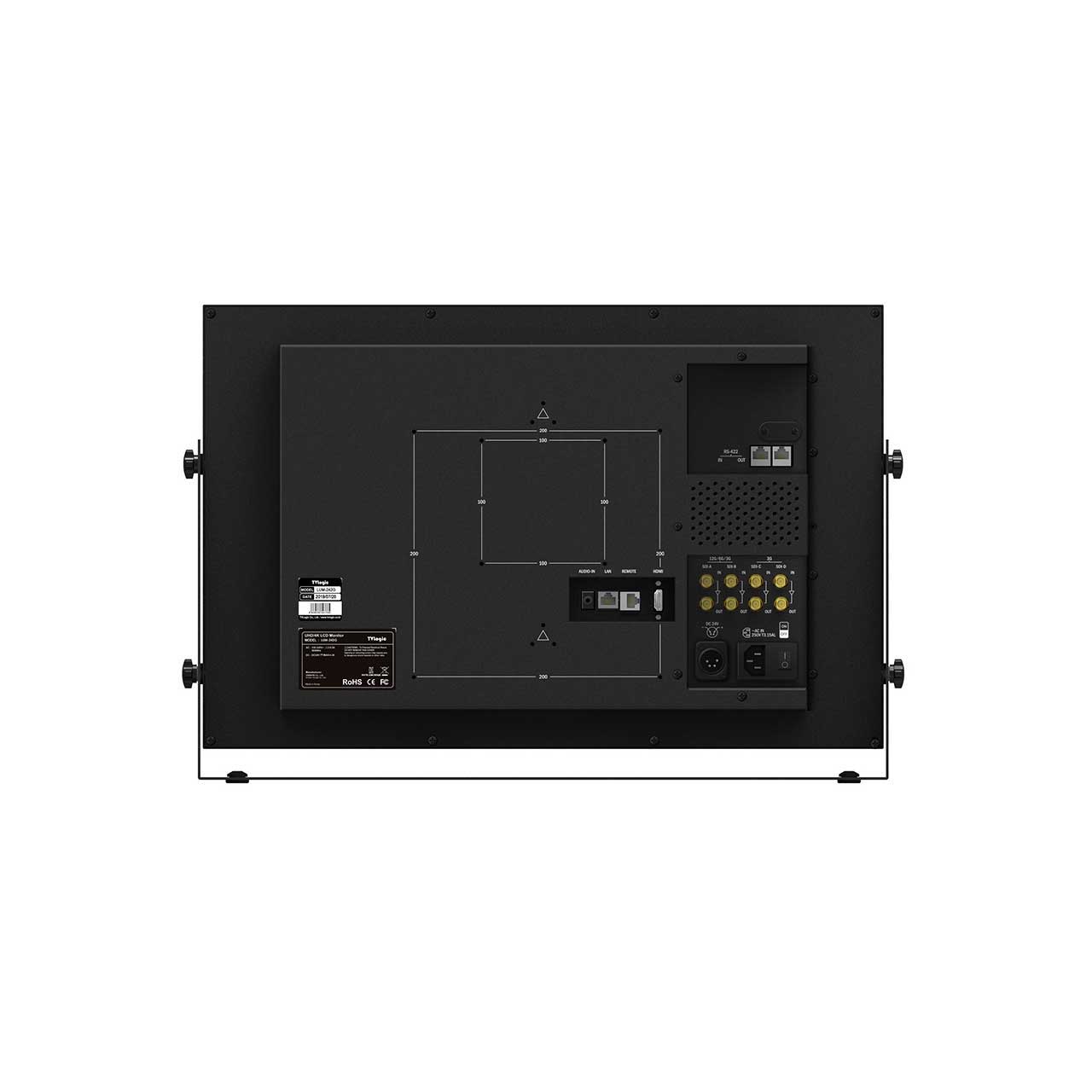

  Input
- 4 X BNC: 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
- 1 X HDMI: HDMI Input

  Output
- 4 X BNC: 12G/3G/HD/SD SDI Output

  Input Signal
- 3G SDI: 2.970Gbps
- HD SDI: 1.485Gbps
- SD SDI: 270Mbps

  Audio
- Audio In: Embedded Audio
- Audio Out: Analog Stereo (Phone Jack)
- FPGA Functions: Audio Level Meter Display, H/V Delay, Time Code Display

  Other Functions
- Reference Sync input: EXT_Sync in
- REMOTE: GPI (RJ45)
- REMOTE: TVLogic's specification
- USB: Firmware update by USB memory stick
- Ethernet: Ethernet Control support
