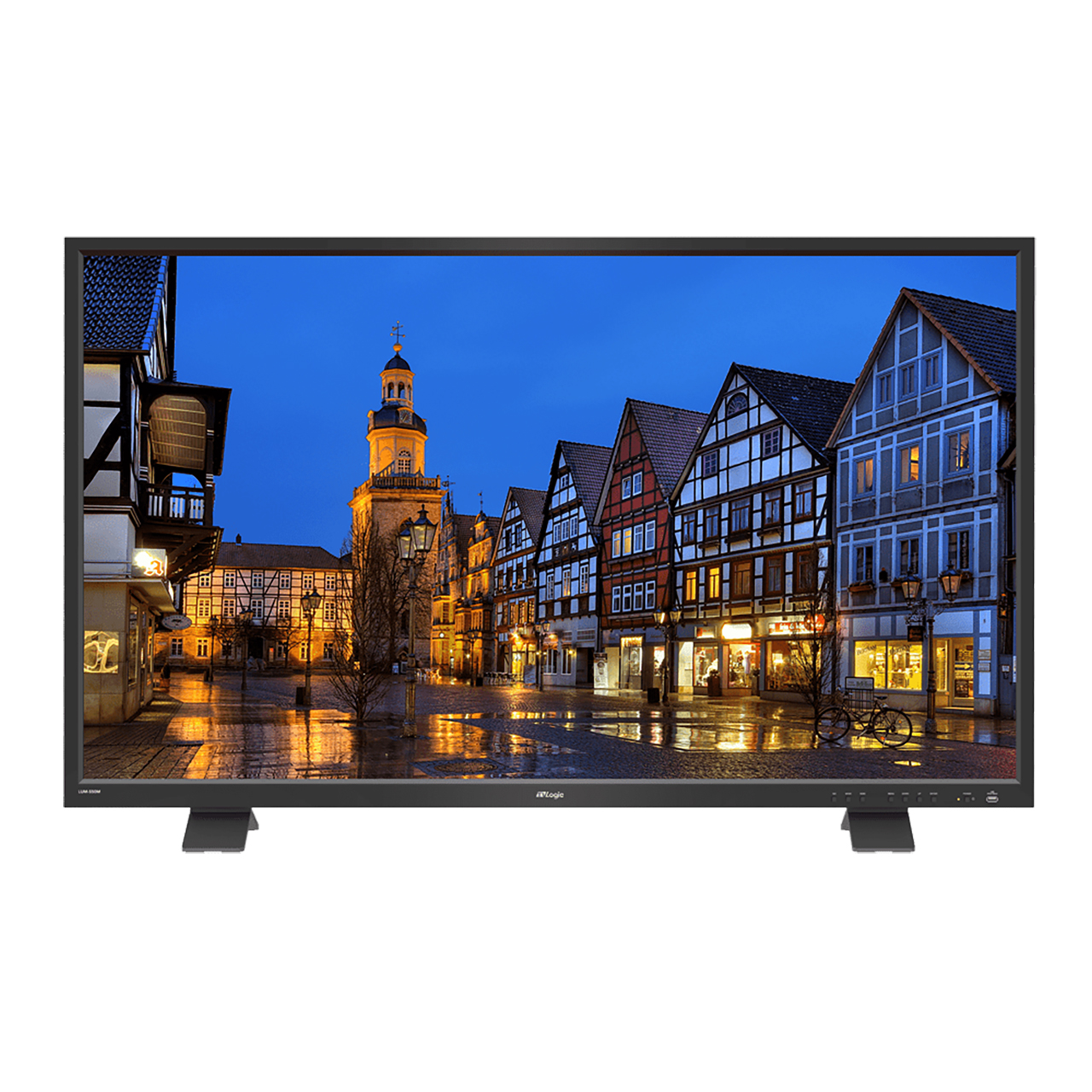

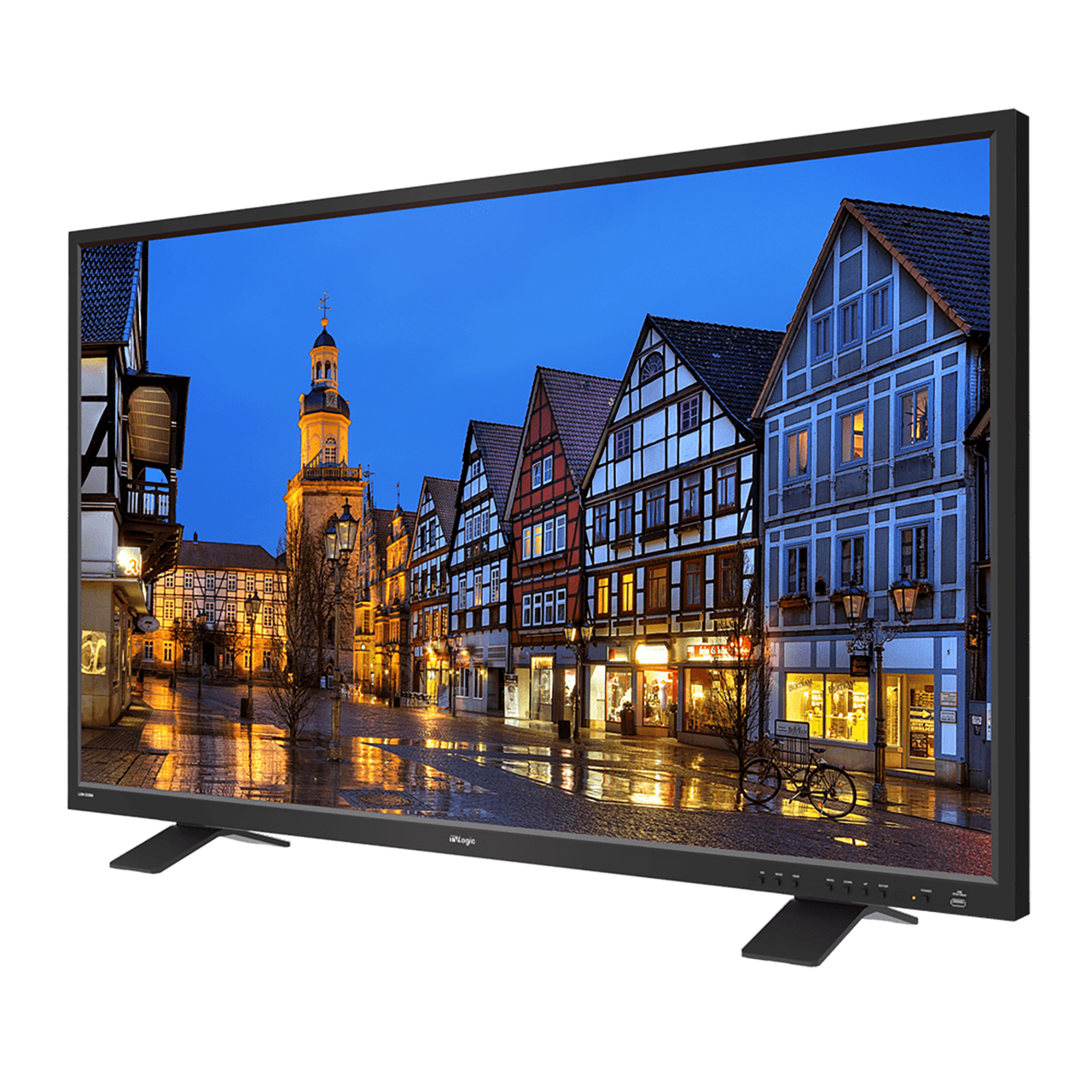

TV Logic LUM-550M3 12-Bit True UHD 4K Monitor with Table Stand - 3840x2160 Resolution - 55-Inch

ITEM #: TVL-LUM-550M3 MFG #: CG27186

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$7,195.00

Our Price:

$6,475.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CG27186 - Overview

Introducing the TV Logic LUM-550M3, an incredible 55 inch, 4K/UHD HDR, LCD Monitor. The LUM-550M3 has a true UHD 3840x2160 resolution and 10bit driver for showing various color gamuts and it supports 12G/6G/3G-SDI and HDMI 4K.

HDR Monitoring on the 600nits Display
The LUM-550M3 provides a High Dynamic Range mode which allows for monitoring black and highlights on the screen at the same time. The LUM-550M3 supports PQ, HLG, SLOG3, as HDR EOTF gamma.

Camera LUT
LUTs for every major camera manufacturer are integrated to the LUM-550M3, and they can be applied to the live input video.

The following logs can be selected:
- ARRI: Log-camera
- Canon: C-Log-camera
- Sony: S-Log1, S-Log2, S-Log3
- RED: RED Gamma 3, RED Gamma 4

Marker
The LUM-550M3 has various marker modes allowing you to adjust the Marker type, Center Marker, Safety Area, Fit Marker, Marker Mat, Marker Color, Marker Thickness, etc.

EETF (Electrical-Electrical Transfer Function)
This function provides a toe and knee to gracefully roll off the highlights and shadows providing a balance between preserving the artistic intent and maintaining details.

Waveform & Vectorscope
The LUM-550M3 supports various modes of Waveform and Vectorscope.

  • Features:

    • 54.6" True UHD Resolution (3840x2160)
    • Peak Luminance 700nits
    • HDR (PQ, HLG, S-Log3)
    • 12G-SDI Single Link 4K/UHD
    • 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
    • Waveform / Vectorscope
    • Audio Level Meter
    • Marker
    • Timecode Display
    • Closed Caption (CC-608, CC-708)
    • IR Remote Control
    • Ultra Slim Bezel

  • Specifications:

      LCD
    • Size: 55"
    • Resolution: 3840 (H) x 2160 (V)
    • Pixel Pitch: 0.315mm (H) x 0.315mm (W)
    • Color Depth: 1,078 Colors
    • Viewing Angle: 178° (H)/178° (V)
    • Luminance of White: 700 cd/m²
    • Contrast Ratio: 1,100
    • Display Area: 1209.6mm (H) x 680.4mm (V)

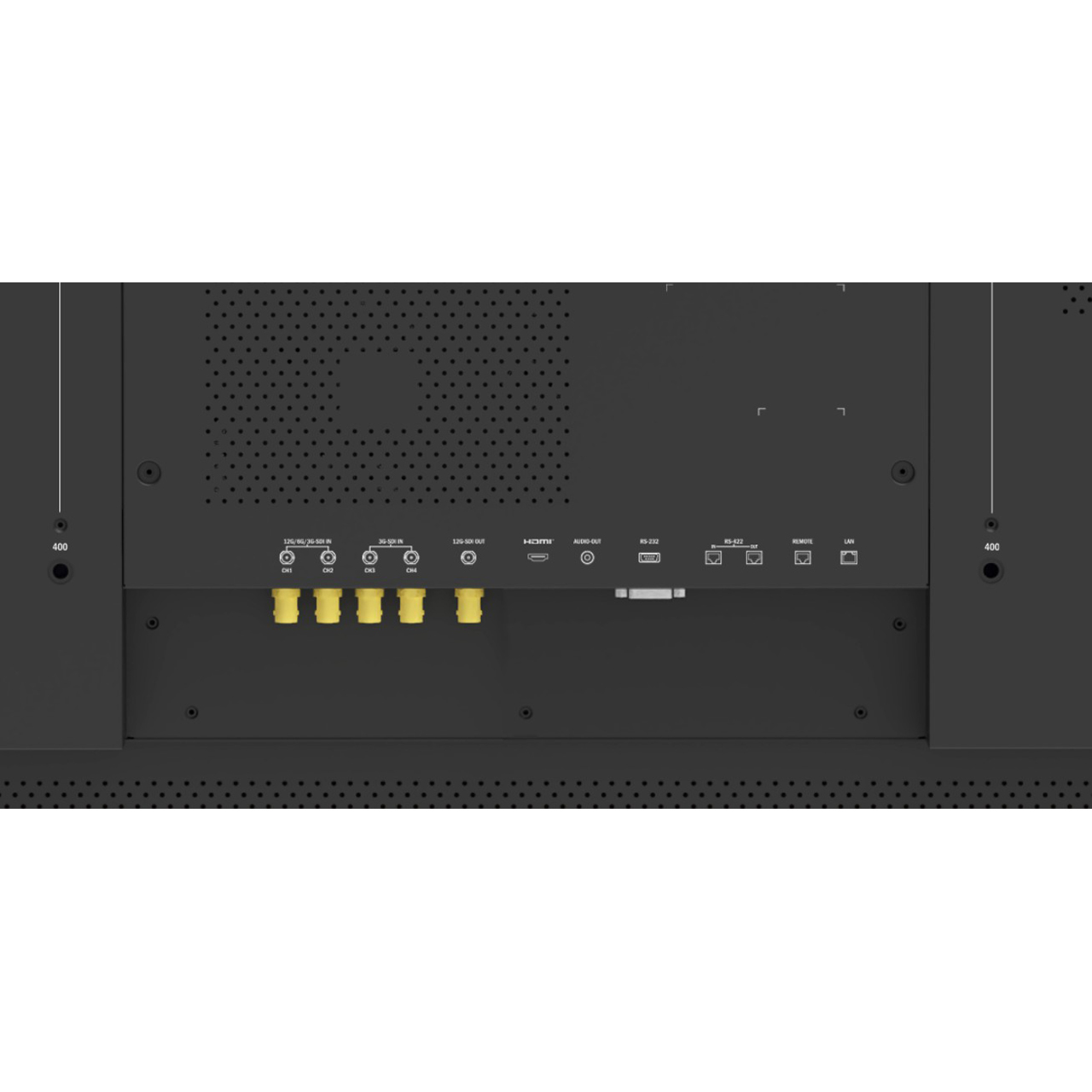

      Input
    • HDMI: 1x HDMI V2.0 Input 1Ch (with HDCP support)
    • BNC: 4x 12G/3G/HD/SD SDI Input 2Ch, 3G/HD/SD SDI Input 2Ch

      Output:
    • BNC:
      - 1x 12G/3G/HD/SD SDI Output 1Ch
      - Bypass Mode: SDI A/B Channel (Active Through Out)
      - 12G Mode: 3840x2160 60p/59.94p/50p

      Input Signal
    • 12G-SDI: 12Gb/s
    • 6G-SDI: 6Gb/s
    • 3G-SDI: 2.970Gb/s
    • HD-SDI: 1.485Gbps
    • HDMI: 720p/1080p/2160p

      SDI Input Signal Formats
    • SMPTE ST2048-1: 4096x2160 (50~60p)
    • SMPTE ST2082-10 Mode1: 3840x2160 60p/59.94p/50p (12G-SDI x 1Ch)
    • SMPTE ST2081-10 Mode1: 3840x2160 30p/29.97p/25p/24p/23.98p (6G-SDI x 1Ch)
    • SMPTE ST425-5: 3840x2160 60p/59.94p/50p (3G-SDI 4Ch)
    • SMPTE ST274: 3840x2160 30p/29.97p/25p/24p/23.98 (HD-SDI x 1Ch)
    • SMPTE ST425:
      - 1920x1080 60p/59.94p/50p (3G-SDI LEVEL A)
      - 1920x1080 60i/59.94i/50i/50p/29.97p/25p/24p/23.98p (3G-SDI LEVEL B)
      - 1280x720 60p/59.94p/50p (3G-SDI LEVEL B)
    • SMPTE-274M: 1920x1080 60i/59.94i/50i/30p/29.97p/25p/24p/23.98p
    • SMPTE-296M: 1280x720 60p/59.94p/50p
    • SMPTE-259M:
      - 720x487 59.94i
      - 720x576 50i

      HDMI Input Signal Formats:
    • V2.0 3840x2160 60p/59.94p/50p (RGB/YCbCr 4:4:4 8bpp Mode)
    • V1.4 3840x216 30p/29.97p/25p/24p/23.98p (RGB/YCbCr 4:4:4 8bpp Mode)
    • V1.2:
      - 1920x1080 60i/59.94i/50i/30p/29.97p/25p/24p/23.98p (RGB/YCbCr 4:4:4 8bpp Mode) 60p/59.94p/50p/29
      - 1280x720 60p/59.94p/50p (RGB/YCbCr 4:4:4 8bpp Mode)

    • Audio In: SDI Embedded Audio (Group, Ch Selectable)
    • Audio Out: External Output Port (3.5m Phone Jack)
    • Power: 100V - 240V, 0.55A - 0.28A/50/60Hz
    • Power Consumption (Approx.): 150 Watts (Max.)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 50°C)
    • Main Body Dimensions: 49.68" x 29.37" x 3.2" (1262mm x 746mm x 81.4mm)
    • Main Body Dimensions with Stand: 49.68" x 31.27" x 9.64" (1262mm x 794.5mm x 245mm)
    • Weight: 78.92lbs (35.8kg)

  • Item Includes:

    • 1x TV Logic LUM-550M3 12-Bit True UHD 4K Monitor
    • 1x Table Stand
    • 1x AC Power Cord
    • 1x IR Remote

  • Warranty:

    • 2 Year Limited Warranty
