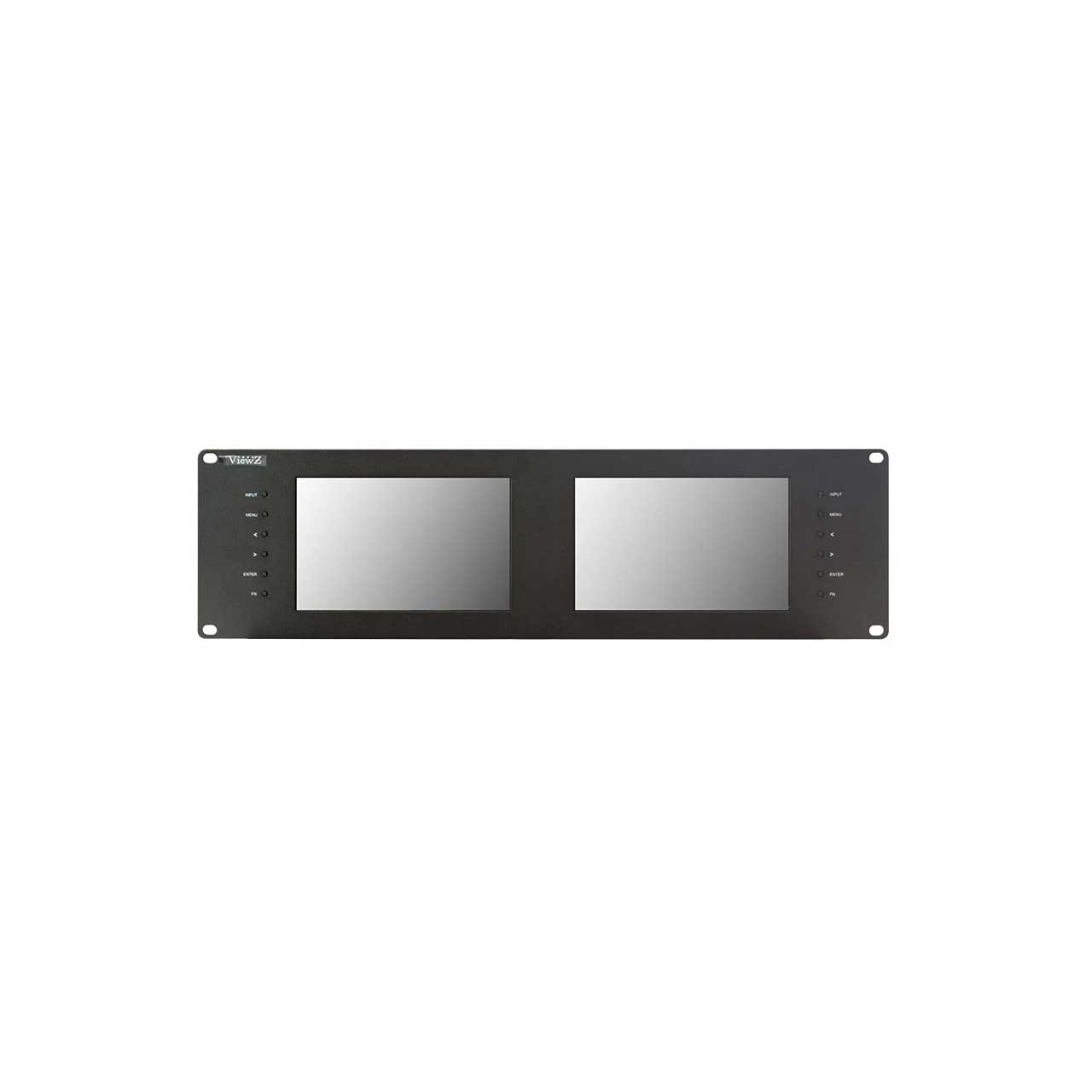

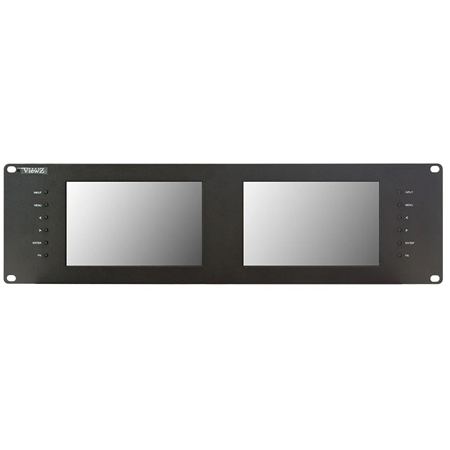

ViewZ VZ-070RM-E 3RU Two 7 Inch Rackmount FHD Broadcast Monitors - 350cd/m2 - IPS 1280x800 - 3G-SDI/HDMI/Component/CVBS

VZ-070RM-E - Overview

• Features:

  • 7" 3G HD-SDI ENG/EFP Monitor
  • 3G SDI LEVEL A/B (YCbCr, RGB 4:4:4) Support

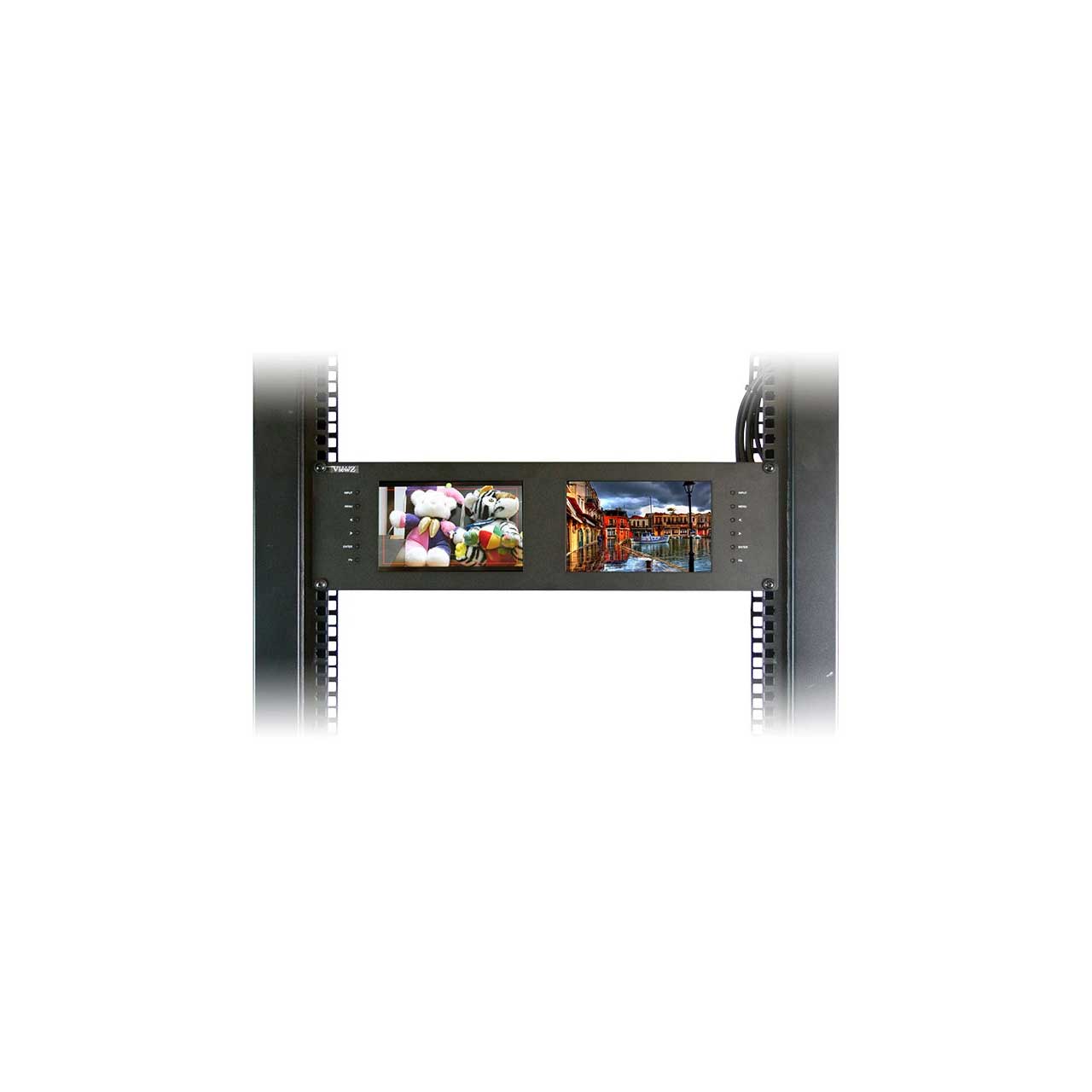

  • 3RU Rack Mount 7" Dual Monitor
  • 12bit to 8bit Processing
  • Resolution ( 1280x800 )
  • Image Flip & Zoom
  • Multi-Format Support
  • False Color ( SD/HD-SDI )
  • Screen Color Mode: Blue, Red, Green & Mono
  • H/V Delay
  • Red/Green Mode Tally
  • Zero, Under, Over, Pixel to Pixel Scan
  • Various Markers
  • Exposure
  • Rj-45 Remote Control
  • On-Screen Menu


• Specifications:

  • Display
  • Screen Size: 7"
  • Max Resolution: 1280 x 800
  • Pixel Pitch: 0.039 mm x 0.117 mm
  • Brightness: 350 cd/m²(Typical)
  • Contrast Ratio: 800 : 1
  • Aspect Ratio: 16 : 10
  • Viewing Angle (H/V): 178°/178°
  • Display Color: 16.7 Million (8bit)

    Interface
  • SDI In / Out: (1 / 1) x 2
  • HDMI In / Out: (1 / 1) x 2
  • Component (Y, Pb, Pr) In: (3 / 3) x 2
  • AV (Composite) In / Out: (1 / 1) x 2
  • RJ45 (Remote Control): 1 x 2

    Dimensions & Weight

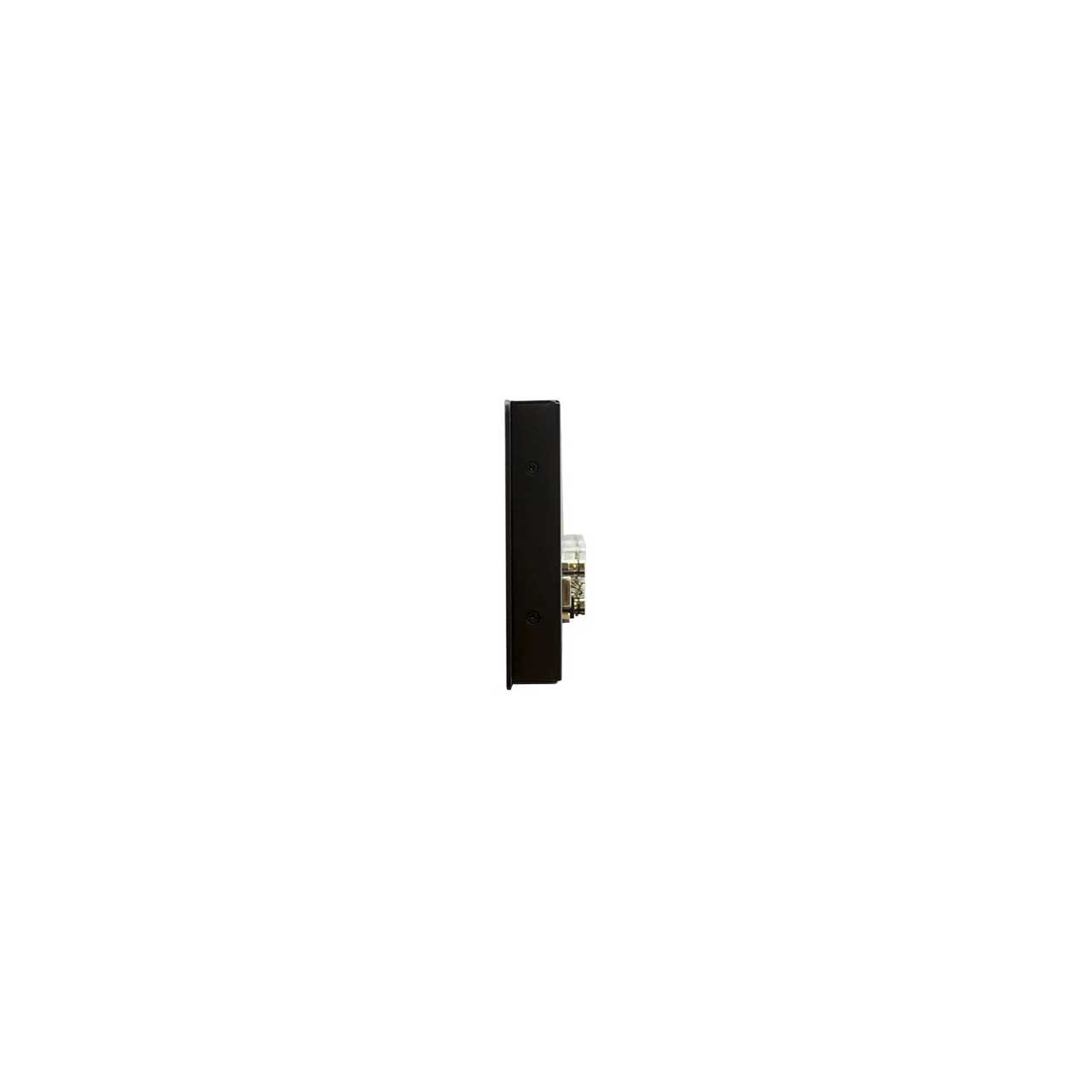

  • Outline Dimension (W x H x D): 19 x 5.25 x 0.99"
  • Net Weight: 6.35 lbs / 2885 g
  • Gross Weight: 6.6 lbs / 2980 g

    Input Format
  • SMPTE 425M-Level A: 1920 x 1080p / 60,59.94,50, 1920 x 1080i / 60,59.94,50
  • SMPTE 274M: 1920 x 1080p / 30,29.97,25,24,23.98 psf, 1920 x 1080i / 60,59.94,50
  • SMPTE 296M: 1280 x 720p / 60,59.94,50
  • SMPTE 125M: 480i / 59.94
  • ITU-R BT.656: 576i / 50

    General Summary
  • Power - Electrical Ratings: DC 12V
  • Power - Consumption: ≤ 18 W (1.5A)
  • Warranty: 2 Years
  • Operating Temperature: 32 - 104°F / 0 - 40°C
  • Package Include: Monitor x1, Power Adapter x1


• Warranty:

  • 2 Years
