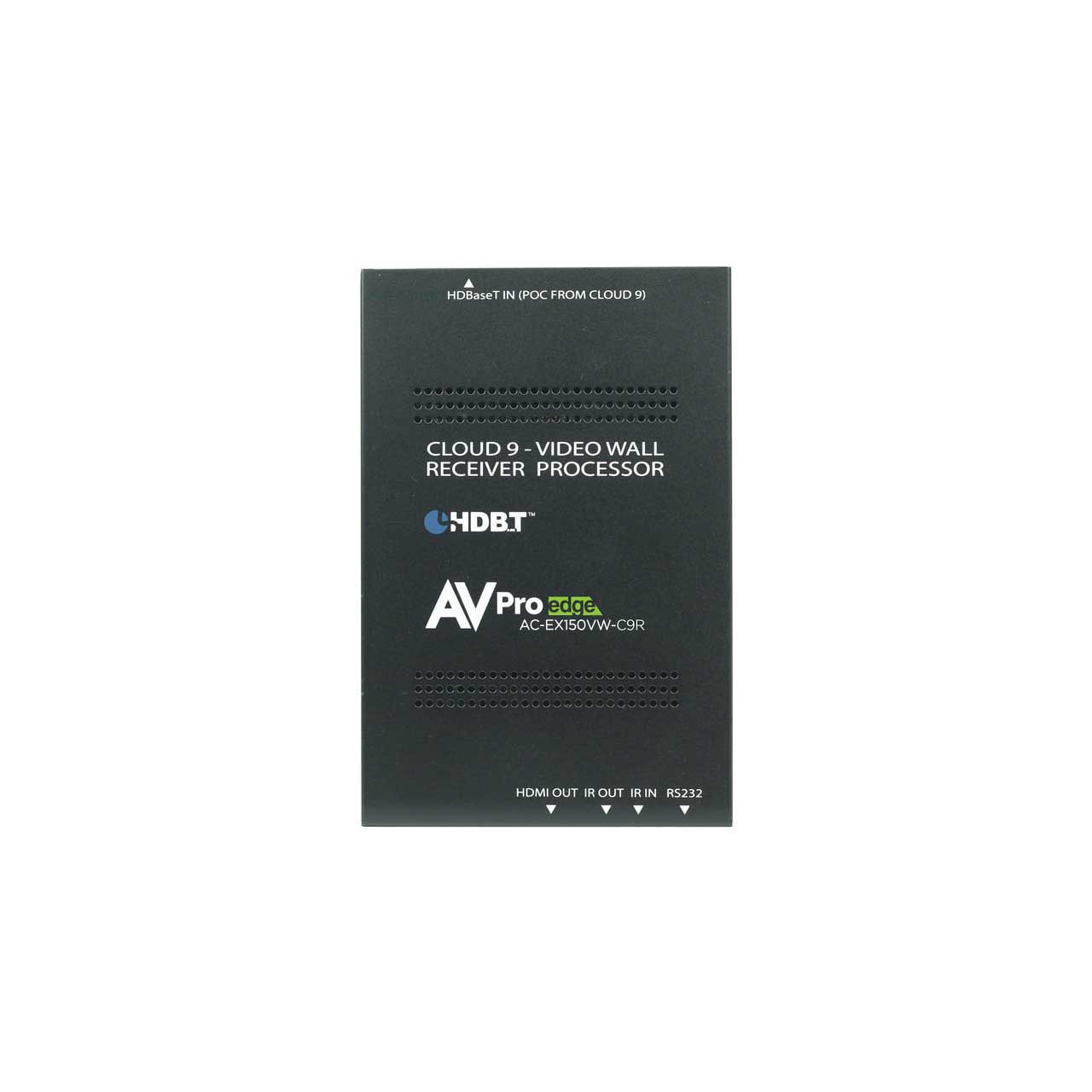

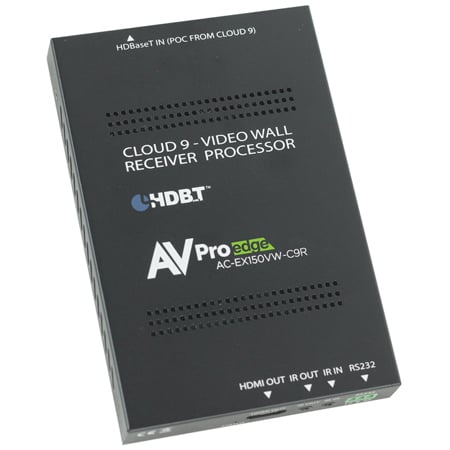

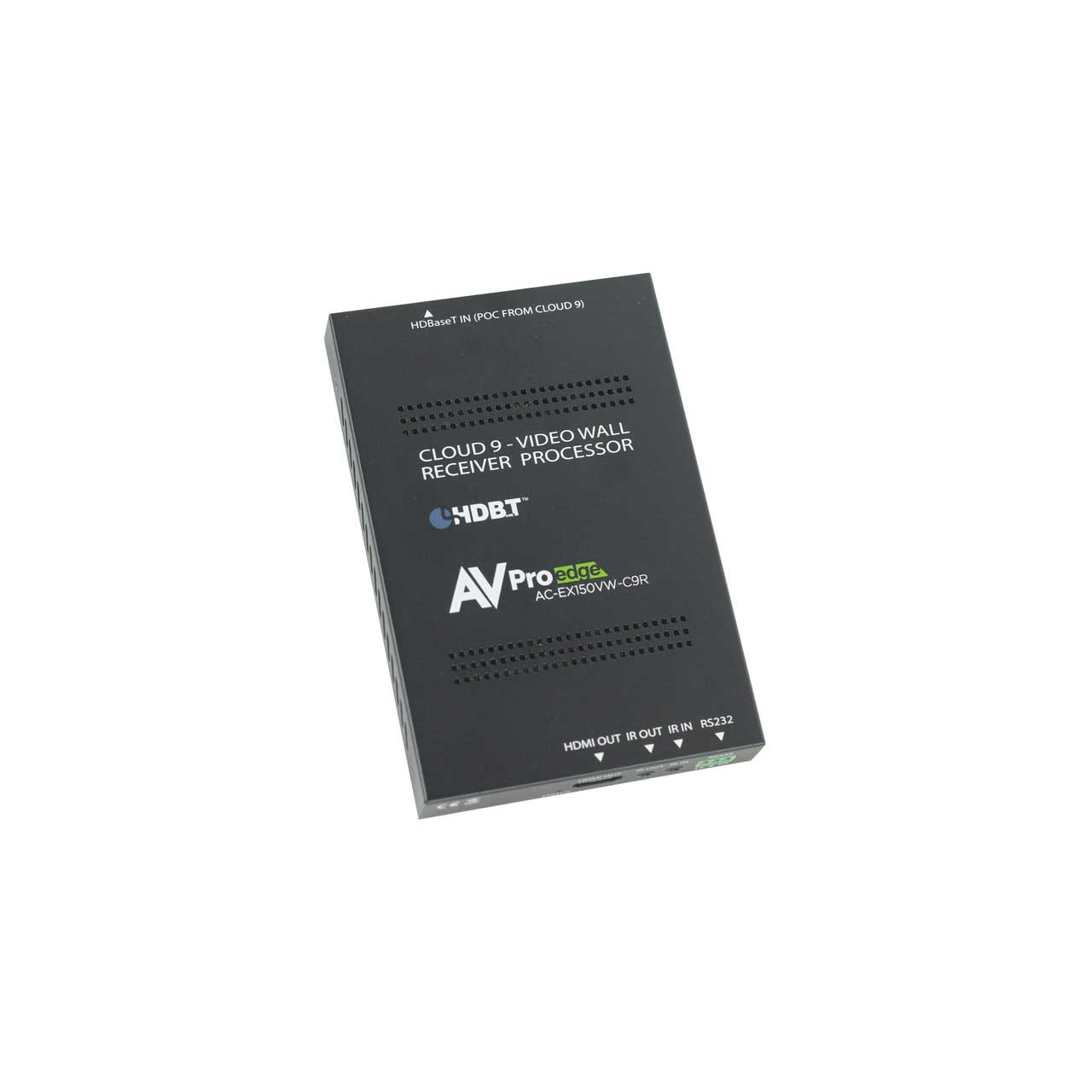

AVPro Edge AC EX150VW C9R Video Wall Cloud 9 Receiver - 150 Meter


  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:


Special Price:


Availability: In Stock
iAvailability Description Popup

    AC EX150VW C9R - Overview

    The AVProEdge AC EX150VW C9R Cloud 9 is a robust HDMI distribution switch that is perfect for projects where control and limitless expandability are important. With AIMS (Active Instant Matrix Switching) and a fully customizable quadviewer, the Cloud 9 is the right choice for a variety of A/V installations.

    In certain situations such as a commercial environment it is not always feasible to install lengthy HDMI cables. This can be time consuming, expensive, and introduce signal problems. In a lot of cases the system will already have a Category cable infrastructure. This is no problem for the Cloud 9! Simply add either of AVProEdge's extenders and the installation will be a breeze!

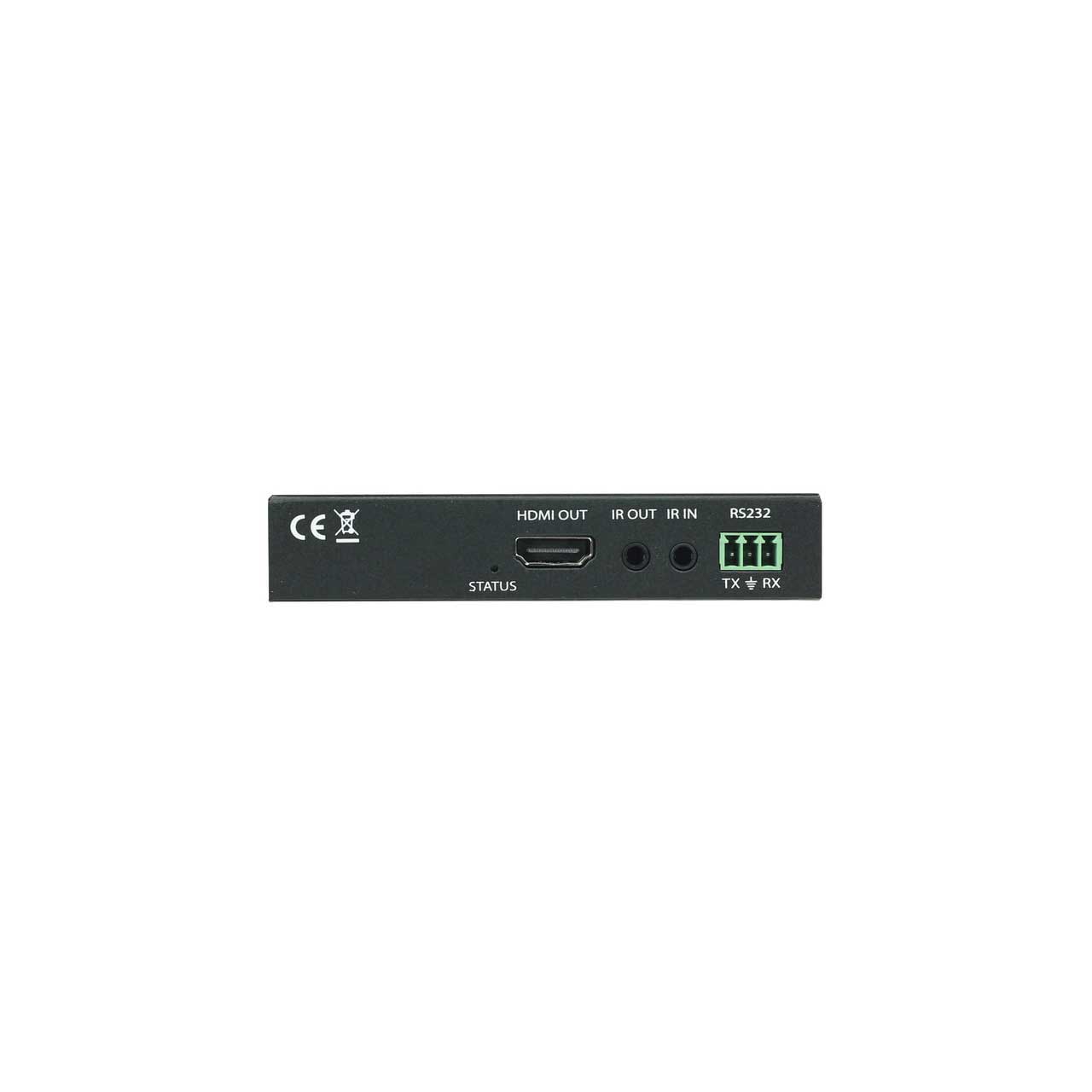

    The AC-EX150VW-C9R can extend an uncompressed 1080p video signal up to 150 meters over a single CAT-5e/6a/7 UTP/STP. In addition, the The AC-EX150VW-C9R will allow you to build a custom video wall layout up to 3x3. Adding one to each of the displays in the video wall will give you ultimate flexibility on your project. Installation is simple! The AC-EX150VW-C9R is powered via POE, so no worries about where to plug it in for power. Only 2 connections need to be made; the Category cable as an input and a short HDMI cable from the output to the display.

    • Features:

      • High Definition: This HDBaseT receiver was built to send any resolution up to 1080p.
      • DISTANCE: By using AC-EX150VW-C9R, the transmission distance for HD 1080P is 150 meters.
      • CONTROL: IR & RS-232 are bidirectional and can control the sources from the sinks or vice versa. This allows unlimited flexibility when controlling sinks, and sources. Control the rack or source and the display or sink over the same single wire.
      • POWER FROM CLOUD 9: Ultra stable PoE gives you the ablitiy to power the receiver unit from the Cloud 9.
      • HDMI 2.0
      • HDCP 2.2 & Earlier Supported
      • CEC Pass Through
      • 150 meters (Cat6a)
      • 3-20v protection circuit built in for safe IR transport
      • Bi Directional RS232 Transport
      • Supports uncompressed PCM 2- Ch., LPCM 5.1 & 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, Atmos on HDMI? Video Wall Processor.
    • Specifications:

      • Video
      • Video Resolutions: up to 1080p 60 Uncompressed full HD
      • VESA Resolutions: up to 1900x1200
      • HDR Formats/Resolutions: 1080 Formats only
      • Color Space:YUV (Component) RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Supported
      • Deep Color: Up to 12 Bit

      • Audio Formats Supporter HDMI: PCM 2.0CH, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTs-X, Dolby Atmos
      • Compatible Matrixes: AC-MX9XHDL-HDBT-GEN2

      • HDBaseT: Up to 150m (495 foot)
      • HDMI Out: up to 50 foot

      • Bandwidth: 9GBps
      • HDCP: HDCP 2.2 and earlier

      • HDMI: Type A
      • HDBaseT: RJ45
      • IR: 3.5mm
      • RS232: 3-pin terminal block

      • Operating Temperature: 23° to 125°F (-5° to 51°C)
      • Storage Temperature: -4° to 140°F (-20° to 60°C)
      • Humidity Range: 5 to 90% RH (non-condensing)

      • Power Consumption: 70 Watts
      • Power - POH (Provided by Cloud9 Matrix):
        Input: AC 100-240V~50/60Hz
        Output: DC 48V 3A

      • Unit Dimensions: .78 x 4.13 x 6.30" (20 x 105 x 160mm)
      • Unit Weight: 0.8Lbs (.36kg)
      • Shipping Dimensions: 1.78 x 5.4 x 7.6" (45 x 137 x 194mm)
      • Shipping Weight: 1Lbs (.45kg)
