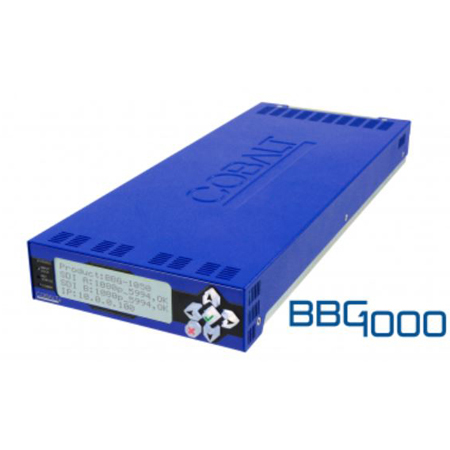

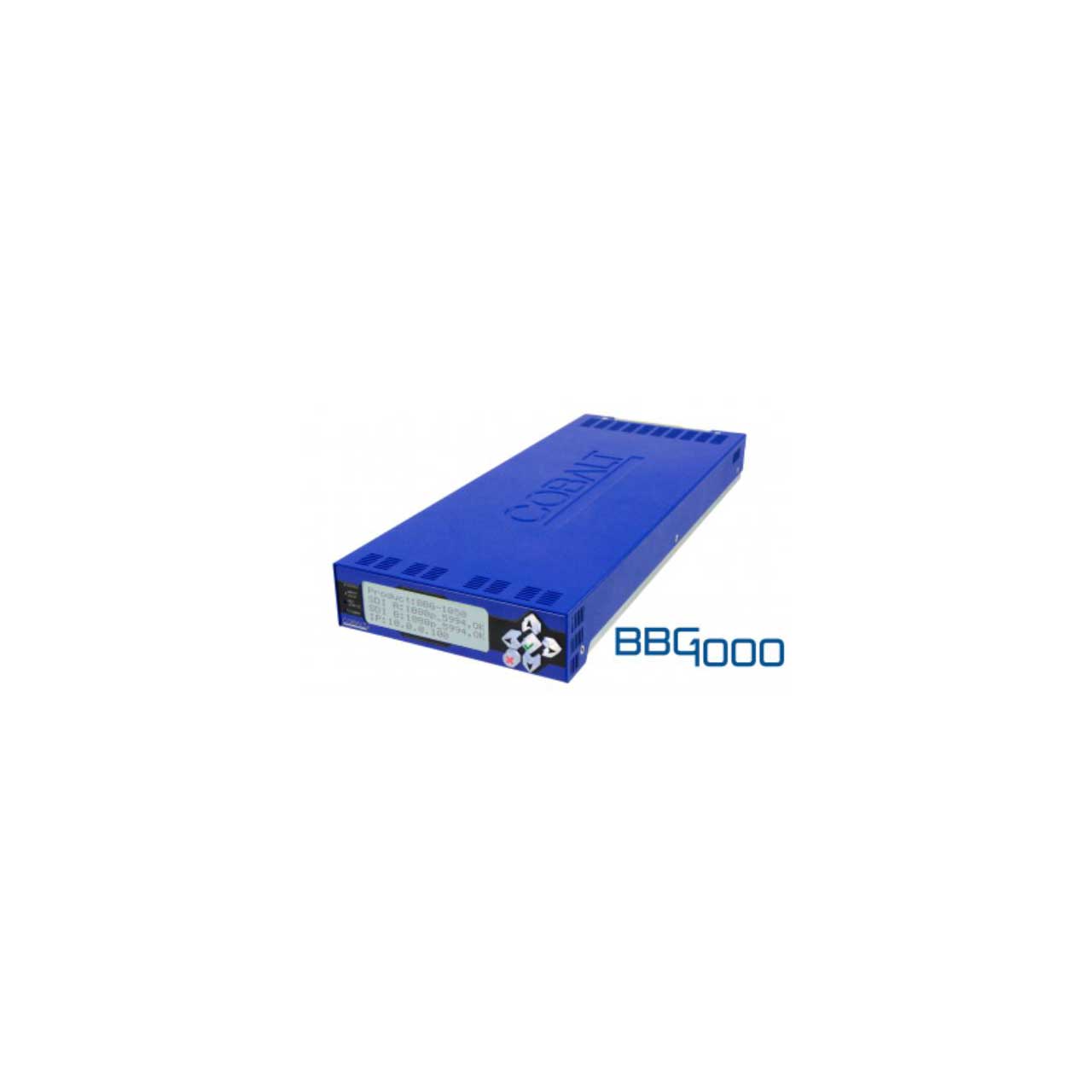

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Cobalt Digital
Free Shipping with $49 Minimum Order

List Price:

$4,615.00

Our Price:

$4,345.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    BBG-1050-EMDE-ANC - Overview

    The Cobalt® BBG-1050-EMDE-ANC 3G/HD/SD-SDI Standalone Ancillary Data Embedder/De-Embedder offers full VANC/HANC ancillary data de-embedding and embedding for 3G/HD/SD-SDI streams. The easy to use user interface allows direct access to DID and SDID locations to extract or insert user data such as camera PTZ, SCTE 104, closed-captioning read/insert, GPI/GPO via ANC, or other specialized user payloads.

    Data insertion and extraction is via serial or IP interfaces. The BBG-1050-EMDE-ANC can be remote-controlled using DashBoard™. The compact standalone form factor allows desktop usage, as well as the 1/3-rack size of the BBG-1050-EMDE-ANC allowing 3 units to be installed in a 1RU space (an optional mounting tray is available that provides secure mounting of the units to a standard 19" frame).

    • Features:

      • Full insertion/extraction access to DID/SDID ancillary data such as camera PTZ, SCTE 104, closed captioning, GPI/GPO via ANC, and other specialized user payloads. HANC/VANC data interchange between SDI and GPIO, serial, and IP/Ethernet interfaces.
      • Full user VANC/HANC access
      • SMPTE 337 embed/de-embed allows serial user data to be embedded and de-embedded over unused embedded audio pairs
      • Low latency pass-thru for all 3G/HD/SD-SDI payloads
      • Latching relay protect SDI output provides input SDI bypass backup even in the event of power failure
      • Low-power/high-density design - less than 18 Watts
      • Compact footprint - up to 3 units in a 1RU space. Optional tray provides secure captive-fastener mounting of 3 units in a 1RU tray.
      • Uses DashBoard remote control (device appears as single-card frame)


    • Specifications:

      • Power
      • < 18 Watts. Power supplied by 12VDC AC adapter, universal input (included).

        SDI Input/Output
      • Number of Inputs: (1) 3G/HD/SD-SDI 75Ω BNC
      • Standards: SMPTE 259M, 292M, 424M
      • Supported Formats:
        1080p60, 59.94, 50, 29.97, 25, 24, 23.98
        1080i60, 59.94, 50
        720p60, 59.94, 50, 29.97, 25, 24, 23.98
        625i50, 525i59.94
      • Return Loss: 15 dB up to 1.485 GHz, 10 dB up to 2.970 GHz
      • Number of Outputs: (1) 3G/HD/SD-SDI 75Ω BNC
      • SDI Signal Level: 800 mV nominal
      • SDI Return Loss: >15 dB up to 1.485 GHz, >10 dB up to 2.970 GHz

        Reference Input
      • Looping 2-BNC connection. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-Level" Return Loss: >35 dB up to 5.75 MHz


    • Item Includes:

      • 1x Cobalt BBG-1050-EMDE-ANC 3G HD SD-SDI Standalone Ancillary Data Embedder - De-Embedder


    • Warranty:

      • Five year warranty
