Datavideo DAC-45 4K Up/Down Cross Converter
  • Datavideo DAC-45 4K Up/Down Cross Converter
  • Datavideo DAC-45 4K Up/Down Cross Converter
Questions? Ask a Markertek Expert:
800-522-2025 Email

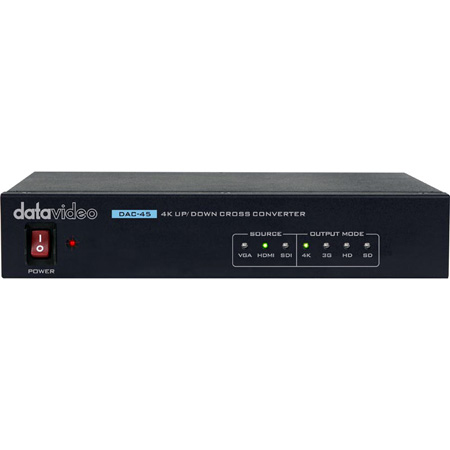

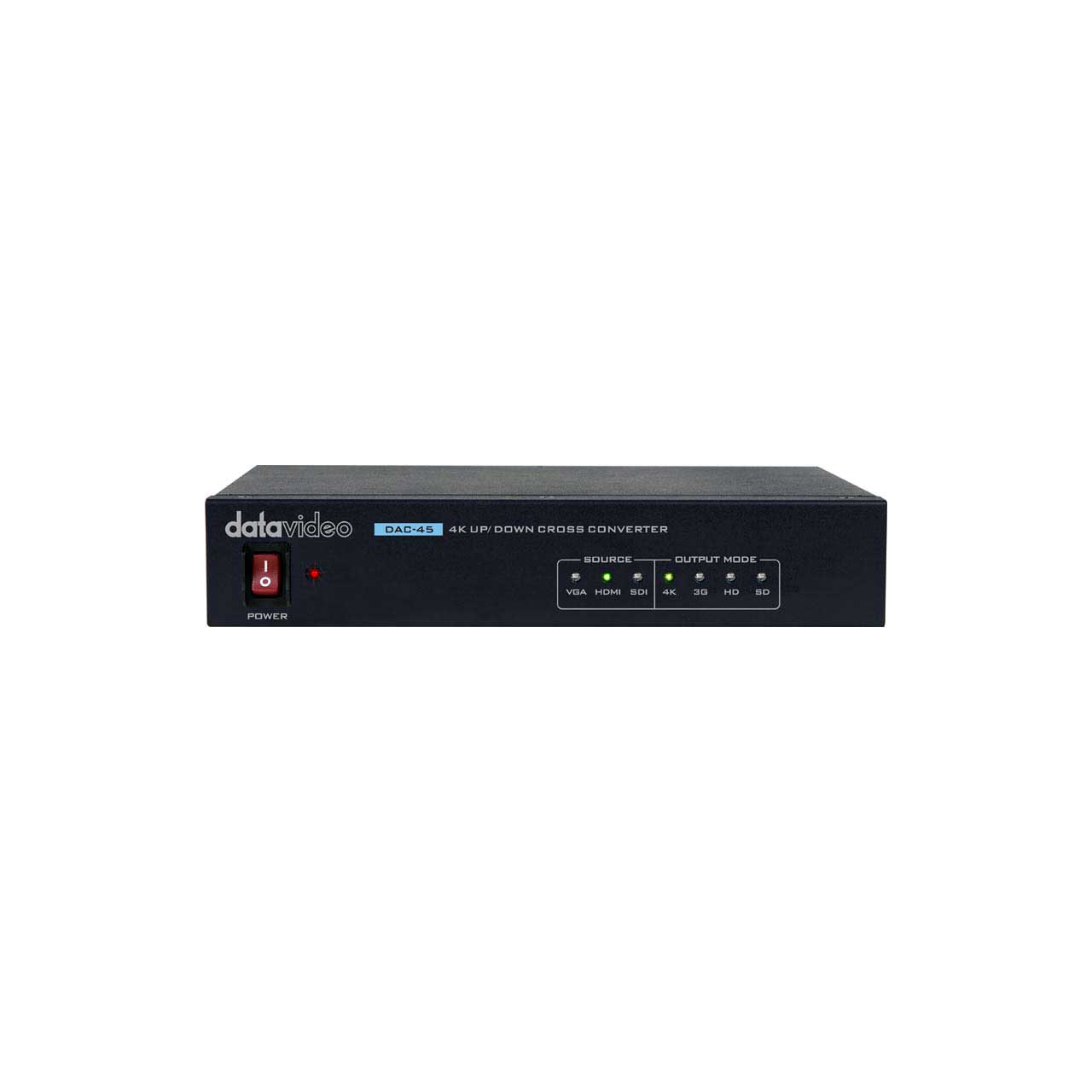

Datavideo DAC-45 4K Up/Down Cross Converter

Manufacturer: Datavideo Corporation

Item #: DV-DAC-45   •   MFG #: DAC-45


Our Price:$849.00

free ship
In Stock
Item is Available for immediate shipping from our warehouse.

    California Residents:
    Cancer and Reproductive Harm -


    The Datavideo DAC-45 has been crowned as the successor to the world-renowned DAC-70, the swiss army knife of video converters. The DAC-45 has all of the same features as the DAC-70, with the addition of 4K HDMI support. Thanks to its built-in super resolution engine, users can now up-convert from SD 480 resolution all the way to 4K resolution with excellent image quality and sharpness.

    Future-proof all your video equipment with the DAC-45. It is a bridge that connects all your equipment together to complete your workflow.

    • Features

      • Built-in Super Resolution Engine for 4K Up Conversion
      • Built-in Resolution & Frame rate Up/Down Conversion Engine
      • Built-in De-interlacer and Interlacer ( IP conversion)
      • Can be used as a distribution amplifier, since all outputs are active at the same time
      • Proc Amp
      • The DAC CENTER software allows adjustment of HDMI color space
      • Dip switch settings chart is printed on the bottom of the DAC-45 for easy access
      • Available RMK-1 rack allows two DAC-45 to be racketed in a 19" rack
      • HDMI strain relief protects your cable and helps keep it in place
      • Support of various resolutions and HDMI color space allow consumer laptops to be used in a professional workfl ow
      • Audio embedder
      • Can convert VGA signal to 4K HDMI or HD-SDI
    • Specifications

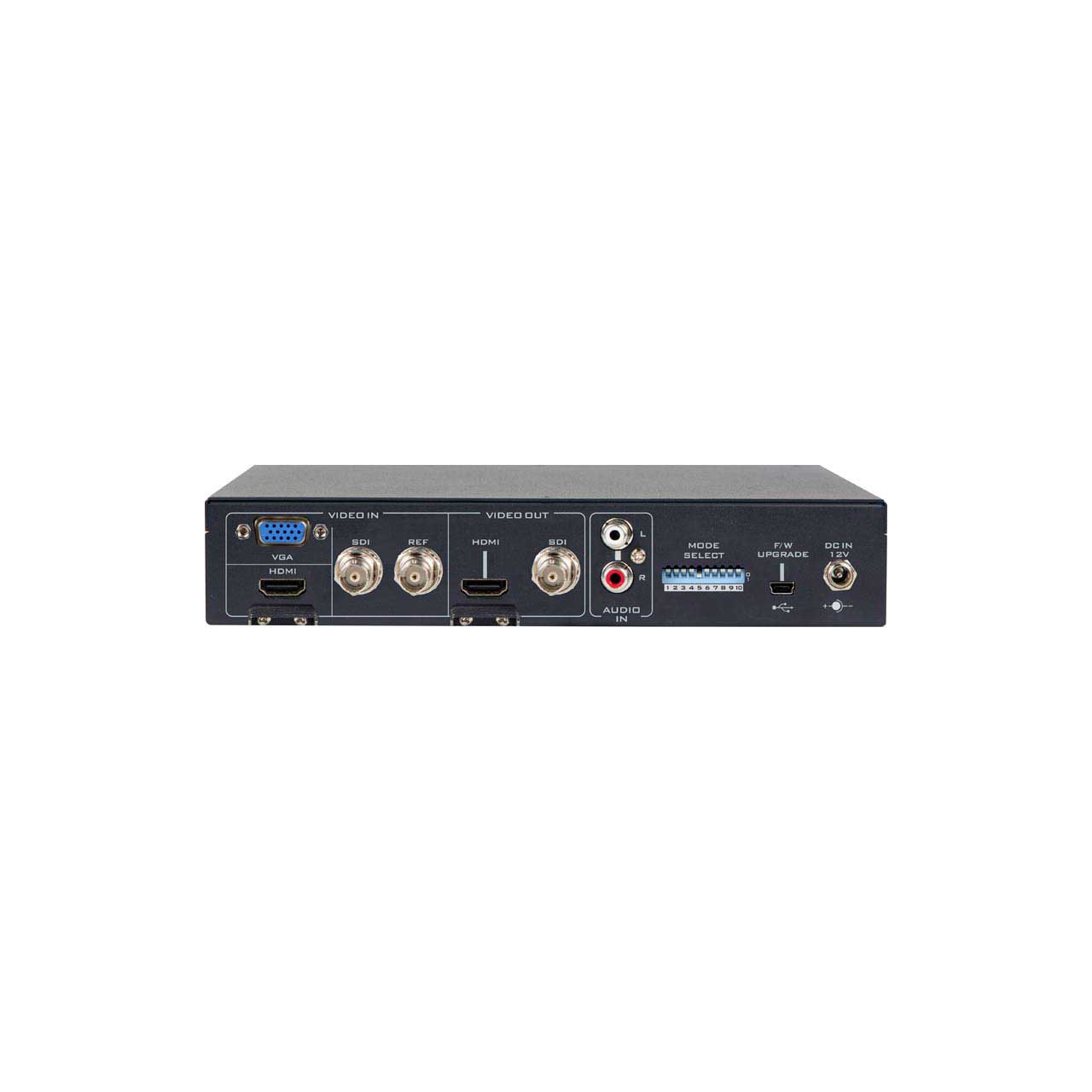

      • Interface
      • Inputs: VGA x1 , HDMI x1 , HD/SD-SDI x1
      • RCA x 2 (Unbalanced Audio L/R), Reference Input x1
      • Outputs: SDI x1, HDMI x1
      • Indicator-
      • Power LED: 1x
      • Source LED: 3x (VGA, HDMI, SDI)
      • Output Format LED: 3x (4K, 3G, HD, SD)
      • F/W Updates and Configuration: Mini USB x1
      • DC IN: DC Jack

      • Video Process: SDI: YUV422 / HDMI: YUV422/YUV444/RGB444/YUV420(4K only)
      • Supported Audio Format-
      • Input: Unbalanced Audio L/R : stereo audio / SDI embedded audio : up to 8ch, 48KHz, PCM audio / HDMI embedded audio : up to 8ch, 44.1/48/96KHz, PCM audio
      • Output: SDI embedded audio : up to 8ch, 48KHz, PCM audio / HDMI embedded audio : up to 8ch, 48KHz, PCM audio
      • Frame Delay: I: 2~3 fields, P: 0~1 frames

      • Settings Control: Dip Switch
      • Power Supply: DC 12V / 1A (9.4W)
      • Operating Temperature: 32°F to 104°F
      • Humidity: 10% to 80%
      • Dimensions (mm): 220 x 143.3 x 42
      • Weight: 1.0 Kg
      • Certification: CE, FCC
    • Item Includes

      • 1x DAC-45 product
      • 1x AD Switch DC 12V
      • 1x Thank You Card
